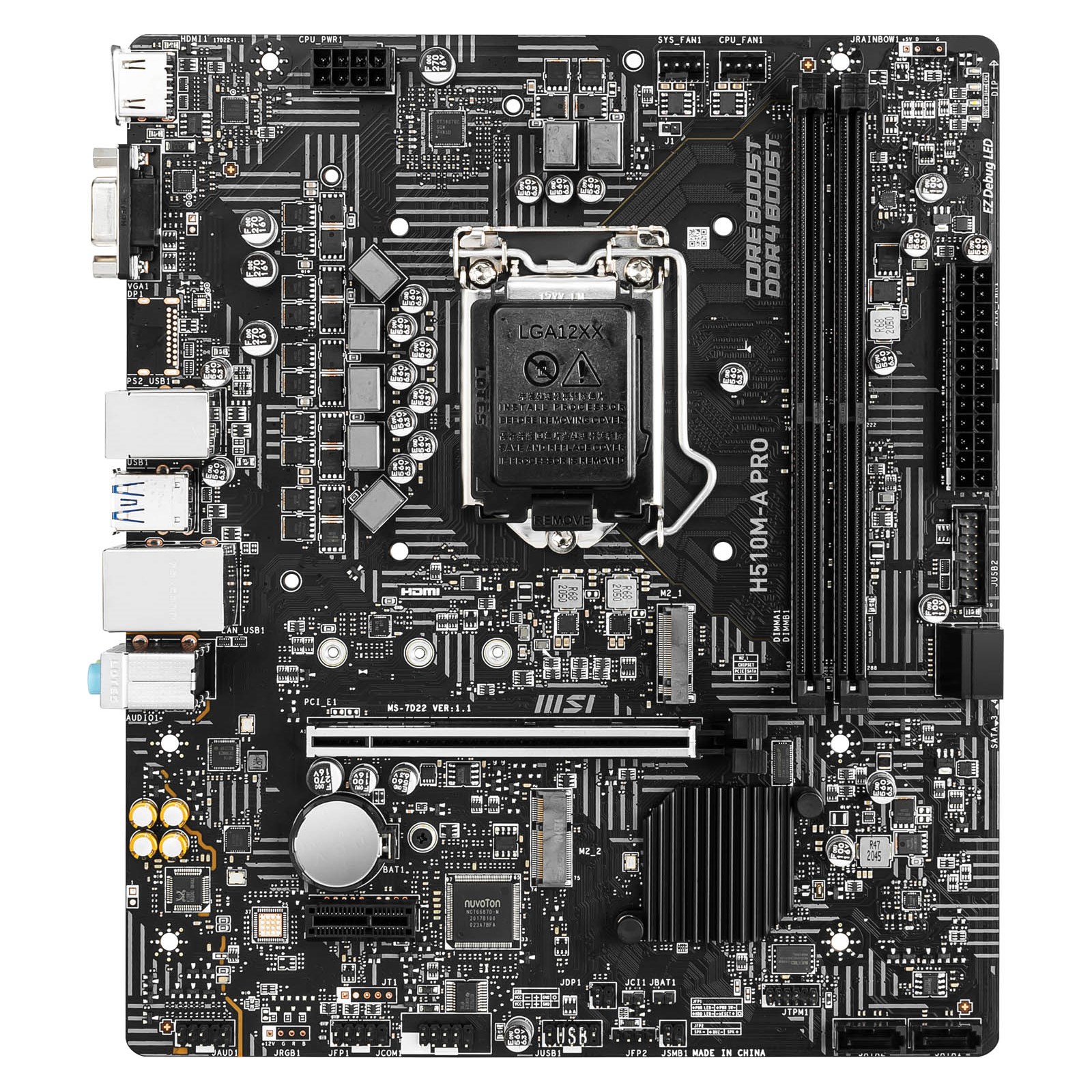

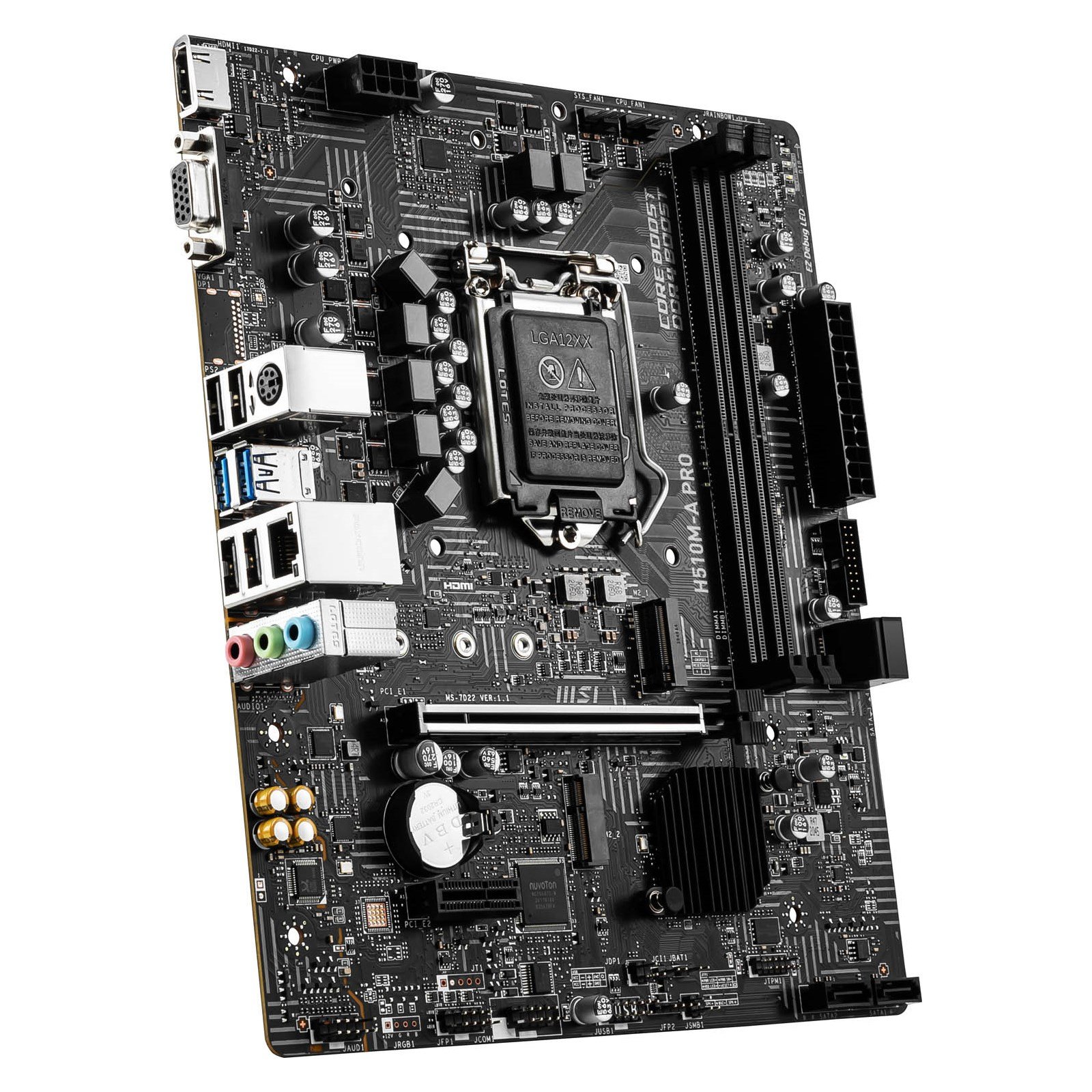

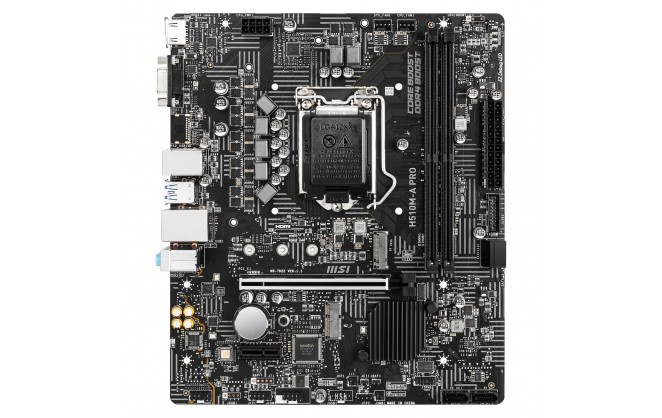

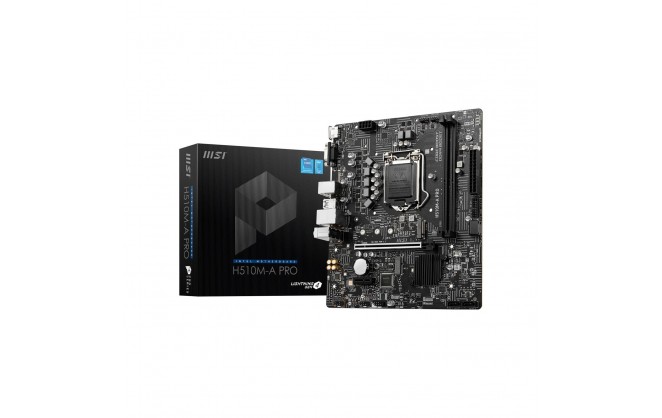

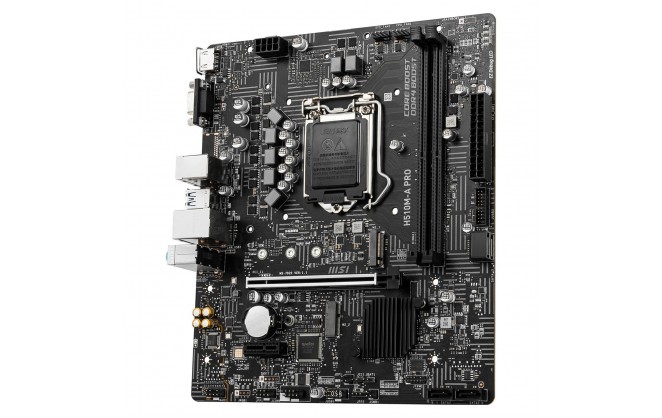

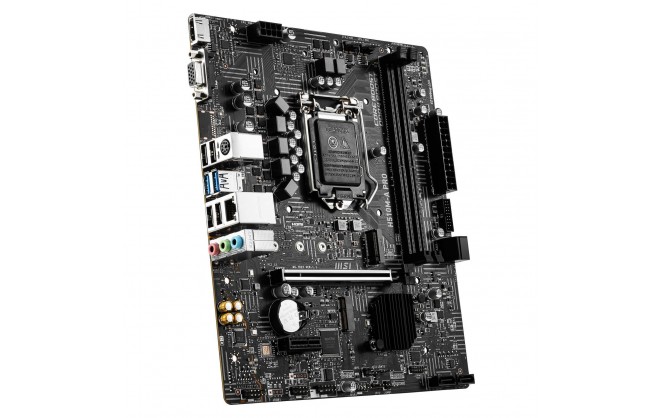

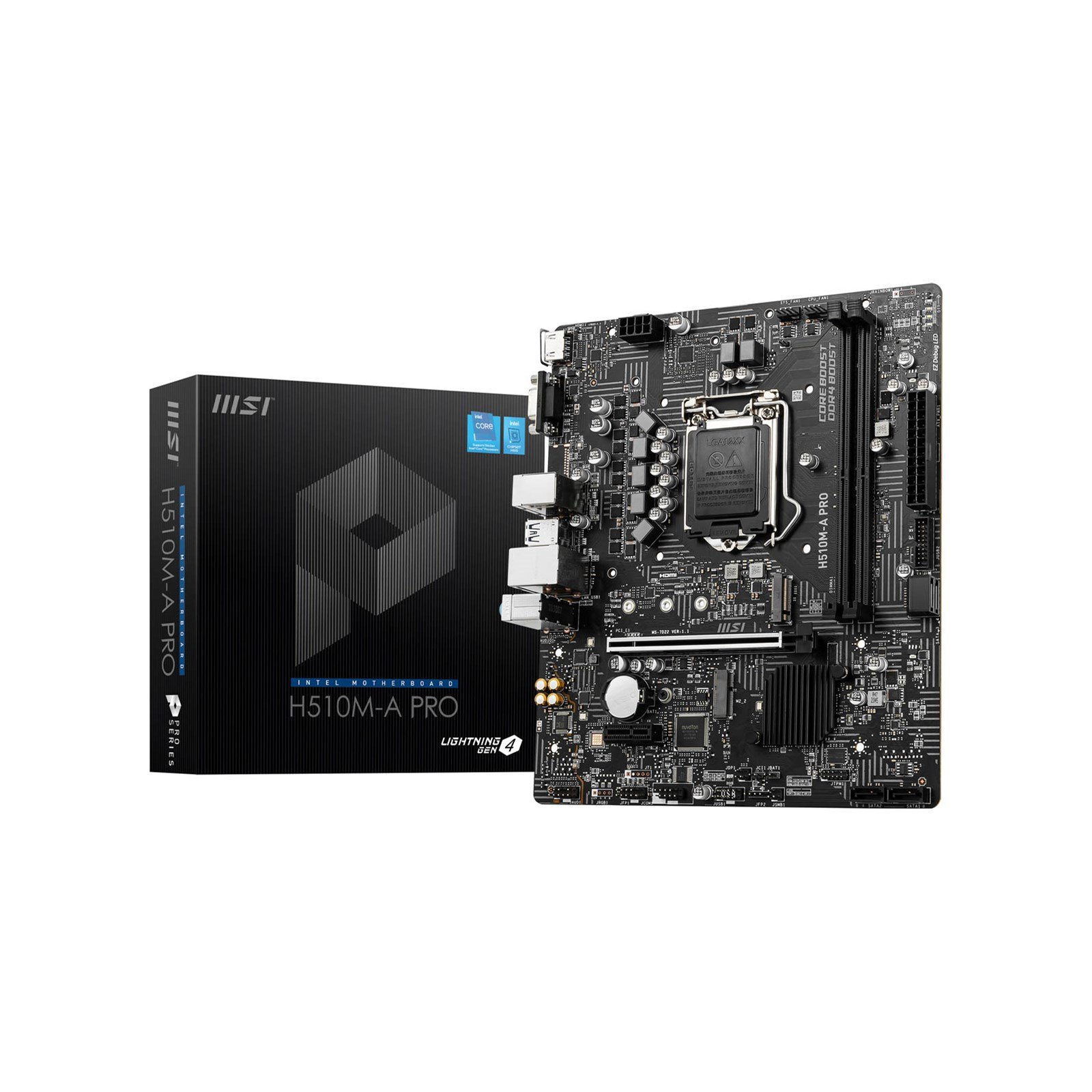

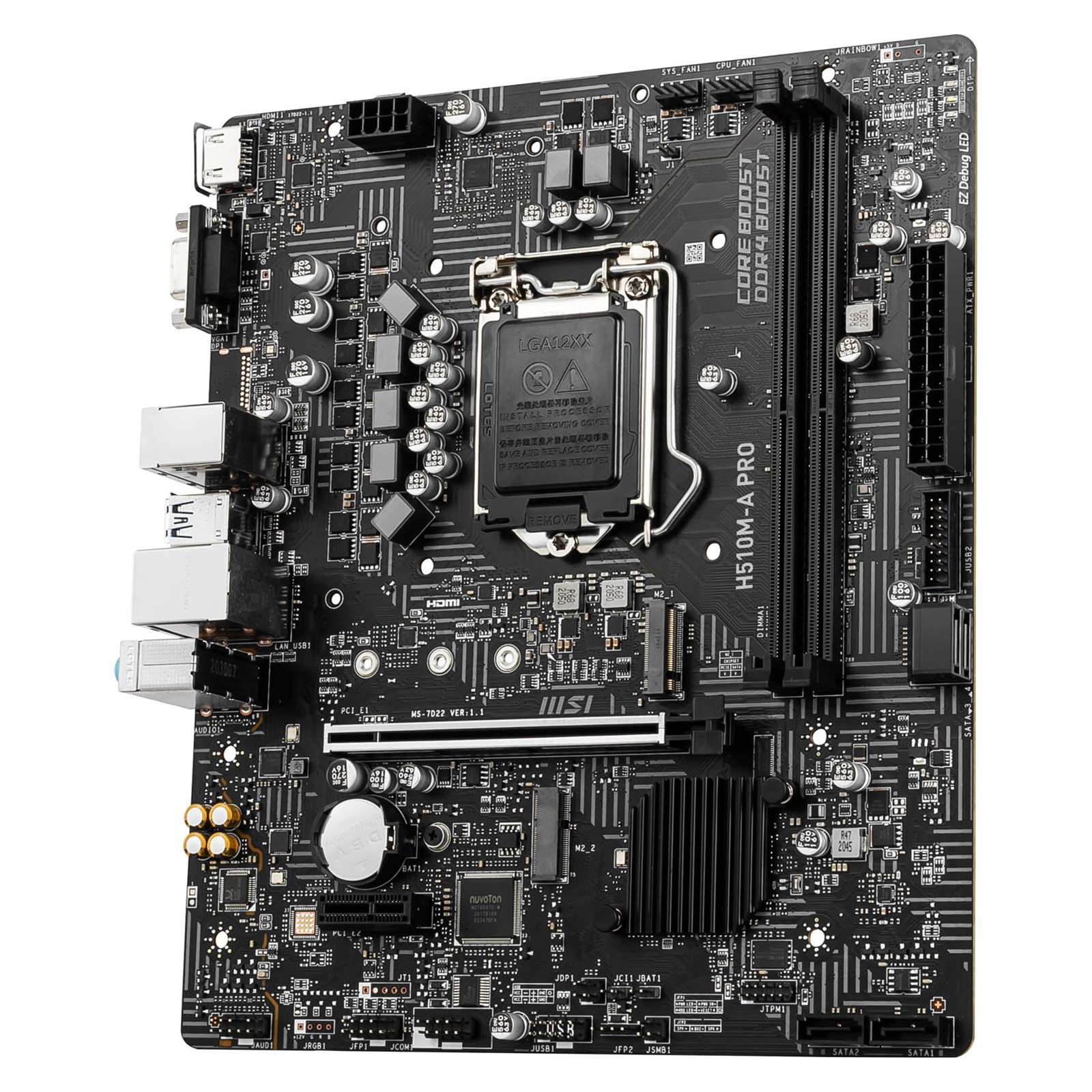

MSI H510M-A PRO Intel Socket 1200 Motherboard

  • Part Number: H510M-A PRO
  • Manufacturer: MSI
  • Quickfind Code: 135653
  • Stock: In Stock

£58.99 ex. vat
£70.79 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1200
  • Chipset H510
  • Form Factor mATX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Main Features

  • Supports 11th Gen Intel Core proceesors, 10th Gen Intel Core / Pentium / Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 3200(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Technical Specification

MSI H510M-A PRO Intel Socket 1200 Motherboard

CPU

CPU SocketSocket 1200
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors11th Gen Intel Core Processors, 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1200

Rear Panel I/O Ports

USB Ports2 x USB 3.0
4 x USB 2.0
HDMI Port1 x HDMI 2.0b
VGA Port1 x D-Sub
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x System fan header
Serial Connectors1 x COM header
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x TPM header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, M Key, Type 2242/2260/2280 (PCIe Gen3 or SATA)
1 x M.2 slot, E Key, Type 2230 for WiFi Module only

Memory

Memory Bus Speed2133/ 2666/ 2933/ 3200 MHz
Memory TypeDDR4
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeH510
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek ALC897

Warranty

Warranty3 Years

Network

Integrated NetworkIntel I219-V
Network Speeds SupportedUp to 1 Gbps
Wireless LANNo
BluetoothNo

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorMicroATX Motherboard
In The BoxH510M-A PRO Motherboard
Quick Installation Guide
MSI Case Badge
M.2 Screw / Standoff Set
2 x SATA Cables
Driver DVD
I/O Shield
Product Registration Card
Width236 mm
Length202 mm

Key Features

FirewireNo
Wireless NetworkNo
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports6 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionYes
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionNo
Motherboard Form FactormATX
Motherboard Power Connectors4 + 4-Pin
Motherboard ChipsetIntel H510
ThunderboltNo
Motherboard ModelMSI H510M-A PRO
USB 3.1 SupportNo
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlNone
Memory Speed3200 MHz
RGB Header TypeNone
Addressable RGBNo

Item Details

ManufacturerMSI
Manufacturer CodeH510M-A PRO
EAN4719072802905
UPC824142242339
ConditionNew
