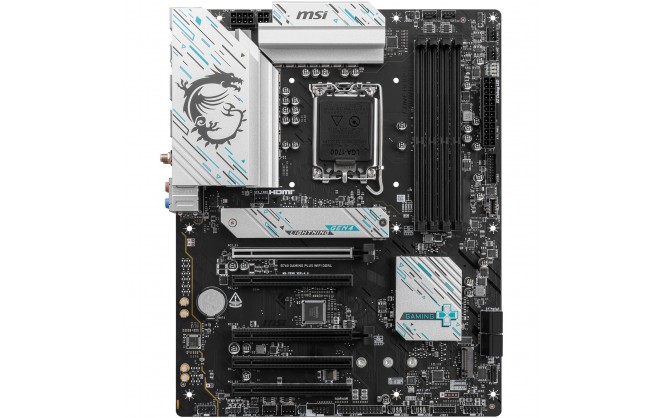

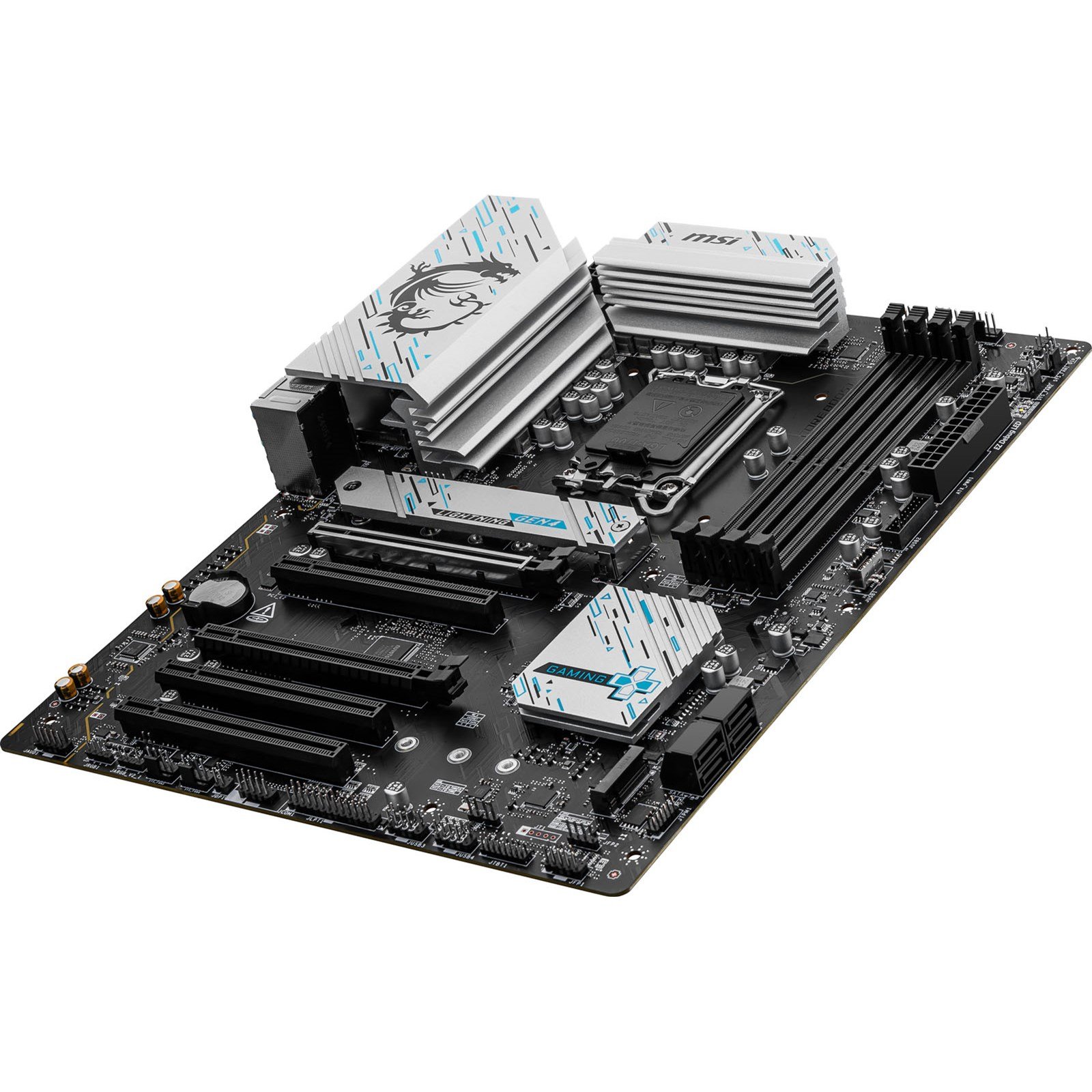

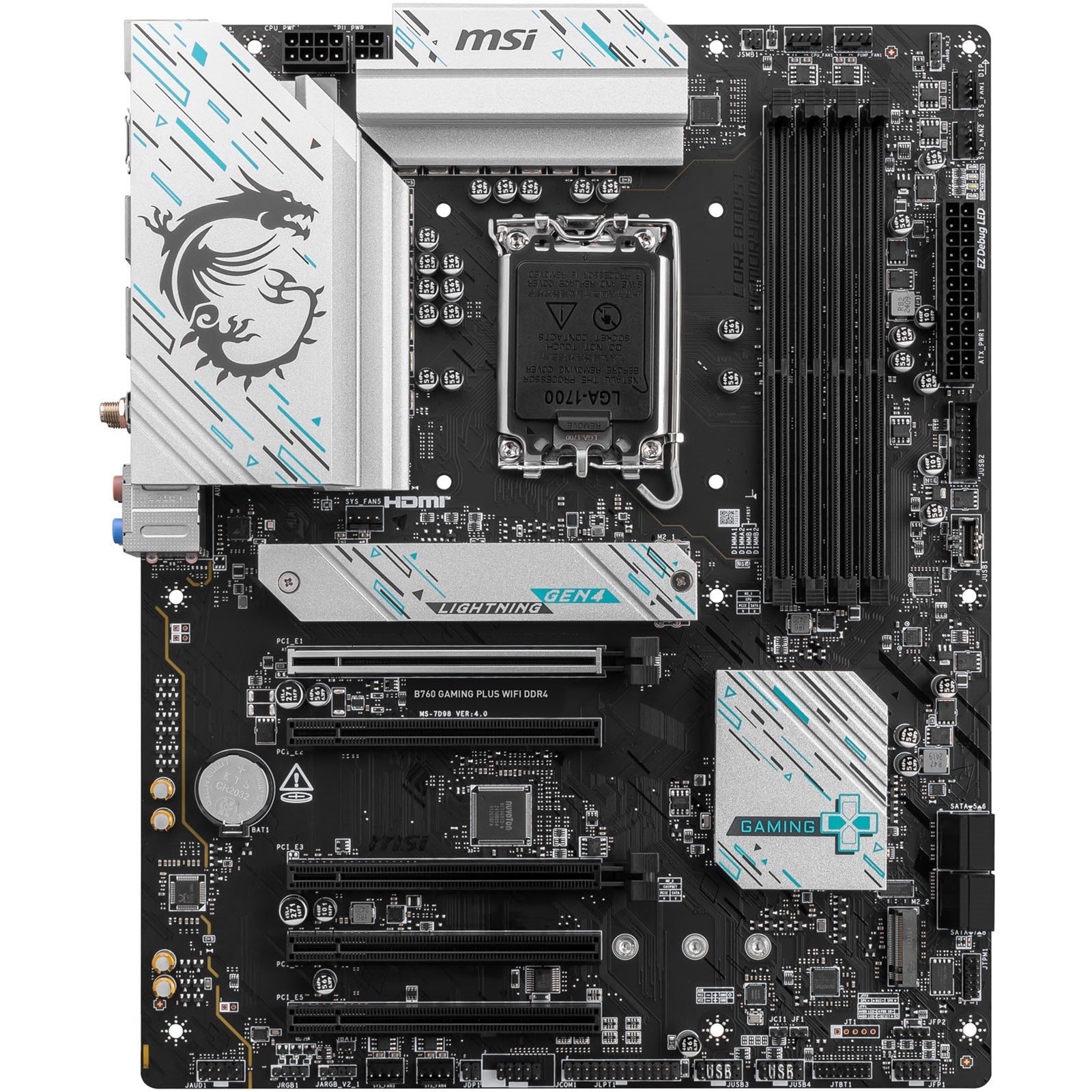

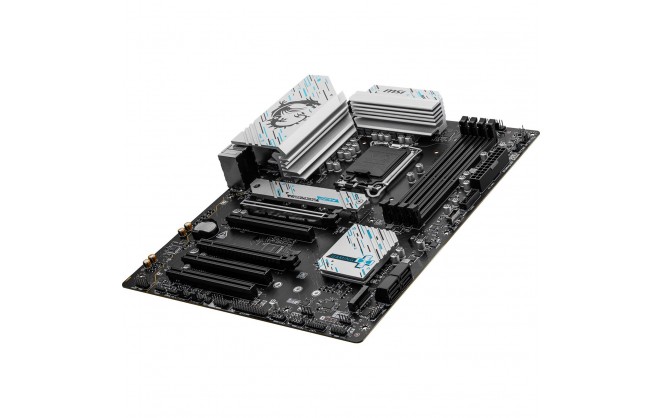

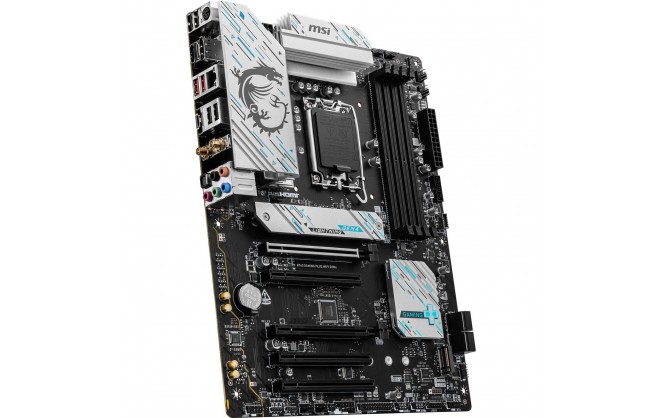

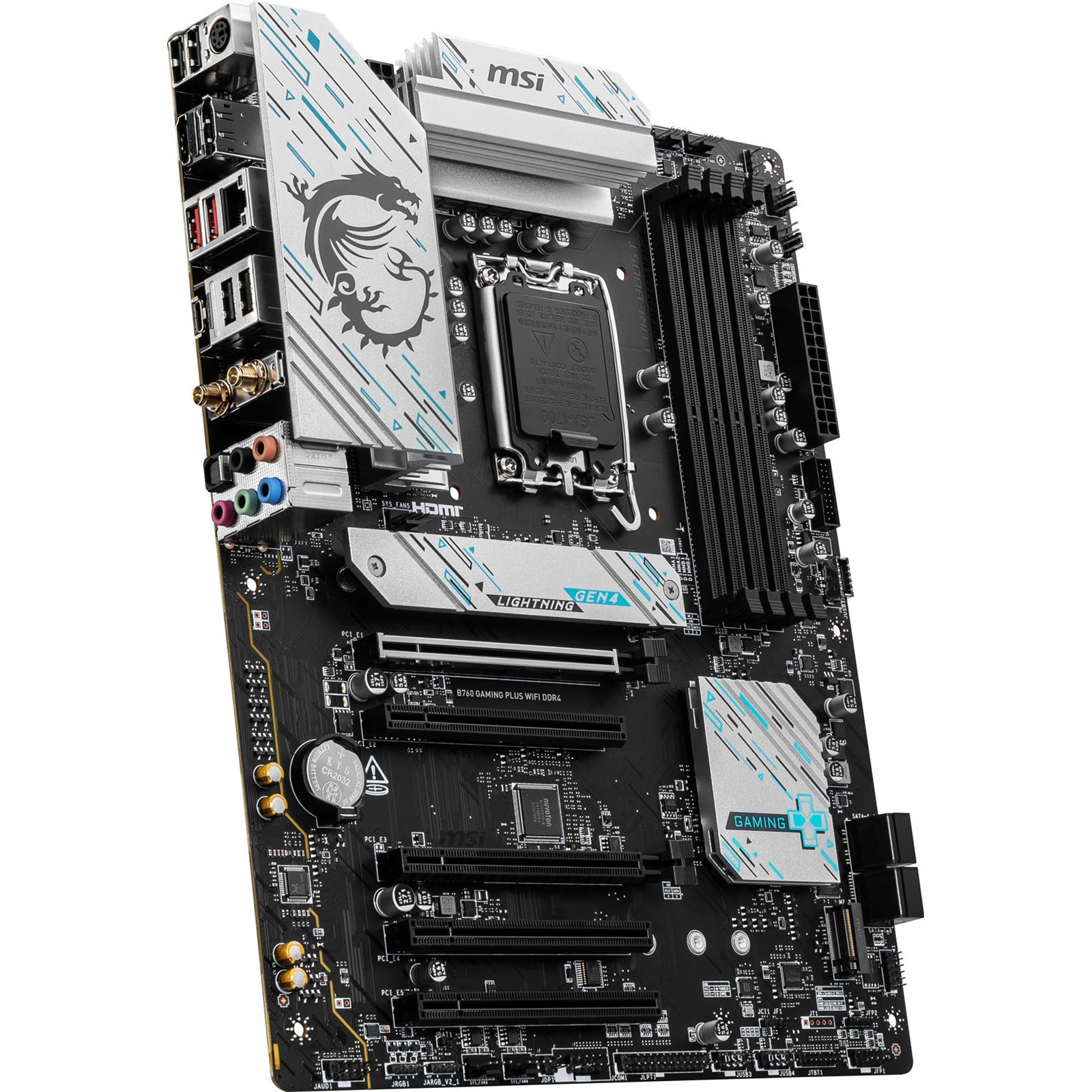

MSI B760 GAMING WIFI R2.0 DDR4 ATX Socket 1700 Motherboard

£169.99 ex. vat
£203.99 inc. vat

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR4 Memory, up to 5333+(OC) MHz
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Pump fan header 5 x System fan headers
Parallel Connectors	1 x JLPT header
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Type 2242/2260/2280/22110 (PCIe Gen4) 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA) 2 x 3-pin ARGB headers 1 x 4-pin RGB header

Memory

Motherboard

Expansion

Number of PCI Express Slots

2 x PCI Express 4.0 x16 slots (@ x16/x4)
3 x PCI Express 3.0 x16 slots (@ x1/x1/x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Physical

Form Factor	ATX Motherboard

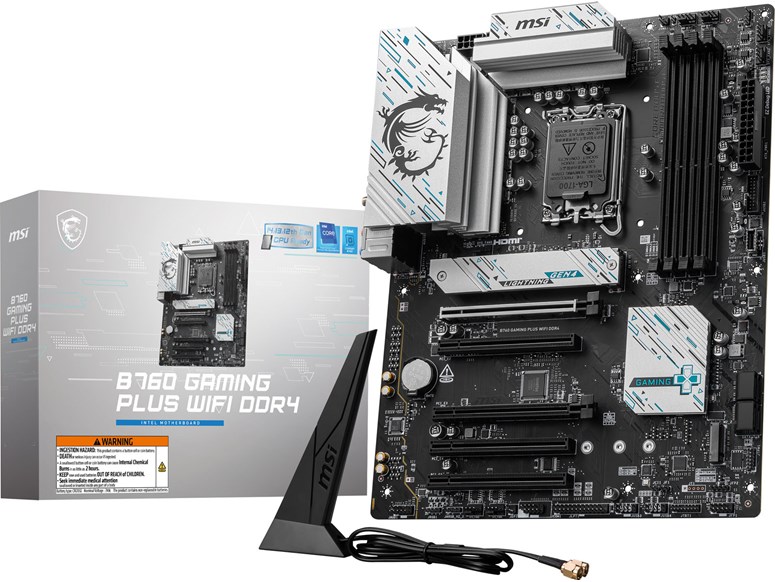

In The Box	Motherboard EU Regulatory Notice Quick Installation Guide M.2 Screw / Standoff Set SATA Cable Wi-Fi Antenna I/O Shield
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	7 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	MSI B760 GAMING PLUS WIFI DDR4
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	3200 MT/s
Max Memory Speed Supported (overclocked)	5333 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
