PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

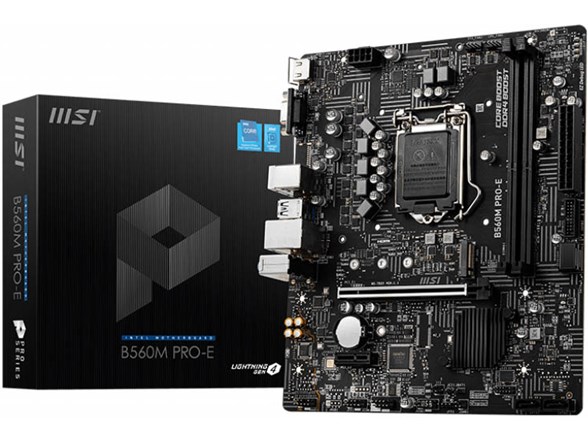

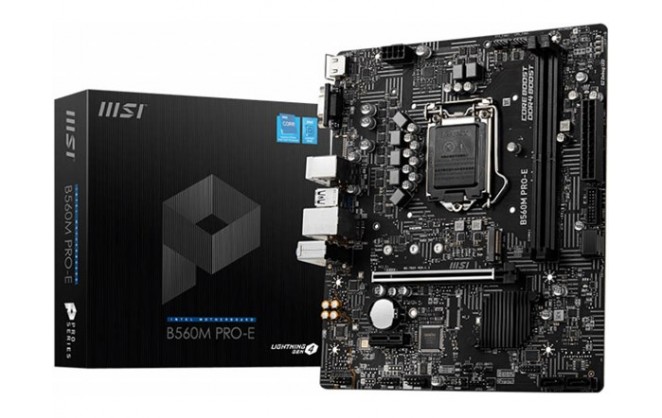

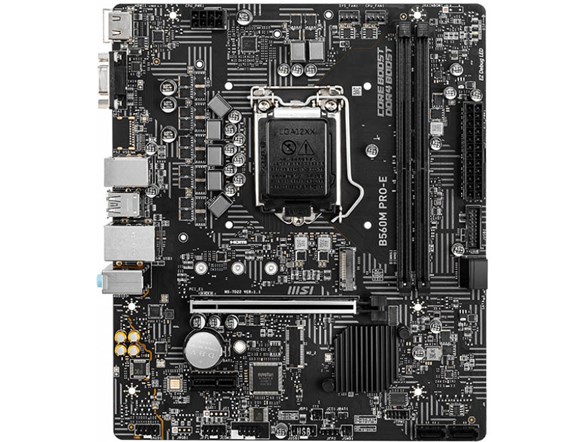

MSI B560M PRO-E mATX for Intel 10/11th Gen LGA1200 CPUs OEM Motherboard
CPU
| CPU Socket | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 11th Gen Intel Core Processors, 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |

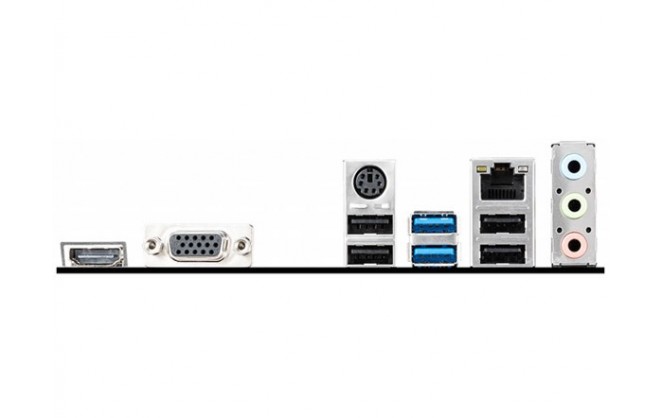

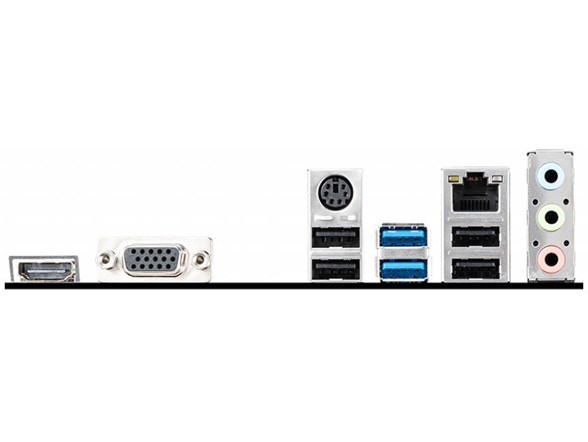

Rear Panel I/O Ports
| USB Ports | 2 x USB 3.0 4 x USB 2.0 |
| HDMI Port | 1 x HDMI 2.0b |
| VGA Port | 1 x D-Sub |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x System fan header |
| Serial Connectors | 1 x COM header |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x TPM header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, M Key, Type 2242/2260/2280 (PCIe Gen3 x4 or SATA) |
Memory
| Memory Bus Speed | 2133/ 2666/ 2933/ 3200 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B560 |
| RAID Supported | No |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC897 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel I219-V |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | MicroATX Motherboard |
| In The Box | B560 PRO-E Motherboard Quick Installation Guide MSI Case Badge M.2 Screw / Standoff Set 2 x SATA Cables Driver DVD I/O Shield Product Registration Card |
| Width | 236 mm |
| Length | 202 mm |
Key Features
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | mATX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | Intel B560 |
| Thunderbolt | No |
| Motherboard Model | MSI B560M PRO-E |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
| Memory Speed | 3200 MHz |
| RGB Header Type | None |
| Addressable RGB | No |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | B560M PRO-E |
| EAN | 4719072807856 |
| Condition | New |
