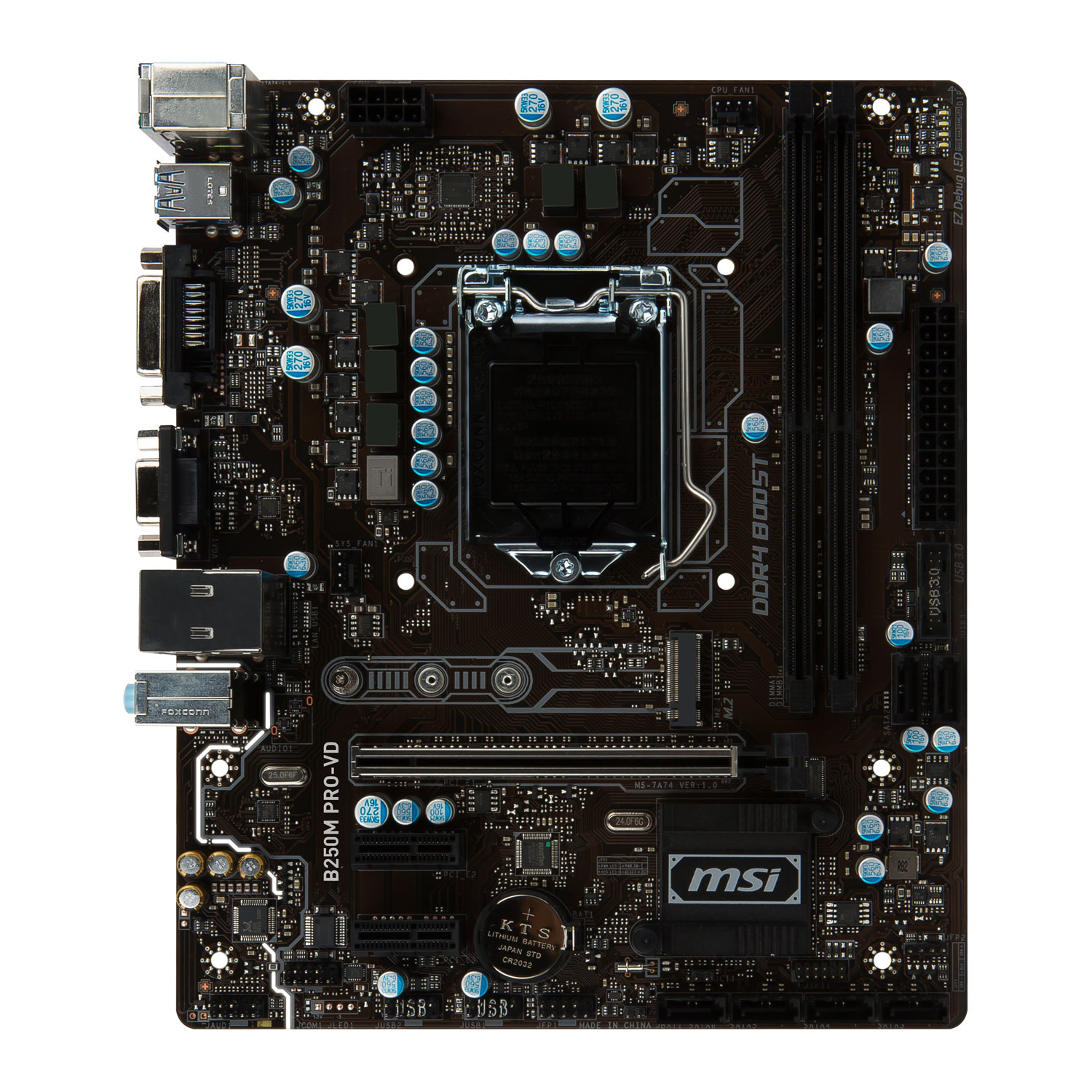

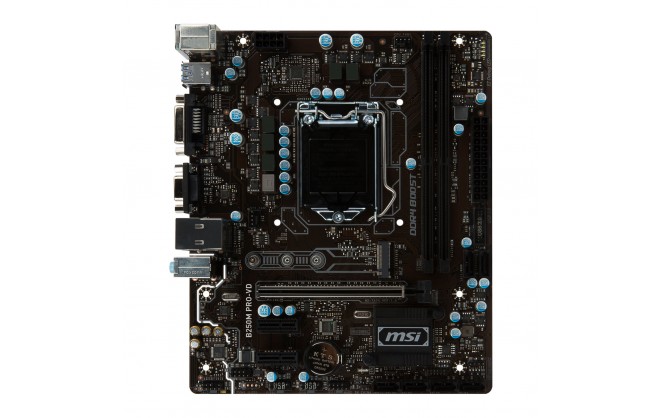

MSI B250M PRO VD Intel B250 Socket 1151 Kaby Lake Micro ATX Motherboard

Part Number: B250M PRO VD
Manufacturer: MSI
Quickfind Code: 135874

Stock: In Stock

£69.99 ex. vat
£83.99 inc. vat

Product Features:

Condition: New
Socket Type 1151
Chipset B250
Form Factor mATX
Memory Type DDR4
CPU Type Intel

+ Read More Information

Product Description

Features• Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket.
• Supports DDR4-2400 Memory.
• DDR4 Boost: Give your DDR4 memory a performance boost.
• Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience.
• EZ Debug LED: Easiest way to troubleshoot.
• Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready.
• X-Boost: Great tool to boost your USB & Storage performance.
• Double ESD Protection: Double layer grounding motherboard mounting holes.
• Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency.
• Click BIOS: Secure and Reliable UEFI BIOS solution.

Technical Specification

MSI B250M PRO VD Intel B250 Socket 1151 Kaby Lake Micro ATX Motherboard

Model
Brand	MSI
Model	B250M PRO-VD

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Supports 6th/7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151 * Not Compatible with Intel 8th Gen CPUs

Chipsets
Chipset	Intel B250

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	7th Gen processors support DDR4 2400/ 2133 6th Gen processors support DDR4 2133 * Please refer to www.msi.com for more information on compatible memory. ** DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6th Gen processors on XMP mode.
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCIe 3.0 x1 slots

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2 slots (Key M)* - Support up to PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/2260/2280 storage devices - Intel Optane Memory Ready - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host card** * The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot. ** The Turbo U.2 Host Card is not included, please purchase separately.

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	10/100/1000Mbps

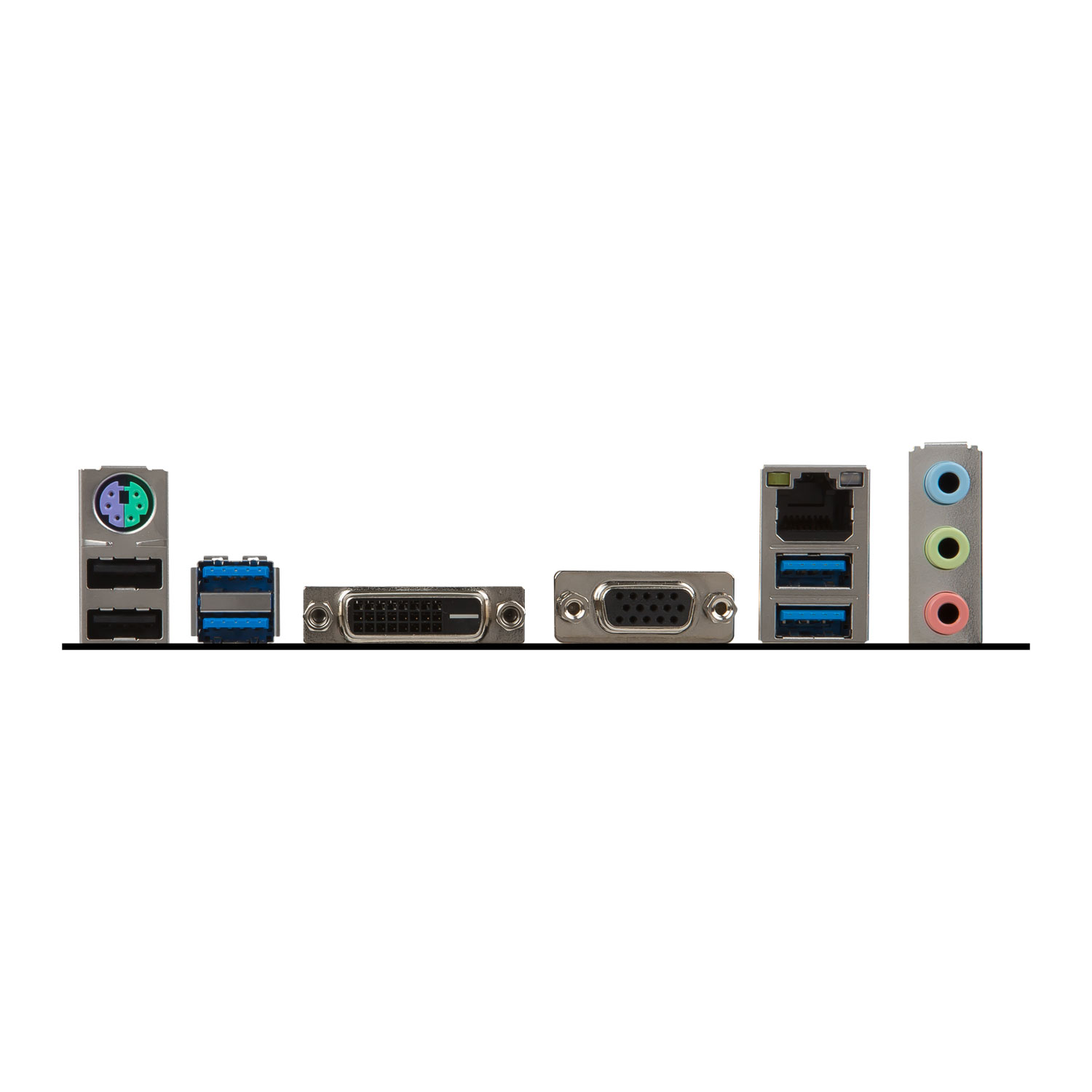

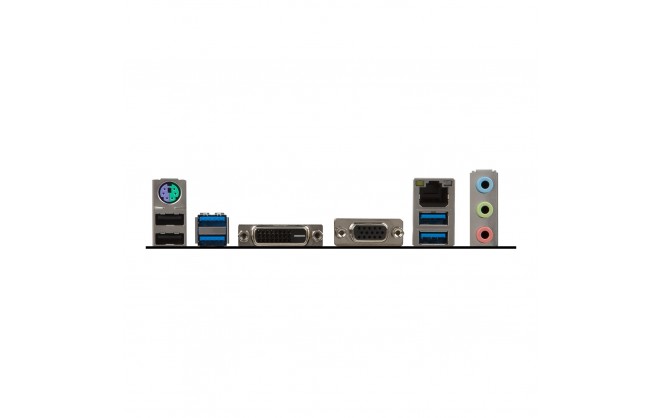

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D port 1 x VGA port
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen1 ports
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 7.3"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-2400 Memory DDR4 Boost: Give your DDR4 memory a performance boost Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience EZ Debug LED: Easiest way to troubleshoot Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready X-Boost: Great tool to boost your USB & Storage performance Doublo ESD Protection: Double layer grounding motherboard mounting holes Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency Click BIOS: Secure and Reliable UEFI BIOS solution
