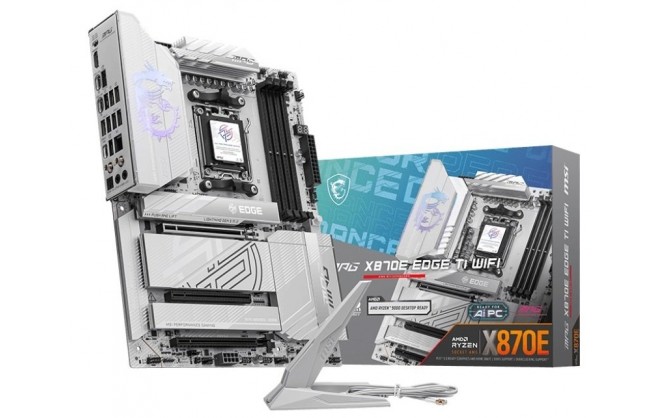

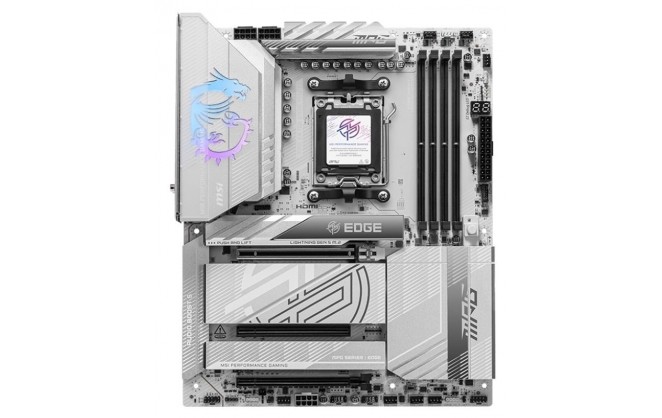

MSI AMD MPG X870E EDGE TI WIFI AM5 ATX Motherboard

  • Part Number: MPG X870E EDGE TI WIFI
  • Manufacturer: MSI
  • Quickfind Code: 136372
  • Stock: In Stock

£297.65 ex. vat
£357.18 inc. vat

Product Features:
  • Condition: New
  • Socket Type AM5
  • Chipset X870
  • Form Factor ATX
  • Memory Type DDR5
  • CPU Type AMD
+ Read More Information

Share:

Product Description

MSI AMD MPG X870E EDGE TI WIFI AM5 DDR5 ATX Gaming Motherboard





MPG X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.

Key Features

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
  • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Technical Specification

MSI AMD MPG X870E EDGE TI WIFI AM5 ATX Motherboard

Core Specifications
EditionMPG X870E EDGE TI WIFI
Form FactorATX
CPU SocketAM5
ChipsetAMD X870E
RAM Memory Support
Memory TypeDDR5
Memory ChannelDual (2)
Memory Type (ECC)Non-ECC
Memory Type (R/U)UDIMM (Unbuffered)
Memory Speed (Mhz)DDR5 - 8400(OC)
Max. Memory Capacity256GB
Audio
Audio7.1 Channel HD Audio
Graphics Support
Primary GPU InterfacePCIe 5.0 (x16)
NVIDIA SLI SupportNot Supported
AMD CrossFire SupportN/A
Integrated GraphicsRequires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI
  • USB 4.0
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x M.2, 22-80/110, PCIe Gen5x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA SupportSATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 1 x 8-pin PCIe (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 6 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM Header
  • 4 x USB 2.0 Port
  • 4 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 5 Gigabit LAN (100/1000/2500/5000)
Network Chip/Modules
  • 1 x 802.11be WiFi 7 + BT5.4
  • 1 x Realtek (5GbE LAN)

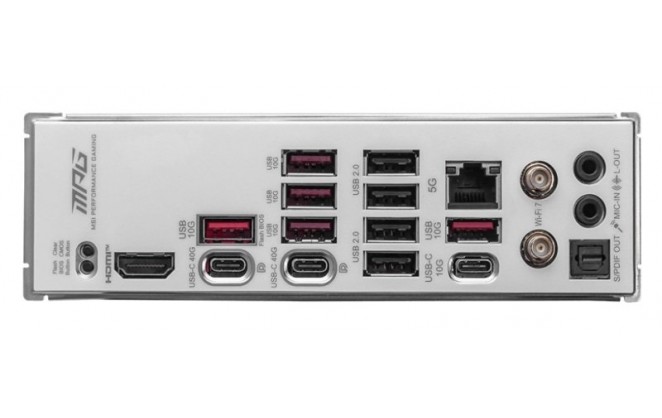

Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 4 x USB 2.0
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x USB 4.0 Type-C
Additional Specifications
Water CooledNo
CoolingPassive Heatsinks
QPI SpeedN/A
Board Dimensions243.84 x 304.8 mm
Note
Additional Information

Model NumberMPG X870E EDGE TI WIFI
GTIN4711377290630
