Gigabyte Z890 GAMING X WIFI7 Socket 1851 ATX Motherboard

  • Part Number: Z890 GAMING X WIFI7
  • Manufacturer: Gigabyte
  • Quickfind Code: 136338

  • Stock: In Stock

£204.16 ex. vat
£244.99 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1851
  • Chipset Z890
  • Form Factor ATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

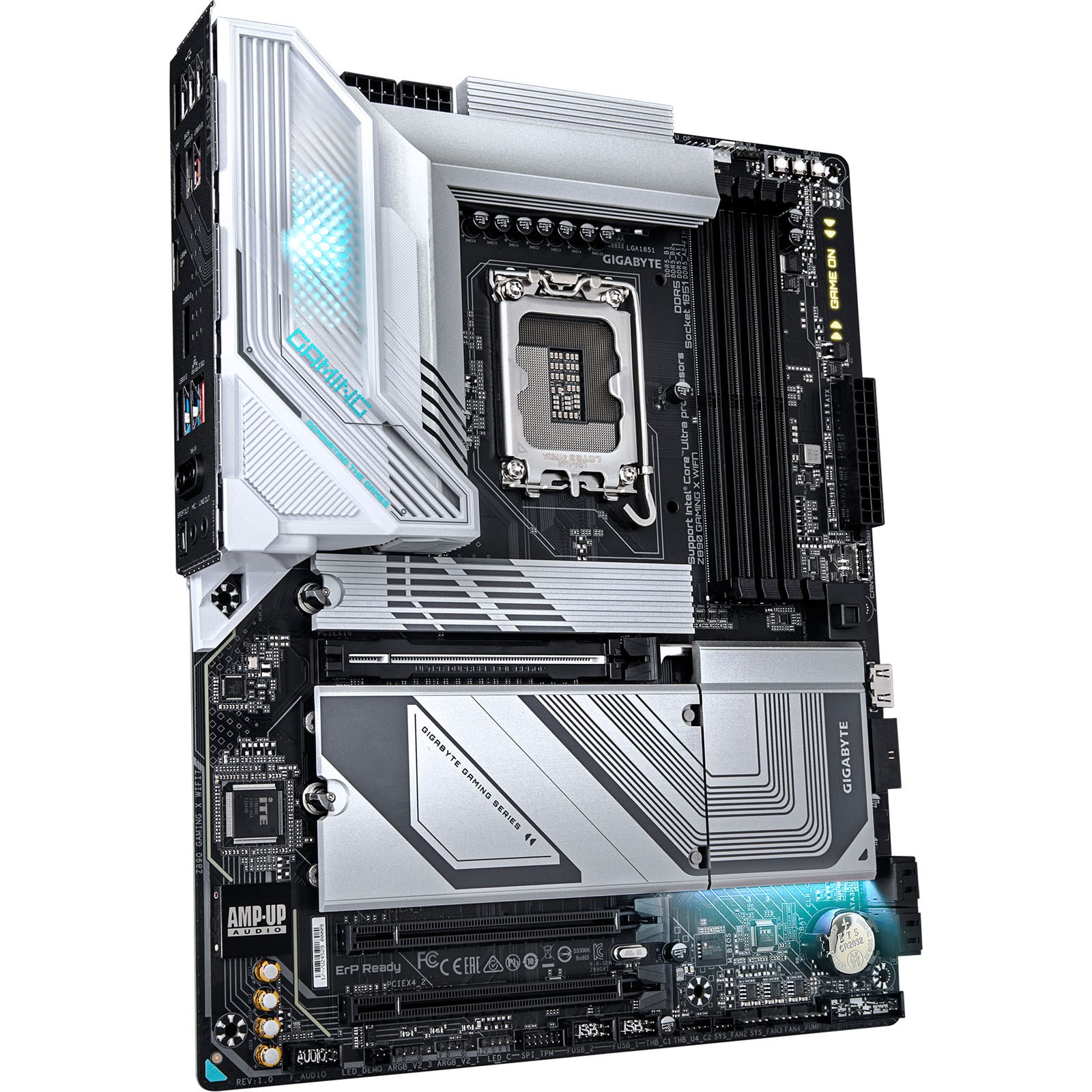

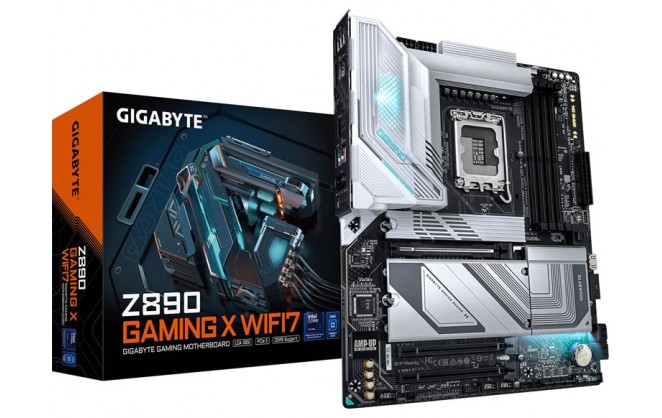

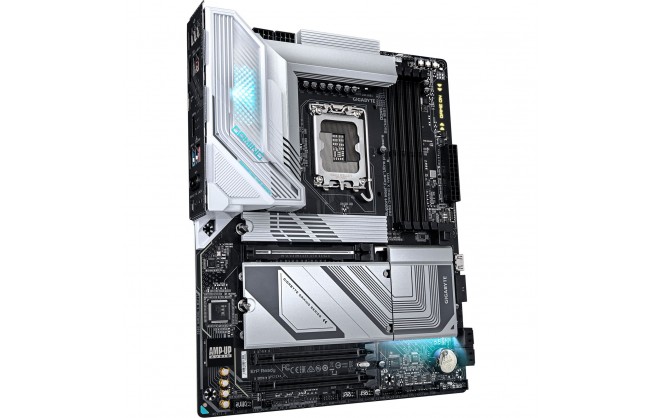

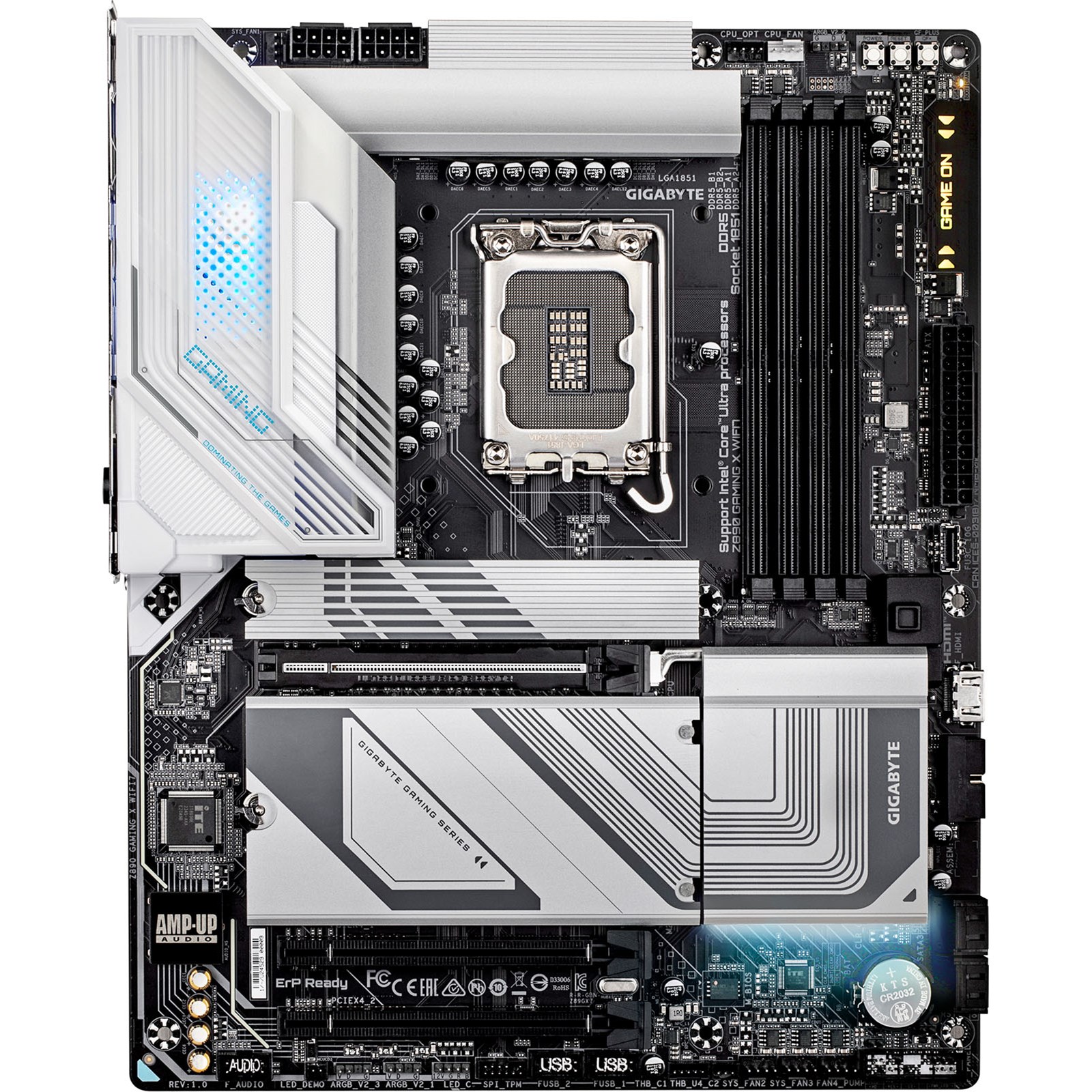

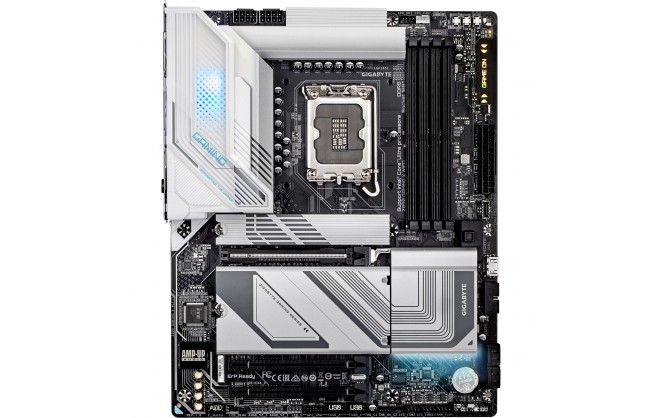

Gigabyte Z890 GAMING X WIFI7 Motherboard

Main Features

  • Supports Intel Core Ultra processors (Series 2)
  • Digital twin 16+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AORUS AI SNATCH: Auto-Overclocking Software by AI models
  • AI Perfdrive: Provides optimal and customized BIOS preset profile for users
  • Premium Compatibility: 4* DDR5 with XMP Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage: 4* M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Technical Specification

Gigabyte Z890 GAMING X WIFI7 Socket 1851 ATX Motherboard

CPU

CPU SocketSocket 1851
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported ProcessorsIntel Core Ultra Processors
64-bit SupportYes
SocketLGA1851

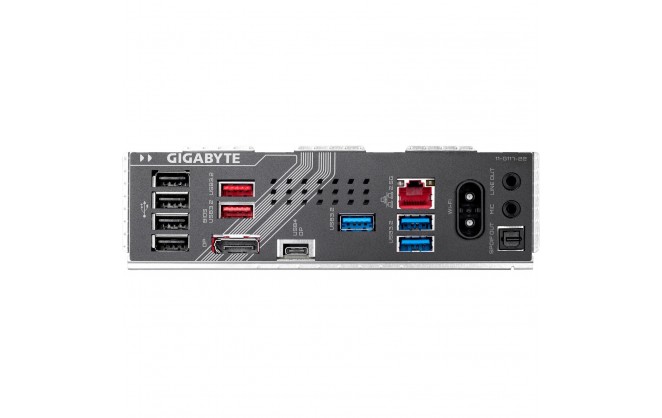

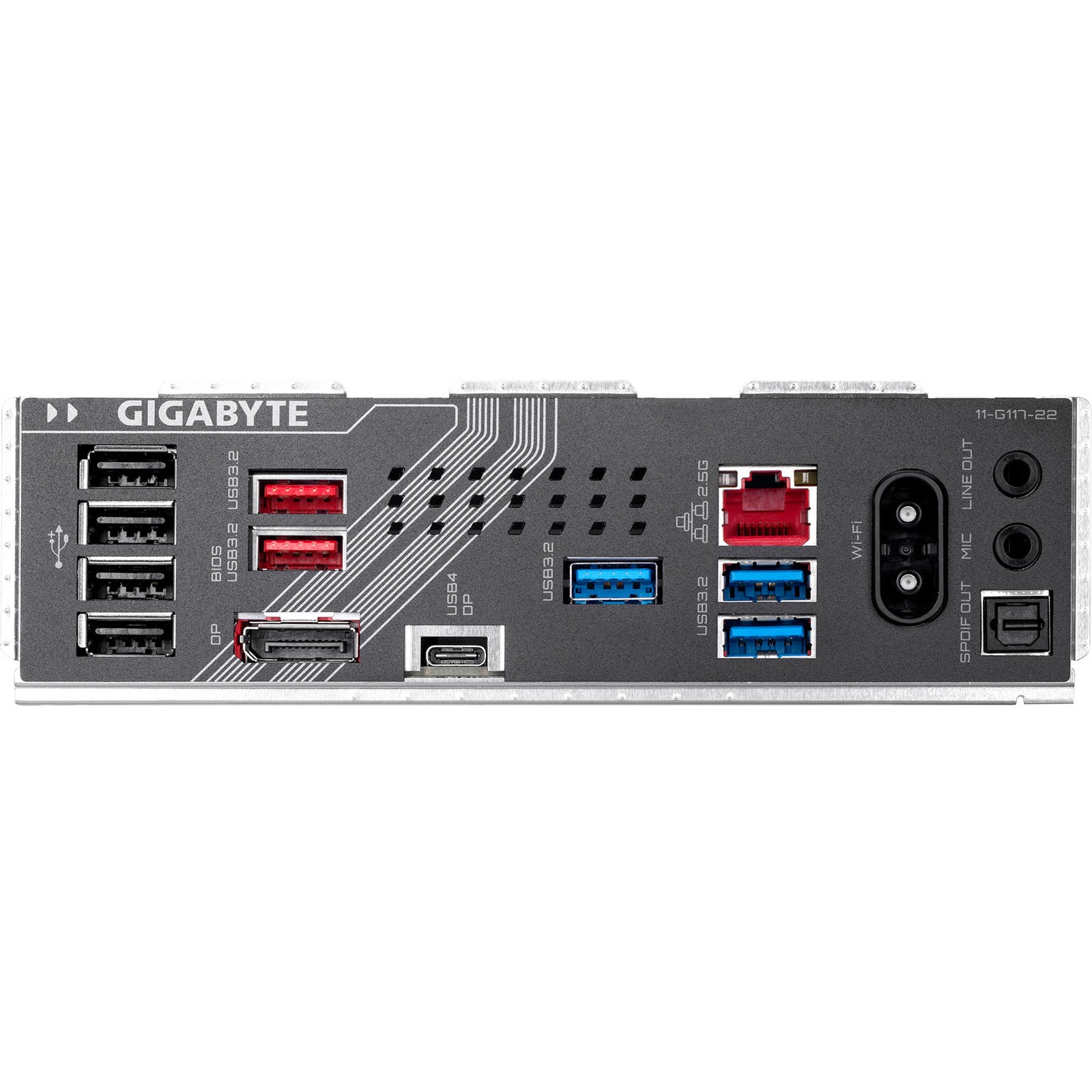

Rear Panel I/O Ports

USB Ports1 x USB4
2 x USB 3.1
3 x USB 3.0
4 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
RJ-45 Ports1 x RJ-45
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU fan/Water Cooling pump header
3 x System fan headers
1 x System fan/Water Cooling pump header
Thunderbolt Port(s)2 x Thunderbolt AiC headers
TPM Header1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2280/22110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4 or SATA)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus SpeedUp to 8800 MT/s
Memory TypeDDR5
Maximum RAM256 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeIntel Z890
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot
2 x PCI Express 4.0 x16 slots (@ x4/x4)

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes - Wi-Fi 7
BluetoothYes
Bluetooth Version5.4

System Requirements

Operating Systems SupportedWindows 11

System

BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorATX Motherboard
Width244 mm
Length305 mm

Key Features

Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height305 mm
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports10 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionNo
DisplayPort ConnectionYes
Motherboard Form FactorATX
Drive Interface TypePCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors2 x 8-Pin
Motherboard ChipsetIntel Z890
ThunderboltNo
Motherboard ModelGigabyte Z890 GAMING X WIFI7
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlGigabyte RGB Fusion
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)70 W
Max Memory Speed Supported (Non-overclocked)6400 MT/s
Max Memory Speed Supported (overclocked)8800 MT/s
CPU Power Pins (female)16
Total M.2 Slots4
Maximum NVMe M.2 ports4
Maximum SATA M.2 ports1
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1
Back Connect SupportNo

Item Details

ManufacturerGigabyte
Manufacturer CodeZ890 GAMING X WIFI7
EAN4719331864941
UPC889523045152
