X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.
GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS PRO X WIFI7 motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.
The Z790 AORUS PRO X WIFI7 motherboard is equipped with an all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.
Every Z790 AORUS PRO X WIFI7 motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.
Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the Z790 AORUS PRO X WIFI7 motherboard the most DIY-friendly ever.
As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The Z790 AORUS PRO X WIFI7 motherboard is built to last longer and stand stronger.
The Z790 AORUS PRO X WIFI7 motherboard offers a wide range of versatilities from cutting-edge Wi-Fi 7 support with a redesigned antenna to an array of USB ports.
The Z790 AORUS PRO X WIFI7 motherboard is the embodiment of our relentless pursuit of BIOS optimization. And thanks to our new partnership with the community, we now make next-gen performance more accessible in even more intuitive ways.
Gigabyte Z790 AORUS PRO X WIFI7 ATX Socket 1700 Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

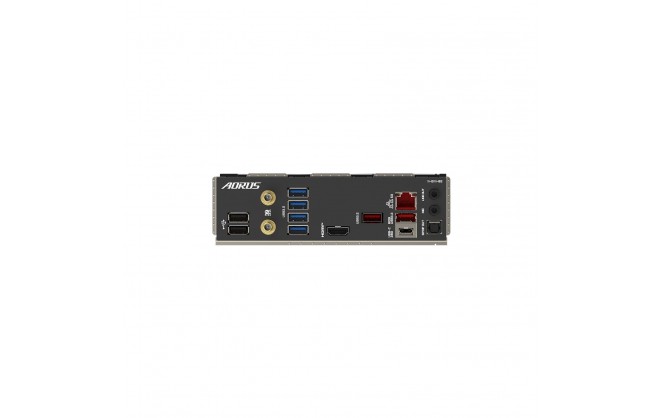

Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.2 2 x USB 3.1 4 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | Yes via USB-C DP Alt |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU fan/Water Cooling pump header 4 x System fan headers 2 x System fan/Water Cooling pump headers |
| Thunderbolt Port(s) | 2 x Thunderbolt add-in card connectors |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Power Connector Port | 1 x 24-pin ATX 2 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Socket 3, M Key, Type 25110/2580 (PCIe Gen5) 2 x M.2 slots, Socket 3, M Key, Type 22110/2280 (PCIe Gen4) 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4) 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4 or SATA) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Noise Detection header 2 x Temperature Sensor headers |
Memory
| Memory Bus Speed | Up to 8266 MT/s |
| Memory Type | DDR5 |
| Maximum RAM | 192 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Northbridge | Intel Z790 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 1 x PCI Express 4.0 x16 slot (@ x4) 1 x PCI Express 3.0 x16 slot (@ x4) |
Graphics Device
| Integrated Graphics Supported | Yes |
Warranty
| Warranty | 3 Years |
Sound
| Integrated Sound | Realtek ALC1220-VB |
Network
| Integrated Network | Realtek |
| Network Speeds Supported | Up to 5 Gbps |
| Wireless LAN | Yes - Wi-Fi 7 |
| Wireless Network Speed | Up to 4800 Mbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.3 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 |
System
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |
| Width | 244 mm |
| Length | 305 mm |
Key Features
| Wireless Network | Yes |
| Motherboard Width | 244 mm |
| Motherboard Height | 305 mm |
| Main Colour | Black |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 9 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard (EPS) Power Connectors | 2 x 8-Pin |
| Motherboard Chipset | Intel Z790 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte Z790 AORUS PRO X WIFI7 |
| WiFi Speed | 4800 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 70 W |
| Max Memory Speed Supported (Non-overclocked) | 4800 MT/s |
| Max Memory Speed Supported (overclocked) | 8266 MT/s |
| CPU Power Pins (female) | 16 |
| Total M.2 Slots | 5 |
| Maximum NVMe M.2 ports | 5 |
| Maximum SATA M.2 ports | 1 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | Z790 AORUS PRO X WIFI7 |
| EAN | 4719331860141 |
| UPC | 889523041451 |
