AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.
* Compatibility may vary according to system configuration and device specifications.
Did you experience your pen display connecting to the PC with lots of cables? GIGABYTE VisionLINK lets you not only without cable clutter, but also the benefit of data, video, and power charging the same time. One USB Type-C® cable connected, turn your workspace into neat and tidy.
Ever wondered if you can have a high-end graphic performance of your pen display? The DisplayPort™_In design provides the external graphic performance and superior GPU ability for your pen display to use it. It brings your creation with incredible realism and performance.
VisionLINK equips with the unique capability of data delivery, the DisplayPort Alternate Mode for video signal, and 60W Power Delivery design for your devices charging. It’s a perfectly tailored connectivity for creators and professional artists.
USB Power Delivery
With the design of USB Power Delivery(PD) Profile 4 and goes up to 20V and 3A (60W) specific. It is a specification for handling higher power and allows a range of devices to fast charge over a USB connection.
DisplayPort™ Alternate Mode
Alternate mode is the feature in USB Type-C® allowing for standard USB Type-C® connectors to carry both USB signal and non USB data like video signal.
Brings a speed network experience to life
Intel® 2.5 GbE network connectivity supports speeds up to 2.5 times faster than Gigabit Ethernet. It gives an immediate boost to overall network performance and data transfer speeds.
Onboard WIFI 6 technology supports 802.11ax with Bluetooth module technology, enables gigabit wireless performance, fewer dropped connections, and reduces congestion in heavy bandwidth usage scenarios. Moreover, providing better WIFI signal strength of the antenna design compared to a traditional antenna.
No Hassle Connection.
To feature the USB 3.2 Gen 2x2 connectivity design, which is double performance than the current USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. You can enjoy the ultimate connection flexibility to access and store massive amounts of data rapidly.
You can never have enough memory bandwidth, and DDR5 helps meet this insatiable need for speed. Whether you are editing hundreds of audio samples, handling 4K footage, or multitasking workloads, it boosts system performance and offers you a smooth experience.
DDR5 delivers at least 1.5X more bandwidth than the prior generation. This will facilitate the bandwidth needed for some applications, such as AI training and content creation.?
Bring your tasks without lag.
A single memory slot of the Z690 motherboard can support up to 32GB. With populated 2 DIMMs per channel on GIGABYTE Z690 motherboards, the maximum memory capacity support is 128GB. You can experience faster performance and instant access without any lag.
Equipped with the PCIe 5.0 x16 slot designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage device. Brings a new level of performance for demanding applications in the high-performance market.
Up to 128 GB/s from new PCIe 5.0 x16 slot designs for the next generation add on cards need tremendous bandwidth, including the graphics card, deep learning accelerator card and the video capture card.
To equip with four PCIe 4.0 M.2 sockets, delivering superior bandwidth and upgrading your storage capacity to accelerate creative workflow. PCIe 4.0 M.2 SSD gives you 7X faster data transferring experience compared to 2.5” SATA solid-state drives.
GIGABYTE M.2 solution provides NVMe SSD RAID support for the considerably high storage performance. To feature full-speed PCIe 4.0 M.2 sockets as the best configuration for creators who demand high capacity and fast storage ability.
The exclusive four PCIe 4.0 x4 M.2 sockets design that offers you to handle the most data-consuming tasks without extra configuration.
An effective cooling solution can prevent the risk of design work being interrupted by an unexpected system crash. GIGABYTE’s advanced thermal solutions provide a perfect balance of aesthetics and performance. A large heat sink design and Direct-Touch Heatpipe II ensure stability during creative sessions.
GIGABYTE provides an Ultra-Efficient thermal solution for the latest PCIe 4.0 M.2 SSD drives. The enlarged M.2 heatsink also prevents thermal throttling of all M.2 SSDs and dissipates heat before it becomes a problem.
Numerous hybrid fan headers and temperature sensors are planted on the motherboard to monitor in real time and configure fan mode to fit different workloads via Smart Fan 6. Creators are allowed to set the trigger point to activate the fan and its corresponding speed. The fan completely stops when performing light tasks to avoid noise.

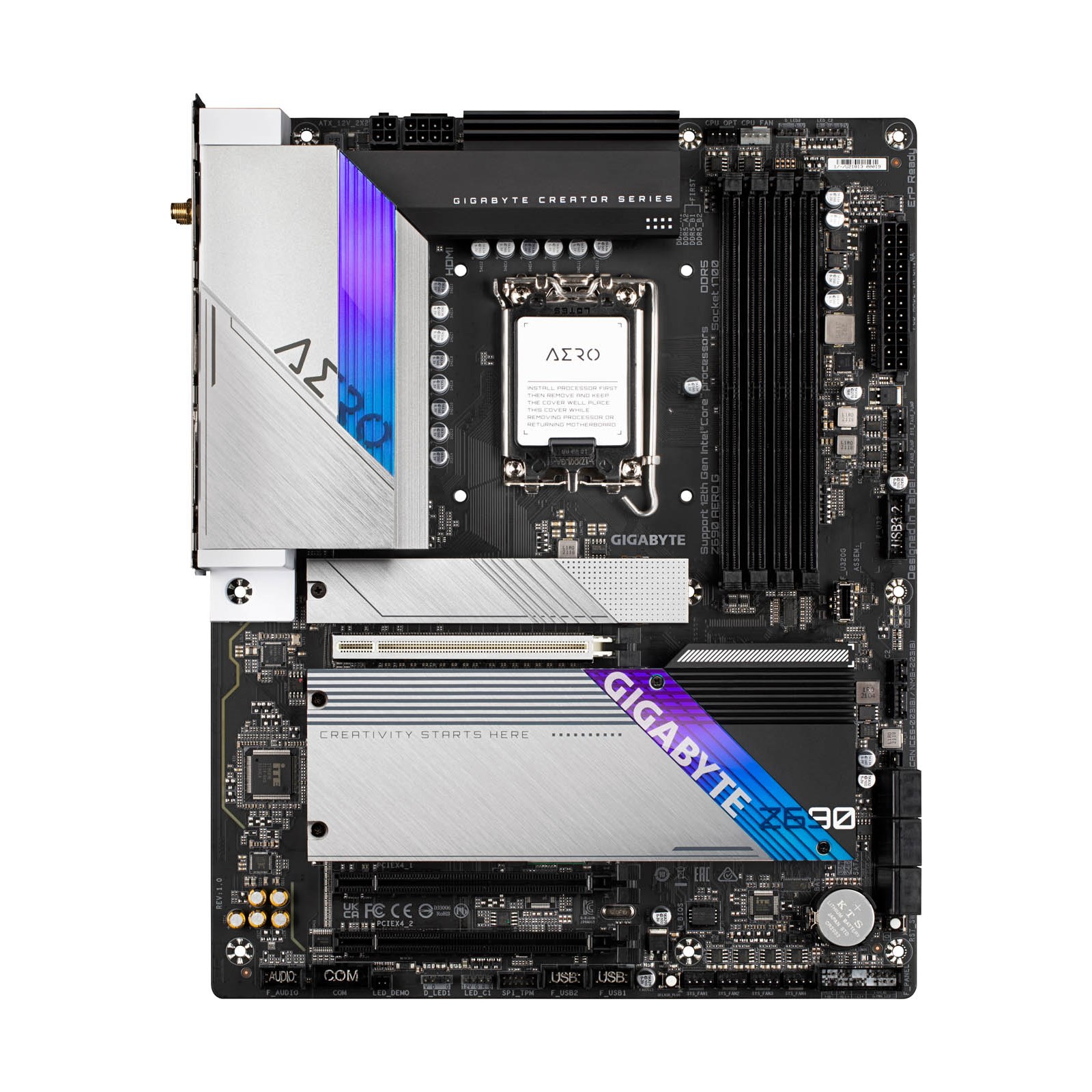

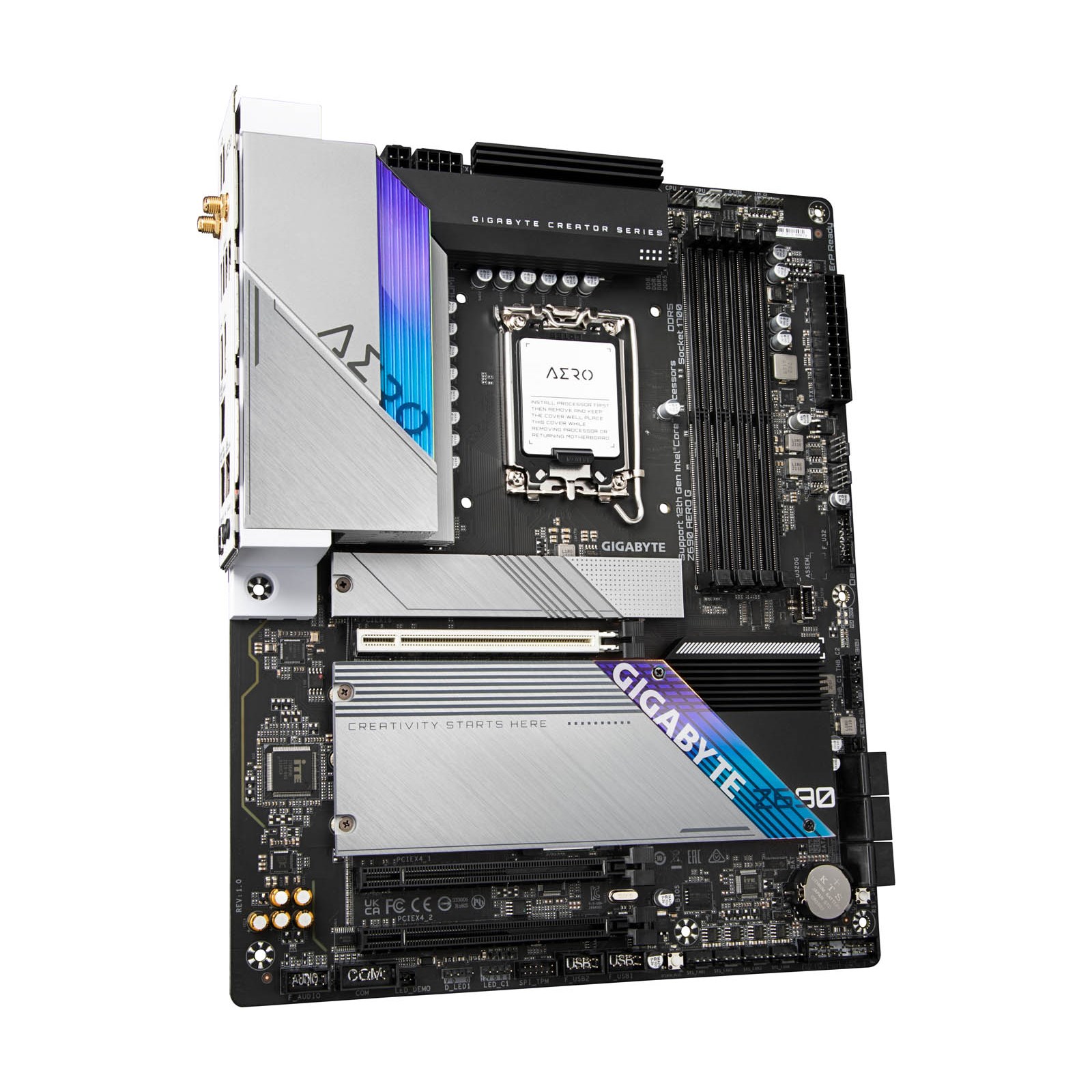

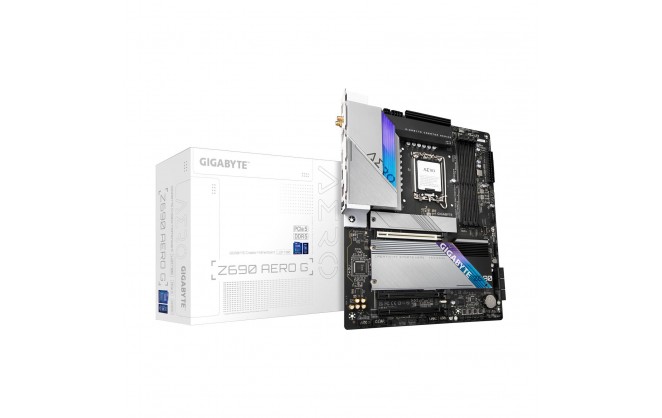

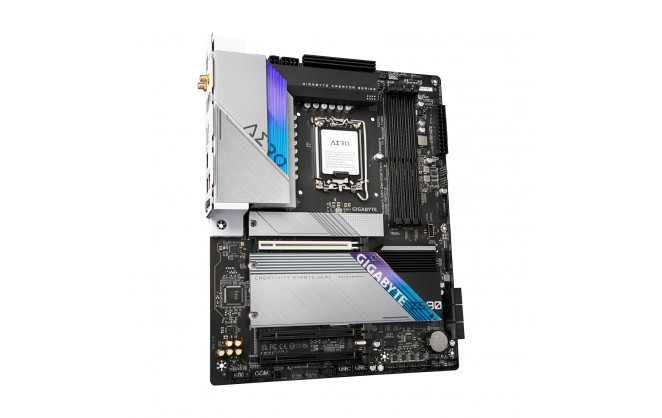

Gigabyte Z690 AERO G Intel Socket 1700 Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 12th Gen Intel Core Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

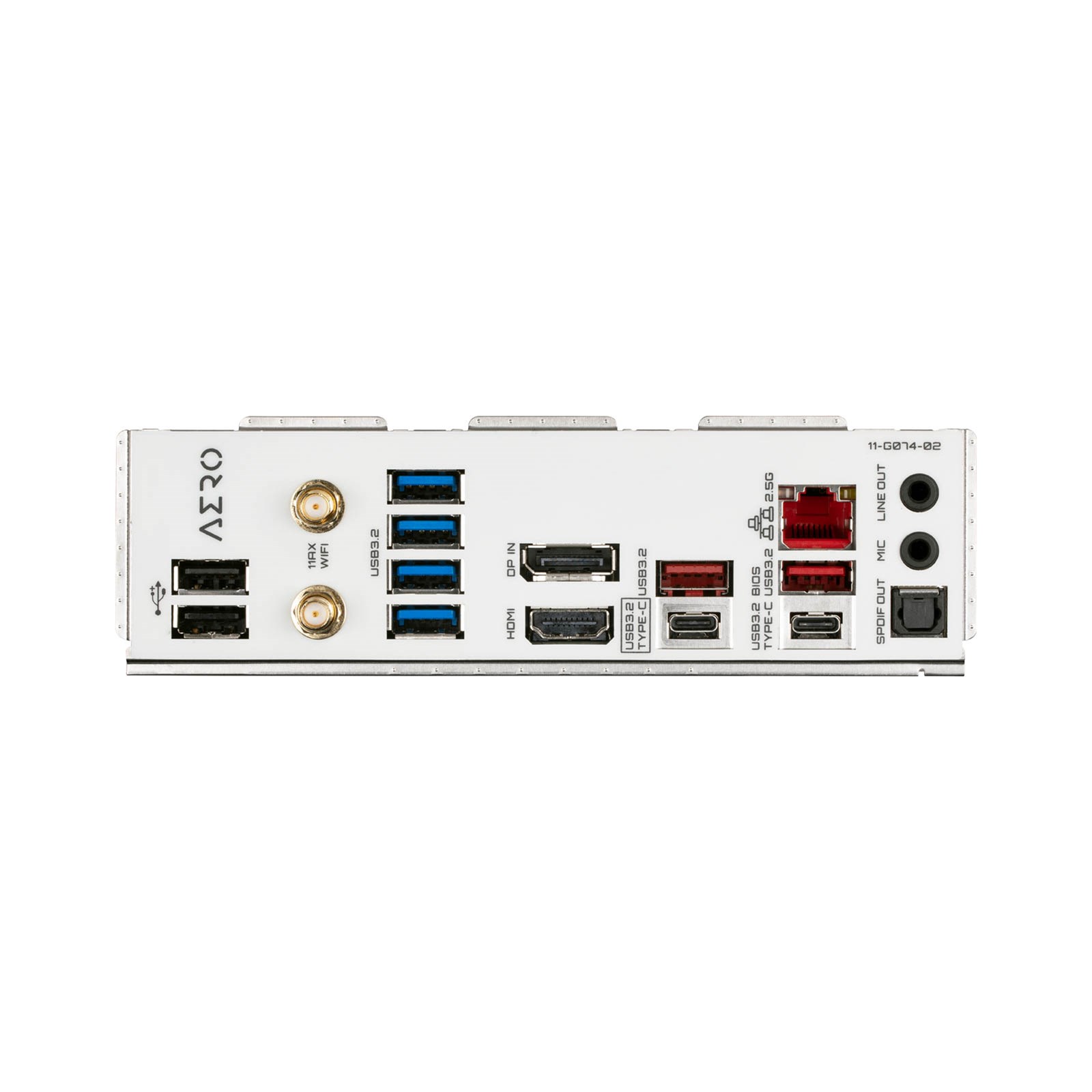

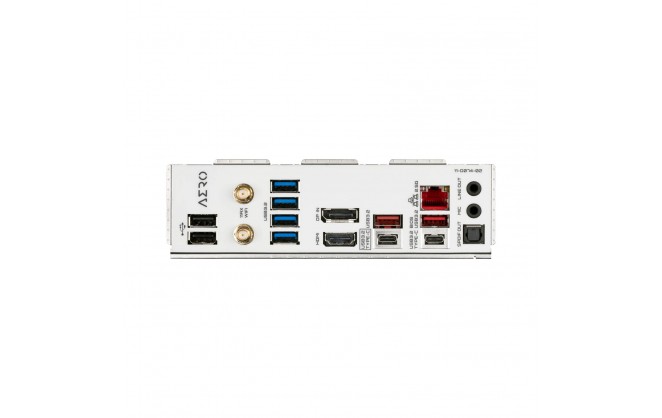

Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.2 2 x USB 3.1 1 x USB-C 3.0 4 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort IN |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x Antenna |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Water Cooling CPU fan header 4 x System fan headers 2 x System fan/Water Cooling pump headers |
| Thunderbolt Port(s) | 2 x Thunderbolt AiC headers |
| Serial Connectors | 1 x COM header |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
| Other Connectors | 3 x M.2 slots, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen4) 1 x M.2 slot, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen4 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers 1 x Noise Detection header 2 x Temperature Sensor headers |
Memory
| Memory Bus Speed | Up to 6000+ MHz (OC) |
| Memory Type | DDR5 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | Z690 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 2 x PCI Express 3.0 x16 slots (@ x4) |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC4080 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.2 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 / 10 64-bit |
System
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| SLi/Crossfire Features | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
Physical
| Form Factor | ATX Motherboard |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| Memory Speed | 6000 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 10 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | Intel Z690 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte Z690 AERO G |
| WiFi Speed | 2400 Mbps |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | Z690 AERO G |
| EAN | 4719331829902 |
| UPC | 889523030486 |
| Condition | New |
