£189.99 ex. vat
£227.99 inc. vat
Share:
VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.
Go Further Without More Cables
GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.
* Compatibility may vary according to system configuration and device specifications.
All at One Cable that Does It All
Did you experience your pen display connecting to the PC with lots of cables? GIGABYTE VisionLINK lets you not only without cable clutter, but also the benefit of data, video, and power charging the same time. One USB Type-C® cable connected, turn your workspace into neat and tidy.
Add Graphic Power to You
Ever wondered if you can have a high-end graphic performance of your pen display? The DisplayPort™_In design provides the external graphic performance and the superior GPU ability for your pen display to use it. It brings your creation with incredible realism and performance.
DisplayPort™ Alternate Mode with USB Power Delivery
VisionLINK equips with the unique capability of data delivery, the DisplayPort Alternate Mode for the video signal, and 60W Power Delivery design for your devices charging. It's a perfectly tailored connectivity for creators and professional artists.
Intel® 2.5GbE Connectivity
High-Bandwidth and Low-Latency access.
The adoption of Intel® 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking. It gives an immediate boost to overall network performance and improves the bandwidth required at large file transfers, video editing, and performance workloads.
SuperSpeed USB 20Gbps
No Hassle Connection.
To feature the USB 3.2 Gen2x2 connectivity design, which is double performance than the current USB3.2 Gen2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. You can enjoy the ultimate connection flexibility to access and store massive amounts of data rapidly.
Full PCIe 4.0 Design*
For most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard support variety of PCIe 4.0 devices, including graphics card and M.2 SSD.
*Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
PCIe Bandwidth*
Up to 31.58GB/s from new PCIe 4.0 x16 slot designs for the next generation add on cards need tremendous bandwidth, including the graphics card, deep learning accelerator card, and the video capture card.
SSD Read Speed
Content creators workflows constantly involve huge files, such as images, videos, and 3D models. Time for editing, saving, and transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD.
Single 32GB Support
Bring your tasks without lag.
The maximum memory capacity on the Z590 motherboard is 128GB with the single slot supports up to 32GB. You can experience fast performance while working on complex design tasks, and getting real-time results.
Quad PCIe M.2
Faster Speed. More Space.
Z590 VISION G equips with up to 4 PCIe M.2 slots, delivering superior bandwidth and upgrading your storage capacity for accelerating your workflows. M.2 PCIe SSD gives you 7X faster data transferring experience compared to 2.5" SATA solid state drives. Enable the creativity to flow from thought to draft faster and get responsive performance without a wait.
NVMe PCIe x4 M.2
GIGABYTE M.2 solution offers considerably high storage performance and provides ideal storage with RAID modes. To feature with 3 full-speed PCIe 4.0* M.2 connectors to deliver the blazing-fast storage available. Offering the best configuration in terms of NVMe storage for creators who demand high capacity, fast storage options, and complex 3D model rendering.
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
* Once PCIe M.2 SSD is populated in any of the middle two M.2 connectors, the PCIe 4.0 x16 slot operates at up to x8 bandwidth.
Creates Exclusive Storage Performance
Exclusive triple NVMe PCIe 4.0* x4 M.2 design offers ultra-fast storage performance in RAID 0 support. You can easily handle the most data-intensive tasks by this configuration.
Cooling Technology
An effective cooling solution is essential for a heavy design workload to get away with slowdown, crashes, and unexpected shutdown. To reach a perfect balance between style and performance by implementing the Fins-Array heatsink and Direct Touch Heatpipe. Not only increasing the heat dissipation surface to ensure the stability during creative work but with a stylish aesthetic.
M.2 Thermal Guard
GIGABYTE provides an Ultra-Efficient thermal solution for the latest PCIe 4.0 M.2 SSD drives. The unique M.2 Thermal Guard prevents all the M.2 SSD from thermal throttling and dissipates heat before it becomes an issue.

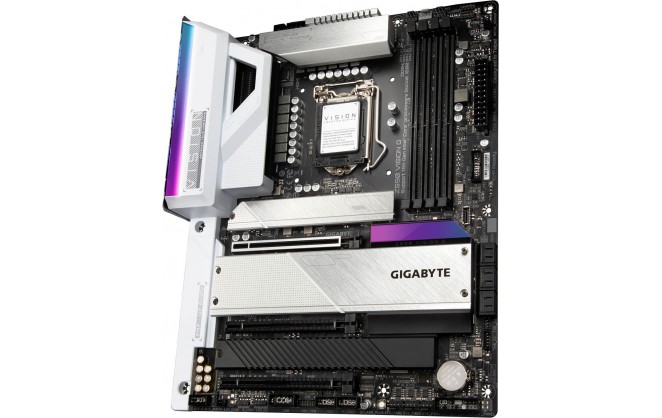

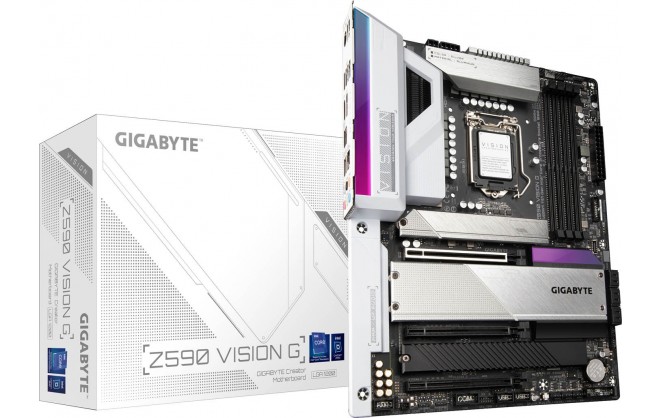

Gigabyte Z590 VISION G Intel Motherboard
CPU
| CPU Socket | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 11th Generation Intel Core processors 10th Generation Intel Core, Pentium, Celeron processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |

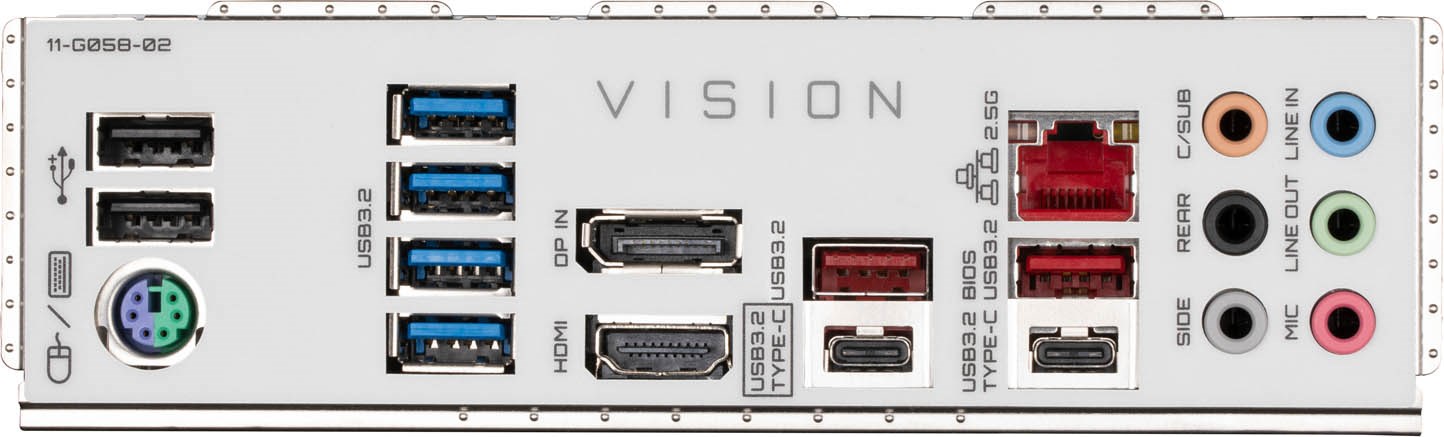

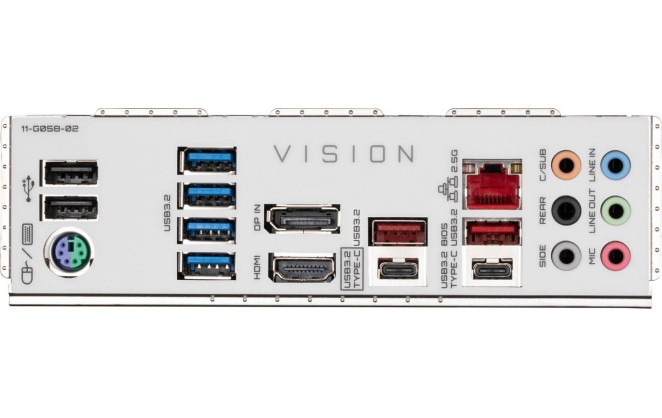

Rear Panel I/O Ports
| USB Ports | 1 x USB 3.2 Type-C 2 x USB 3.1 1 x USB 3.0 Type-C 4 x USB 3.0 Type-A 2 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort In |
| HDMI Port | 1 x HDMI 1.4 |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 4 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.2 Type-C header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Water Cooling CPU fan header 4 x System fan headers |
| S/PDIF Connectors | 1 x S/PDIF Out header |
| Thunderbolt Port(s) | 2 x Thunderbolt AIC headers |
| Serial Connectors | 1 x COM header |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
| Other Connectors | 3 x M.2, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen4) for 11th Gen processors only 1 x M.2, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen3 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers 1 x Noise Detection header |
Memory
| Memory Bus Speed | 3200/3000/2933/2666/2400/2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | Z590 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 2 x PCI Express 3.0 x16 slots (@ x4) |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC4080 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| SLi/Crossfire Features | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
Physical
| Form Factor | ATX Motherboard |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| Memory Speed | 3200 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 10 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | Intel Z590 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte Z590 VISION G |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | Z590 VISION G |
| EAN | 4719331814496 |
| UPC | 889523026267 |
| Condition | New |
