Z590 AORUS ELITE AX motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU.
12+1 Phases Digital Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Z590 AORUS ELITE AX uses high performance Full Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
With the best quality components and GIGABYTE R&D design capability, the Z590 AORUS is a true beast among motherboards.
Support for DDR4 XMP Up to 4800MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module. Please see the complete validated memory support list. Product features may vary by model.
Triple PCIe 4.0/3.0 x4 M.2 Connectors with Thermal Guard
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems' potential.
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 AORUS ELITE AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
First Adopter on 2.5GbE LAN Onboard
2X Faster than ever
Intel® WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WIFI 6
Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
Immersive Gaming ViBes
Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
Z590 AORUS ELITE AX features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
RGB Fusion 2.0
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z590 AORUS motherboard and reinforce every slot to make each of them solid and durable.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
Solid Pin Power Connectors
AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.

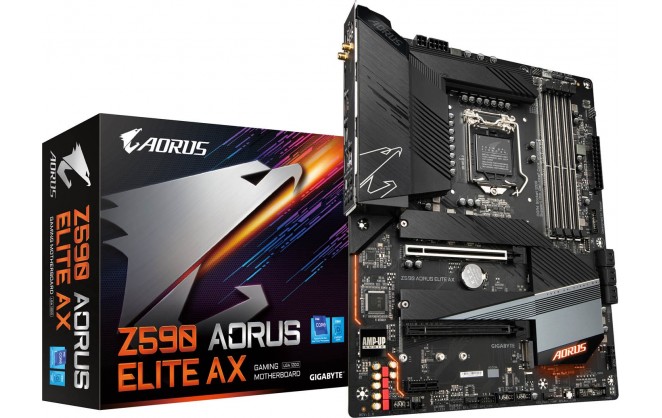

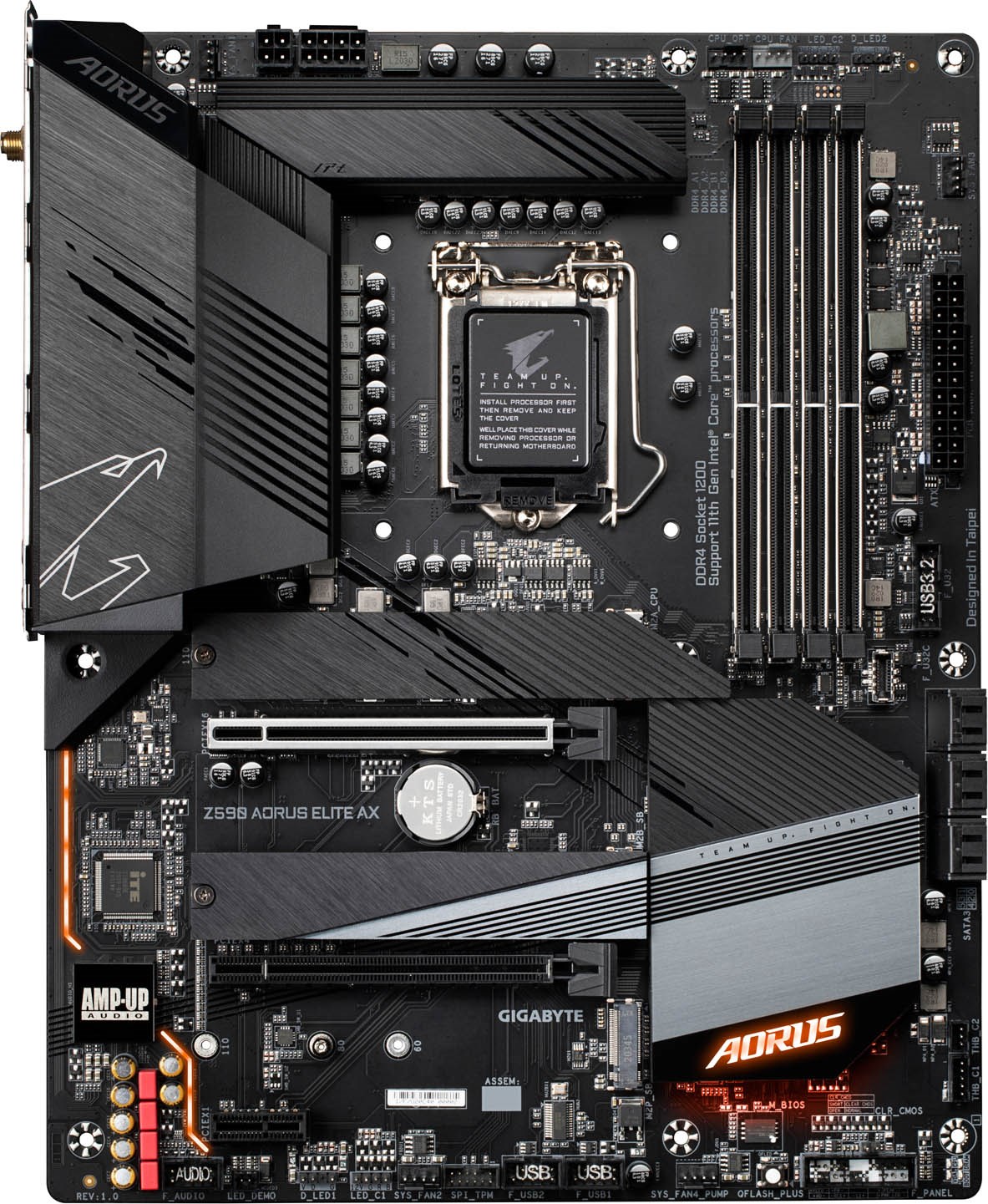

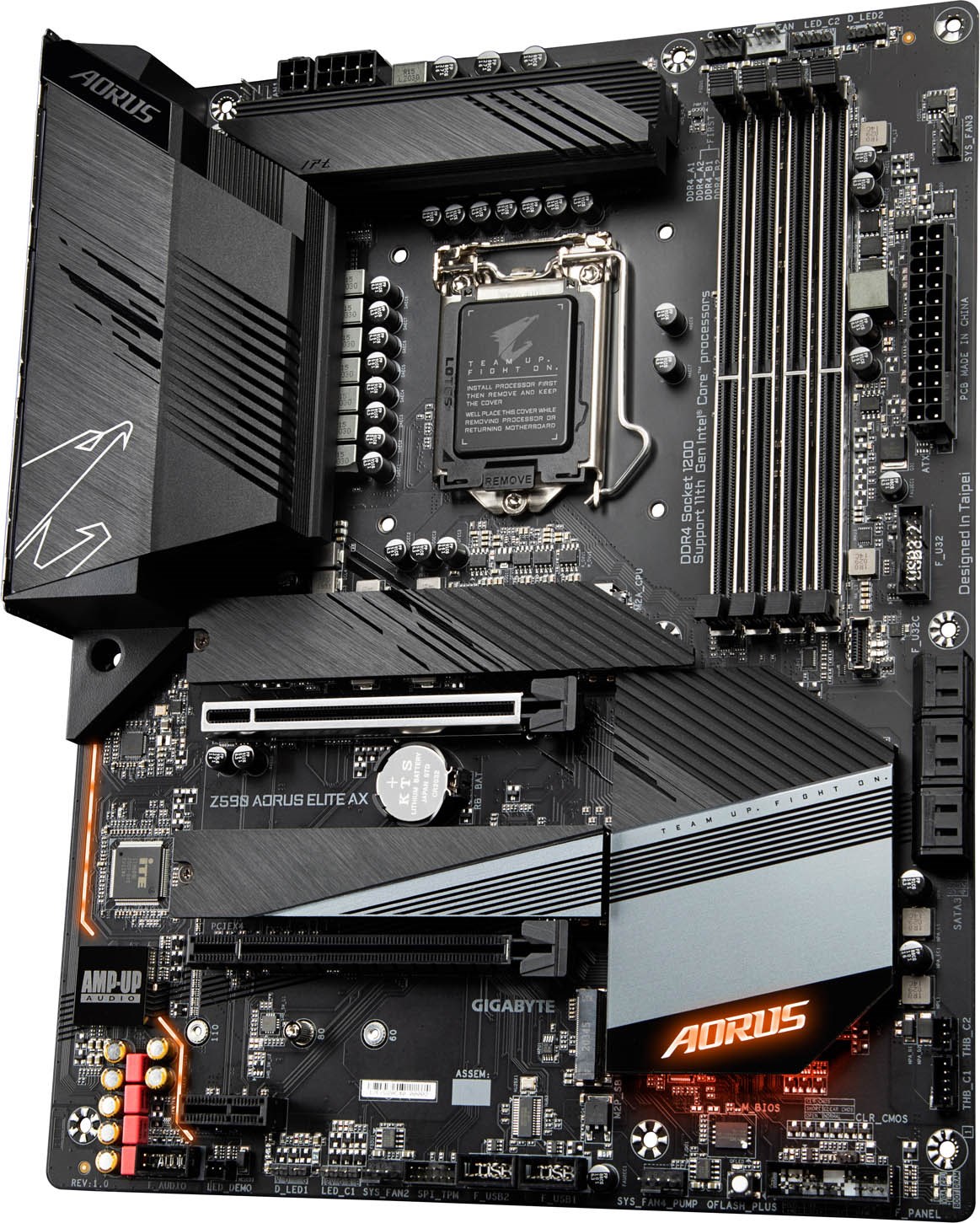

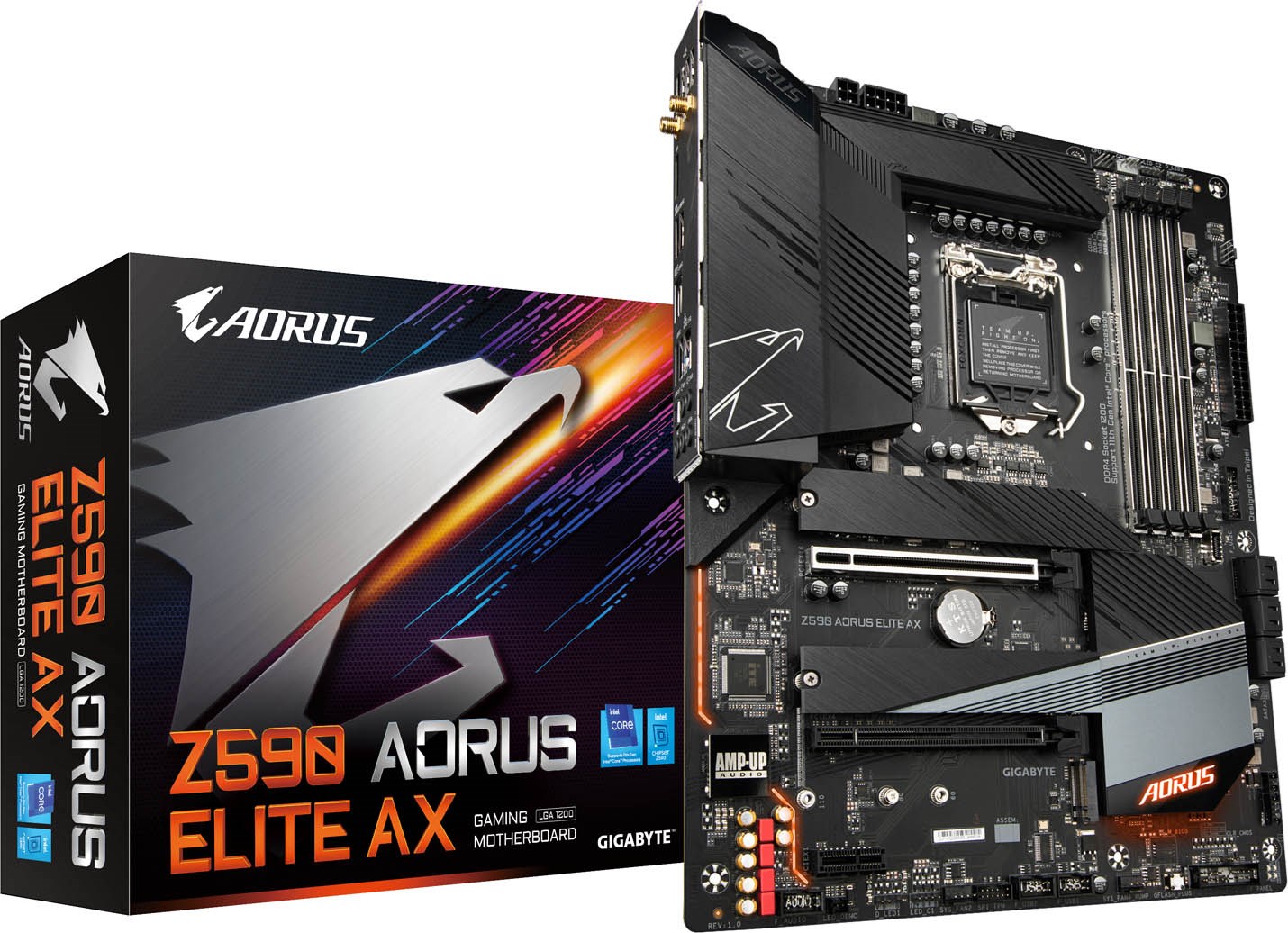

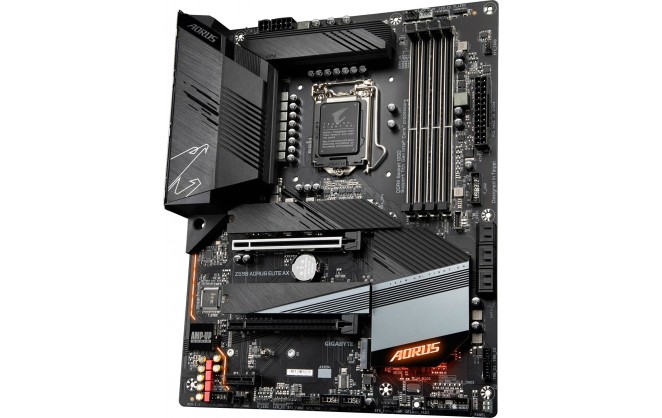

Gigabyte Z590 AORUS ELITE AX Intel Motherboard
CPU
| CPU Socket | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 11th Generation Intel Core processors 10th Generation Intel Core, Pentium, Celeron processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |

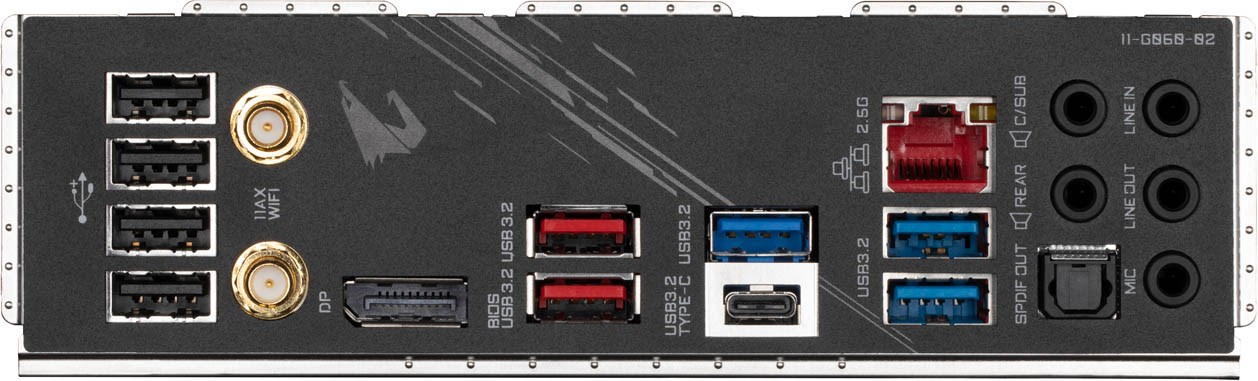

Rear Panel I/O Ports
| USB Ports | 1 x USB 3.2 Type-C 2 x USB 3.1 3 x USB 3.0 4 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x SMA Antennas |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.1 Type-C header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Water Cooling CPU fan header 3 x System fan headers 1 x System fan/Water Cooling pump header |
| Thunderbolt Port(s) | 2 x Thunderbolt AIC headers |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen4) for 11th Gen processors only 2 x M.2, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen3 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers |
Memory
| Memory Bus Speed | 3200/3000/2933/2666/2400/2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | Z590 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x16 slot (@ x4) 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC1220-VB |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Realtek |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.1 |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| SLi/Crossfire Features | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
Physical
| Form Factor | ATX Motherboard |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| Memory Speed | 3200 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 10 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | No |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | Intel Z590 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte Z590 AORUS ELITE AX |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | Z590 AORUS ELITE AX |
| EAN | 4719331814854 |
| UPC | 889523026304 |
| Condition | New |
