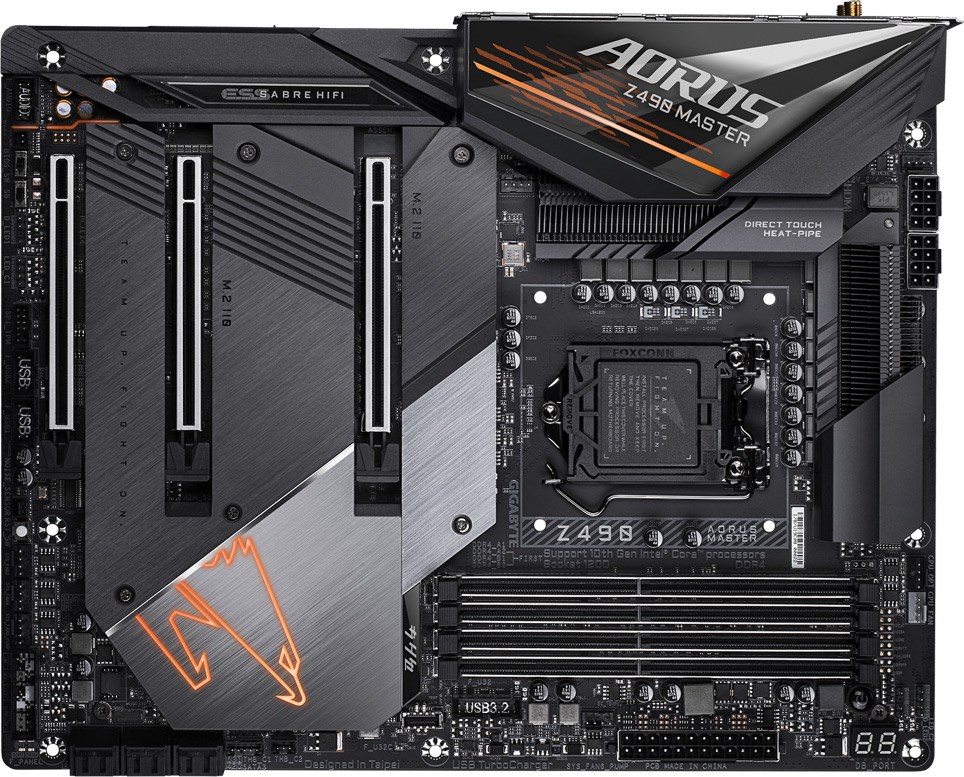

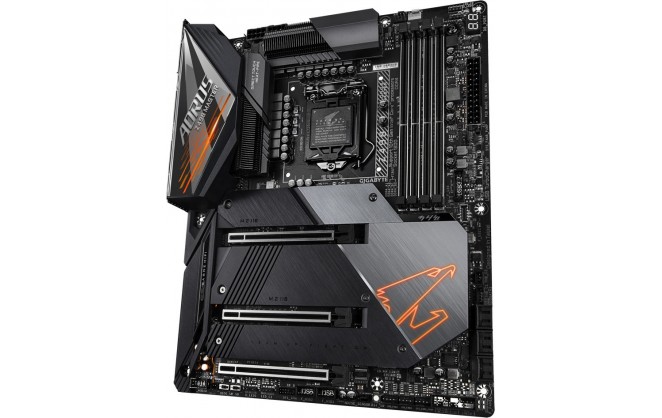

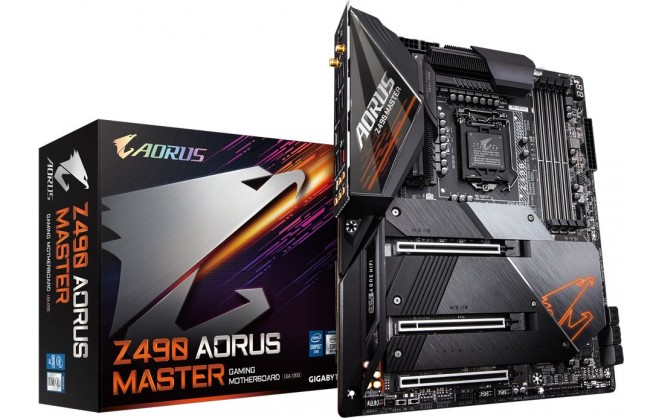

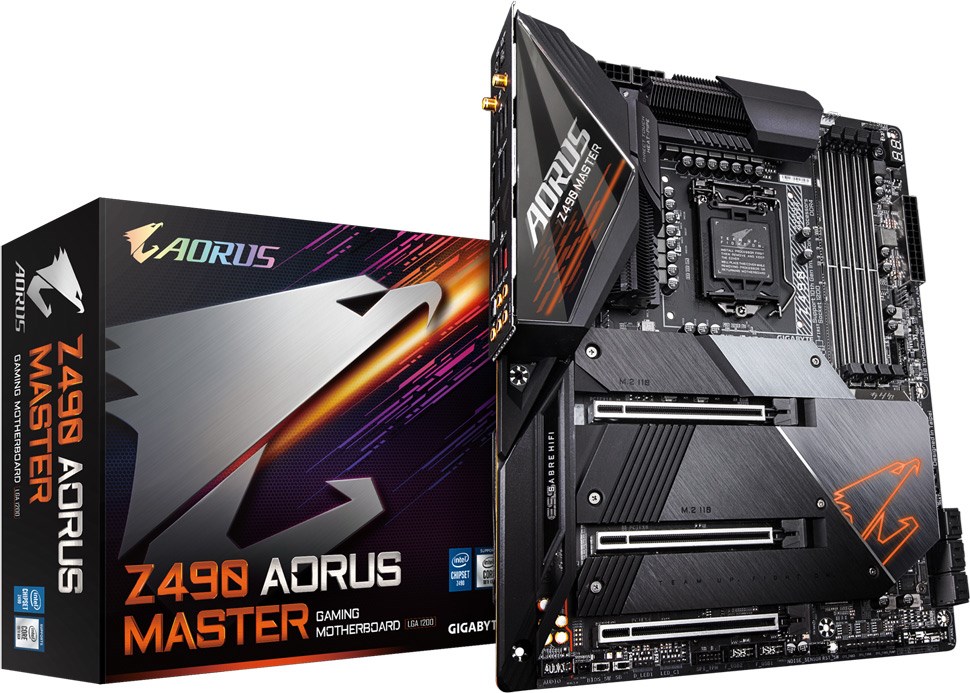

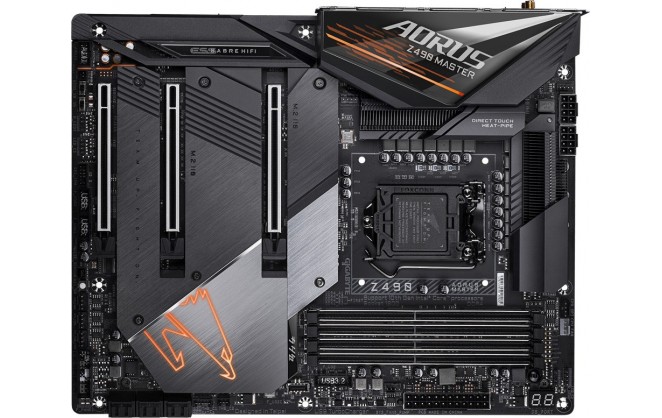

Gigabyte Z490 AORUS MASTER Intel Motherboard

  • Part Number: Z490 AORUS MASTER
  • Manufacturer: Gigabyte
  • Quickfind Code: 135712
  • Stock: In Stock

£299.99 ex. vat
£359.99 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1200
  • Chipset Z490
  • Form Factor ATX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Punk Gaming

Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night. The new era of esports has arrived.

EXTREME POWER DESIGN

To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS MASTER is a true beast among motherboards.

Unparalleled Performance

GIGABYTE understands that our customer won't stop chasing better computer performance, and strive to deliver that in our products. For the Z490 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z490 are made possible by the use of PCIe 4.0-ready components.

Advanced Thermal Solution

Unthrottled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z490 AORUS MASTER stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.

Next Generation Connectivity

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z490 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

HI-FI AUDIO SYSTEM

To Elevate Your Sound Experience with ESS SABRE Audio DAC and DTS.

Definitive Aesthetics

Z490 AORUS MASTER features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.

Ultra Durable

GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z490 AORUS motherboard and reinforce every slot to make each of them solid and durable.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. Z490 AORUS MASTER bundled several useful and intuitive software to help users to control every aspect of motherboard.

Main Features

  • Supports 10th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel Optane Memory Ready
  • 14 Phase Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
  • Shielded Memory Routing for Better Memory Overclocking
  • Newly Invented Thermal Design with Fins-Array II Heatsink and Direct Touch Heatpipe II
  • Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • 125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220 and WIMA Audio Capacitors
  • Blazing Fast Intel 2.5GbE LAN with cFosSpeed
  • USB TurboCharger for Mobile Device Fast Charge Support
  • Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Technical Specification

Gigabyte Z490 AORUS MASTER Intel Motherboard

CPU

CPU SocketSocket 1200
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
64-bit SupportYes
SocketLGA1200

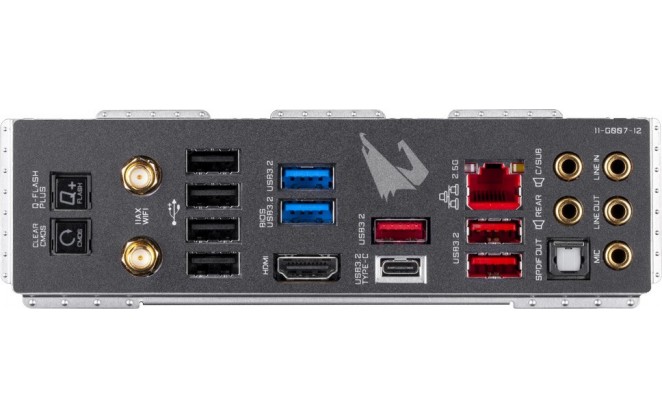

Rear Panel I/O Ports

USB Ports1 x USB 3.1 Type-C
3 x USB 3.1 Typ-eA
2 x USB 3.0
4 x USB 2.0
HDMI Port1 x HDMI
Antenna Connectors2 x SMA Antennas
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports3 x 3.5mm Jacks
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors6 x SATA III
USB Connectors1 x USB 3.1 Type-C header
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 2 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x Water Cooling CPU fan header
4 x System fan headers
2 x System fan/Water Cooling pump headers
Thunderbolt Port(s)2 x Thunderbolt AiC headers
TPM Header1 x TPM header
Power Connector Port1 x 20+4-pin ATX
2 x 4+4-pin EPS
Other Connectors3 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110)
2 x Addressable LED Strip headers
2 x RGB LED Strip headers
1 x Noise Detection header
2 x Temperature Sensor headers

Memory

Memory Bus Speed5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Memory TypeDDR4
Maximum RAM128 GB
Memory Slot4 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeZ490
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots3 x PCI Express 3.0 x16 (@ x16, x8/x8 or x8/x8/x4)

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek ALC1220-VB

Warranty

Warranty3 Years

Network

Integrated NetworkIntel 2.5GbE LAN
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.1

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

BIOS2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes
SLi/Crossfire FeaturesSupport for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Physical

Form FactorATX Motherboard
Width305 mm
Length244 mm

Key Features

Motherboard ModelGigabyte Z490 AORUS MASTER
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlGigabyte RGB Fusion
Memory Speed5000 MHz
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
FirewireNo
Wireless NetworkYes
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports6 port(s)
Number of USB Ports10 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportBoth
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionNo
Motherboard Form FactorATX
Motherboard Power Connectors8 + 8-Pin
Motherboard ChipsetIntel Z490
ThunderboltNo

Item Details

ManufacturerGigabyte
Manufacturer CodeZ490 AORUS MASTER
EAN4719331808327
UPC889523021439
ConditionNew
