Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan Stop
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
NVMe PCIe Gen3 x4 22110 M.2 Connector (Up to 32 Gb/s)
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
Performance Fueled by Optane
The Z390 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.
Advanced Thermal Design
MOSFET Heatsinks
Multiple cuts on heatsinks improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.
Thick Thermal Pad
By using 1.5mm thicker thermal pad with well contact, more efficient heat dissipation.
Support for DDR4 to 4133MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility to 4133MHz and beyond.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Support RGB Lighting Effect in Full Color
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.
Solid Pin Power Connectors
Z390 motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages
Diagnostic LEDs
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.
CEC 2019 Ready
Save power with a simple click
CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

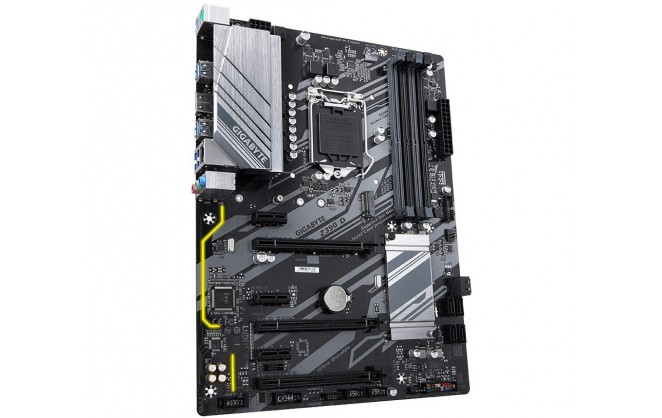

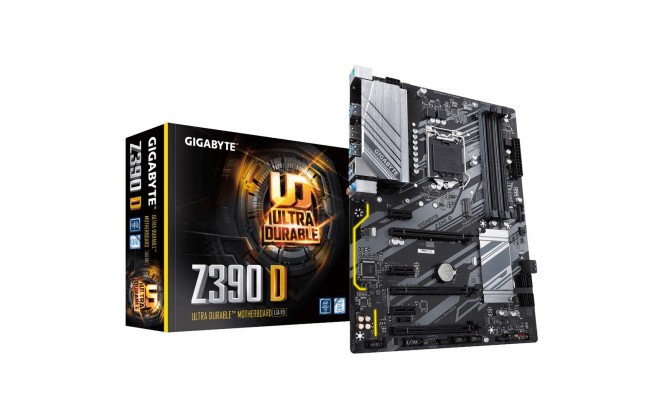

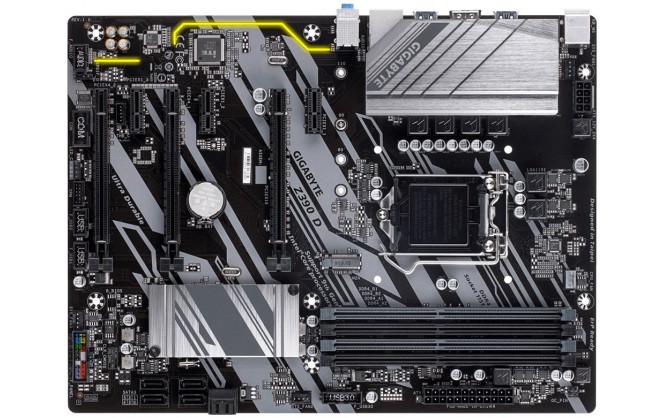

Gigabyte Z390 D Intel Socket 1151 Motherboard
CPU
| CPU Socket | Socket 1151 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors |
| 64-bit Support | Yes |
| Socket | LGA1151 |

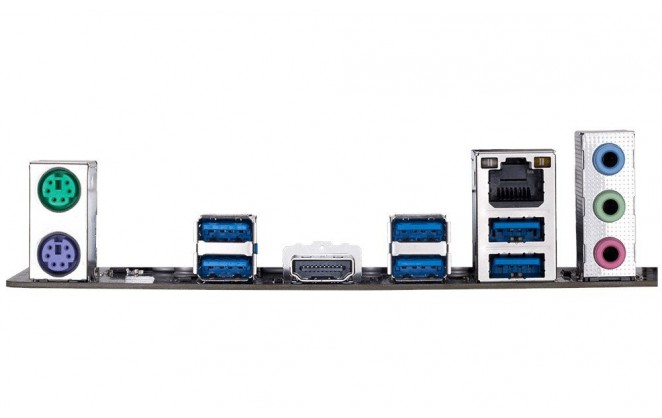

Rear Panel I/O Ports
| USB Ports | 6 x USB 3.0 |
| HDMI Port | 1 x HDMI |
| Keyboard Port | 1 x PS/2 |
| Mouse Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 6 x SATA |
| USB Connectors | 1 x USB 3.0 2 x USB 2.0 |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 3 x System fans |
| S/PDIF Connectors | 1 x S/PDIF Out |
| Thunderbolt Port(s) | 1 x Thunderbolt add-in card connector |
| Serial Connectors | 1 x COM |
| TPM Header | 1 x TPM |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x RGB LED strip header |
Memory
| Memory Bus Speed | 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | Z390 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 3 x PCI Express 3.0 x16 (@ x16/x4/x4) 3 x PCI Express 3.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC887 |
Network
| Integrated Network | Realtek GbE |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
| SLi/Crossfire Features | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
Physical
| Form Factor | ATX Motherboard |
| Width | 305 mm |
| Length | 230 mm |
Key Features
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 8-Pin |
| Motherboard Chipset | Intel Z390 |
| Thunderbolt | No |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
| Memory Speed | 4266 MHz |
| RGB Header Type | 4-Pin RGB |
| Addressable RGB | No |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | Z390 D |
| EAN | 4719331806729 |
| Condition | New |
