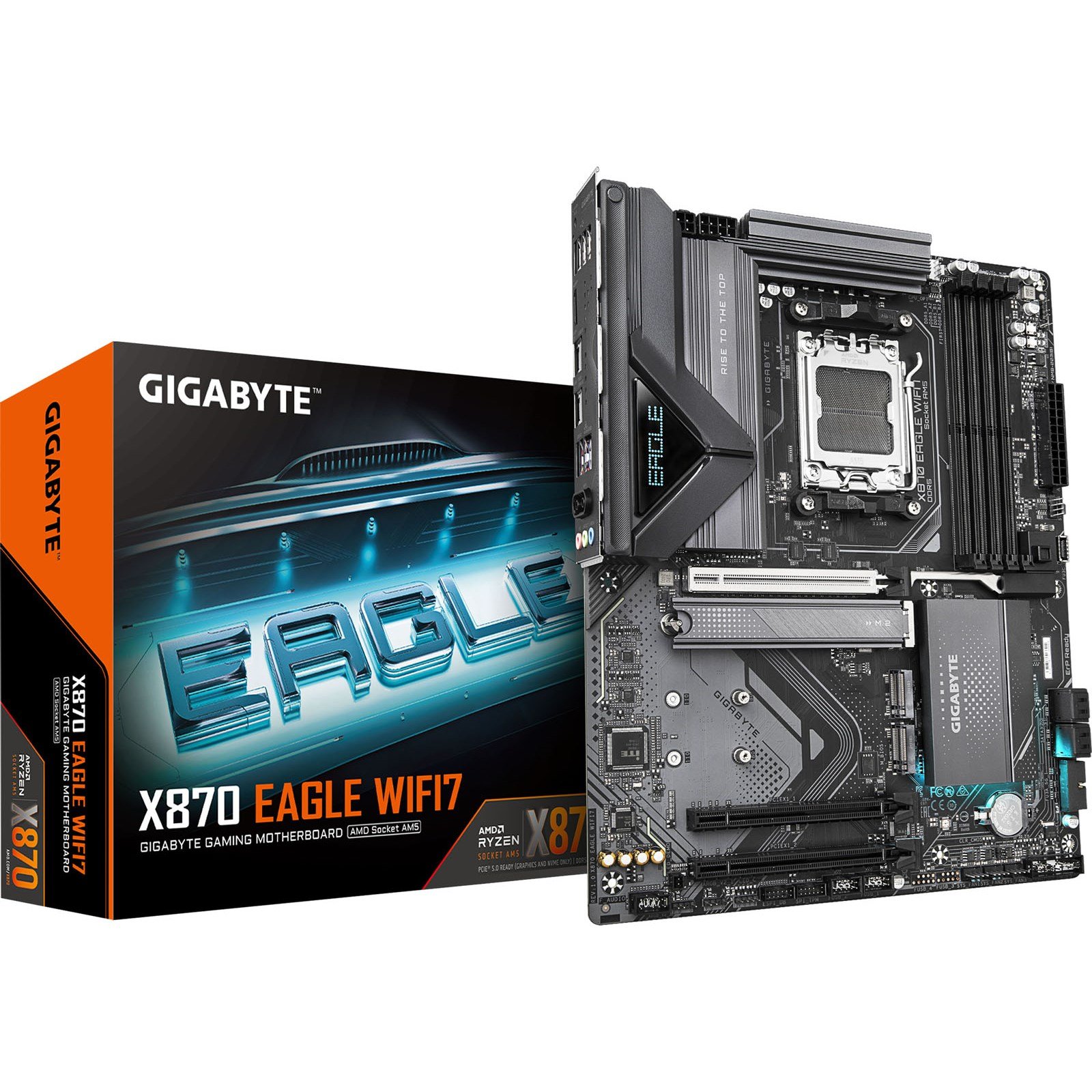

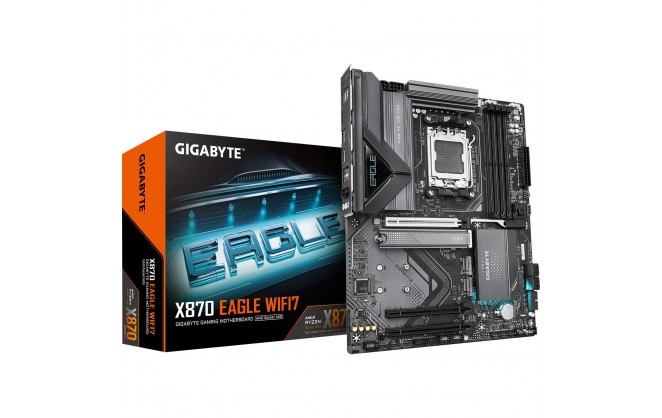

Gigabyte X870 EAGLE WIFI7 ATX Socket AM5 Motherboard

£182.89 ex. vat
£219.47 inc. vat

Gigabyte X870 EAGLE WIFI7 AMD Socket AM5 Motherboard

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 9000 / 8000 / 7000 Series Processors
64-bit Support	Yes
Socket	AM5

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU fan/Water Cooling pump header 4 x System fan headers
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen5) 2 x M.2 slots, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slot (@ x1/x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

System Requirements

Operating Systems Supported

Windows 11
Windows 10 64-bit

System

BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers	1 x Clear CMOS 1 x Reset
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	10 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Drive Interface Type	PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors	4-Pin + 8-Pin
Motherboard Chipset	AMD X870
Thunderbolt	No
Motherboard Model	Gigabyte X870 EAGLE WIFI7
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	8000 MT/s
CPU Power Pins (female)	12
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
