£383.22 ex. vat
£459.86 inc. vat
Share:
Features
• AMD Socket AM5 : Supports AMD Ryzen™ 7000 Series Processors
• Unparalleled Performance : Twin 16+2+2 Phases Digital VRM Solution
• Dual Channel DDR5 : 4*SMD DIMMs with EXPO & XMP Memory Module Support
• Next Generation Storage : 2*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
• Fins-Array III & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
• EZ-Latch Plus : SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Hi-Fi Audio with DTS : X® Ultra : ALC1220 CODEC
• Fast Networks : Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
• Extended Connectivity : DP, HDMI, USB-C® with DP Alt Mode, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

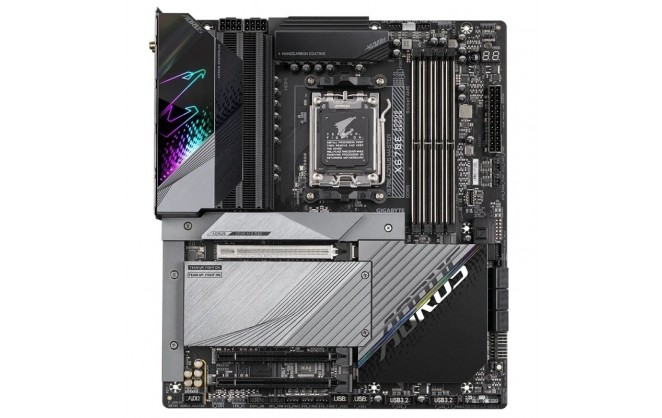

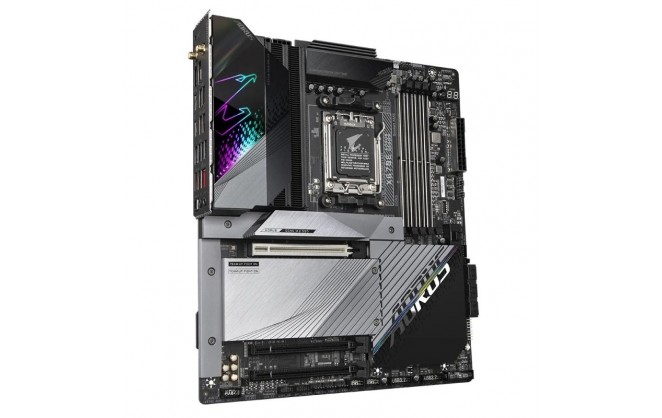

Gigabyte X670E AORUS MASTER eATX Motherboard
General | |
|---|---|
| Product Type | Motherboard - extended ATX |
| Chipset Type | AMD X670 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6666 MHz (O.C.), 6600 MHz (O.C.), 4400 MHz, 5200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
Audio | |
| Type | High Definition Audio (7.1-channel) |
| Audio Codec | Realtek ALC1220-VB |
| Compliant Standards | High Definition Audio, DTS:X Ultra |
LAN | |
| Network Controller | Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 1 x M.2 socket (2280/25110 M.2 Key M slot) ¦ 3 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |

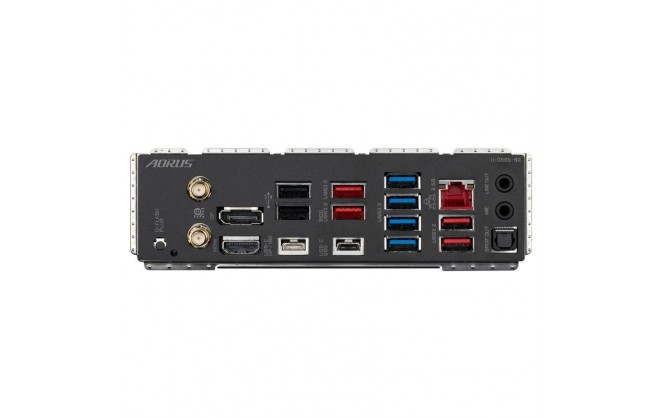

| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, fan fail warning, fan control, noise detection |
| Hardware Features | Q-Flash, 8 Layer PCB, Q-Flash Plus, Ultra Durable Memory Armor, Ultra Durable PCIe Armor, Water Pump Header, Solid Pin Power Connectors, GIGABYTE Smart Fan 6, MultiKey, GIGABYTE Active OC Tuner, M.2 Thermal Guard III, 105A Smart Power Stage, 16+2+2 Phase Power Design, Fins-Array III with NanoCarbon Coating |
Miscellaneous | |
| Included Accessories | External antenna, cable ties, RGB (RGBW) LED strip extension cable, 2 thermistor cables, G-Connector, m.2 screw / standoff sets, noise detection cable |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Norton Internet Security, GIGABYTE Smart Backup |
| Compliant Standards | FCC Part 15 B, RoHS, WEEE, DisplayPort 1.4, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 26.9 cm |
