Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600 and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
GIGABYTE BIOS offers pre-defined and retrievable profiles for users to get higher performance easily. The profiles are based on a database that is created by checking each memory IC and PMIC vendors to optimize the modules to unleash their full potential. This is a time saving feature to manually configure overclocked DDR5 memory kits.
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

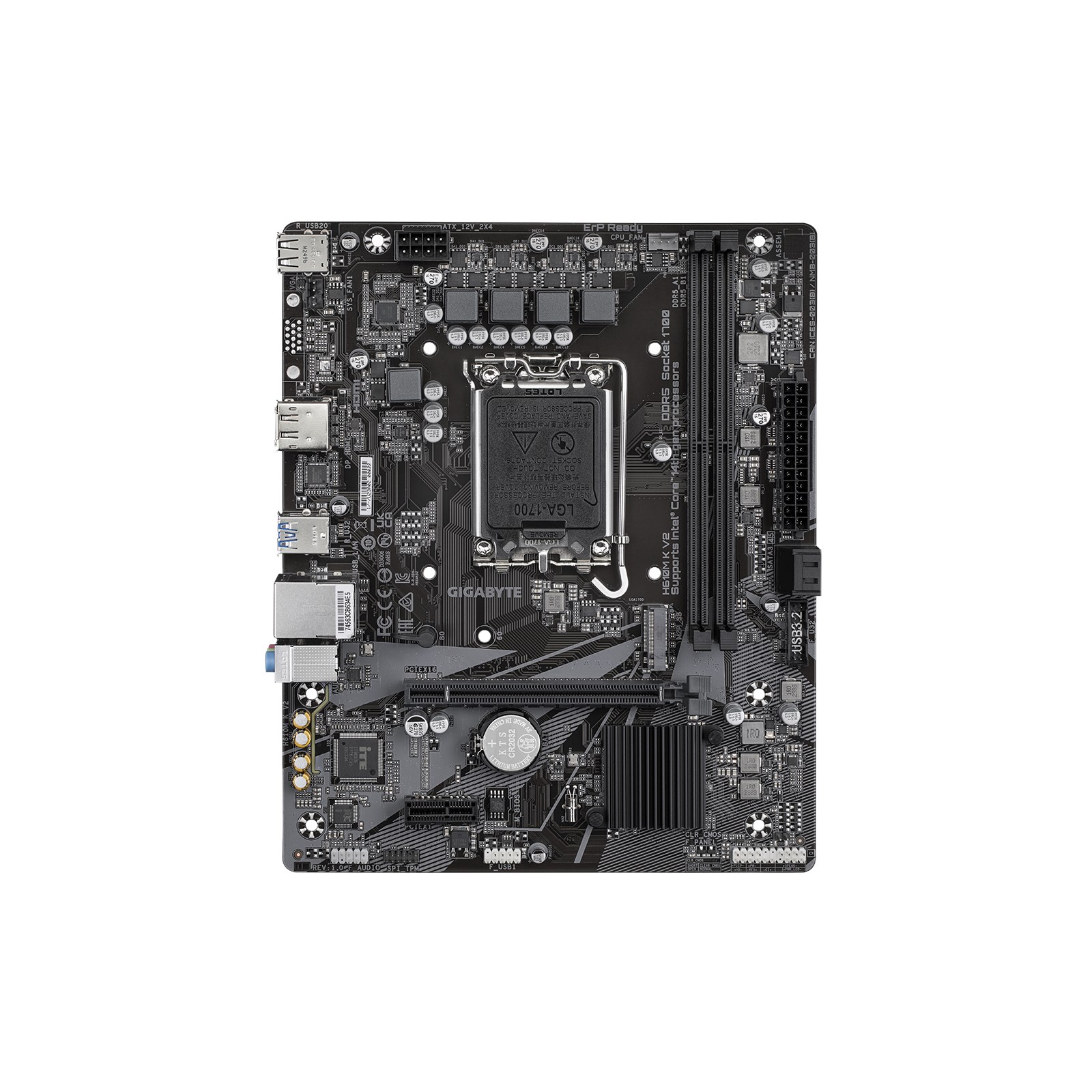

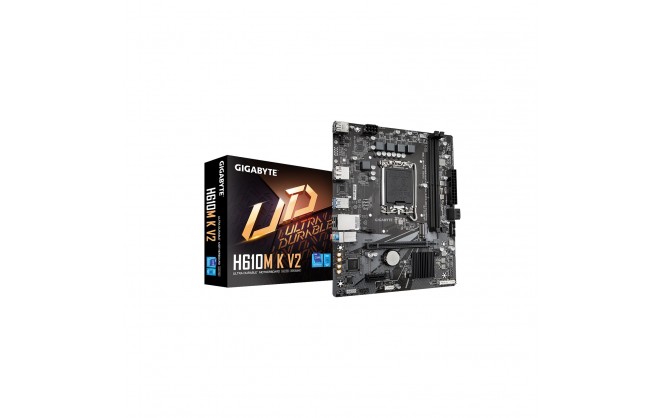

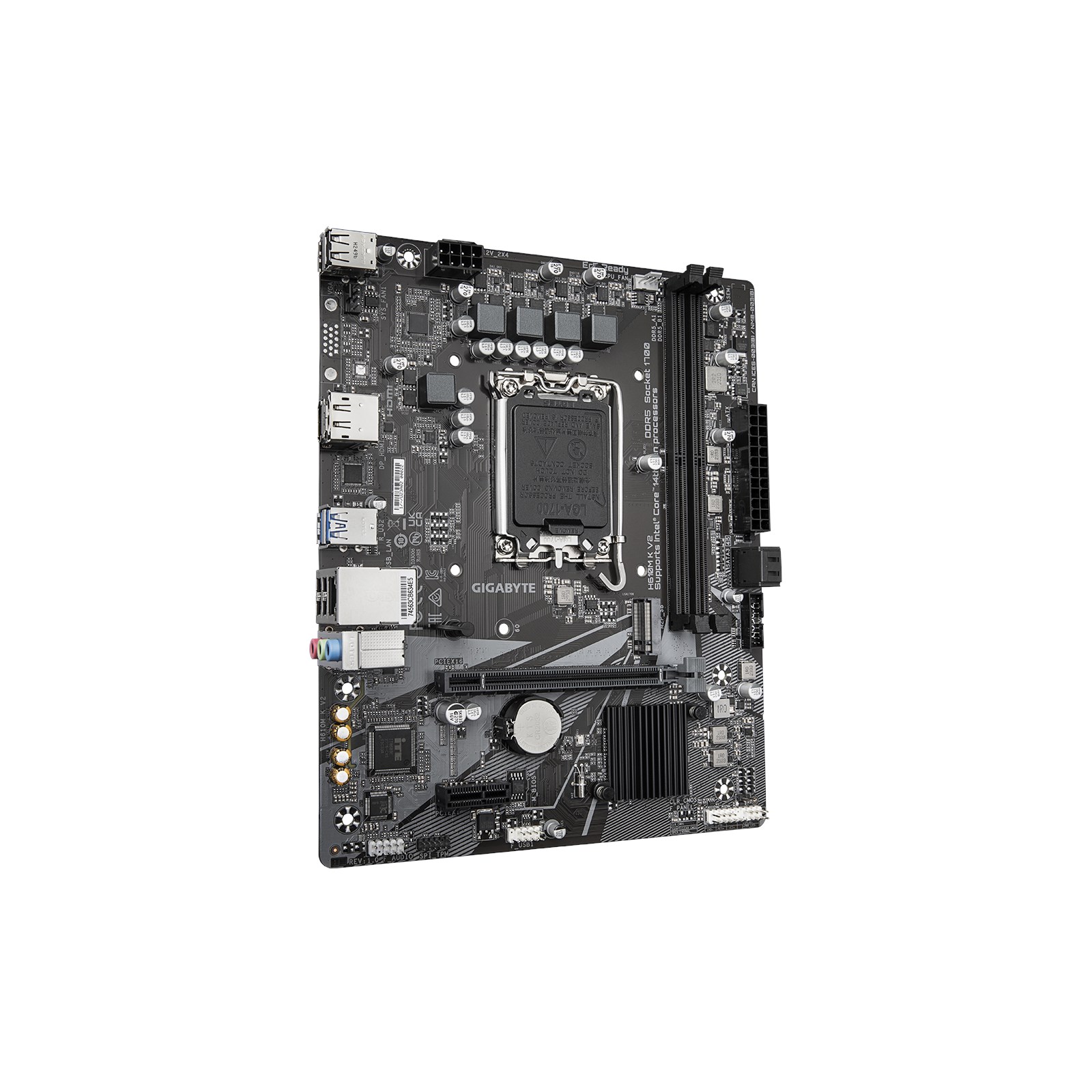

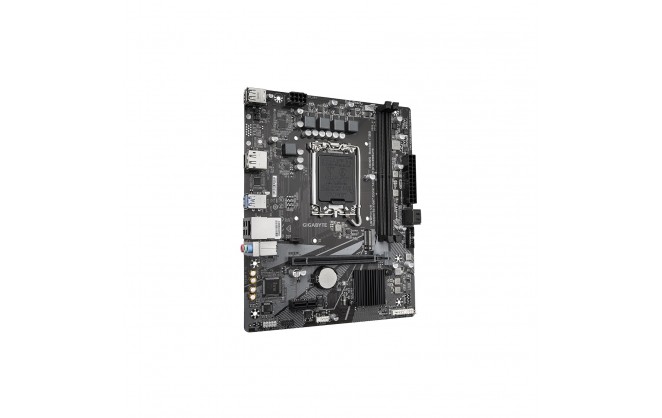

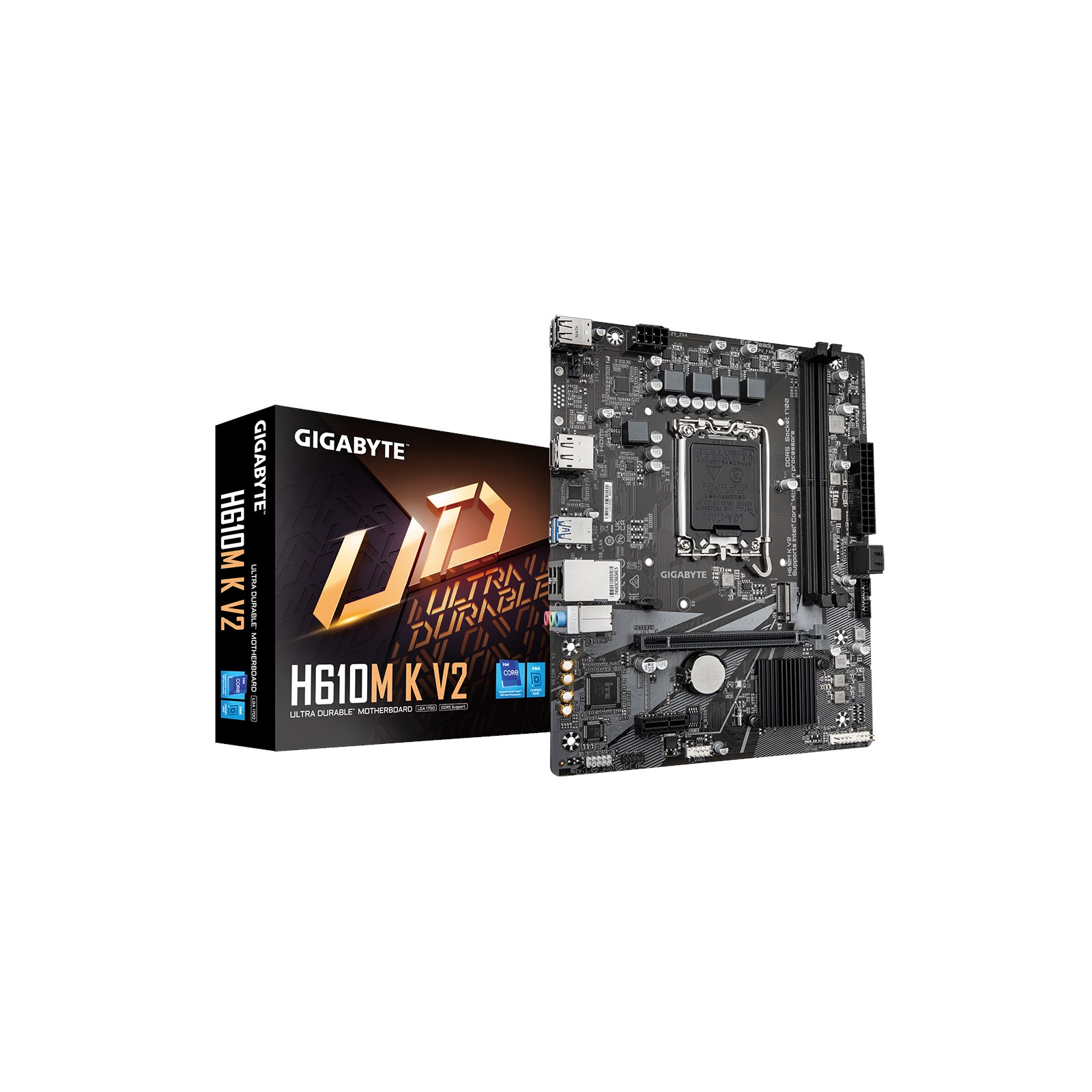

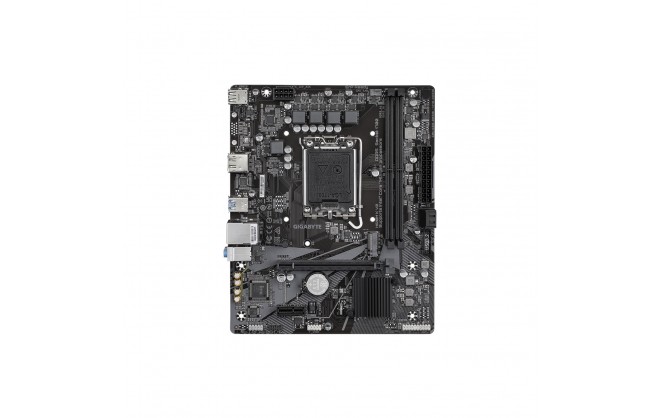

Gigabyte H610M K V2 mATX DDR5 Socket 1700 Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

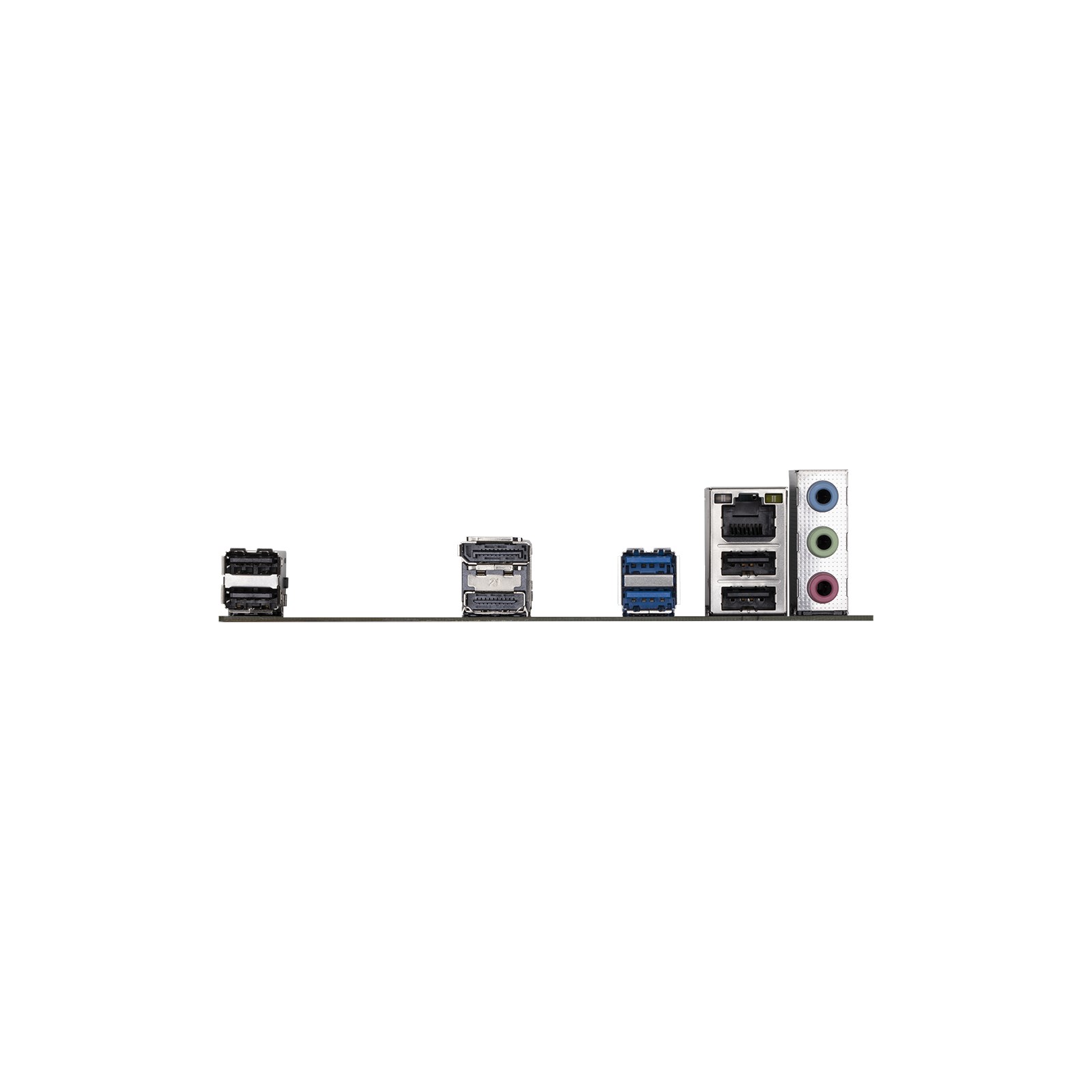

Rear Panel I/O Ports
| USB Ports | 2 x USB 3.0 4 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.2 |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 2 x SATA |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x System fan header |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Socket 3, M Key, Type 2280/2260 (PCIe Gen3) |
Memory
| Memory Bus Speed | Up to 5600 MT/s |
| Memory Type | DDR5 |
| Maximum RAM | 128 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Northbridge | Intel H610 |
| RAID Supported | No |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 sloty |
Graphics Device
| Integrated Graphics Supported | Yes |
Warranty
| Warranty | 3 Years |
Sound
| Integrated Sound | Realtek |
Network
| Integrated Network | Realtek |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 |
System
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | mATX Motherboard |
| Width | 185 mm |
| Length | 226 mm |
Key Features
| RDIMM Memory Supported | No |
| RDIMM Memory Required | No |
| Wireless Network | No |
| Motherboard Width | 185 mm |
| Motherboard Height | 226 mm |
| Main Colour | Black |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 2 port(s) |
| Number of USB Ports | 6 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | mATX |
| Motherboard (EPS) Power Connectors | 4+4-Pin |
| Motherboard Chipset | Intel H610 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte H610M K V2 |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
| RGB Header Type | None |
| Addressable RGB | No |
| Internal USB Type-C Header | No |
| Power Requirement (auto) | 60 W |
| Max Memory Speed Supported (Non-overclocked) | 5600 MT/s |
| CPU Power Pins (female) | 8 |
| Total M.2 Slots | 1 |
| Maximum NVMe M.2 ports | 1 |
| SATA ports | 2 |
| No. of front USB2.0 ports supported | 2 |
| No. of front USB3.0 ports supported | 2 |
| Back Connect Support | No |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | H610M K V2 |
| EAN | 4719331860134 |
