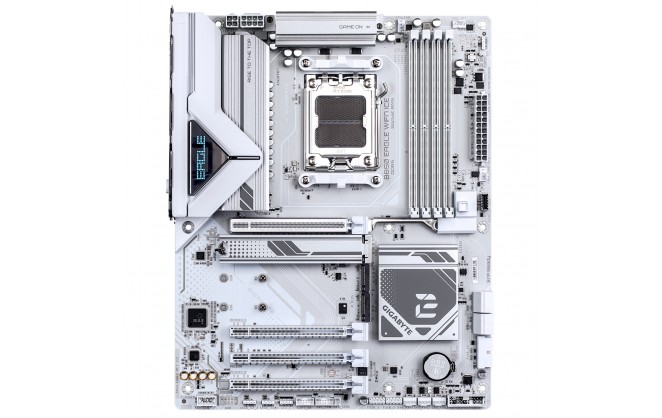

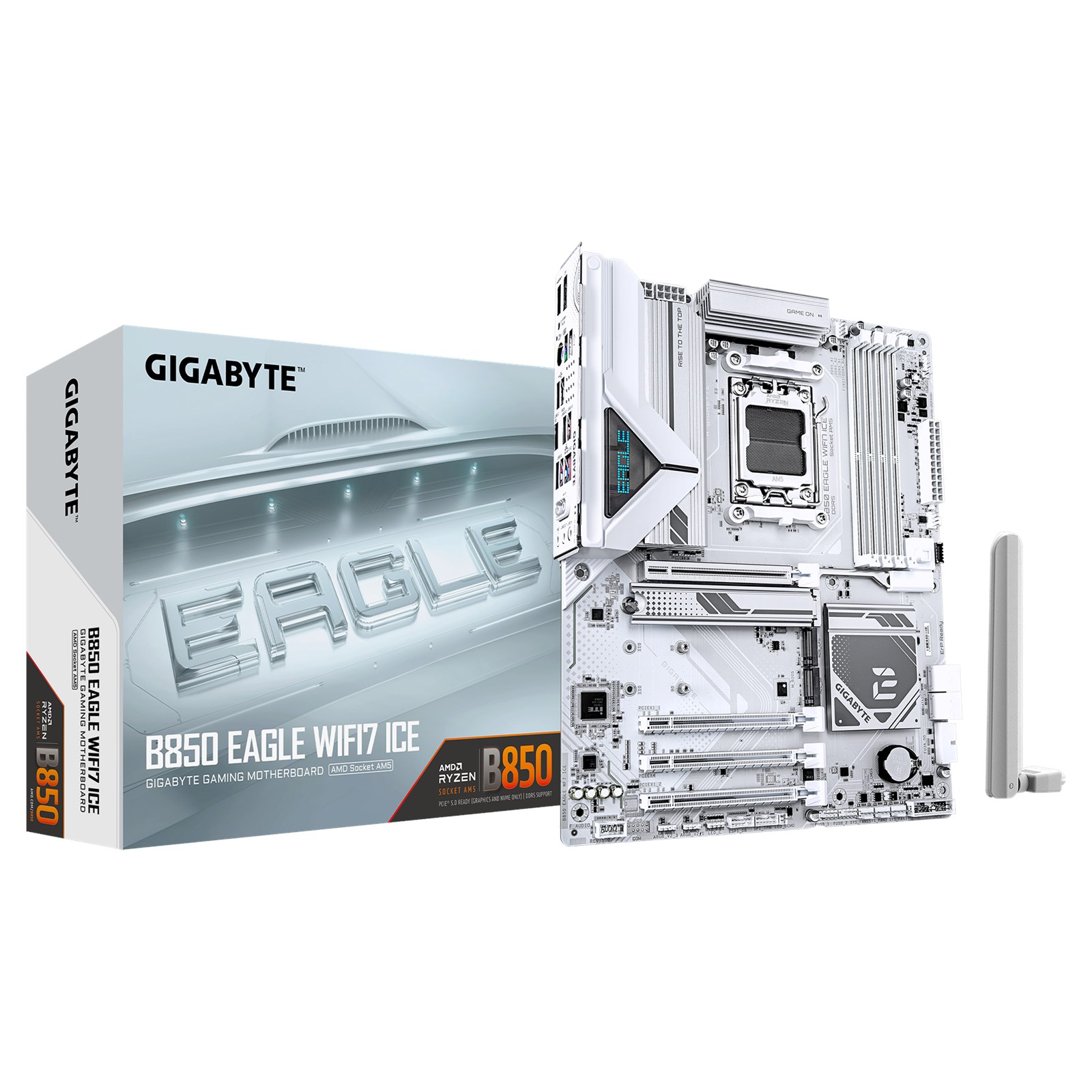

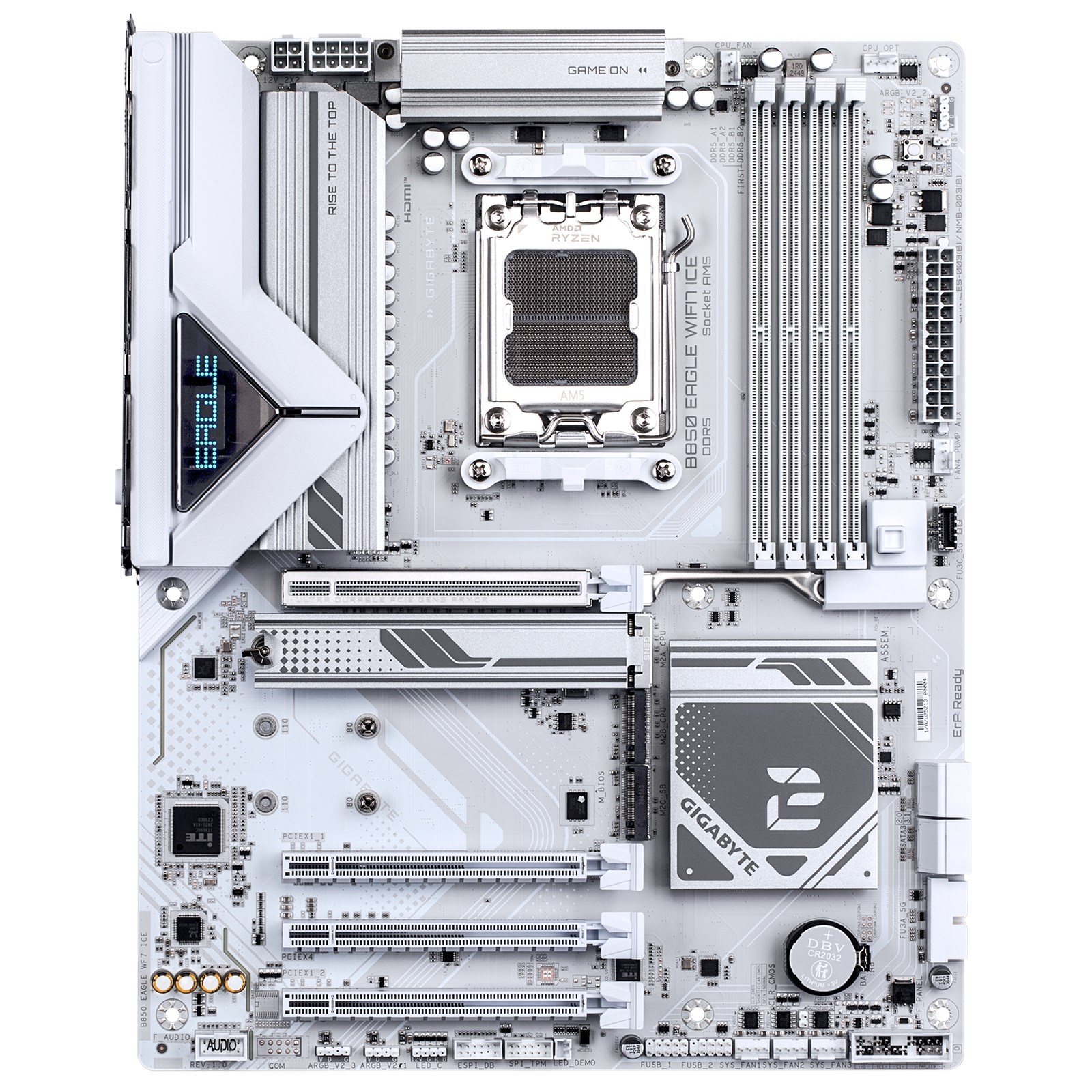

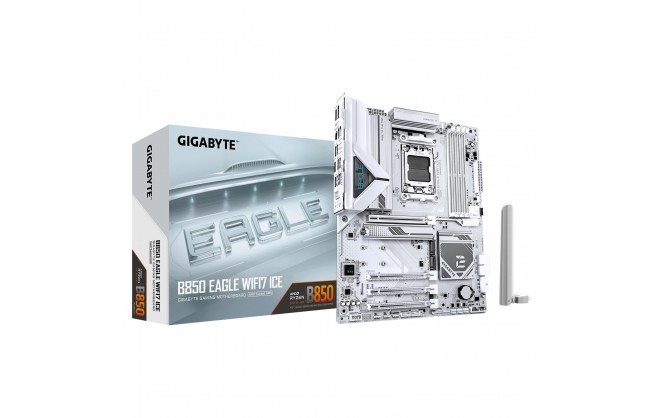

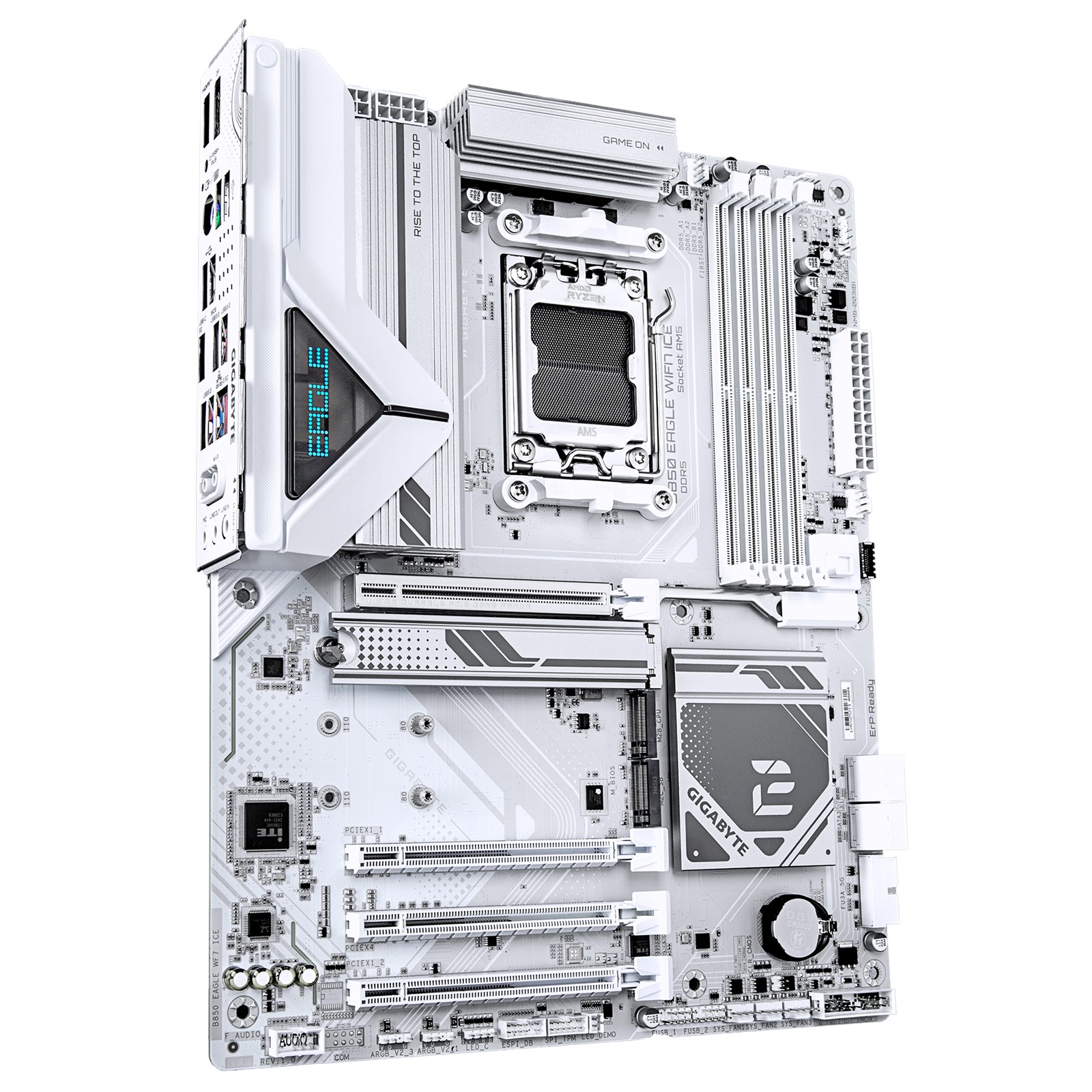

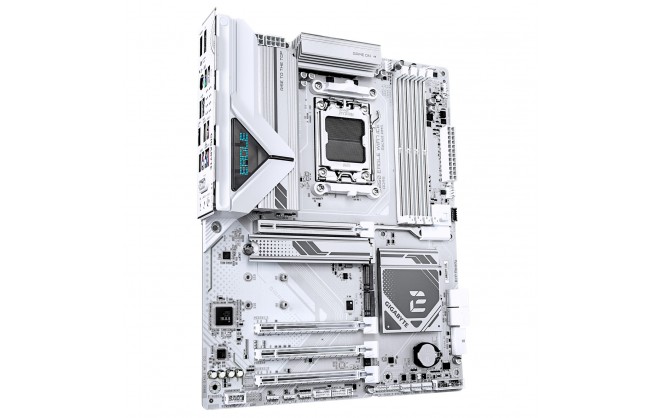

Gigabyte B850 EAGLE WIFI7 ICE ATX Socket AM5 Motherboard

  • Part Number: B850 EAGLE WF7 ICE
  • Manufacturer: Gigabyte
  • Quickfind Code: 136499
  • Stock: In Stock

£149.89 ex. vat
£179.87 inc. vat

Product Features:
  • Condition: New
  • Socket Type AM5
  • Chipset B850
  • Form Factor ATX
  • Memory Type DDR5
  • CPU Type AMD
+ Read More Information

Share:

Product Description

Gigabyte B850 EAGLE WIFI7 ICE AMD Socket AM5 ATX Motherboard

Technical Specification

Gigabyte B850 EAGLE WIFI7 ICE ATX Socket AM5 Motherboard

CPU

CPU SocketSocket AM5
CPU BrandAMD
Installed Processors (Max)0 (1)
Supported Processor ManufacturerAMD
Supported ProcessorsAMD Ryzen 9000 / 8000 / 7000 Series Processors
64-bit SupportYes
SocketAM5

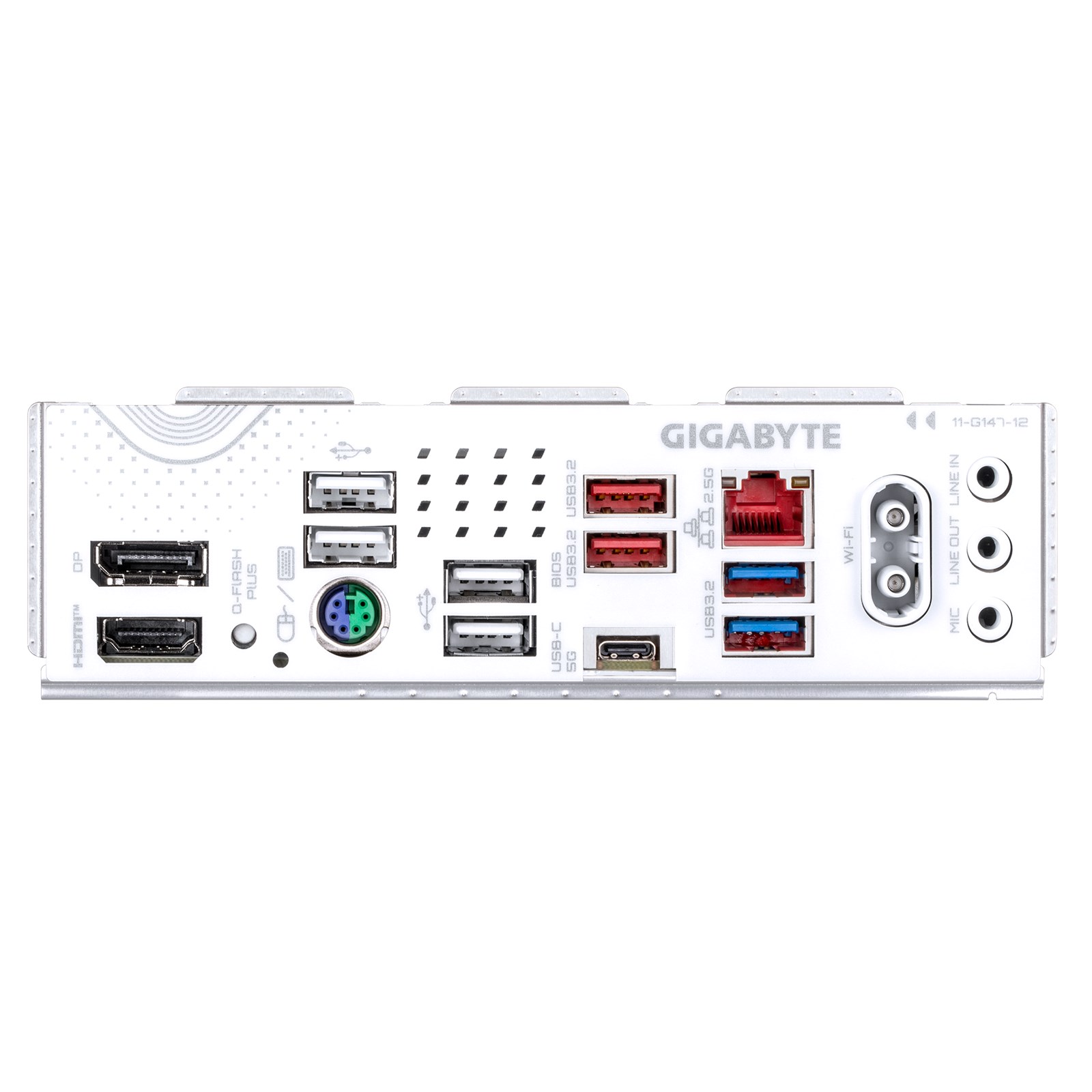

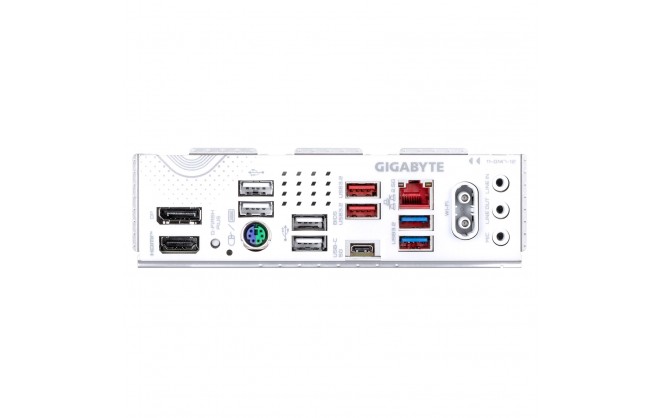

Rear Panel I/O Ports

USB Ports2 x USB 3.1
1 x USB-C 3.0
2 x USB 3.0
4 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA
USB Connectors1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU fan/Water Cooling pump header
3 x System fan headers
1 x System fan/Water Cooling pump header
TPM Header1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors1 x M.2 slot, Socket 3, M Key, Type 22110/2280 (PCIe Gen5)2 x M.2 slots, Socket 3, M Key, Type 22110/2280 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus SpeedUp to 8200 MT/s
Memory TypeDDR5
Maximum RAM256 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeAMD B850
RAID SupportedYes
RAID FormatRAID 0, 1, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes - Wi-Fi 7
BluetoothYes
Bluetooth Version5.4

System Requirements

Operating Systems SupportedMicrosoft Windows 11

System

Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorATX Motherboard
Width244 mm
Length305 mm

Key Features

RDIMM Memory SupportedNo
RDIMM Memory RequiredNo
Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height305 mm
Main ColourWhite
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports9 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorATX
Motherboard (EPS) Power Connectors4-Pin + 8-Pin
Motherboard ChipsetAMD B850
ThunderboltNo
Motherboard ModelGigabyte B850 EAGLE WIFI7 ICE
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlGigabyte RGB Fusion
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)70 W
Max Memory Speed Supported (Non-overclocked)5200 MT/s
Max Memory Speed Supported (overclocked)8200 MT/s
CPU Power Pins (female)12
Total M.2 Slots3
Maximum NVMe M.2 ports3
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1
Back Connect SupportNo

Item Details

ManufacturerGigabyte
Manufacturer CodeB850 EAGLE WF7 ICE
EAN4719331871239
