Gigabyte B850 AI TOP Socket AM5 ATX Motherboard

£329.48 ex. vat
£395.38 inc. vat

Gigabyte B850 AI TOP AMD Socket AM5 ATX Motherboard

Training your own AI on your desk
DDR5 OC up to 8600MT/s
AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 3*M.2 slots, including 2*PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced with M.2 Thermal Guard
Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
Extended Connectivity : Rear USB-C support up to 40Gb/s, Front USB-C 20Gb/s, HDMI
High-Res Audio : ALC1220 and High-End Audio Capacitor
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 9000 / 8000 / 7000 Series Processors
64-bit Support	Yes
Socket	AM5

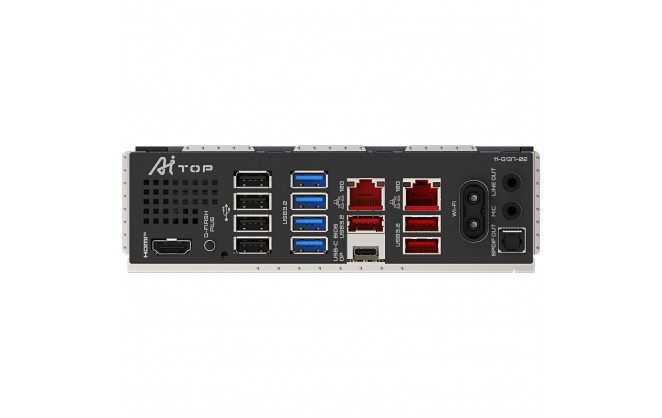

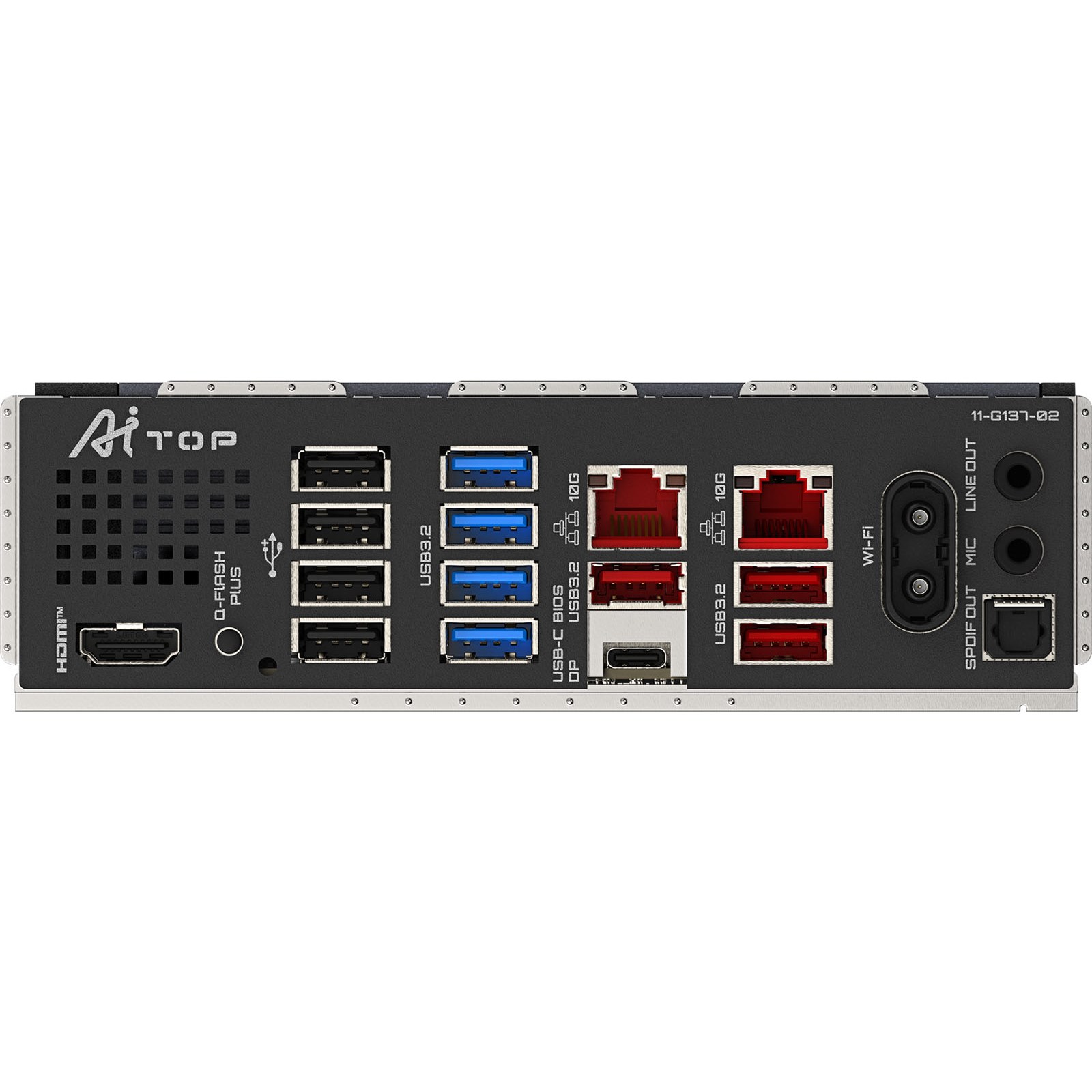

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU fan/AIO pump header 4 x System fan headers 2 x System fan/AIO pump headers
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen5) 2 x M.2 slots, Key M, Type 2280/2580/22110/25110 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header 2 x Temperature Sensor headers

Memory

Motherboard

Expansion

Number of PCI Express Slots

2 x PCI Express 5.0 x16 slots (@ x16/x8)
1 x PCI Express 4.0 x16 slot (@ x2)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC1220

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS 1 x Reset
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	No
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	12 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	AMD B850
Thunderbolt	No
Motherboard Model	Gigabyte B850 AI TOP
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	8600 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
