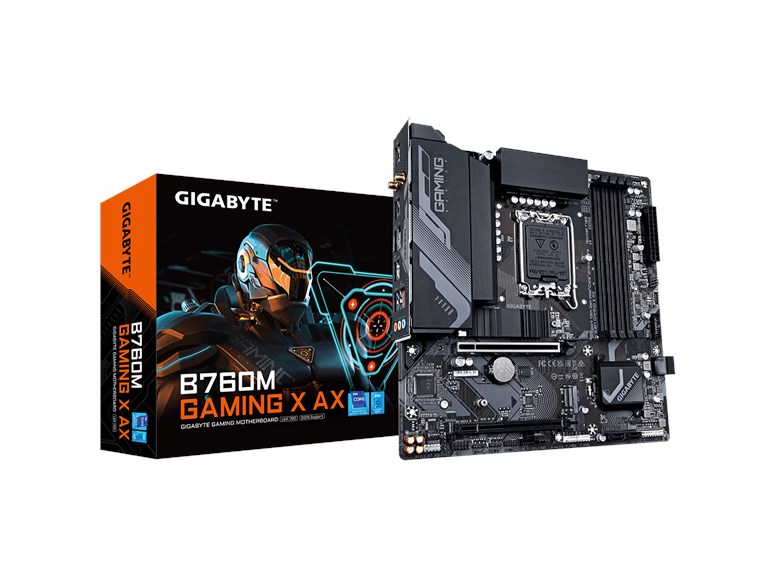

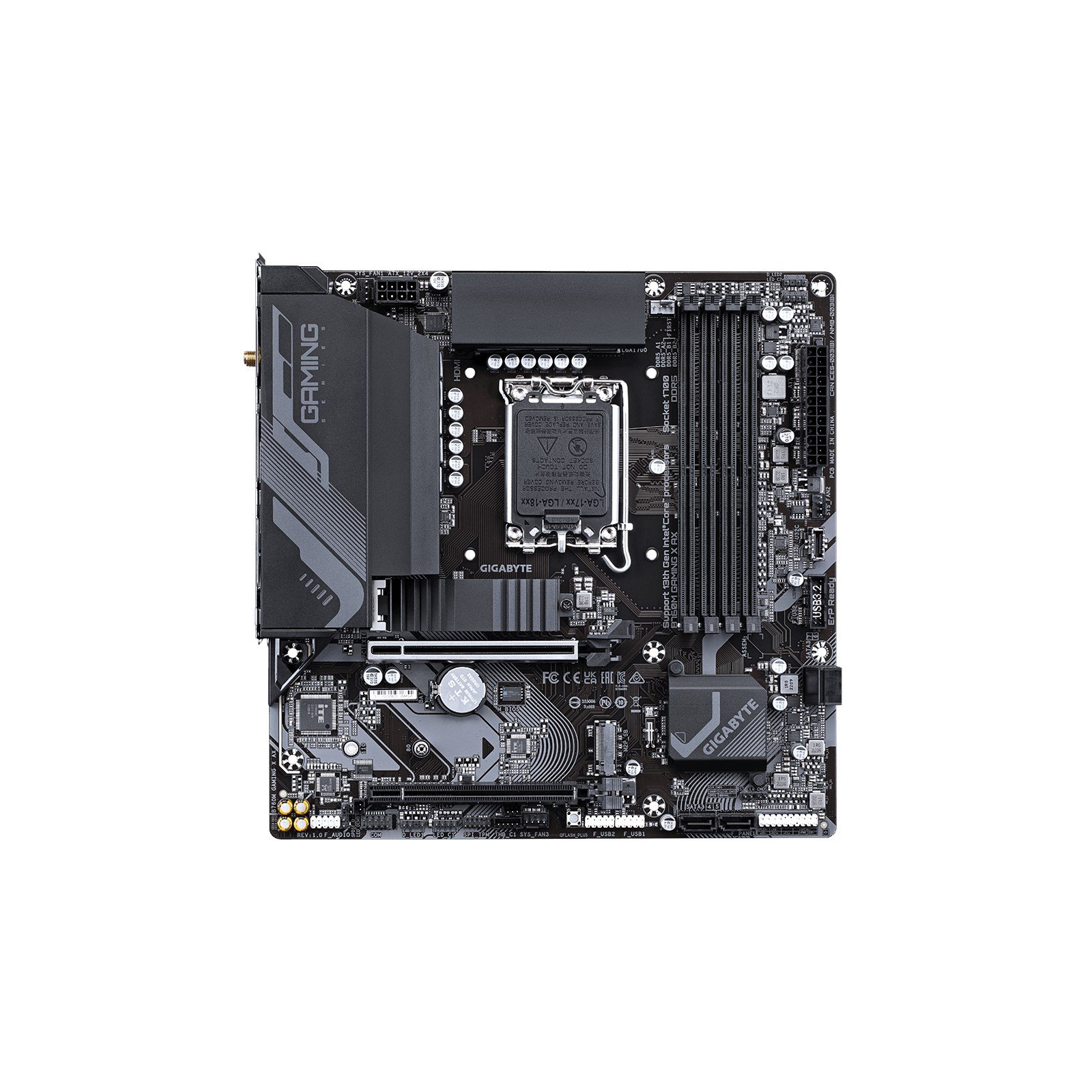

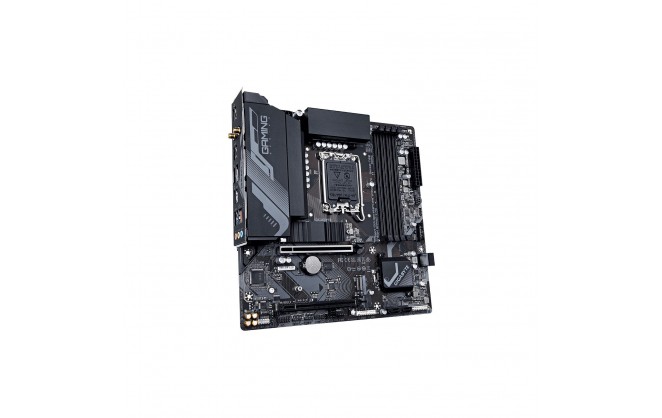

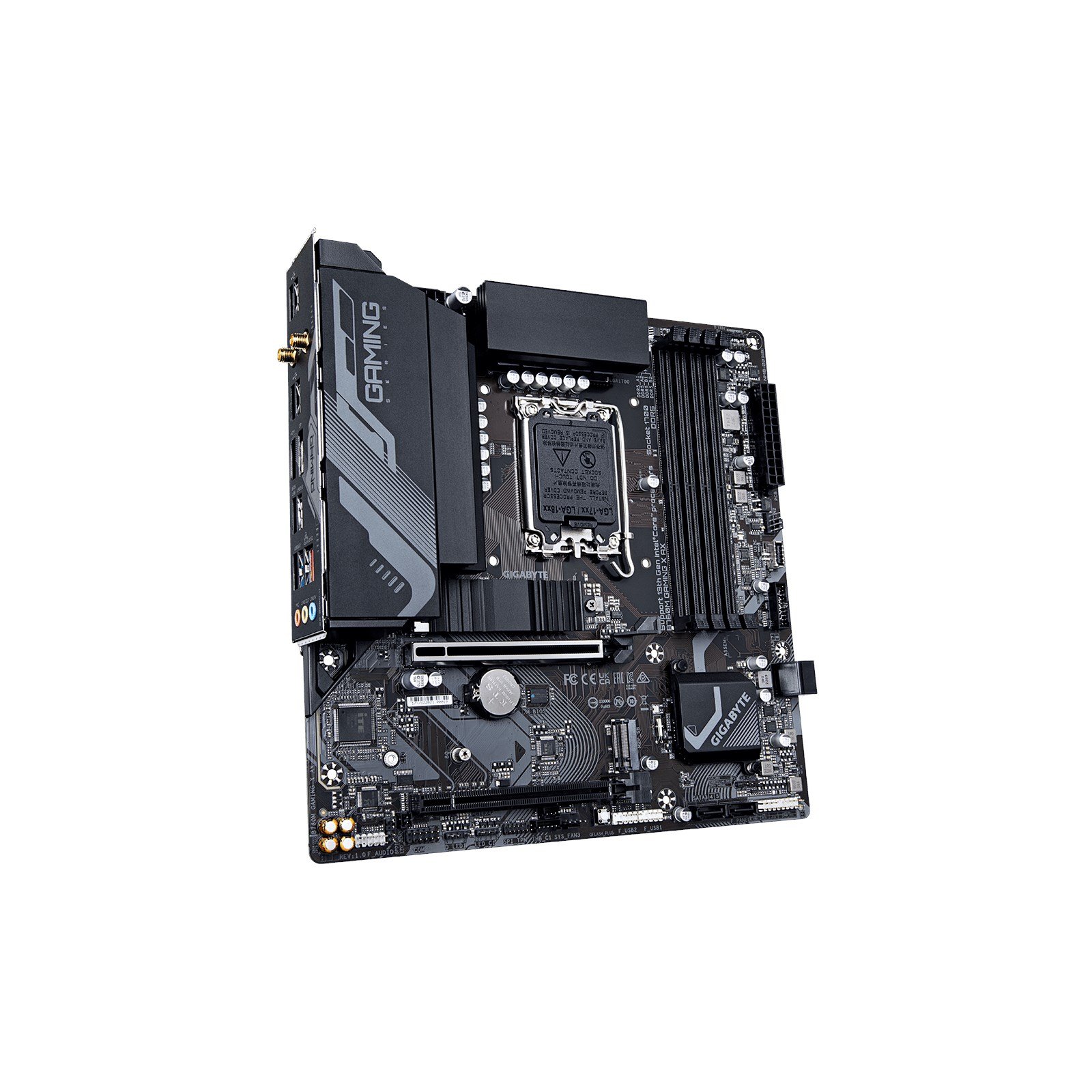

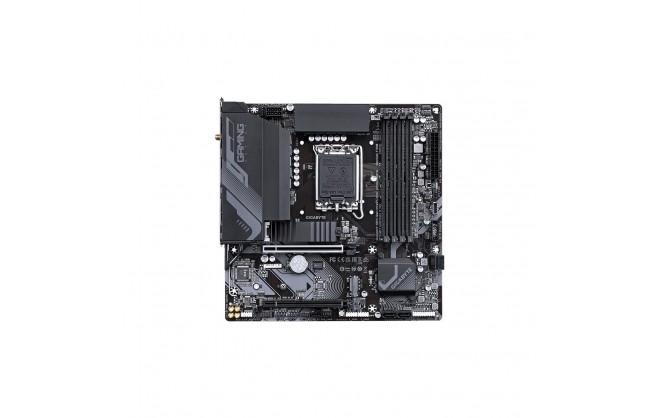

Gigabyte B760M GAMING X AX mATX Socket 1700 Motherboard

  • Part Number: B760M GAMING X AX
  • Manufacturer: Gigabyte
  • Quickfind Code: 136197

  • Stock: In Stock

£123.16 ex. vat
£147.79 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset B760
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Main Features

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specification

Gigabyte B760M GAMING X AX mATX Socket 1700 Motherboard

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1700

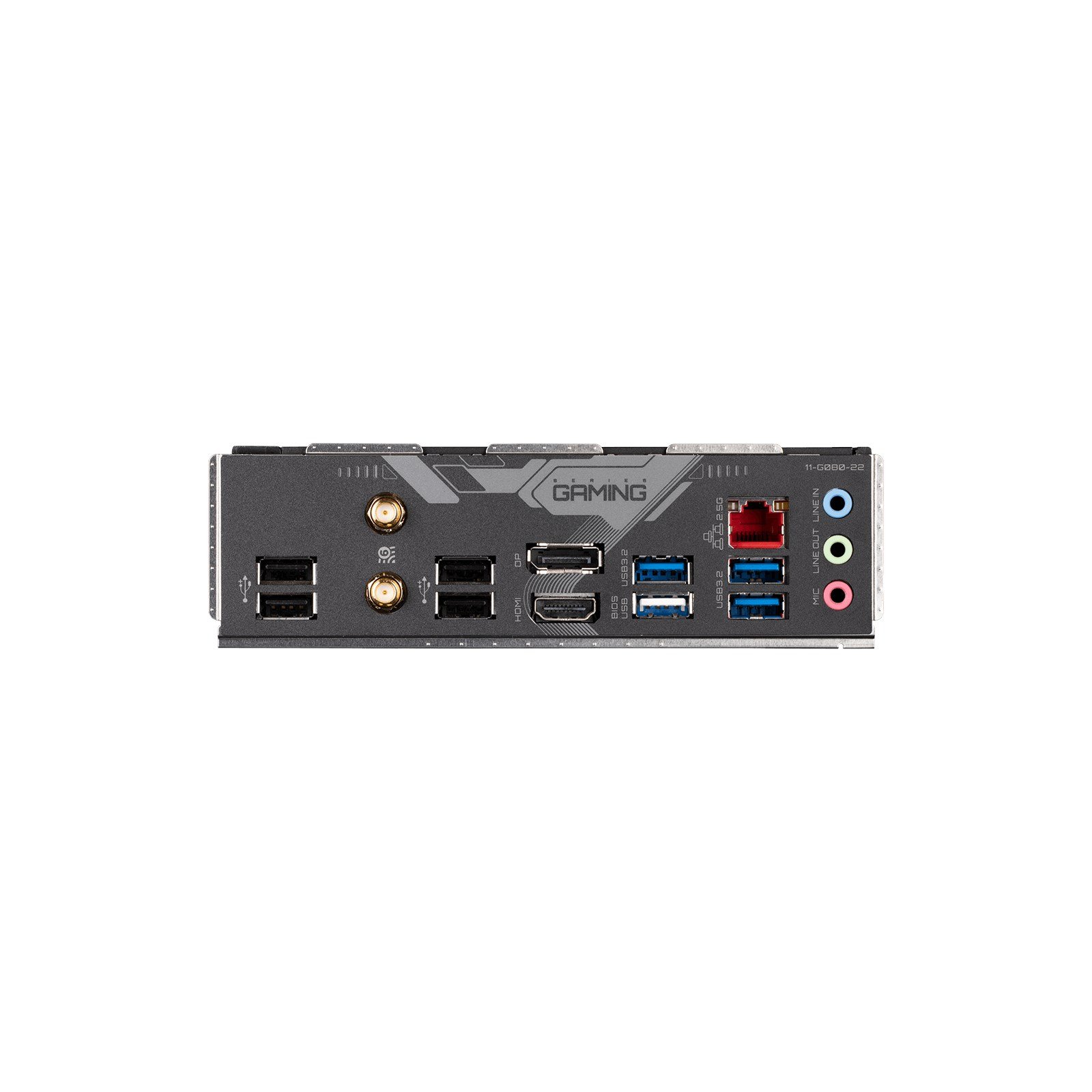

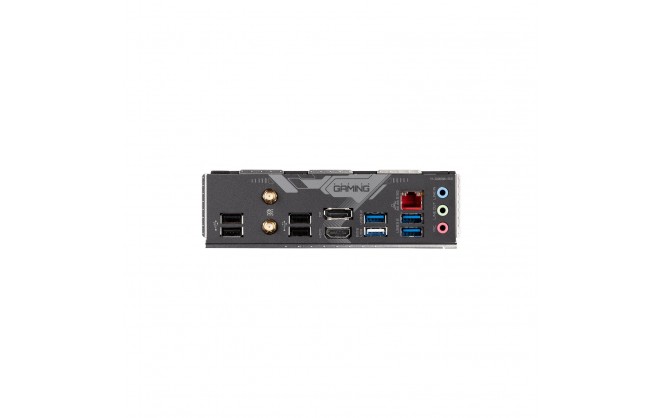

Rear Panel I/O Ports

USB Ports3 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.2
HDMI Port1 x HDMI 2.1
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
3 x System fan headers
S/PDIF Connectors1 x S/PDIF Out header
Thunderbolt Port(s)2 x Thunderbolt add-in card connectors
Serial Connectors1 x COM header
TPM Header1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus SpeedUp to 7600 MHz
Memory TypeDDR5
Maximum RAM192 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeIntel B760
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
4 x PCI Express 3.0 x16 slots (@ x1/x1/x1/x1)

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.3

System Requirements

Operating Systems SupportedMicrosoft Windows 11

System

Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactormATX Motherboard
Width244 mm
Length244 mm

Key Features

RDIMM Memory SupportedNo
RDIMM Memory RequiredNo
Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height244 mm
mSATA SupportedNo
U.2 SupportedNo
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports8 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard (EPS) Power Connectors4+4-Pin
Motherboard ChipsetIntel B760
ThunderboltNo
WiFi Speed2400 Mbps
USB 3.1 SupportNo
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlGigabyte RGB Fusion
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)60 W
Max Memory Speed Supported (Non-overclocked)4800 MT/s
Max Memory Speed Supported (overclocked)7600 MT/s
CPU Power Pins (female)8
Total M.2 Slots2
Maximum NVMe M.2 ports2
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1

Item Details

ManufacturerGigabyte
Manufacturer CodeB760M GAMING X AX
EAN4719331851392
UPC889523034705
