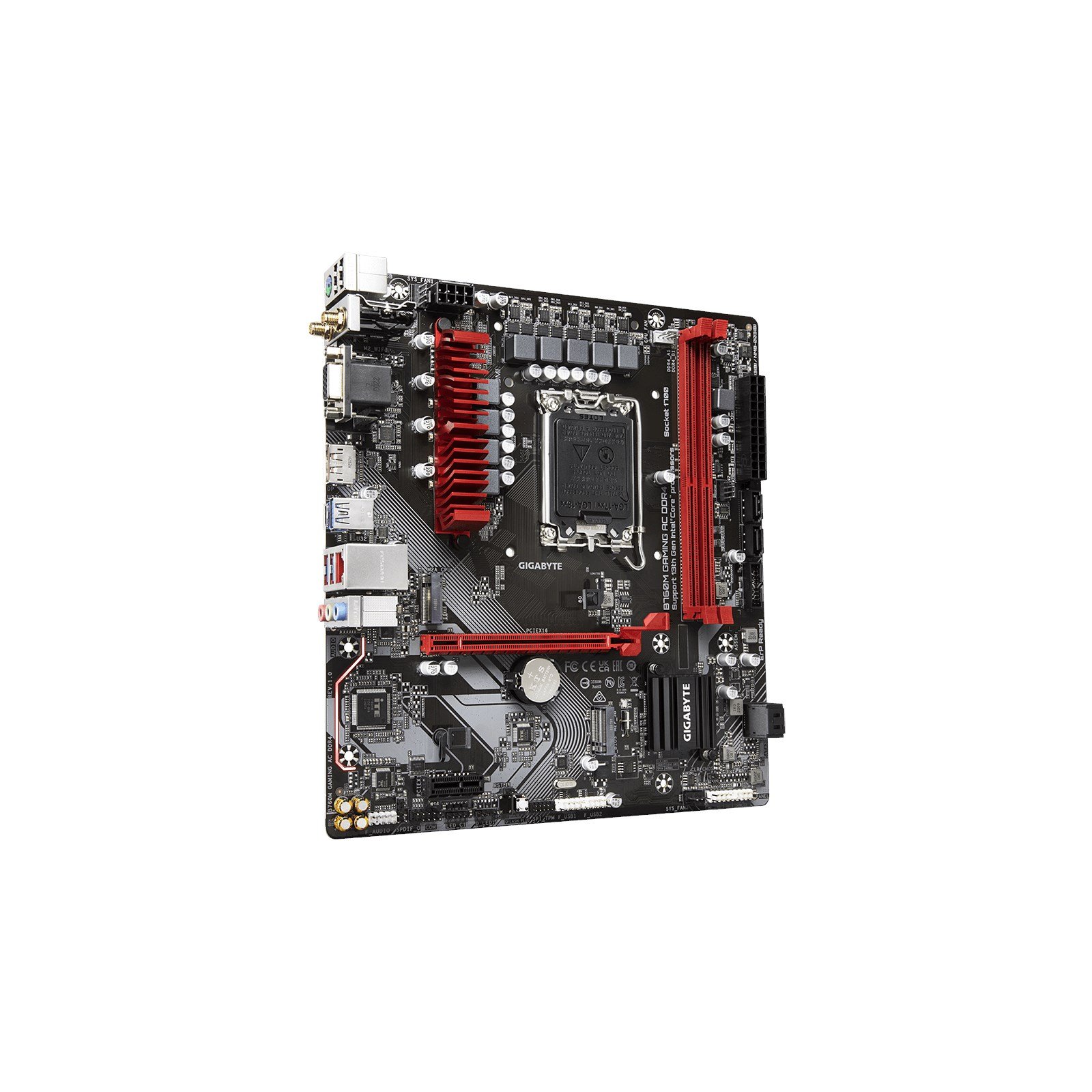

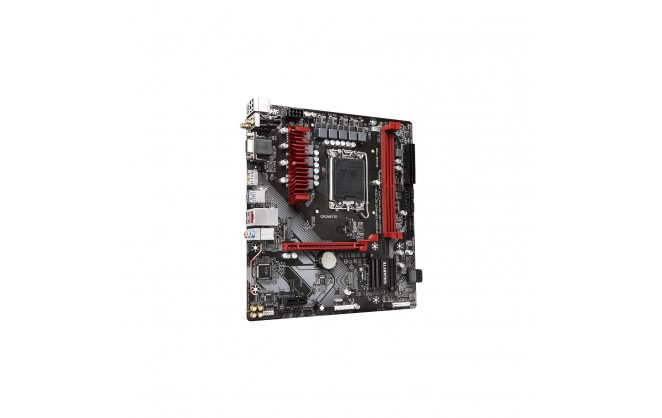

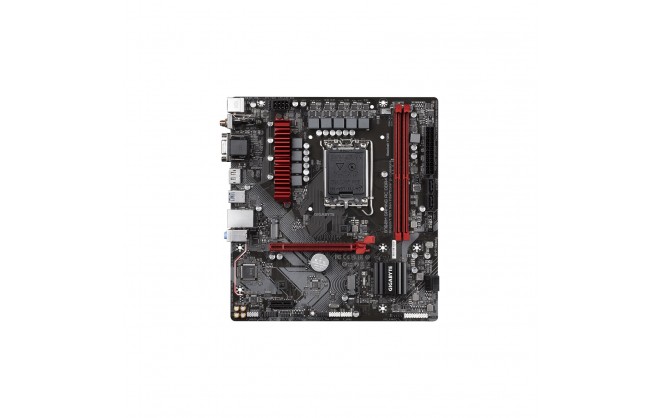

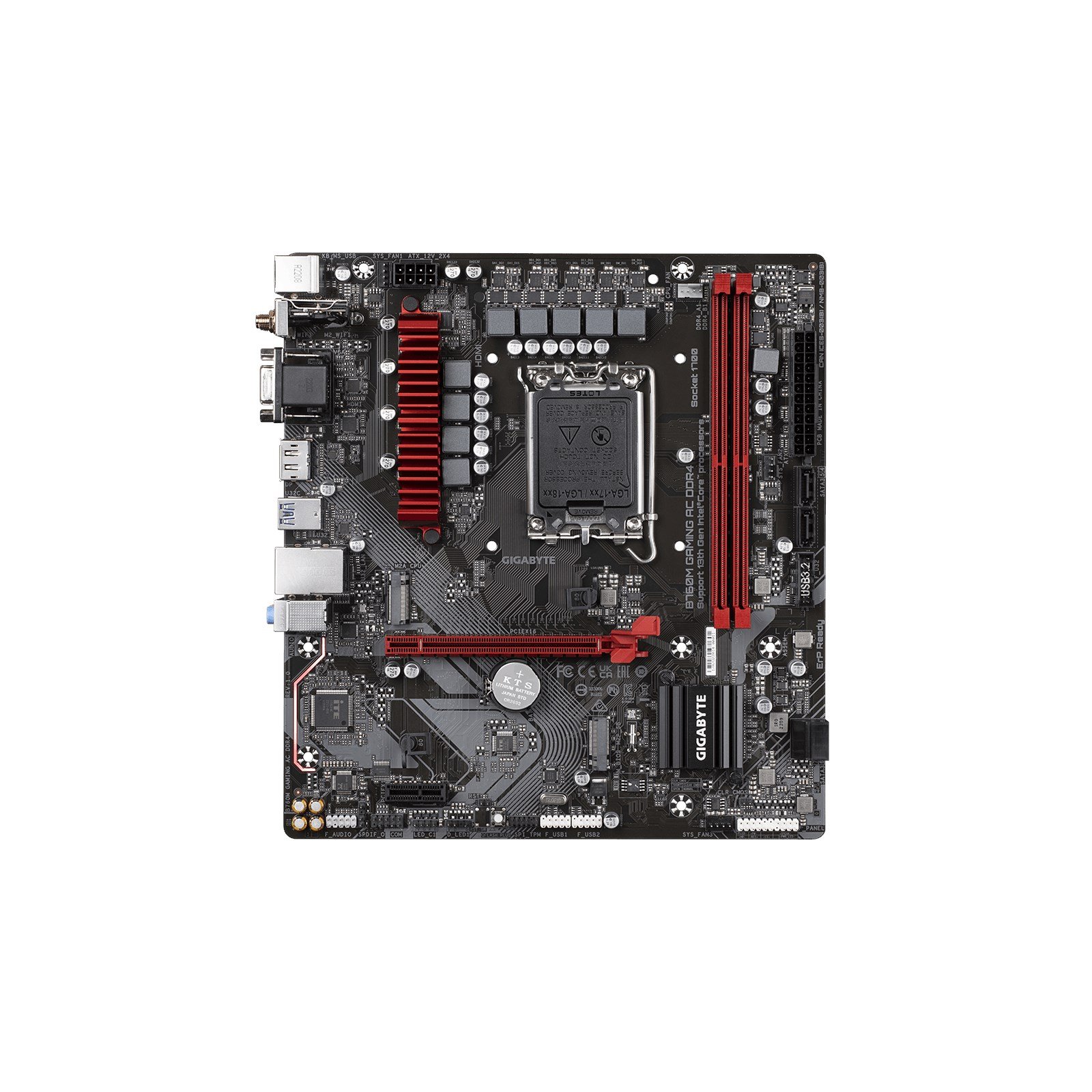

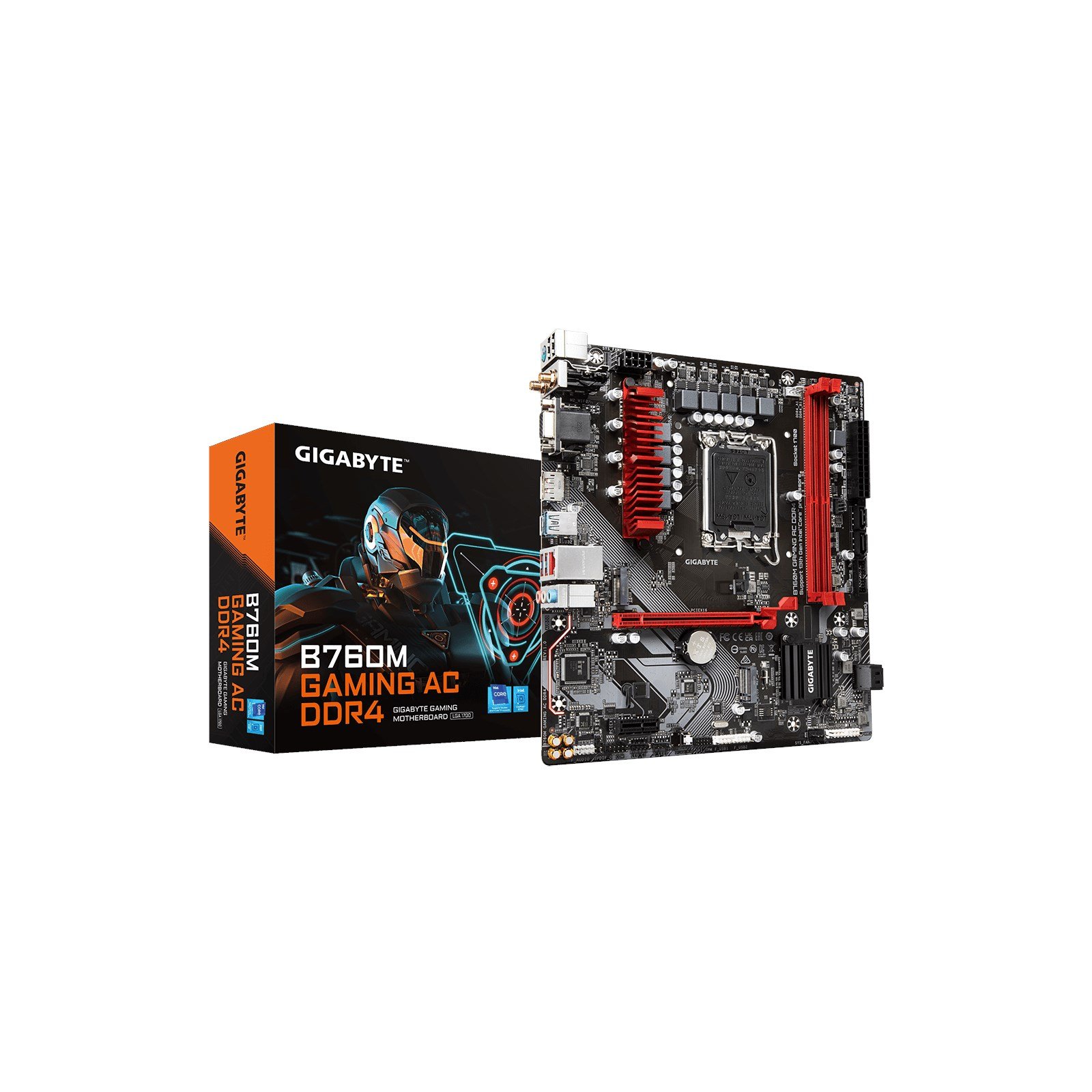

Gigabyte B760M GAMING AC DDR4 mATX Socket 1700 Motherboard

  • Part Number: B760M GAMING AC DDR4
  • Manufacturer: Gigabyte
  • Quickfind Code: 136199

  • Stock: In Stock

£97.84 ex. vat
£117.41 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset B760
  • Form Factor mATX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

CONNECTIVITY

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Main Features

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4: 2*DIMMs XMP Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 802.11ac
  • Extended Connectivity: Rear USB-C 5Gb/s, DP, HDMI, D-Sub
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specification

Gigabyte B760M GAMING AC DDR4 mATX Socket 1700 Motherboard

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1700

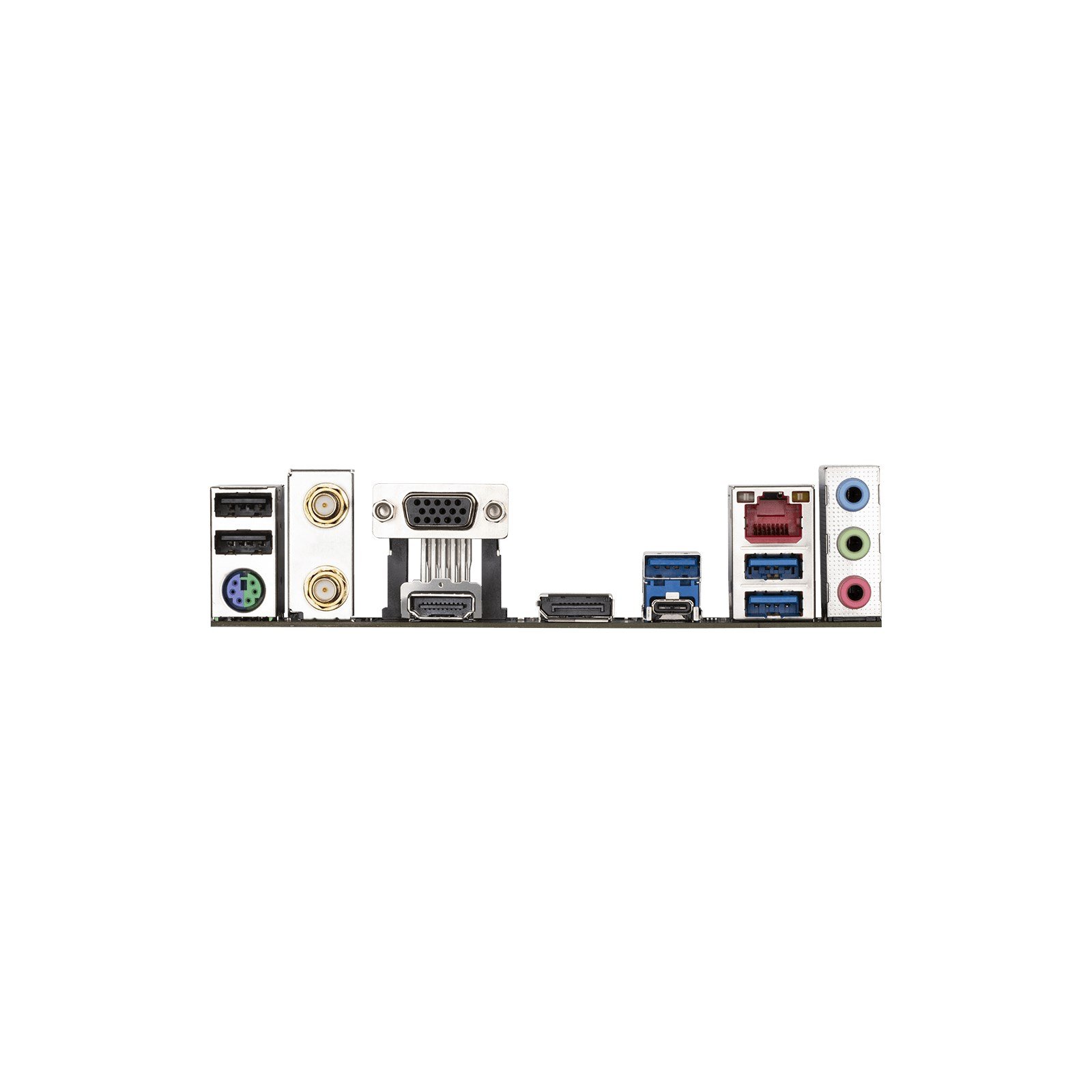

Rear Panel I/O Ports

USB Ports1 x USB-C 3.0
3 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.2
HDMI Port1 x HDMI 2.1
VGA Port1 x D-Sub
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
3 x System fan headers
S/PDIF Connectors1 x S/PDIF Out header
Serial Connectors1 x COM header
TPM Header1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors2 x M.2 slots, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header

Memory

Memory Bus SpeedUp to 5333 MT/s
Memory TypeDDR4
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

NorthbridgeIntel B760
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes - Wi-Fi 5
Wireless Network SpeedUp to 1.2 Gbps
BluetoothYes
Bluetooth Version5.1

System Requirements

Operating Systems SupportedMicrosoft Windows 11

System

Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactormATX
Width225 mm
Length244 mm

Key Features

Wireless NetworkYes
Motherboard Width225 mm
Motherboard Height244 mm
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports6 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionYes
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard (EPS) Power Connectors4+4-Pin
Motherboard ChipsetIntel B760
ThunderboltNo
Motherboard ModelGigabyte B760M GAMING AC DDR4
WiFi Speed1200 Mbps
USB 3.1 SupportNo
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlGigabyte RGB Fusion
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderNo
Power Requirement (auto)60 W
Max Memory Speed Supported (Non-overclocked)3200 MT/s
Max Memory Speed Supported (overclocked)5333 MT/s
CPU Power Pins (female)8
Total M.2 Slots2
Maximum NVMe M.2 ports2
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1

Item Details

ManufacturerGigabyte
Manufacturer CodeB760M GAMING AC DDR4
EAN4719331851477
UPC889523035214
