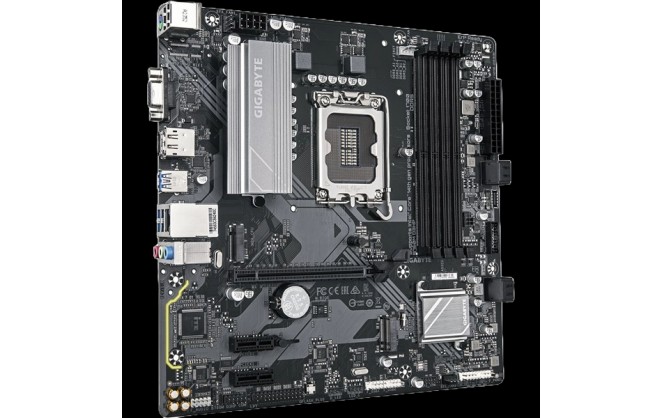

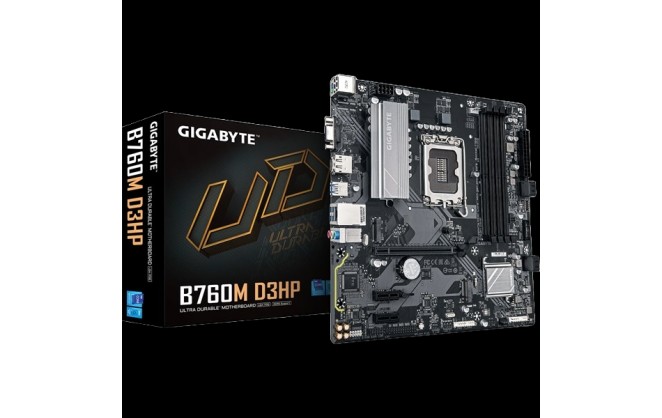

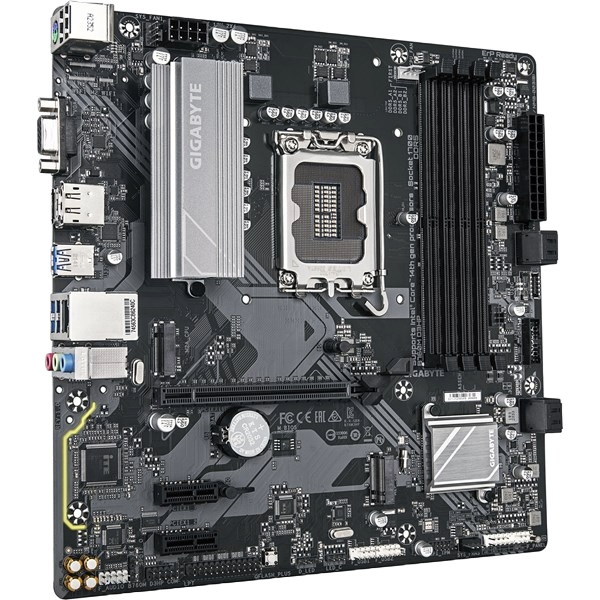

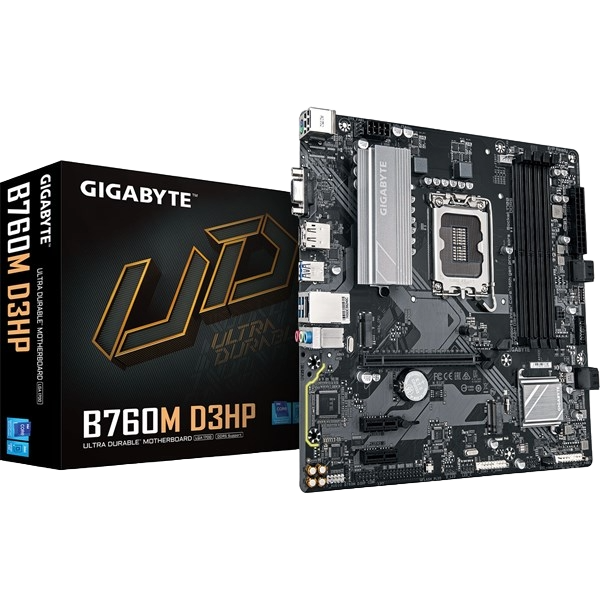

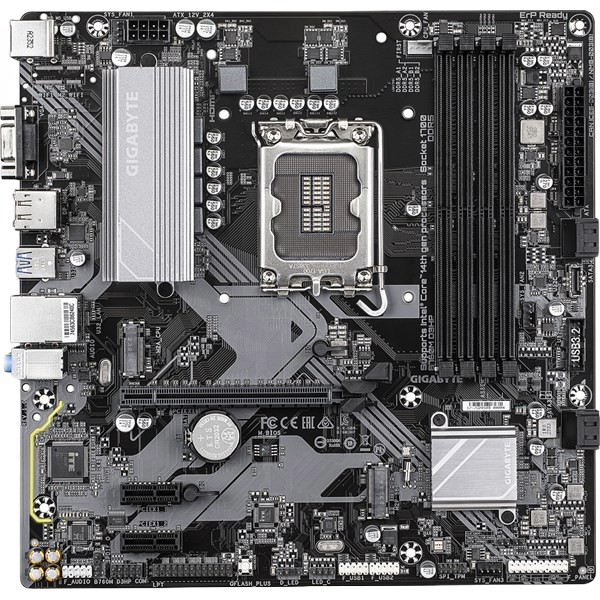

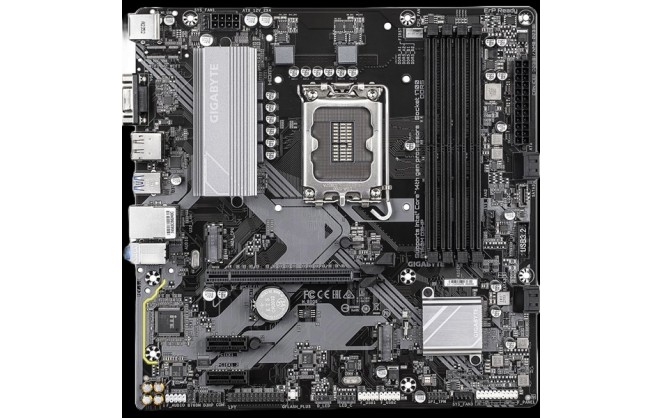

Gigabyte B760M D3HP mATX Socket 1700 Motherboard

  • Part Number: B760M D3HP
  • Manufacturer: Gigabyte
  • Quickfind Code: 136522
  • Stock: In Stock

£76.55 ex. vat
£91.86 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset B760
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Technical Specification

Gigabyte B760M D3HP mATX Socket 1700 Motherboard

CPU

  • Installed Processors (Max): 0 (1)
  • Supported Processor Manufacturer: Intel
  • Supported Processors: 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • 64-bit Support: Yes
  • Socket: LGA1700

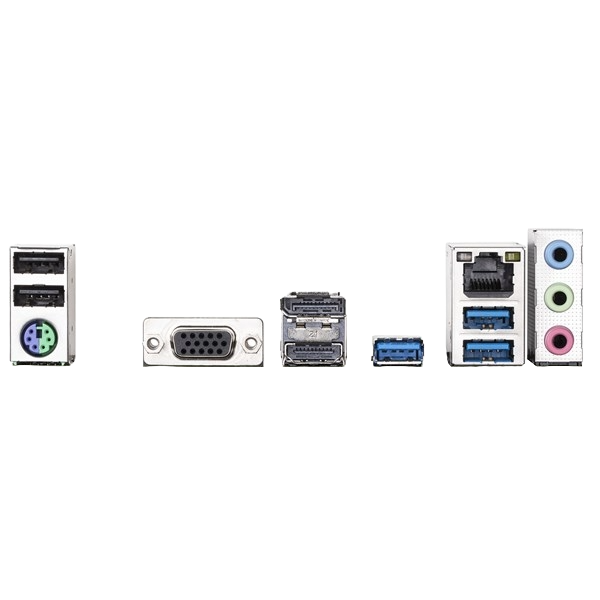

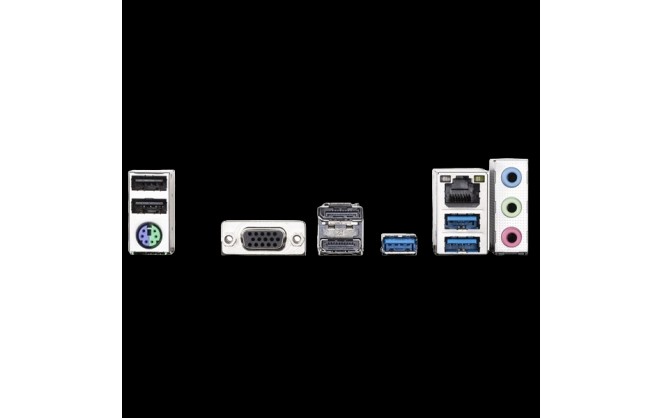

Rear Panel I/O Ports

  • USB Ports: 3 x USB 3.0
  • 2 x USB 2.0
  • DisplayPorts: 1 x DisplayPort 1.2
  • HDMI Port: 1 x HDMI 2.1
  • VGA Port: 1 x D-Sub

Internal I/O Connectors

  • SATA Connectors: 4 x SATA
  • USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
  • 1 x USB 3.0 header (supports 2 ports)
  • 2 x USB 2.0 headers (supports 4 ports)

Memory

  • Memory Bus Speed: Up to 5600 MT/s
  • Memory Type: DDR5

Motherboard

  • Northbridge: Intel B760
  • RAID Supported: Yes
  • RAID Format: RAID 0, 1, 5, 10
  • SATA Supported: Yes

Rear Panel I/O Ports

  • Keyboard/Mouse Combo Port: 1 x PS/2
  • RJ-45 Ports: 1 x RJ-45
  • Audio Line In Ports: 1 x 3.5mm Jack
  • Audio Line Out Ports: 1 x 3.5mm Jack
  • Microphone In Port: 1 x 3.5mm Jack

Internal I/O Connectors

  • Front Panel Connectors: 1 x Front Panel
  • 1 x Front Audio
  • Cooling Fan Support: 1 x CPU fan header
  • 3 x System fan headers
  • S/PDIF Connectors: 1 x S/PDIF Out header
  • Parallel Connectors: 1 x LPT header
  • Serial Connectors: 1 x COM header
  • TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • Power Connector Port: 1 x 24-pin ATX
  • 1 x 8-pin EPS
  • Other Connectors: 2 x M.2 slots, Socket 3, M Key, Type 2280 (PCIe Gen4)
  • 1 x 3-pin ARGB header
  • 1 x 4-pin RGB header

Expansion

  • Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
  • 2 x PCI Express 3.0 x1 slots

Memory

  • Maximum RAM: 256 GB
  • Memory Slot: 4 x DIMM

Graphics Device

  • Integrated Graphics Supported: Yes

Sound

  • Integrated Sound: Realtek

Warranty

  • Warranty: 3 Years

Network

  • Integrated Network: Realtek
  • Network Speeds Supported: Up to 1 Gbps
  • Wireless LAN: No
  • Bluetooth: No

System Requirements

  • Operating Systems Supported: Microsoft Windows 11

System

  • Jumpers: 1 x Clear CMOS
    1 x Reset
  • Software Included: Yes
  • Drivers: Yes

Physical

  • Form Factor: mATX Motherboard
  • Width: 244 mm
  • Length: 244 mm
