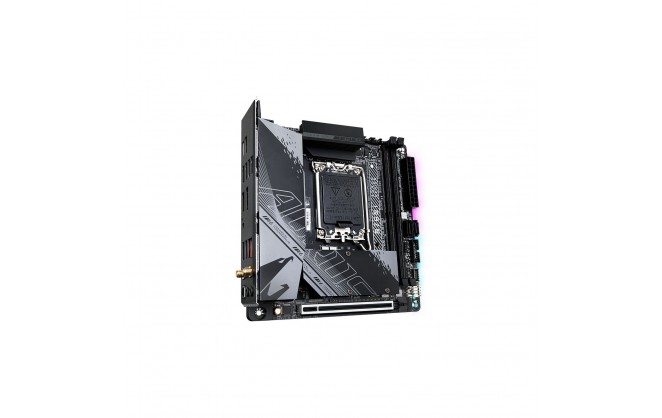

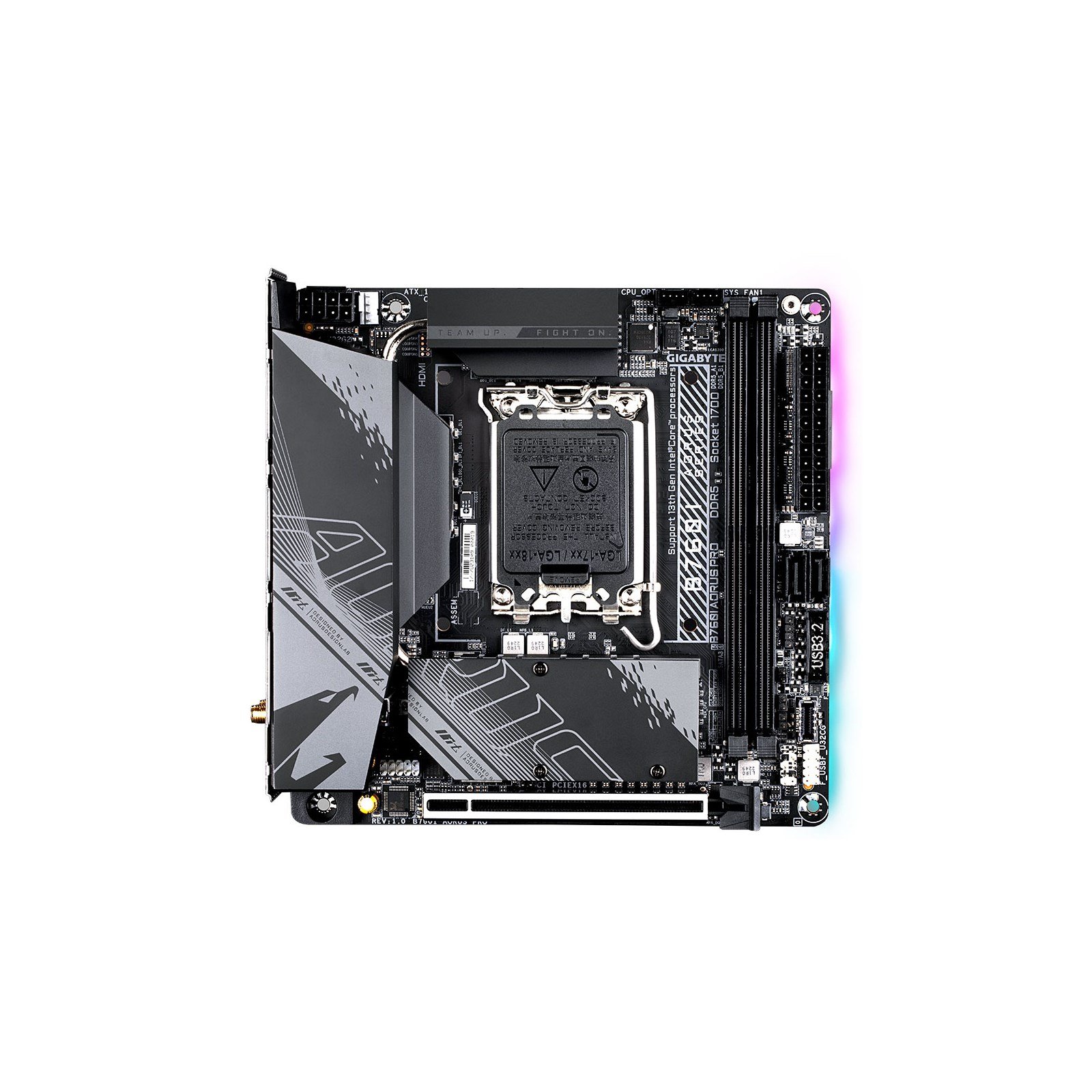

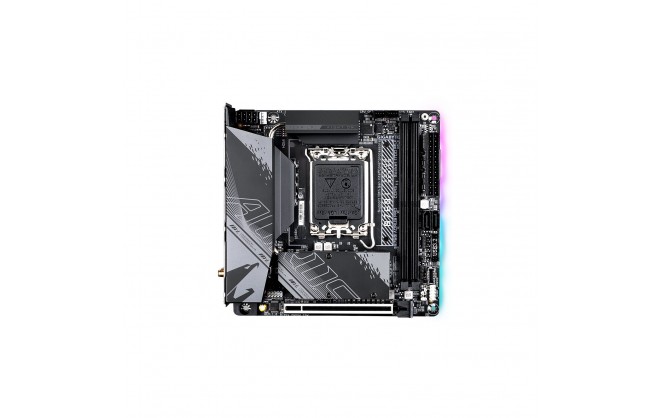

Gigabyte B760I AORUS PRO ITX Socket 1700 Motherboard

  • Part Number: B760I AORUS PRO
  • Manufacturer: Gigabyte
  • Quickfind Code: 136202

  • Stock: In Stock

£159.99 ex. vat
£191.99 inc. vat


Product Features:
  • Condition: New
  • Form Factor mITX
  • CPU Type Intel
  • Memory Type DDR5
  • Socket Type 1700
  • Chipset B760
+ Read More Information

Share:

Product Description

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Main Features

  • Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors
  • Unparalleled Performance: Direct 8+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 2*DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design: Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
  • Fast Networks: Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: Front USB3.2 Gen 1 USB-C, Rear USB-C 10Gb/s, DP, HDMI
  • RGB FUSION: Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specification

Gigabyte B760I AORUS PRO ITX Socket 1700 Motherboard

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1700

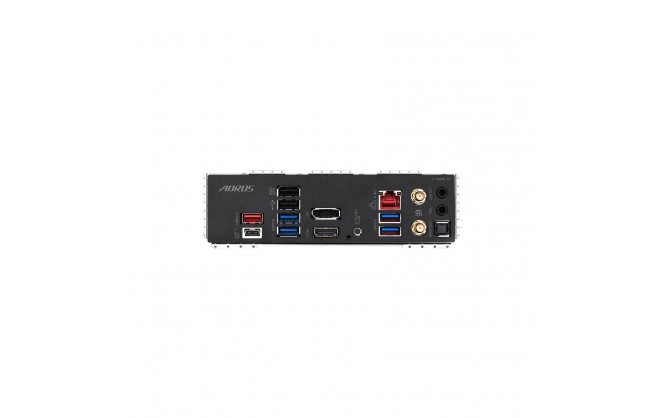

Rear Panel I/O Ports

USB Ports1 x USB-C 3.1
1 x USB 3.1
4 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.2
HDMI Port1 x HDMI 2.0
RJ-45 Ports1 x RJ-45
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors2 x SATA III
USB Connectors1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker1 x Speaker header
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU fan/Water Cooling pump header
1 x Chassis fan header
Chassis Intrusion Connector1 x Chassis Intrusion header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS

Memory

Memory Bus SpeedUp to 8000 MHz
Memory TypeDDR5
Maximum RAM96 GB
Memory Slot2 x DIMM

Motherboard

NorthbridgeIntel B760
RAID SupportedYes
RAID FormatRAID 0, 1
SATA SupportedYes

Expansion

Number of PCI Slots2 x M.2 slots, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
Number of PCI Express Slots1 x PCI Express 4.0 x16 slot

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkIntel
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6E)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.3

System Requirements

Operating Systems SupportedMicrosoft Windows 11

System

BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers1 x Clear CMOS
1 x Reset
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorMini-ITX Motherboard
Width170 mm
Length170 mm

Key Features

Wireless NetworkYes
Motherboard Width170 mm
Motherboard Height170 mm
mSATA SupportedNo
U.2 SupportedNo
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports2 port(s)
Number of USB Ports8 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorITX
Motherboard (EPS) Power Connectors4+4-Pin
Motherboard ChipsetIntel B760
ThunderboltNo
Motherboard ModelGigabyte B760I AORUS PRO
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlGigabyte RGB Fusion
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)30 W
Max Memory Speed Supported (Non-overclocked)4800 MT/s
Max Memory Speed Supported (overclocked)8000 MT/s
CPU Power Pins (female)8
Total M.2 Slots2
Maximum NVMe M.2 ports2
SATA ports2
No. of front USB2.0 ports supported2
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1
Back Connect SupportNo

Item Details

ManufacturerGigabyte
Manufacturer CodeB760I AORUS PRO
EAN4719331854843
UPC889523037317
