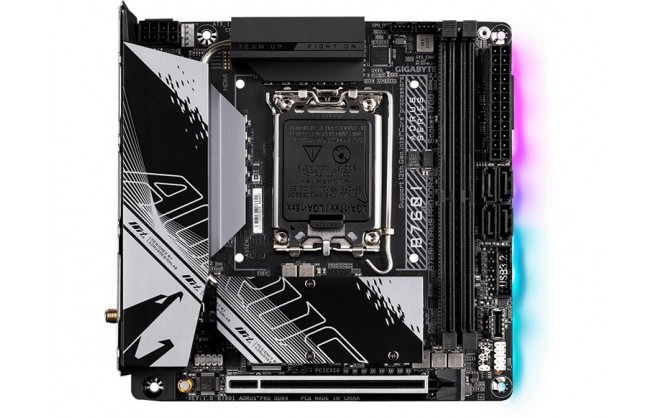

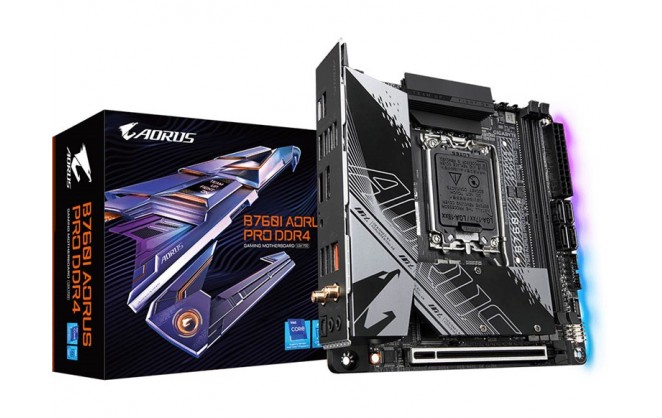

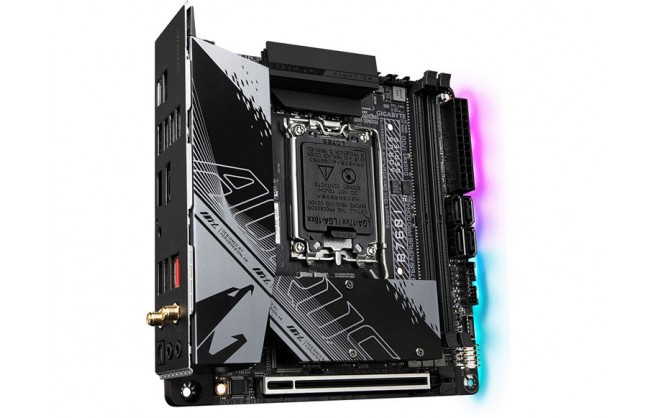

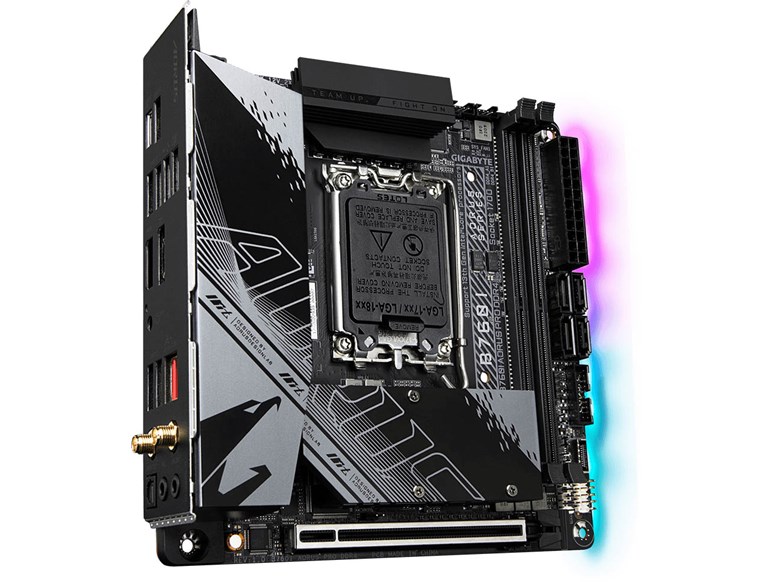

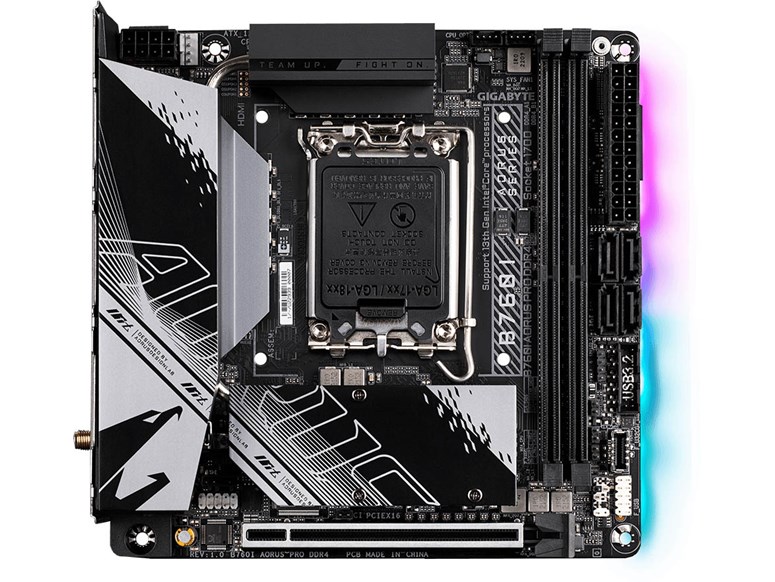

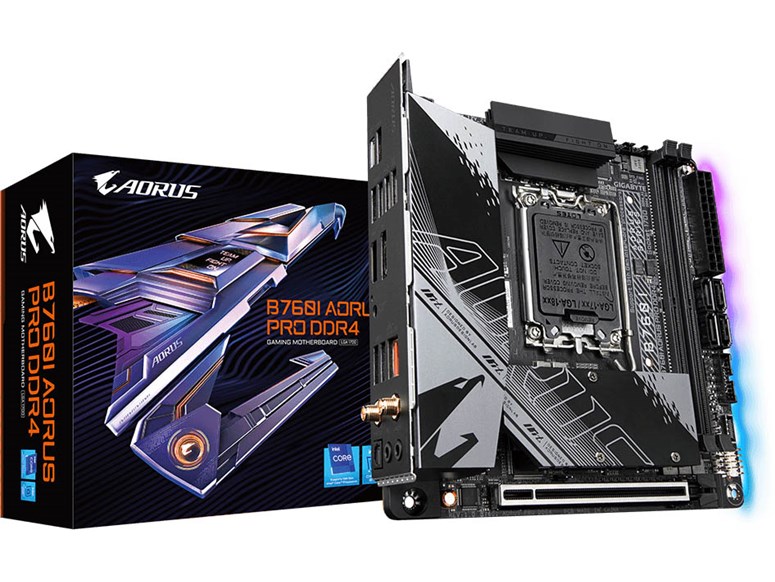

Gigabyte B760I AORUS PRO DDR4 ITX Motherboard Intel LGA 1700 Socket

Contact for availability

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

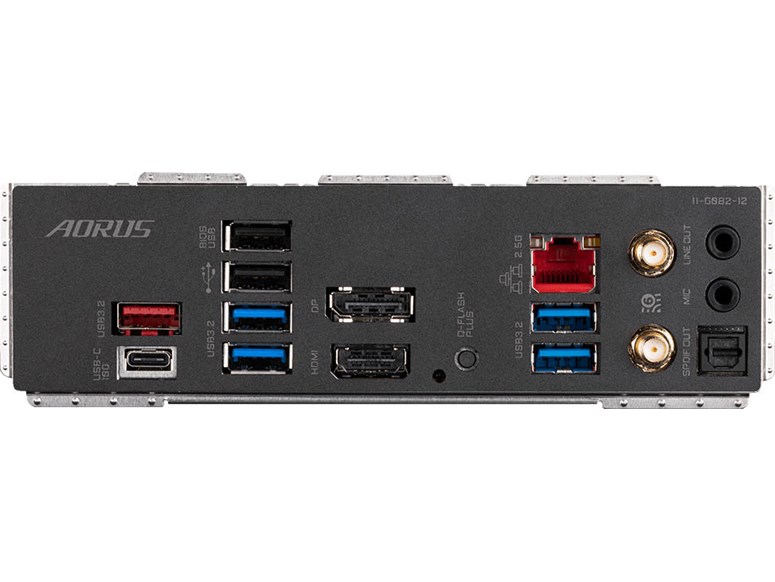

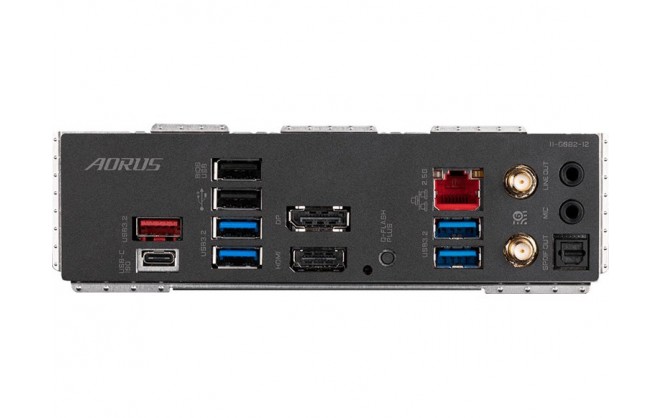

Rear Panel I/O Ports

USB Ports	1x USB-C 3.2 Gen2 1x USB 3.2 Gen2 4x USB 3.2 Gen1 2x USB 2.0
DisplayPorts	1 x DisplayPort 1.2
HDMI Port	1 x HDMI 2.0
RJ-45 Ports	1x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	SATA 6GBs
USB Connectors	1x USB-C 3.2 Gen1 1x USB 3.2 Gen1 1x USB 2.0
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU fan/Water Cooling pump header 1 x System fan header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	2 x M.2 slots, Socket 3, M Key, Type 2280 (PCIe Gen4) 1 x 3-pin ARGB LED header 1 x 4-pin RGB LED header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	Yes
Chipset Manufacturer	Intel
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ITX
Wake on LAN
Motherboard Power Connectors	8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	Gigabyte B760I AORUS PRO DDR4
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
Memory Speed	5333 MHz
Skip Audio Test
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	30 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	3200 MHz
Max Memory Speed Supported (overclocked)	5333 MHz
CPU Power Pins (female)	8
PCI Express Power Pins (female)
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
PCI-e slots	1
SATA ports	4
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
