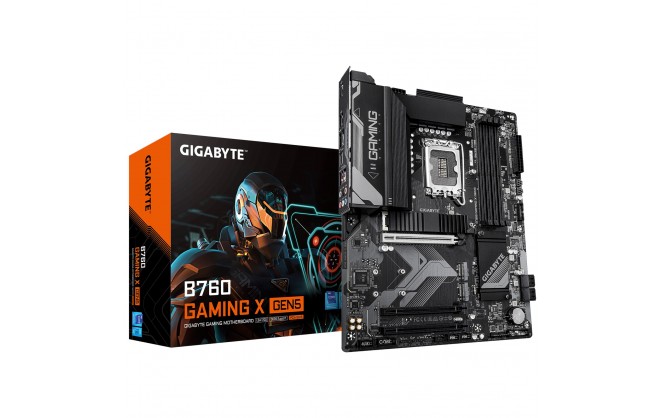

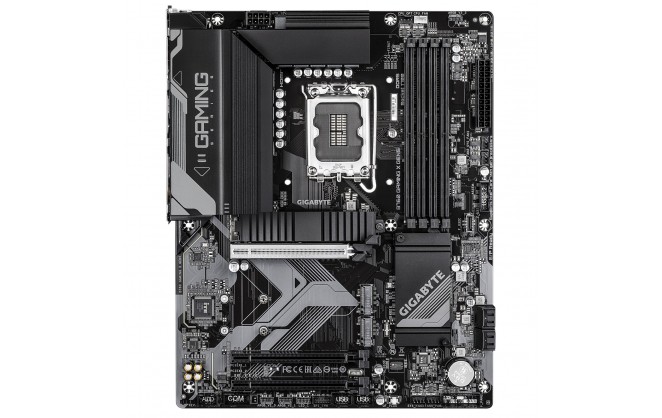

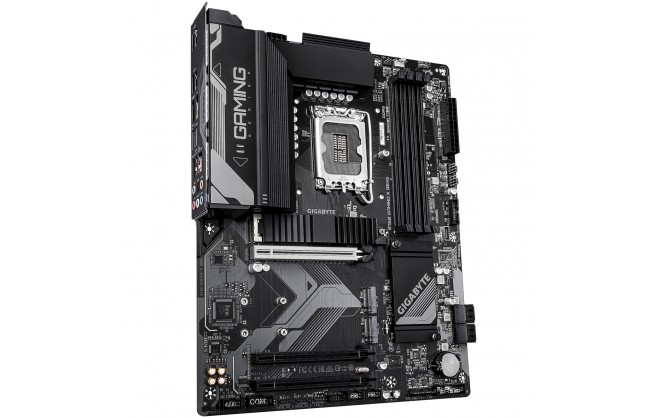

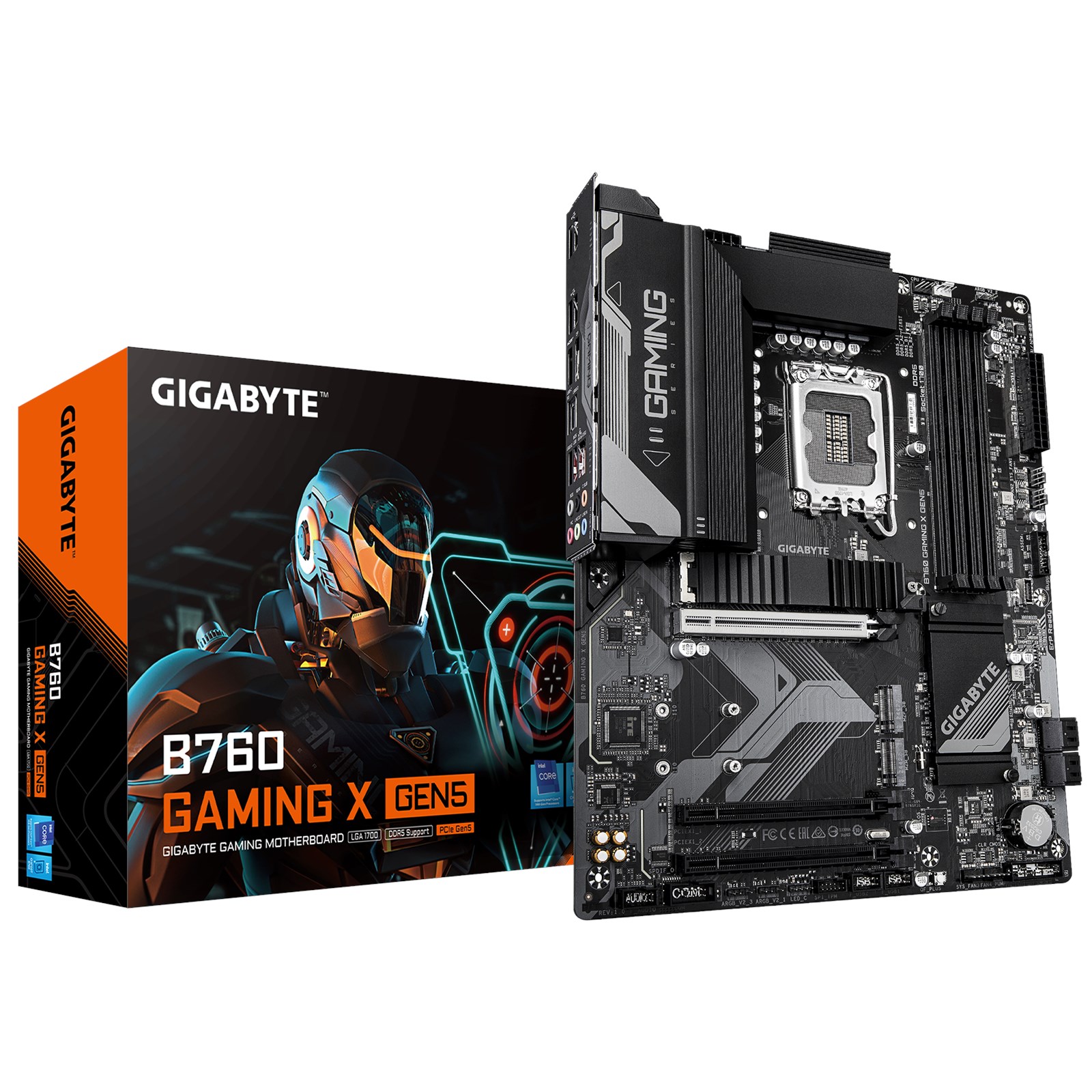

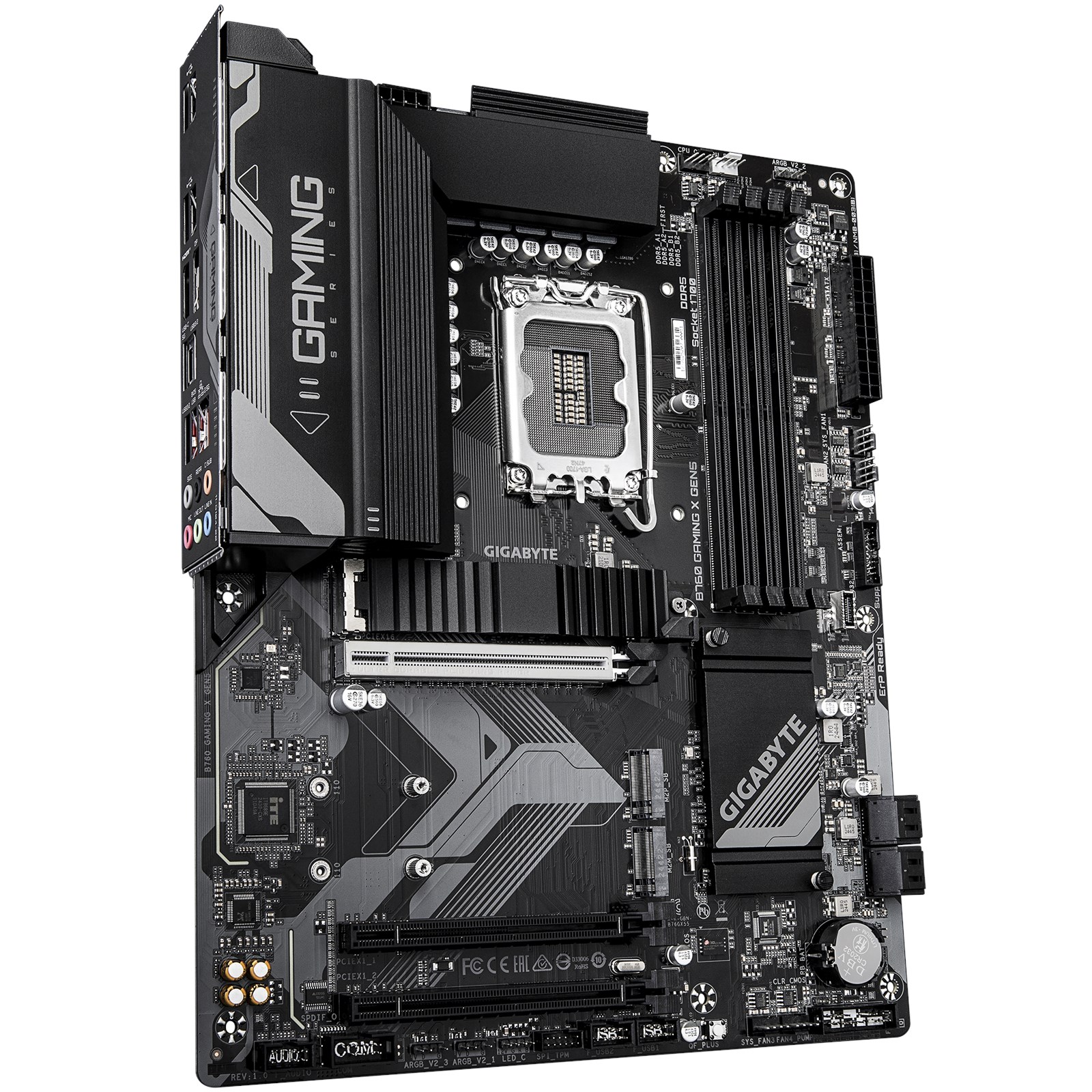

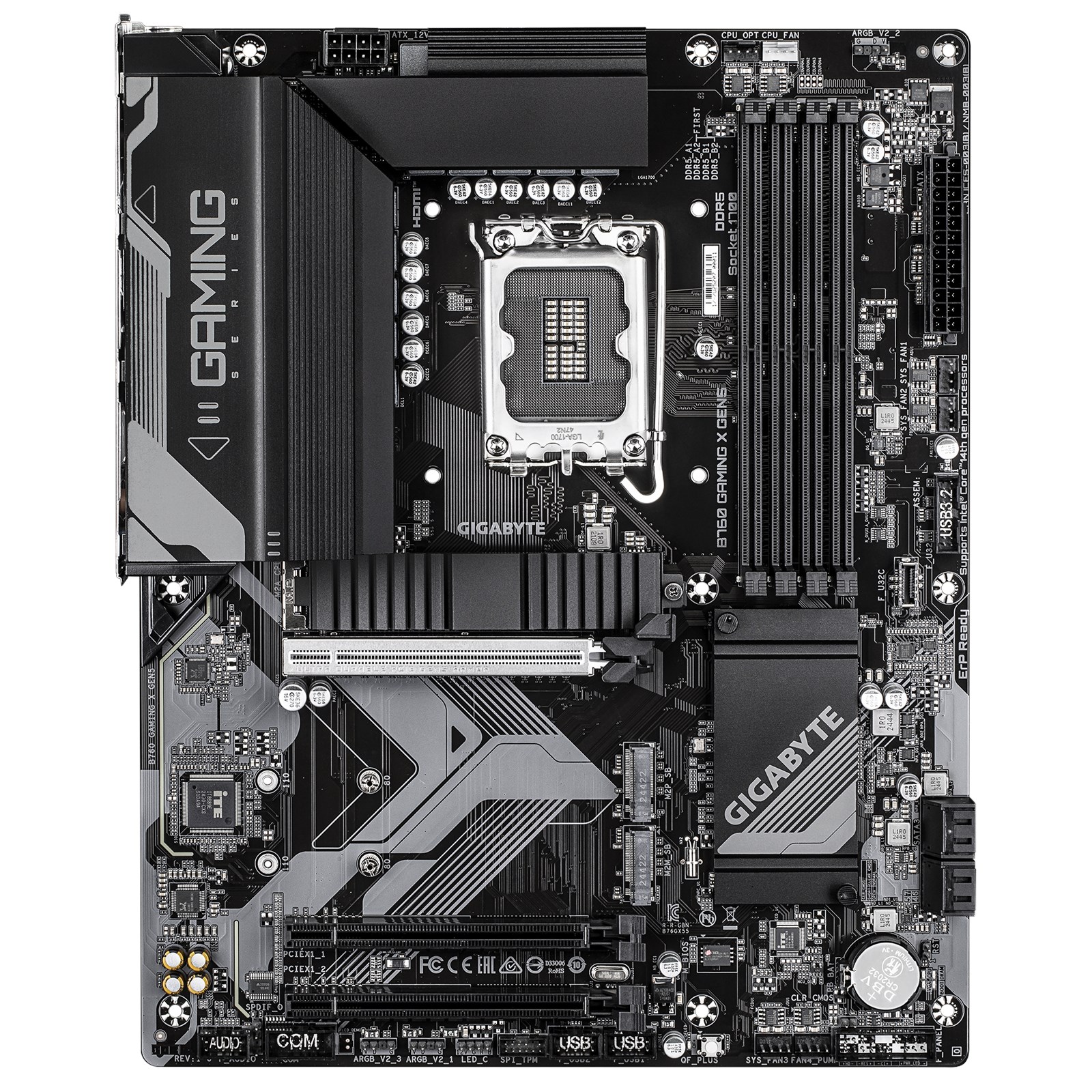

Gigabyte B760 GAMING X GEN5 Socket 1700 ATX DDR5 Motherboard

£106.59 ex. vat
£127.91 inc. vat

Gigabyte B760 GAMING X GEN5 Intel Socket 1700 ATX Motherboard

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

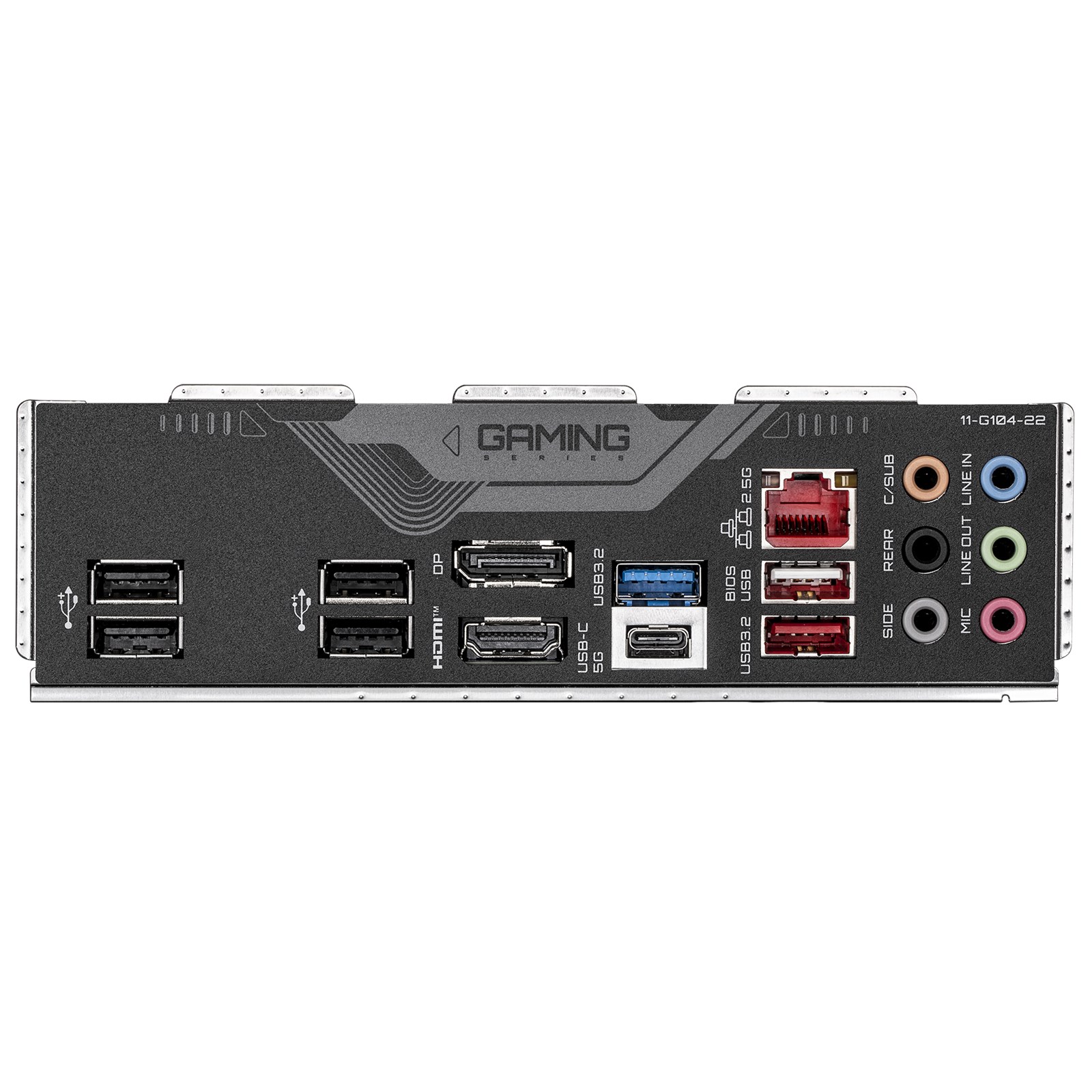

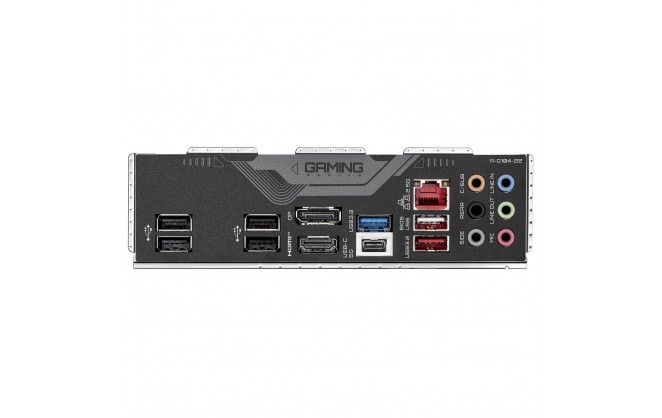

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU fan/Water Cooling pump header 3 x System fan headers 1 x System fan/Water Cooling pump header
S/PDIF Connectors	1 x S/PDIF Out header
Serial Connectors	1 x COM header
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	3 x M.2 slots, Socket 3, M Key, Type 22110/2280 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	No
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	Gigabyte B760 GAMING X GEN5
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
