Gigabyte B760 AORUS MASTER DDR4 ATX Motherboard Intel LGA 1700 Socket

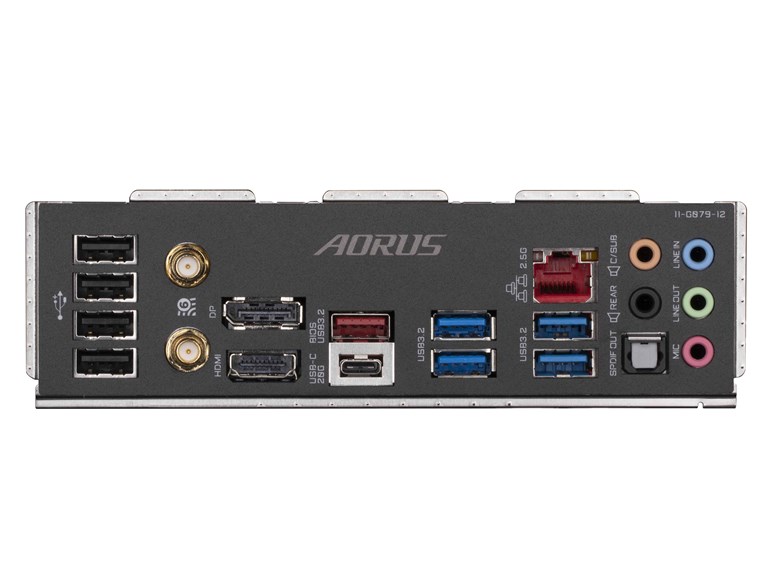

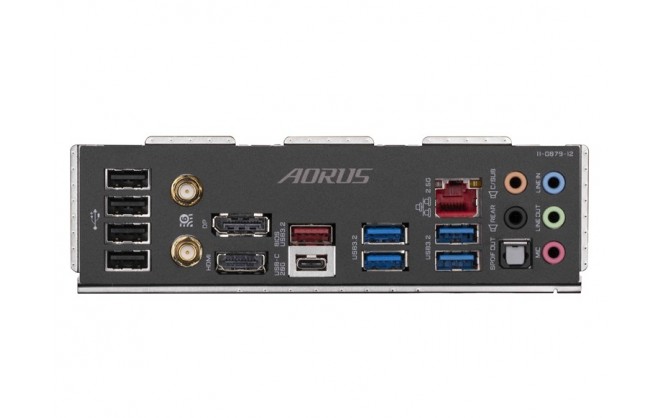

Rear Panel I/O Ports
| USB Ports | 1x USB-C 3.2 Gen2x2 1x USB 3.2 Gen2 1x USB Gen1 1x USB 2.0 |
| RJ-45 Ports | 1x RJ-45 |
Internal I/O Connectors
| SATA Connectors | 4x SATA 6GBs |
| USB Connectors | 1x USB-C 3.2 Gen2 1x USB 3.2 Gen1 1x USB 2.0 |
Memory
| Memory Type | DDR4 |
Motherboard
| Northbridge | Intel LGA 1700 |
Key Features
| Form Factor | ATX |
| Socket | LGA1700 |
| Firewire | |
| IDE/EIDE Supported | |
| Installed Processors (Max) | 0 (1) |
| Integrated Graphics Supported | Yes |
| Maximum RAM | 128 GB |
| RAID Supported | Yes |
| SATA Supported | Yes |
| SCSI/SAS Supported | |
| Wireless Network | Yes |
| Chipset Manufacturer | Intel |
| Supported Processor Manufacturer | Intel |
| Number of PCI Slots | slot(s) |
| Number of PCI-X Slots | slot(s) |
| Number of PCI Express Slots | 3 slot(s) |
| Main Colour | |
| Socket(s) | |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 10 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Wake on LAN | |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | Intel B760 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte B760 AORUS MASTER DDR4 |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| Cooler Height | mm |
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| Memory Speed | 5333 MHz |
| Skip Audio Test | |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Radiator Length | mm |
| Microsoft Processor List | |
| Power Requirement (auto) | 70 W |
| Cooler count | |
| Max Memory Speed Supported (Non-overclocked) | 3200 MHz |
| Max Memory Speed Supported (overclocked) | 5333 MHz |
| CPU Power Pins (female) | 12 |
| PCI Express Power Pins (female) | |
| Total M.2 Slots | 2 |
| Maximum NVMe M.2 ports | 2 |
| PCI-e slots | 3 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
Wireless Communications
| Bluetooth | Yes |
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
Graphics
| Graphics Chipset |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | B760 AORUS MASTER DDR4 |
| EAN | 4719331850890 |
| Condition | New |
