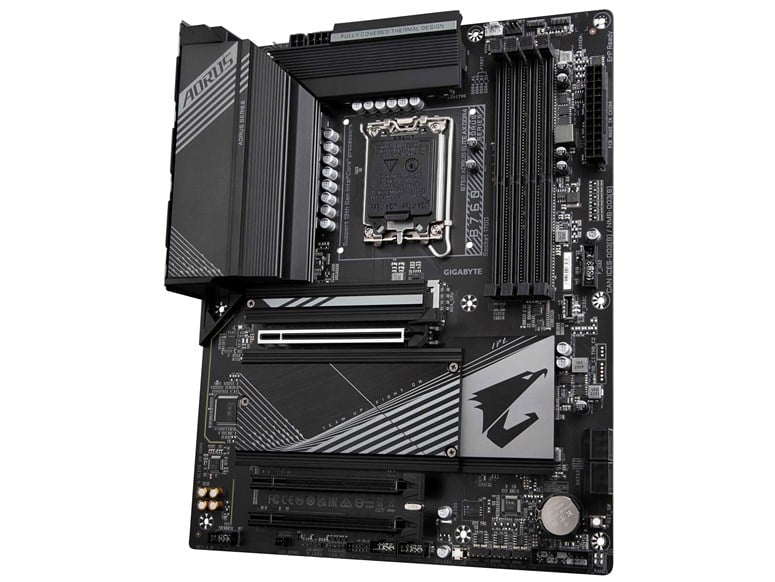

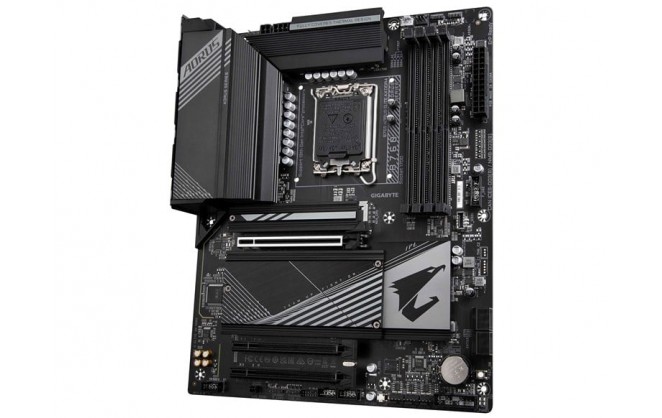

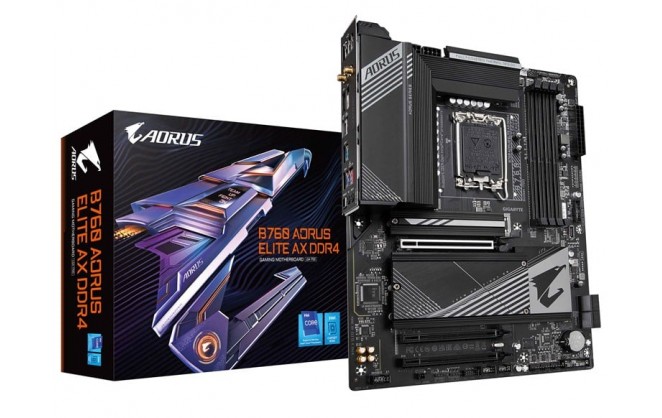

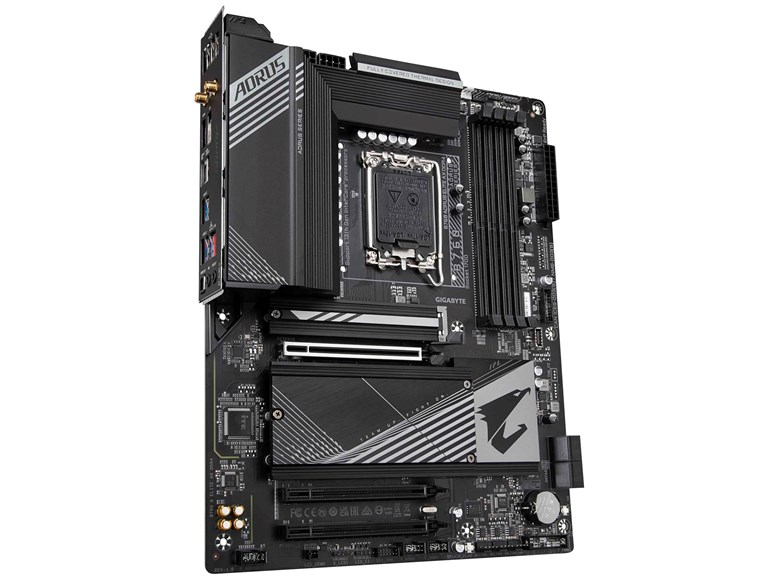

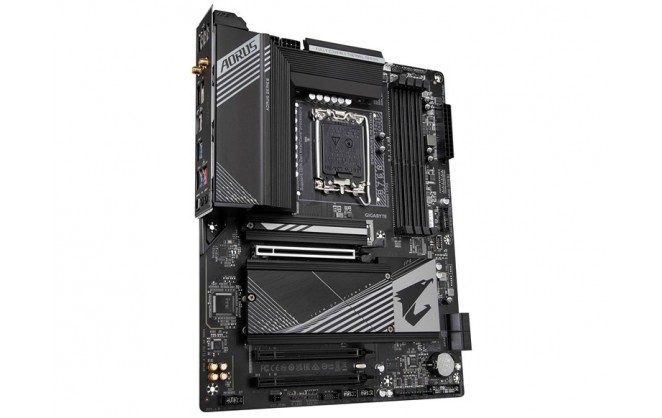

Gigabyte B760 AORUS ELITE AX DDR4 ATX Motherboard Intel LGA 1700 Socket

£134.99 ex. vat
£161.99 inc. vat

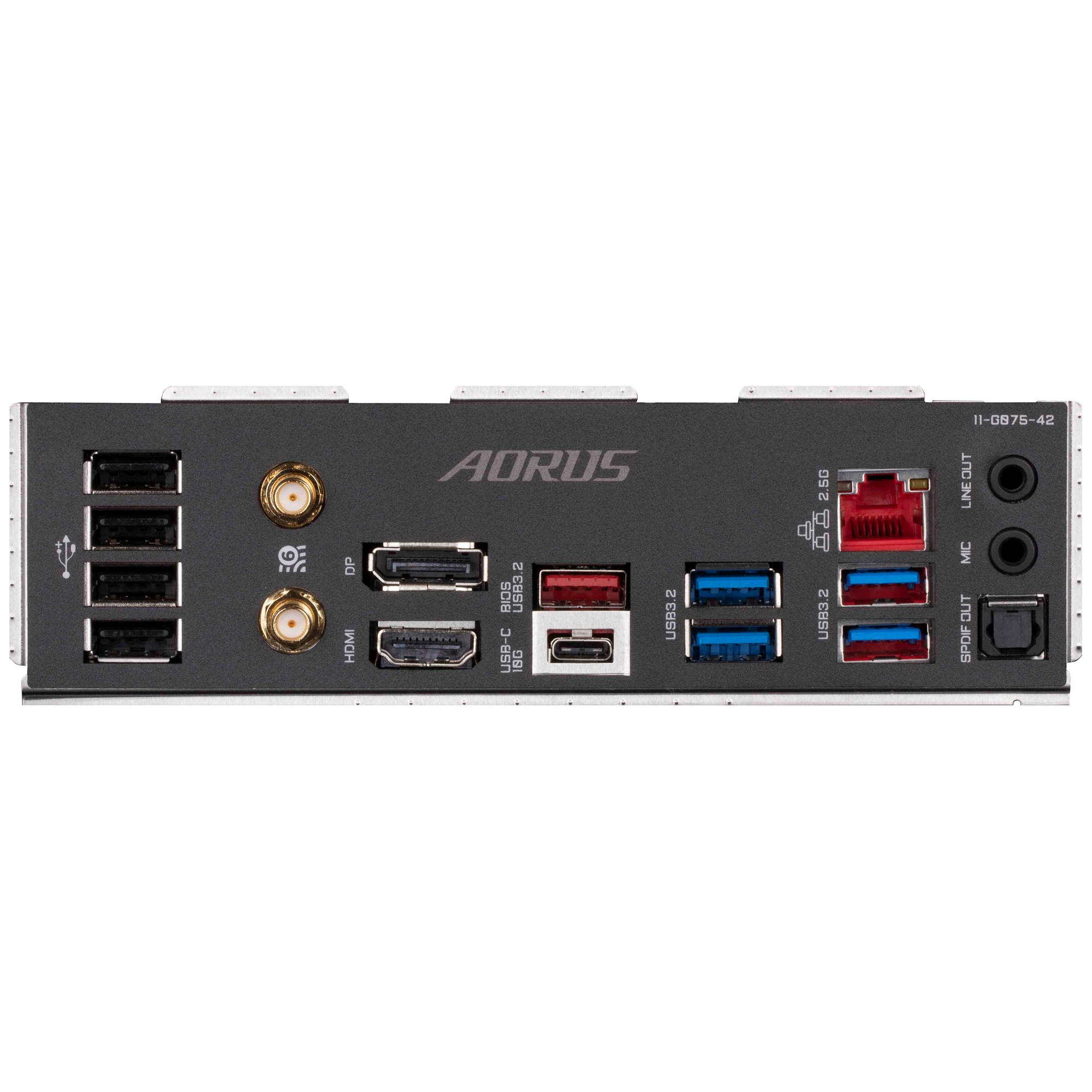

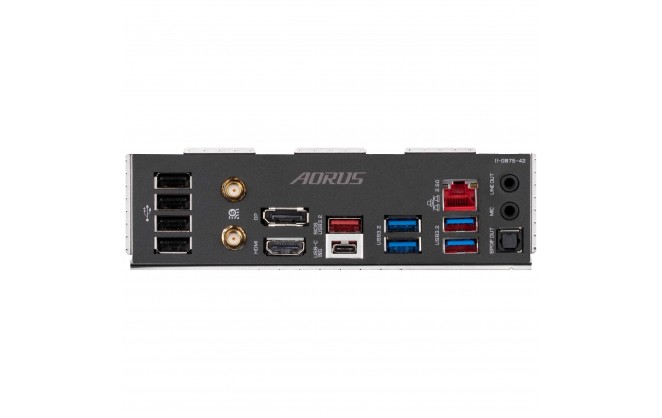

Rear Panel I/O Ports

USB Ports	1x USB-C 3.2 Gen2 1xUSB 3.2 Gen 4x USB 3.2 Gen1 4x USB 2.0
RJ-45 Ports	1x RJ-45

Internal I/O Connectors

SATA Connectors	x4 SATA 6GBs
USB Connectors	1x USB-C 3.2 Gen2 1x USB 3.2 Gen1 1x USB 2.0

Memory

Memory Type

DDR4

Motherboard

Northbridge

Intel LGA 1700

Key Features

Form Factor	MicroATX
Socket	LGA1700
Firewire
IDE/EIDE Supported
Installed Processors (Max)	0 (1)
Integrated Graphics Supported	Yes
Maximum RAM	128 GB
RAID Supported	Yes
SATA Supported	Yes
SCSI/SAS Supported
Wireless Network	Yes
Chipset Manufacturer	Intel
Supported Processor Manufacturer	Intel
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Number of PCI Express Slots	3 slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	10 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Wake on LAN
Motherboard Power Connectors	4 + 4-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	Gigabyte B760 AORUS ELITE AX DDR4
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
Memory Speed	5333 MHz
Skip Audio Test
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	70 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	3200 MHz
Max Memory Speed Supported (overclocked)	5333 MHz
CPU Power Pins (female)	12
PCI Express Power Pins (female)
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
PCI-e slots	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
