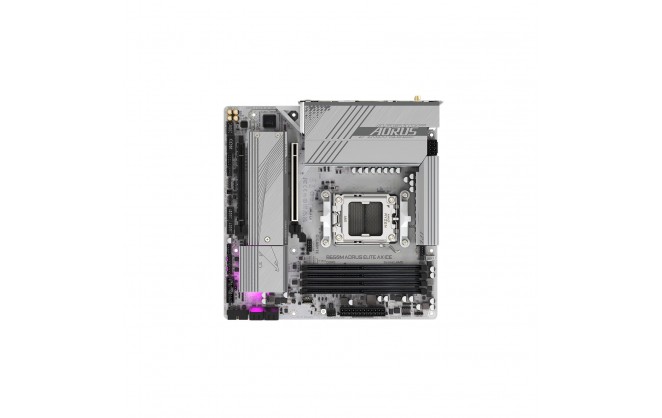

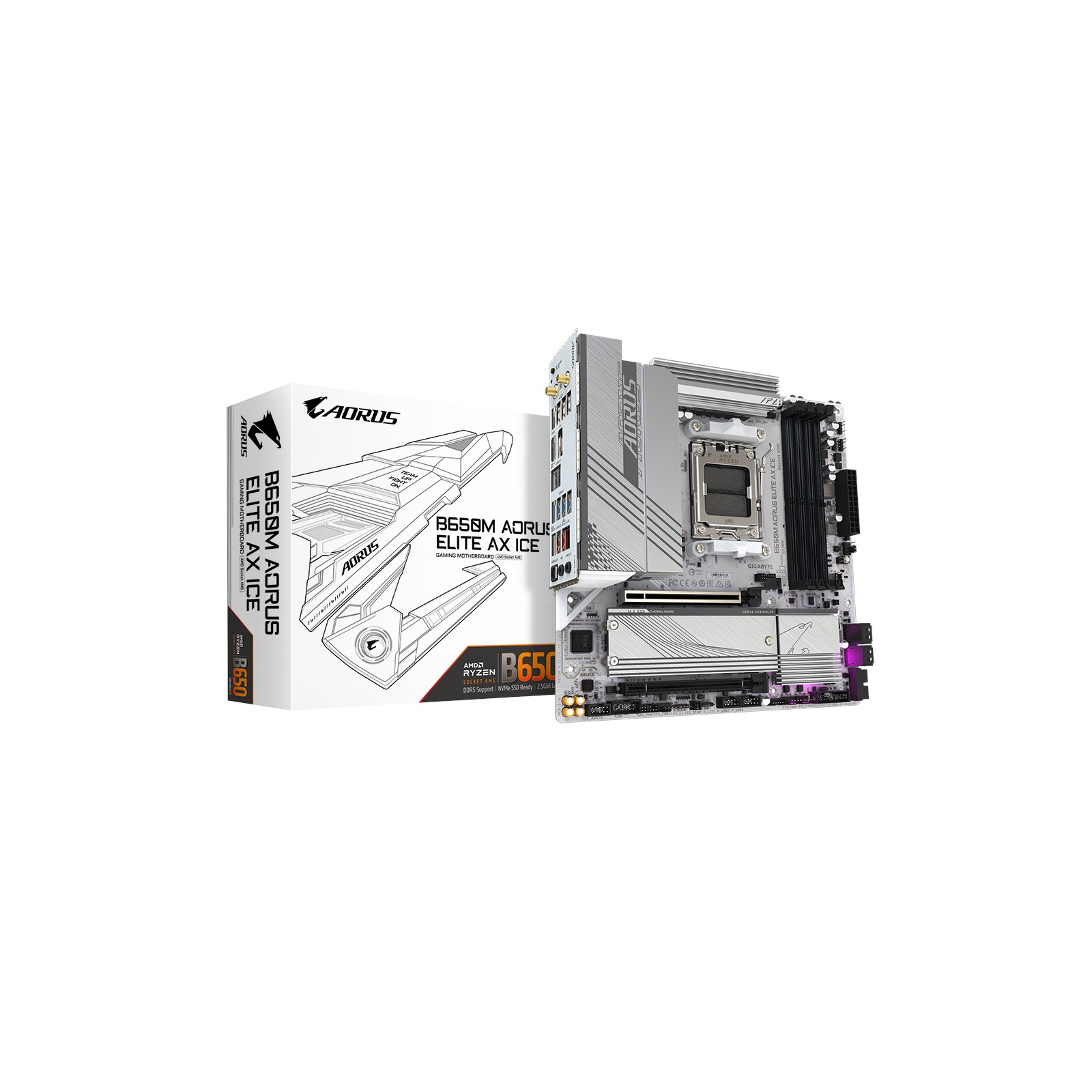

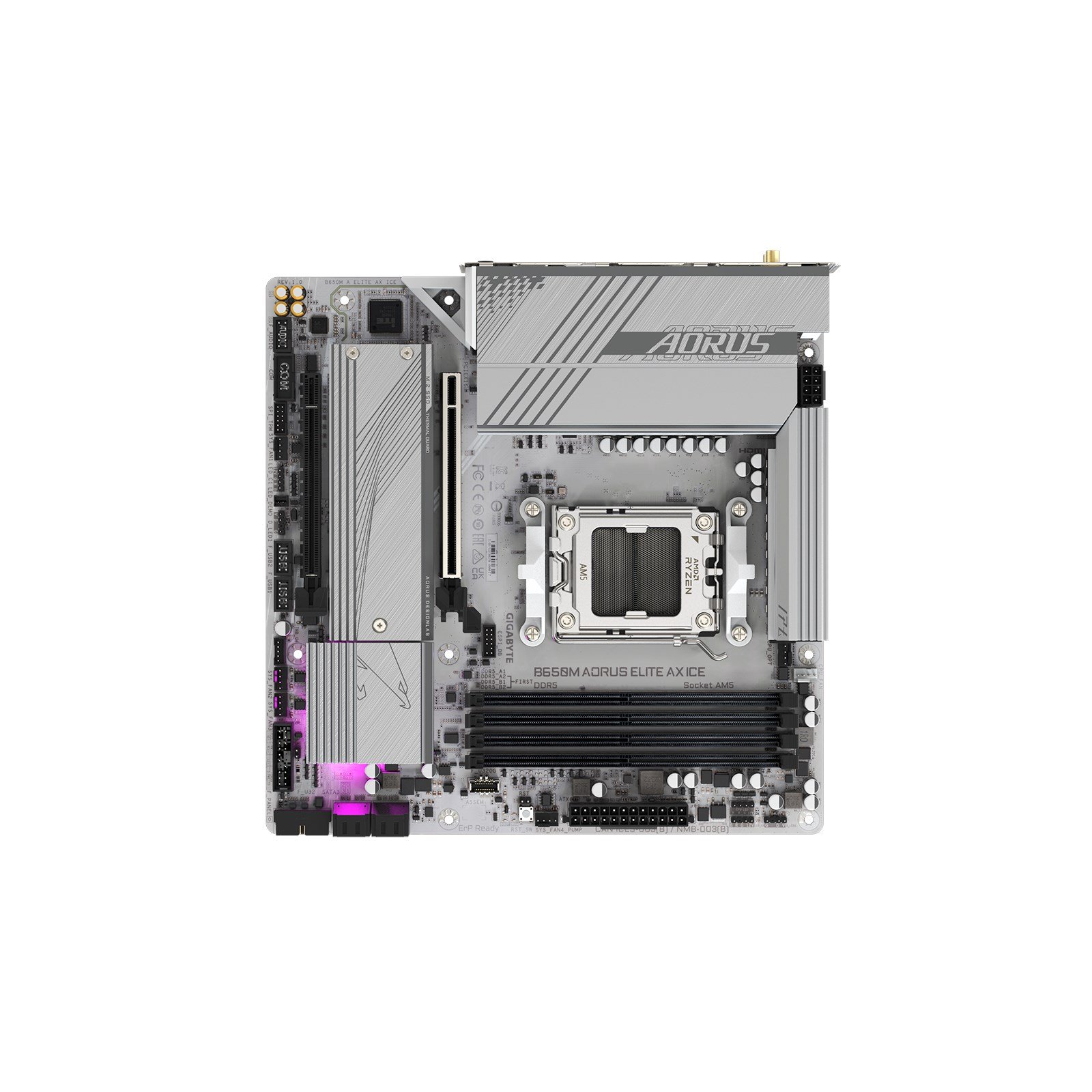

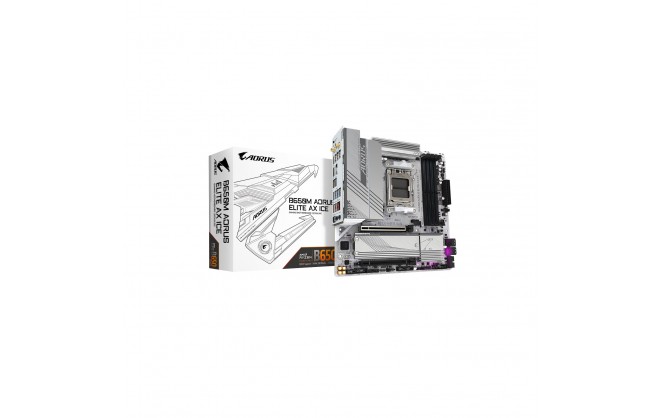

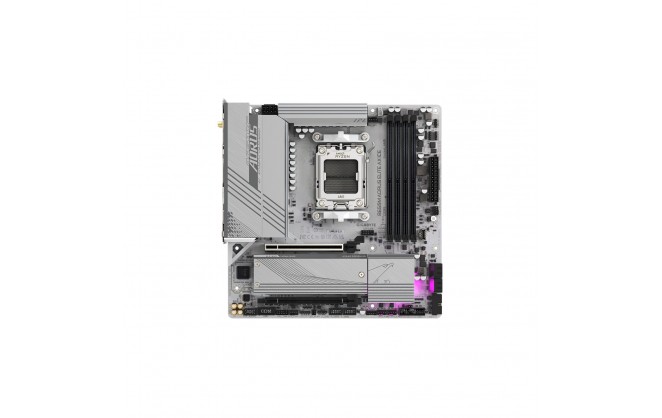

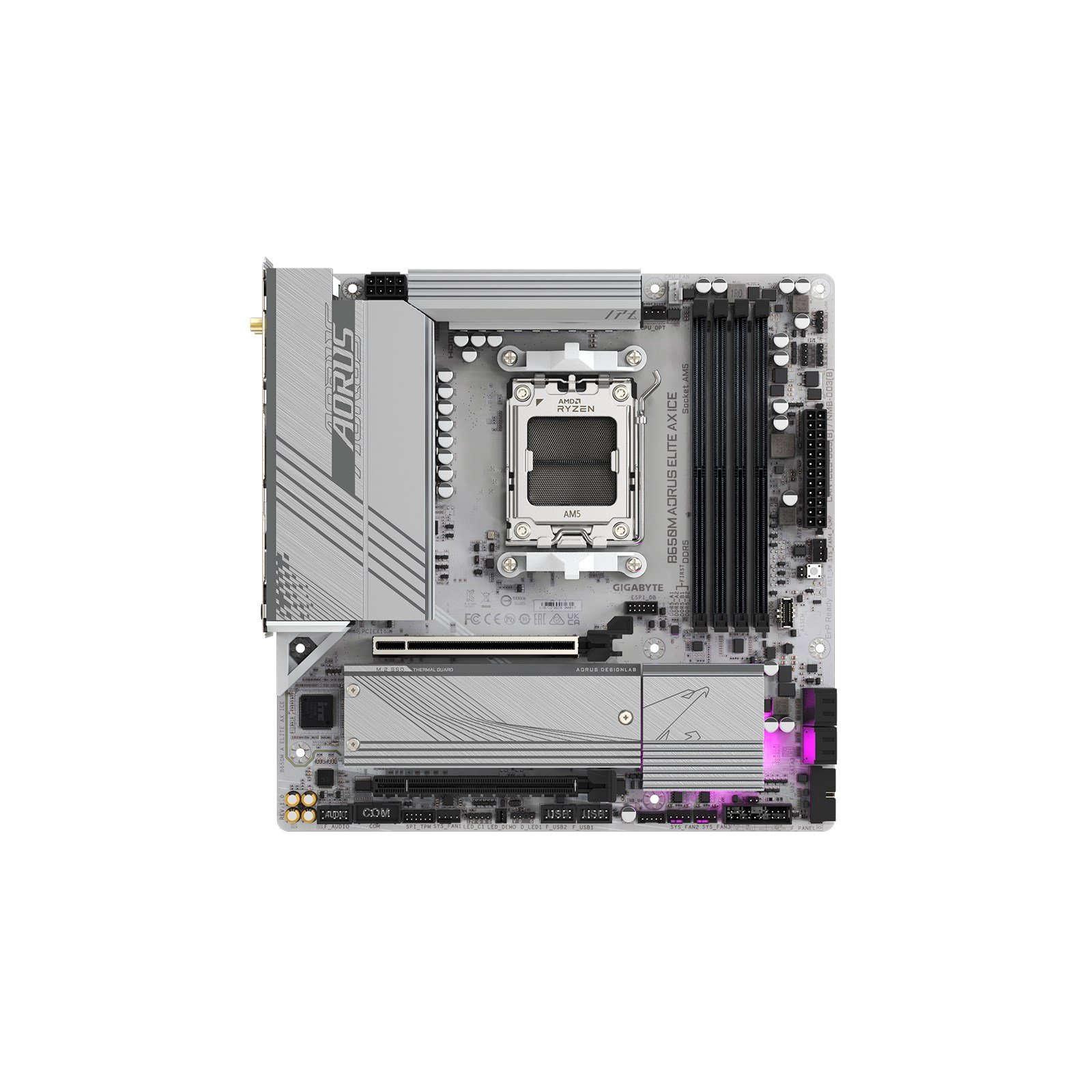

Gigabyte B650M AORUS ELITE AX ICE mATX Socket AM5 Motherboard

  • Part Number: B650M AORUS ELITE AX ICE
  • Manufacturer: Gigabyte
  • Quickfind Code: 136251

  • Stock: In Stock

£129.89 ex. vat
£155.87 inc. vat


Product Features:
  • Condition: New
  • Socket Type AM5
  • Chipset B650
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type AMD
+ Read More Information

Share:

Product Description

Gigabyte B650M AORUS ELITE AX ICE Motherboard

Main Features

  • AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors
  • Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5: 4x DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • Superfast Storage: 1x PCIe 5.0 x4 and 1x PCIe 4.0 x4 M.2 Connector
  • EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E
  • Extended Connectivity: HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specification

Gigabyte B650M AORUS ELITE AX ICE mATX Socket AM5 Motherboard

CPU

CPU SocketSocket AM5
CPU BrandAMD
Installed Processors (Max)0 (1)
Supported Processor ManufacturerAMD
Supported ProcessorsAMD Ryzen 7000 Series Processors
64-bit SupportYes
SocketAM5

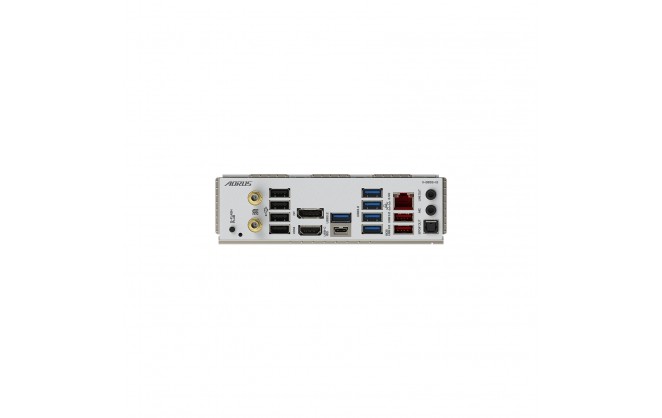

Rear Panel I/O Ports

USB Ports1 x USB-C 3.1
2 x USB 3.1
5 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x SMA Antennas

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU/Water Cooling Pump fan header
3 x System fan headers
1 x System/Water Cooling Pump fan header
Thunderbolt Port(s)1 x Thunderbolt header
Serial Connectors1 x COM header
TPM Header1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot. Socket 3, M Key, Type 2280/25110 (PCI Gen5)
1 x M.2 slot. Socket 3, M Key, Type 2280/25110 (PCI Gen4)

Memory

Memory Bus SpeedUp to 8000 MHz
Memory TypeDDR5
Maximum RAM192 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeAMD B650
RAID SupportedYes
RAID FormatRAID 0, 1, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots2 x PCI Express 4.0 x16 slots (@ x16/x4)

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANWi-Fi 6E
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.3

System

Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactormATX Motherboard
Width244 mm
Length244 mm

Key Features

RDIMM Memory SupportedNo
RDIMM Memory RequiredNo
Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height244 mm
mSATA SupportedNo
U.2 SupportedNo
Main ColourWhite
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports12 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard (EPS) Power Connectors8-Pin
Motherboard ChipsetAMD B650
ThunderboltNo
Motherboard ModelGigabyte B650M AORUS ELITE AX ICE
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlGigabyte RGB Fusion
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)60 W
Max Memory Speed Supported (Non-overclocked)5200 MT/s
Max Memory Speed Supported (overclocked)8000 MT/s
CPU Power Pins (female)8
Total M.2 Slots2
Maximum NVMe M.2 ports2
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1

Item Details

ManufacturerGigabyte
Manufacturer CodeB650M AORUS ELITE AX ICE
EAN4719331859336
UPC889523040348
