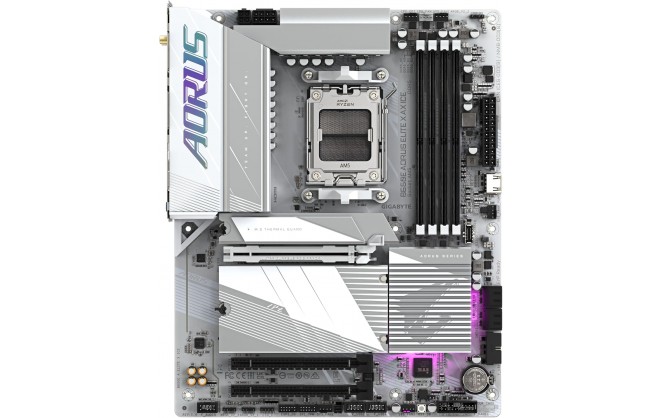

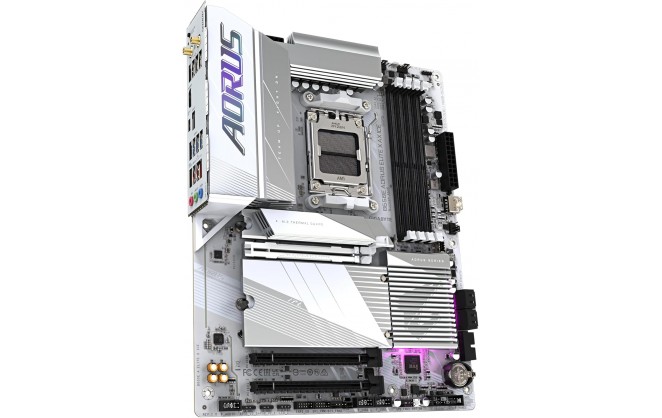

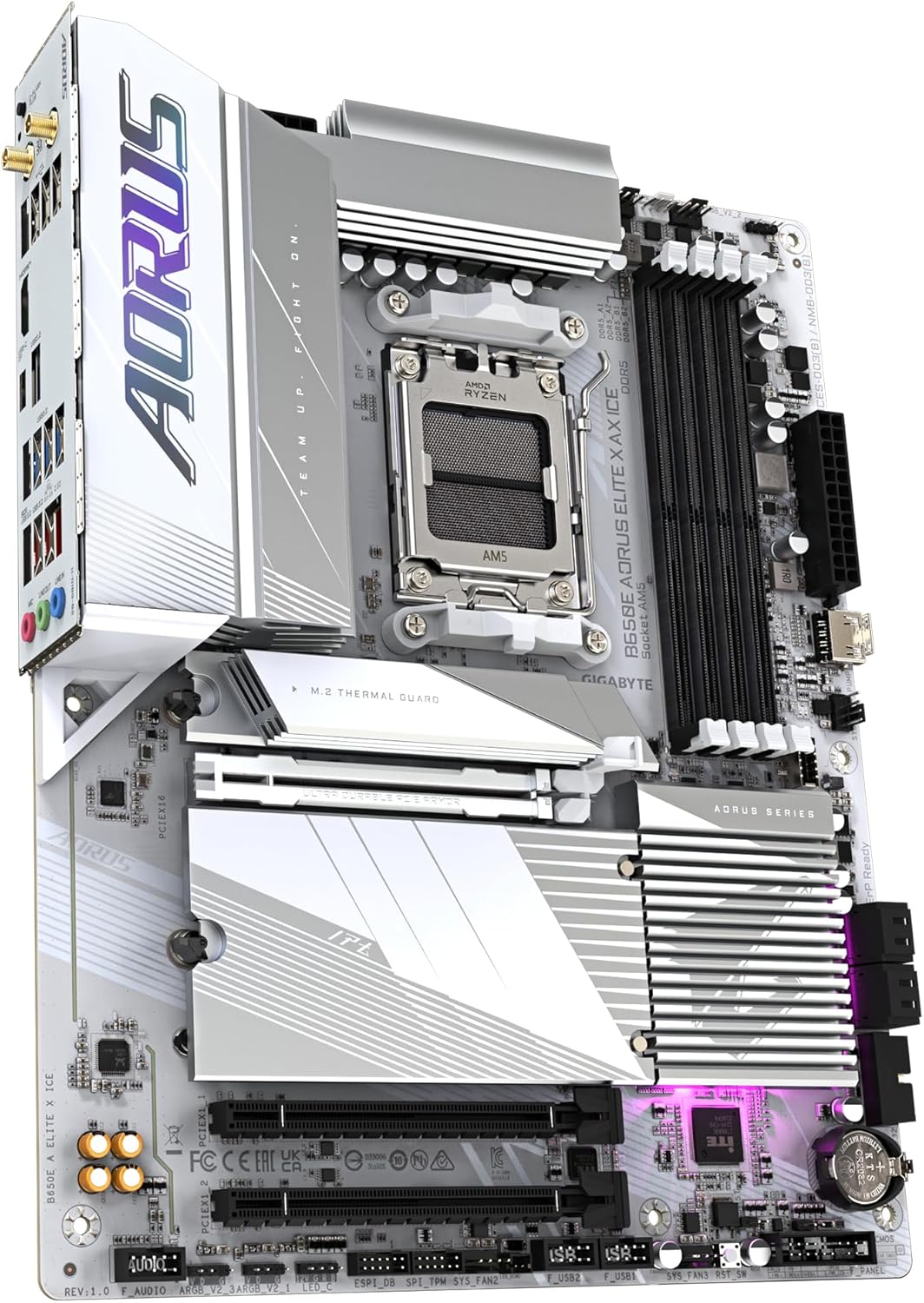

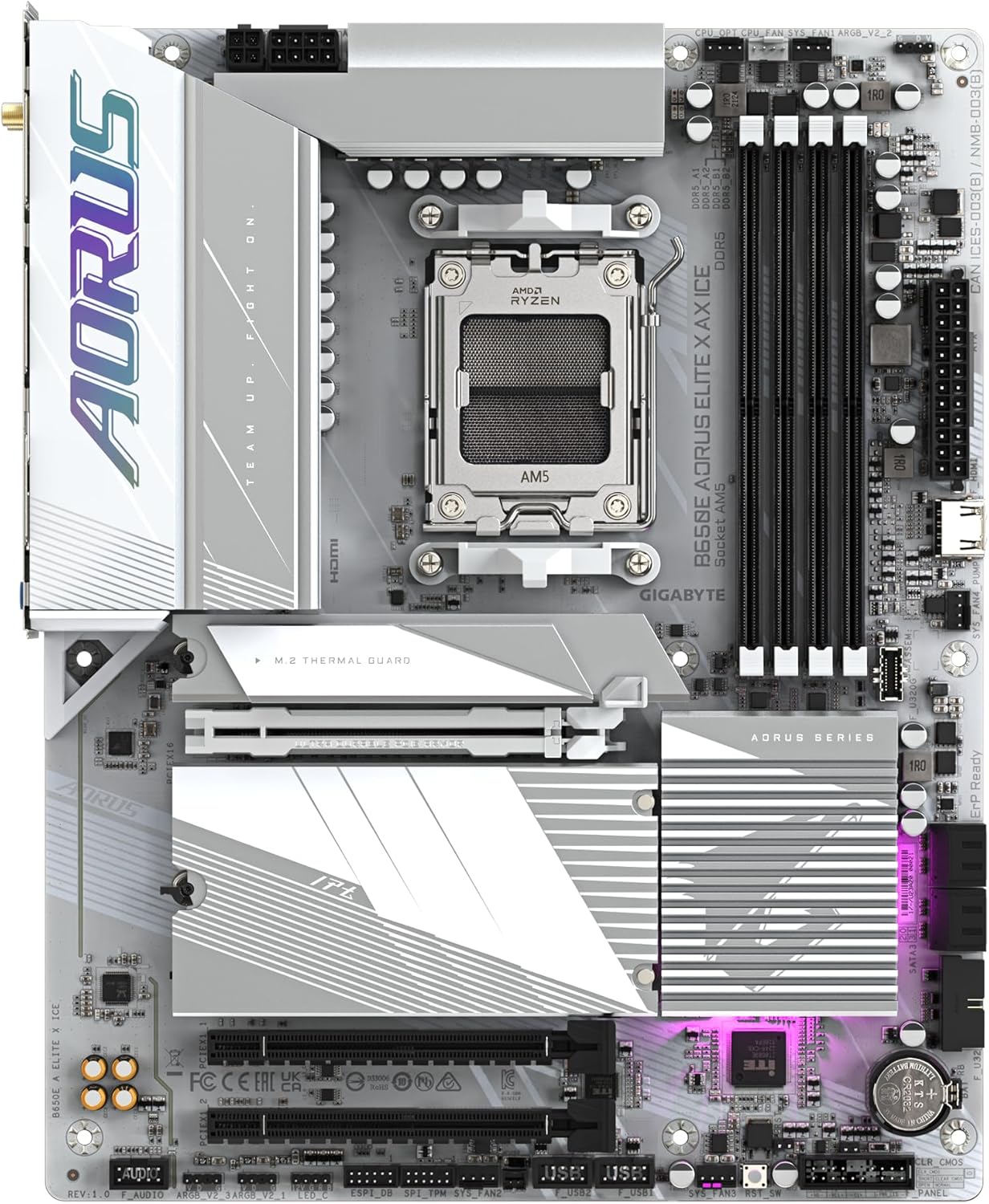

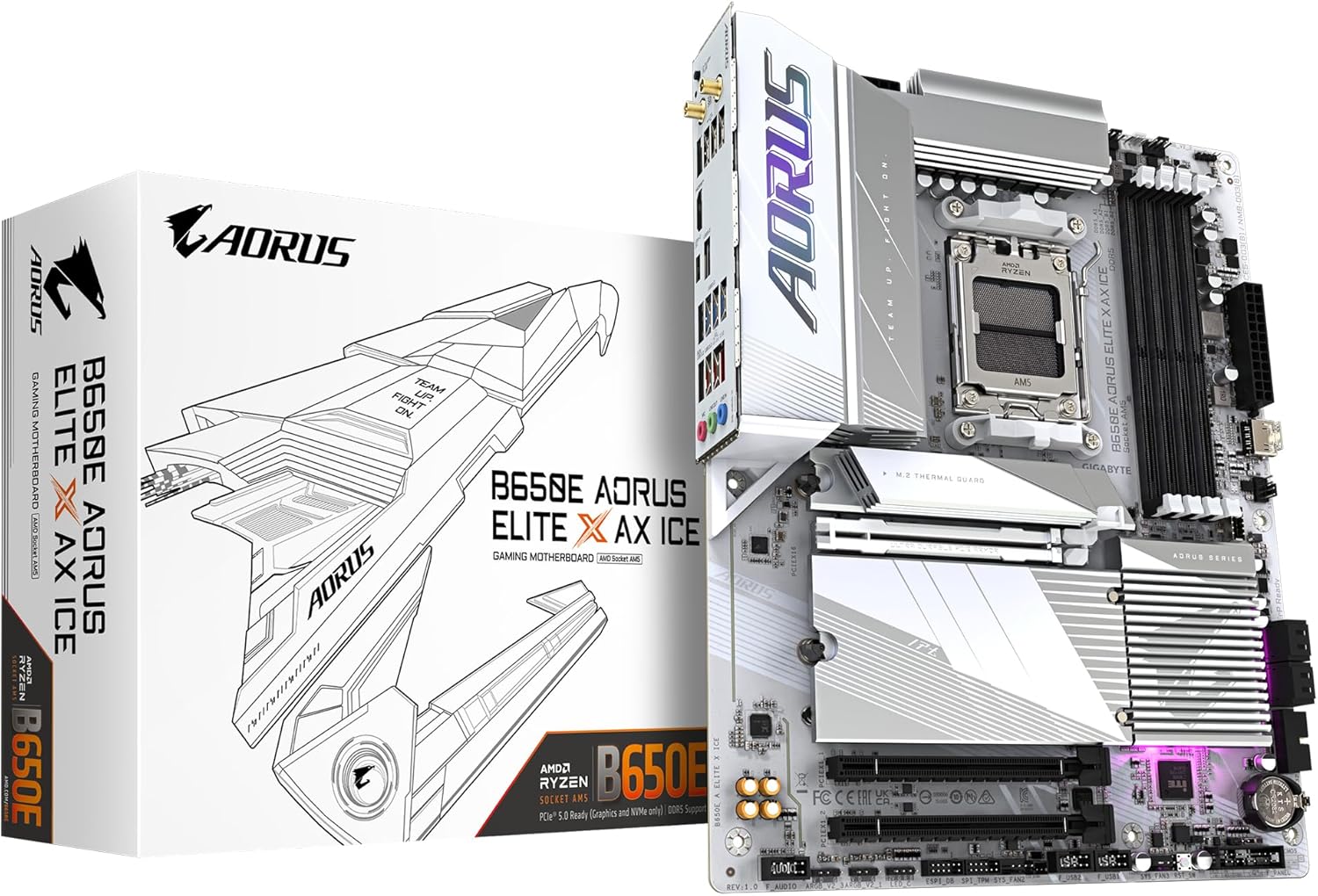

Gigabyte B650E AORUS ELITE X ICE ATX Socket AM5 Motherboard

Part Number: B650E AORUS ELITE X ICE
Manufacturer: Gigabyte
Quickfind Code: 136150

Stock: In Stock

£154.89 ex. vat
£185.87 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B650
Form Factor ATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Powerin number

All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.

Memory, to the future

All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.

Overall Thermal

Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

Get everythingUD

GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.

Connectivity versatile

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Elevating Performance Together

AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

Main Features

AMD Socket AM5: Supports AMD Ryzen 7000 / Ryzen 8000 Series Processors
Digital twin 12+2+2 phases VRM solution
Dual Channel DDR5: 4*DIMMs with AMD EXPOT & Intel© XMP Memory Module Support
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click: M.2 heatsinks with screwless design
EZ-Latch Plus: M.2 slots with Quick Release & Screwless Design
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
UC BIOS: User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x16
Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL
Fast Networking: 2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
Extended Connectivity: HDMI, Rear USB-C support up to 40Gb/s, Front USB-C 20Gb/s
Reliable Audio: 8-Ch HD Audio & Audiophile Grade Capacitors

Technical Specification

Gigabyte B650E AORUS ELITE X ICE ATX Socket AM5 Motherboard

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 7000 Series Processors/AMD Ryzen 8000 Series Processors
64-bit Support	Yes
Socket	AM5

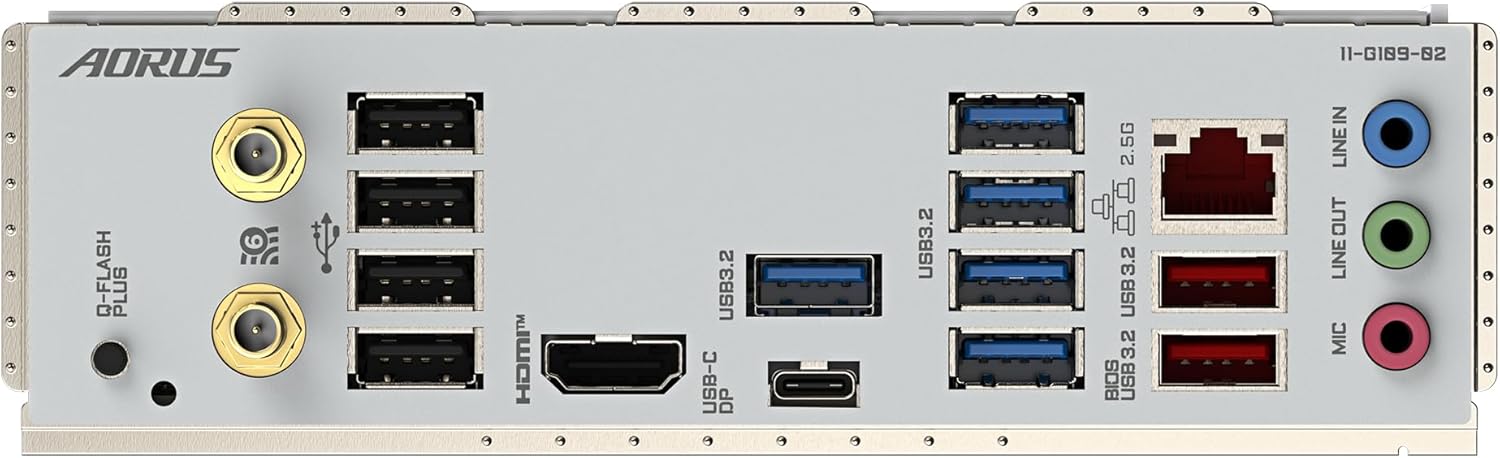

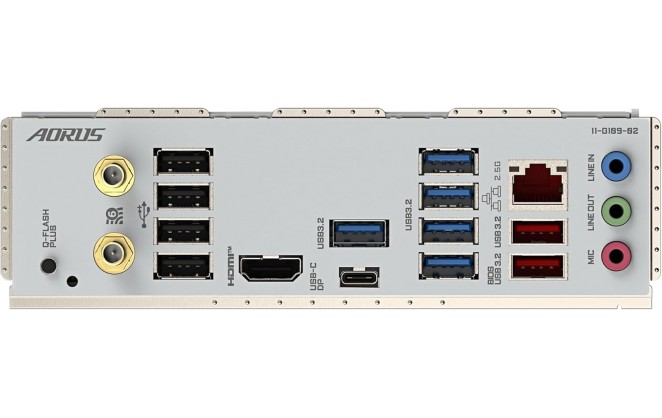

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.1 5 x USB 3.0 4 x USB 2.0
DisplayPorts	Yes via USB-C DP Alt
HDMI Port	2 x HDMI
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU fan/Water Cooling pump header 3 x System fan headers 1 x System fan/Water Cooling pump header
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen5) 2 x M.2 slots, Socket 3, M Key, Type 22110/2280 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 8000 MT/s
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD B650
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Yes

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 6E
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.3

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	12 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4-Pin + 8-Pin
Motherboard Chipset	AMD B650E
Thunderbolt	No
Motherboard Model	Gigabyte B650E AORUS ELITE X ICE
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	8000 MT/s
CPU Power Pins (female)	12
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
