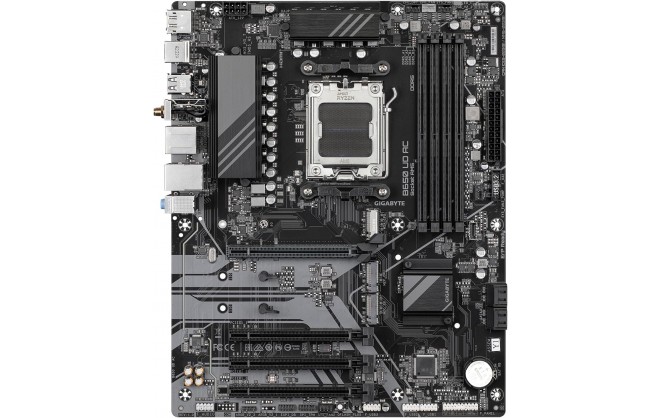

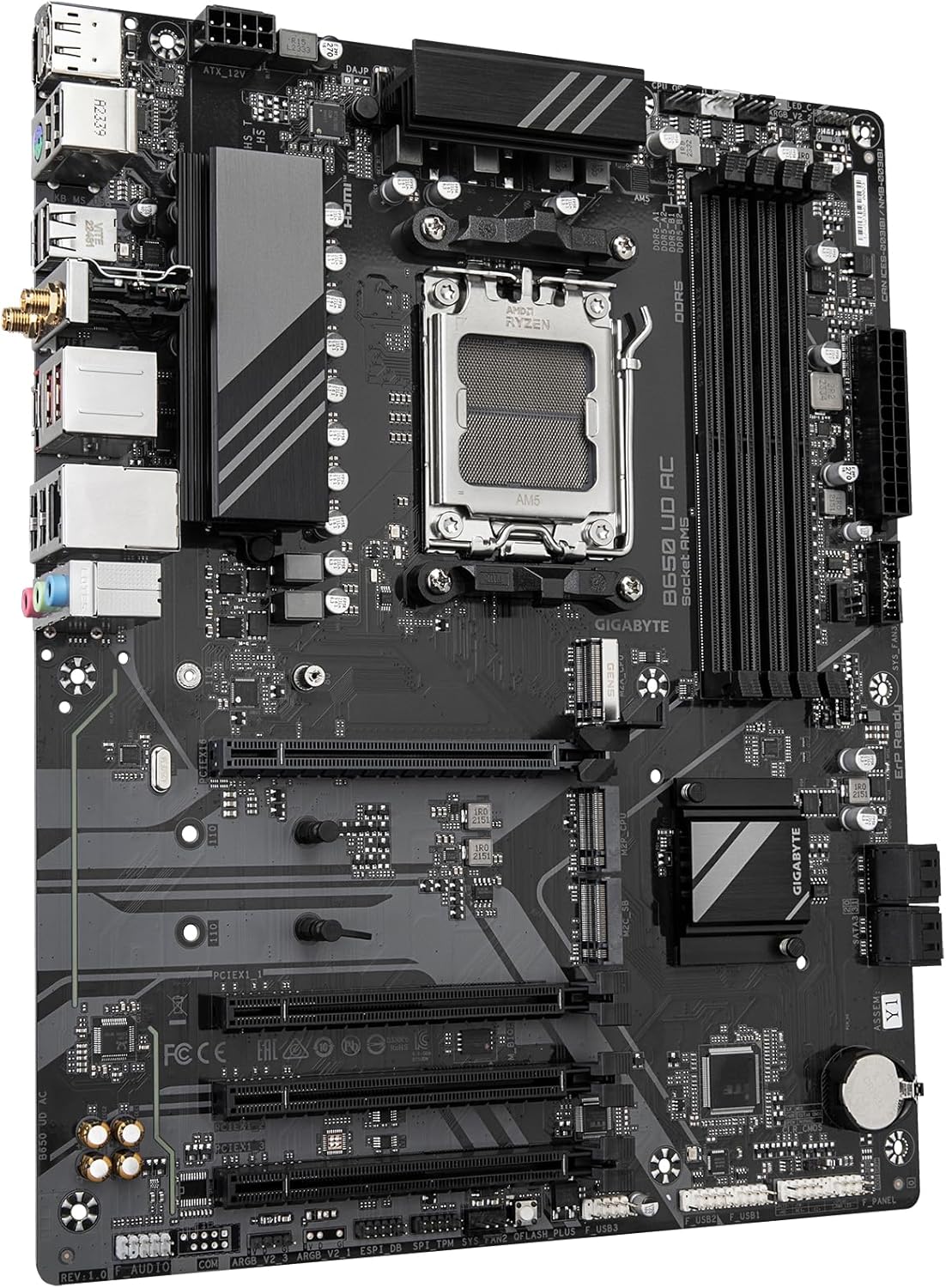

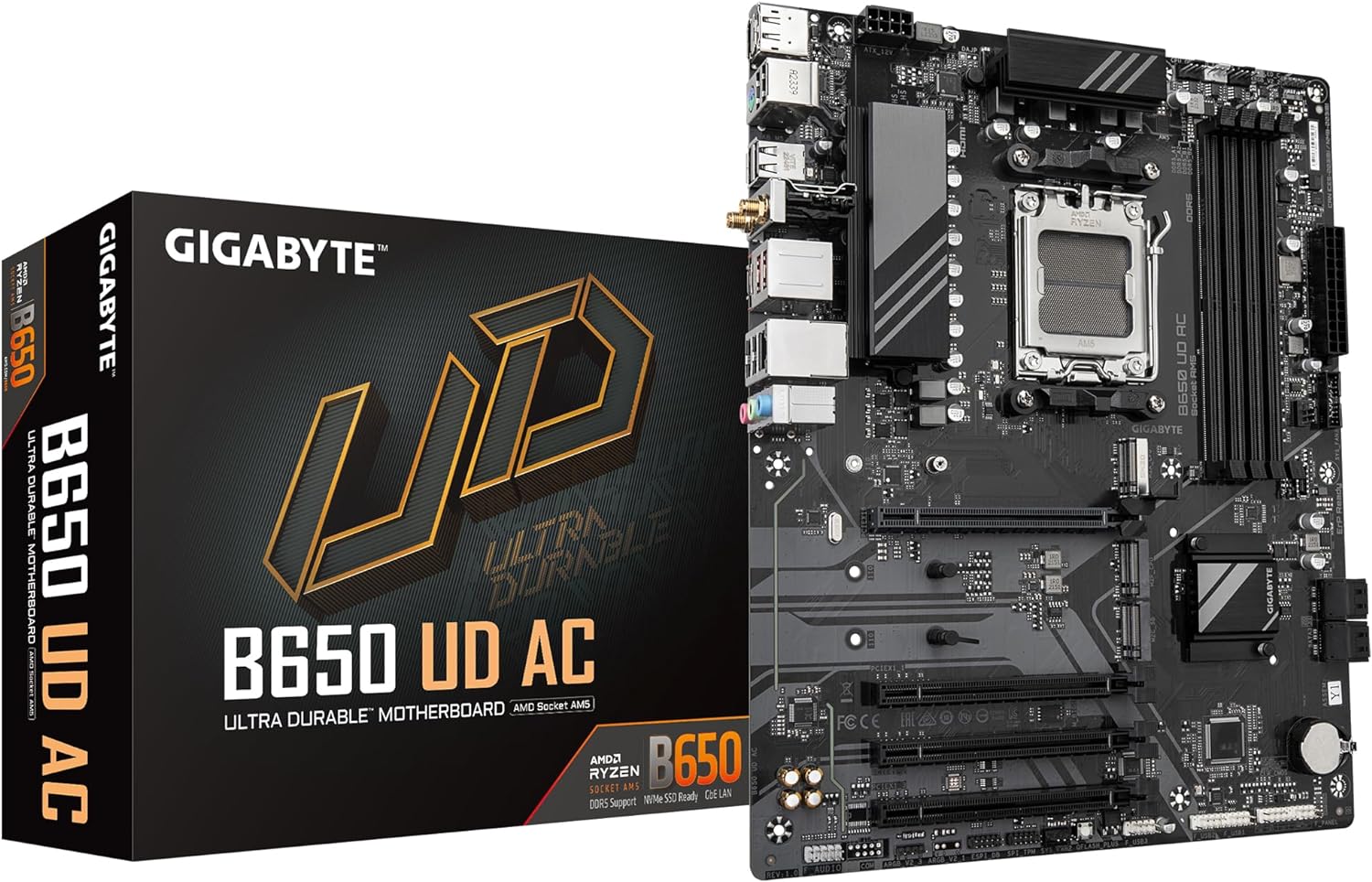

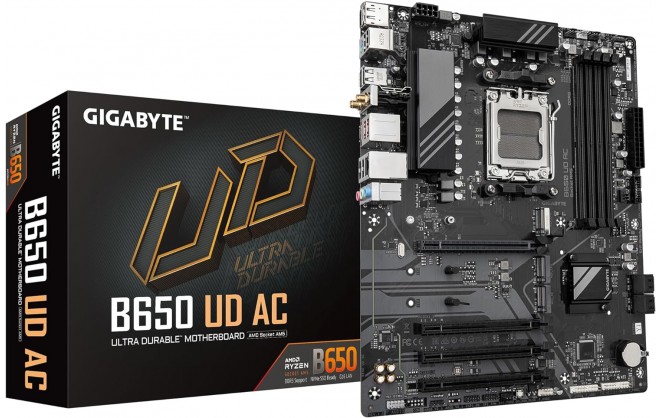

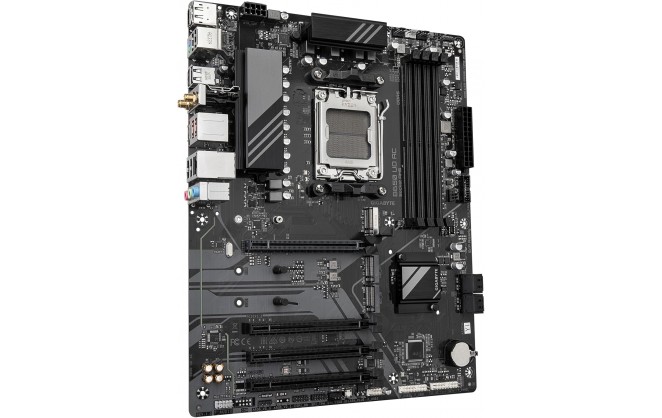

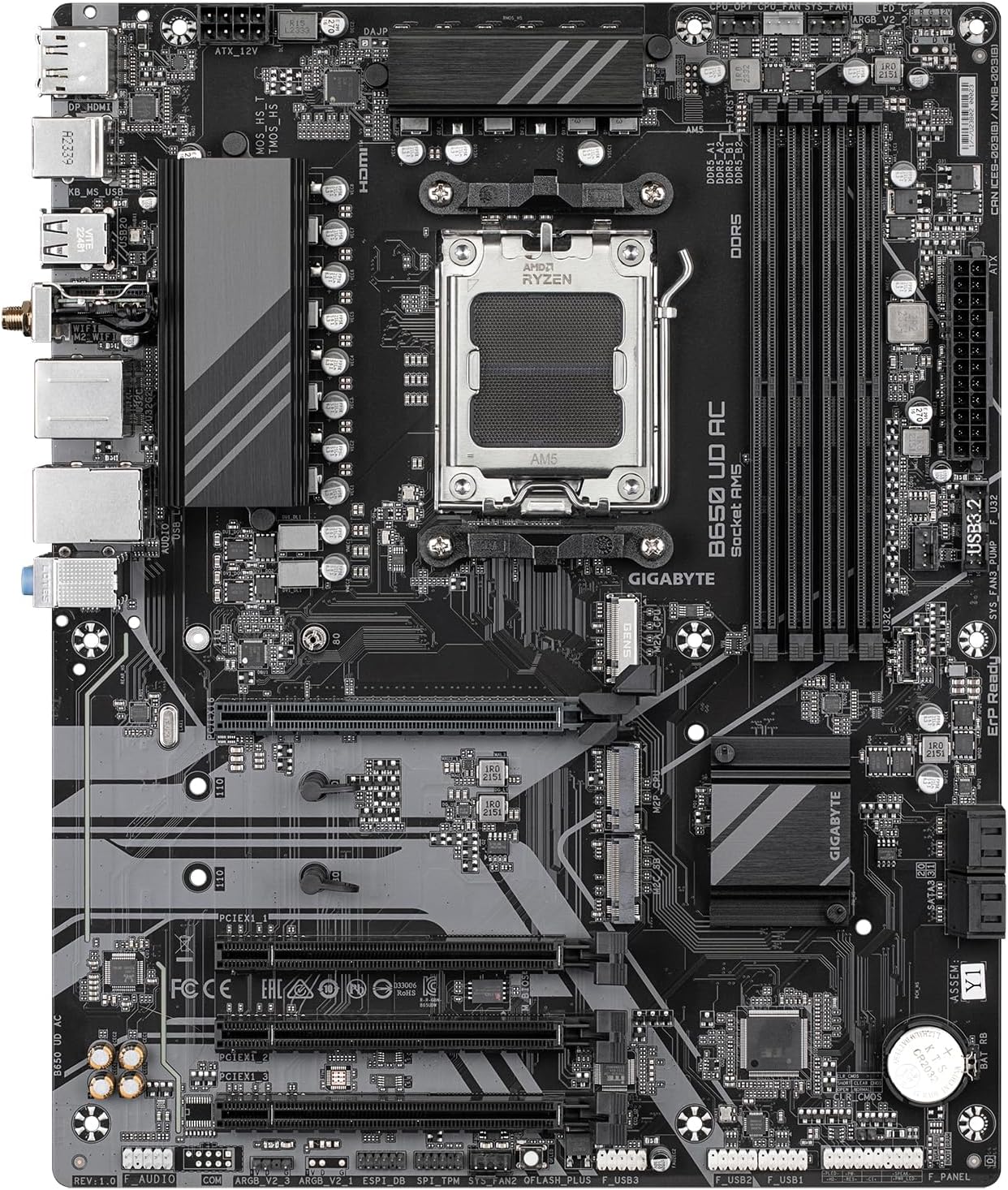

Gigabyte B650 UD AC ATX Socket AM5 Motherboard

£118.96 ex. vat
£142.75 inc. vat

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

AMD Socket AM5: Supports AMD RyzenT 7000/ RyzenT 8000 Series Processors
Unparalleled Performance: 6+2+2 Phases Digital VRM Solution
Dual Channel DDR5: 4*SMD DIMMs with AMD EXPOT & Intel© XMP Memory Module Support
SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
EZ-Latch: PCIe x16 Slot with Quick Release Design
Fast Networks: Wi-Fi 6E 802.11ac & GbE LAN
Extended Connectivity: DP, HDMI, Rear USB© 10Gb/s
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Gigabyte B650 UD AC ATX Socket AM5 Motherboard

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 7000 Series Processors / AMD Ryzen 8000 Series Processors
64-bit Support	Yes
Socket	AM5

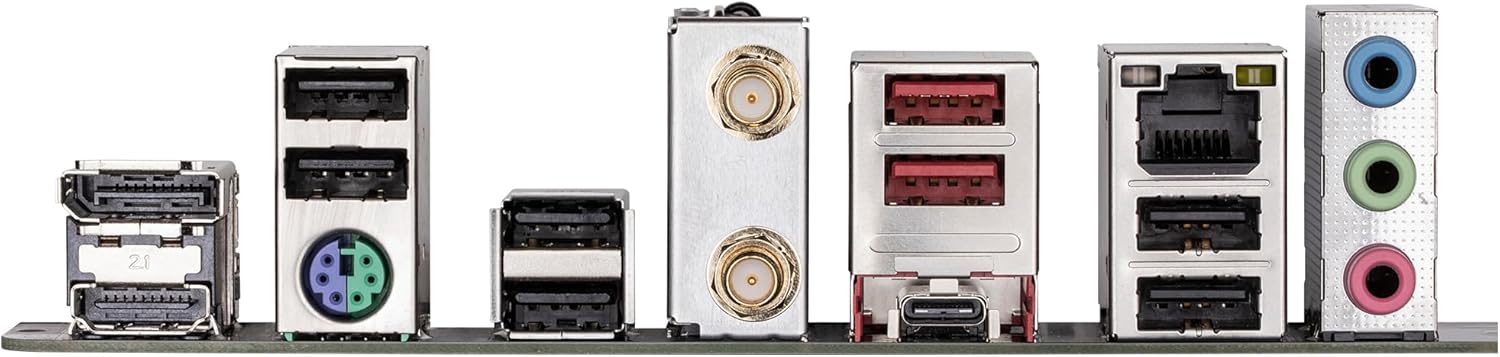

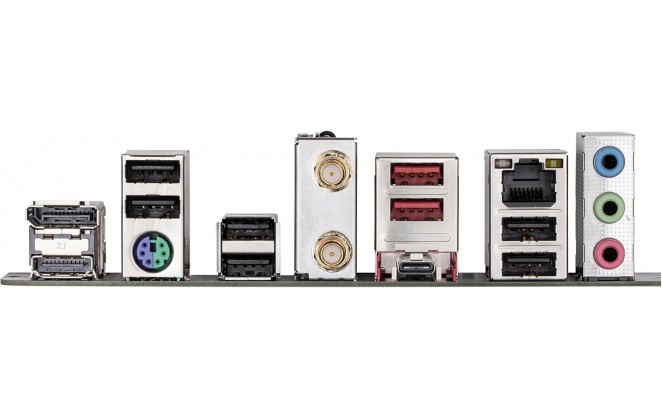

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 3 x USB 2.0 headers (supports 6 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU fan/Water Cooling pump header 2 x System fan headers 1 x System fan/Water Cooling pump header
Serial Connectors	1 x COM
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen5) 2 x M.2 slots, Socket 3, M Key, Type 22110/2280 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
3 x PCI Express 3.0 x16 slots (@ x1/x1/x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	9 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B650
Thunderbolt	No
Motherboard Model	Gigabyte B650 UD AC
WiFi Speed	1200 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	7600 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	6
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
