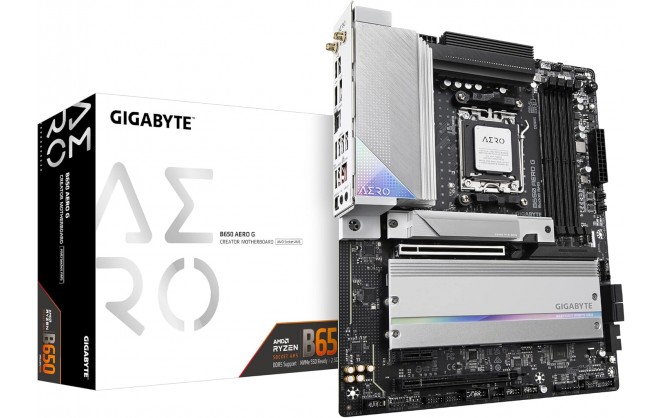

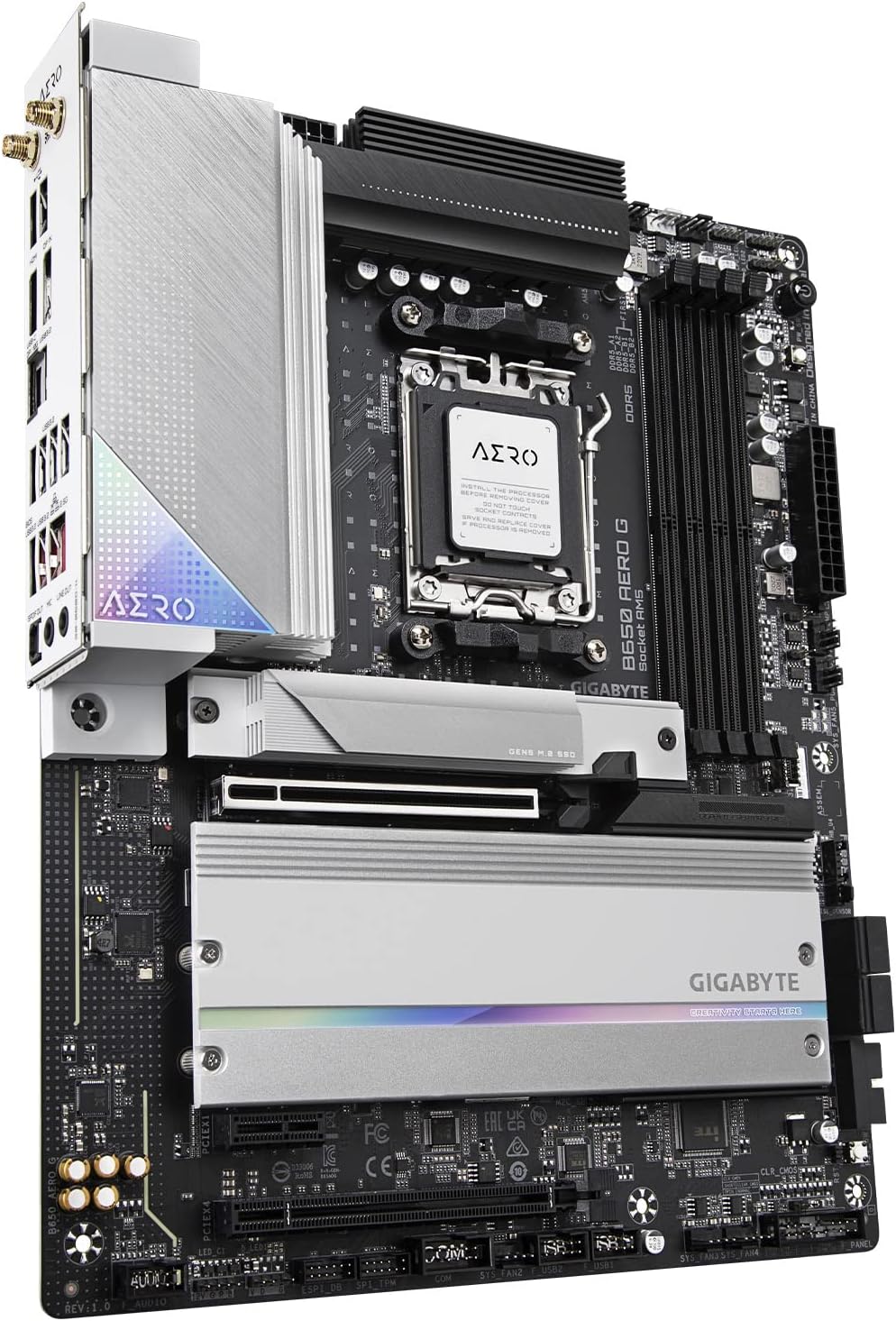

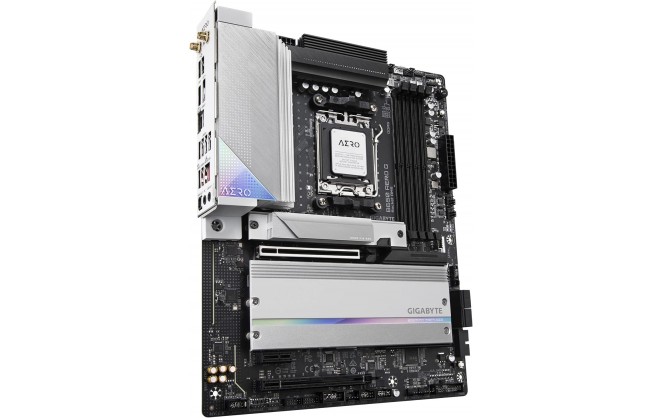

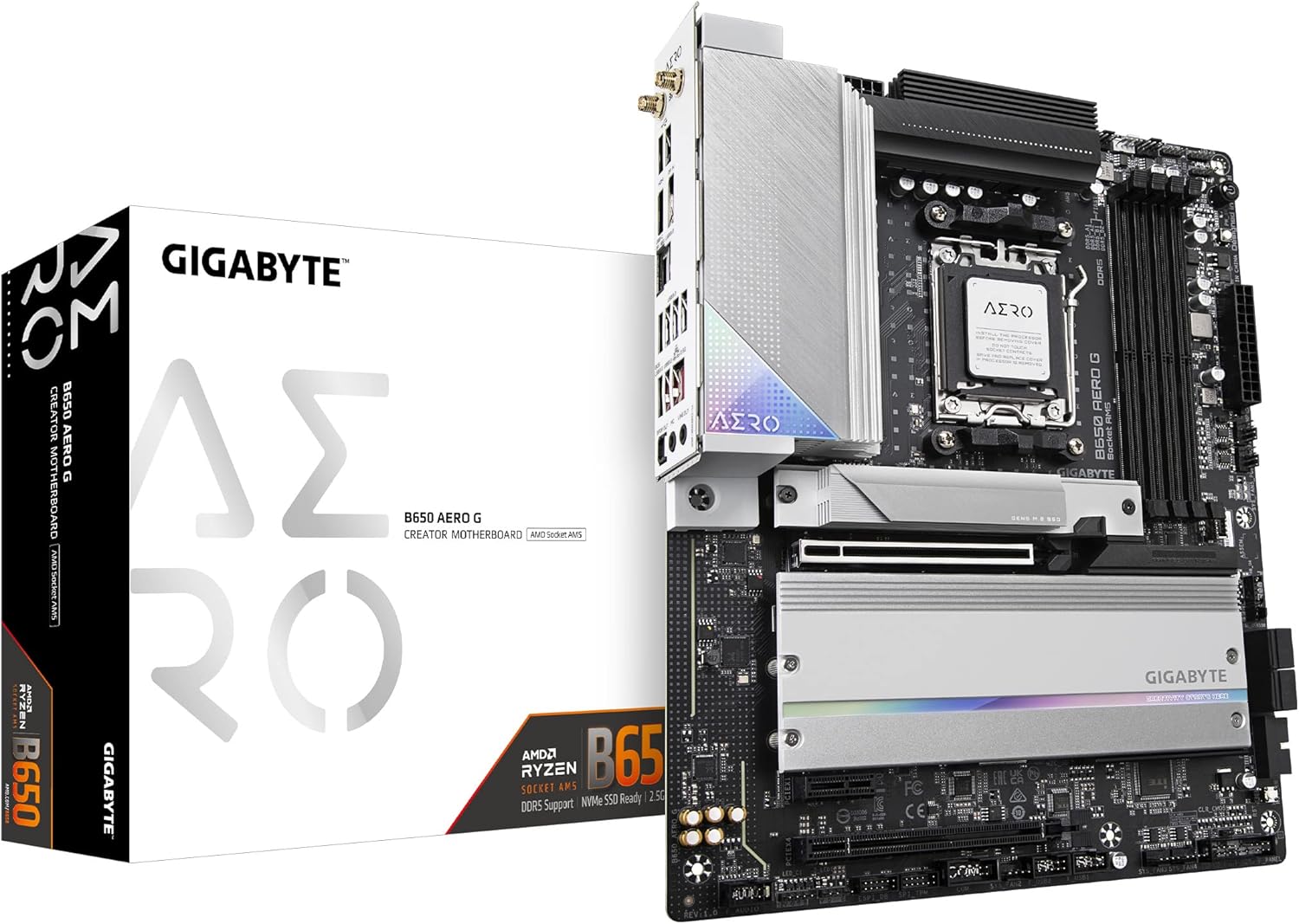

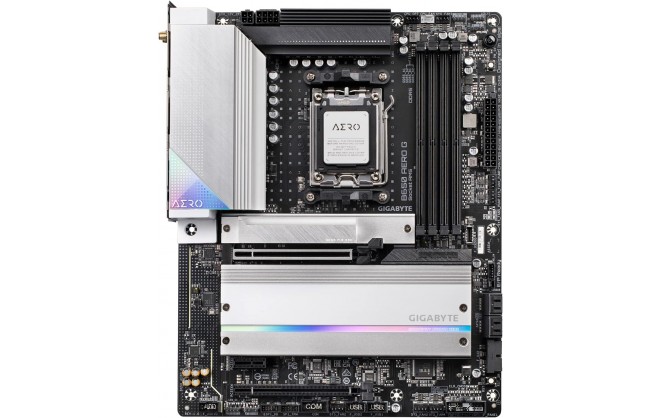

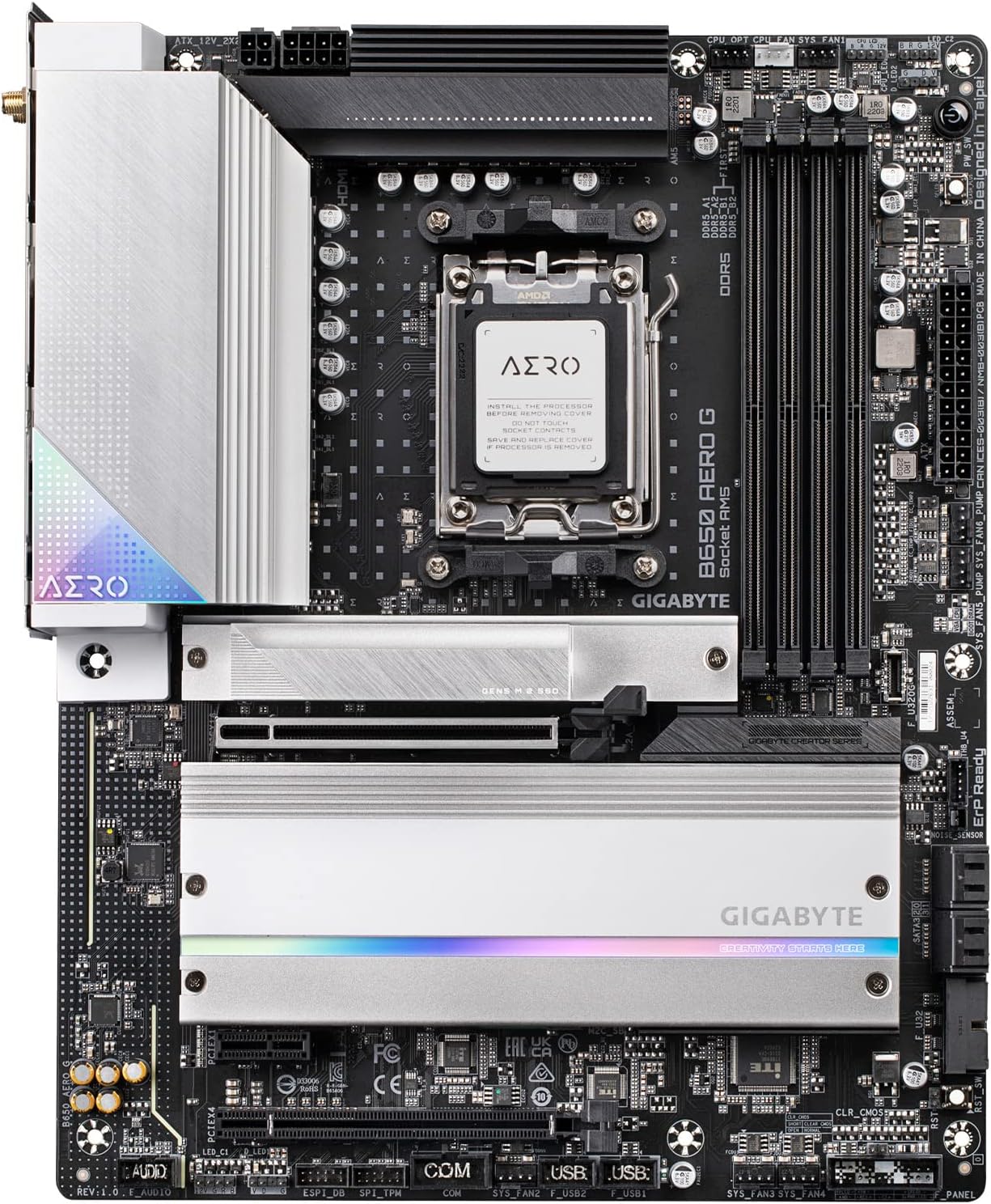

Gigabyte B650 AERO G ATX Socket AM5 Motherboard

Part Number: B650 AERO G
Manufacturer: Gigabyte
Quickfind Code: 136156

Stock: In Stock

£172.59 ex. vat
£207.11 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B650
Form Factor ATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Product Description

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

Main Features

AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
VisionLINK: One USB-C Port for Video, Data Transfer and Charging
Dual Channel DDR5: 4*DIMMs with AMD EXPOT & Intel© XMP Memory Module Support
Next Generation Storage: 1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks: Intel© 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: DP IN, HDMI, Front USB-C© 20Gbps Support and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Technical Specification

Gigabyte B650 AERO G ATX Socket AM5 Motherboard

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 7000/ Ryzen 8000 Series Processors
64-bit Support	Yes
Socket	AM5

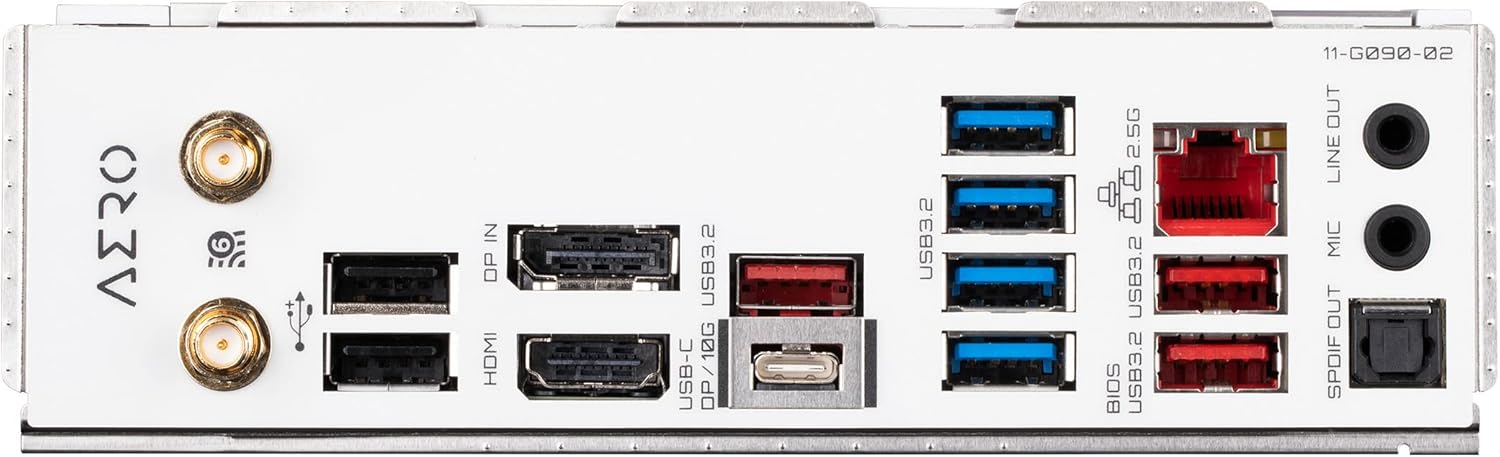

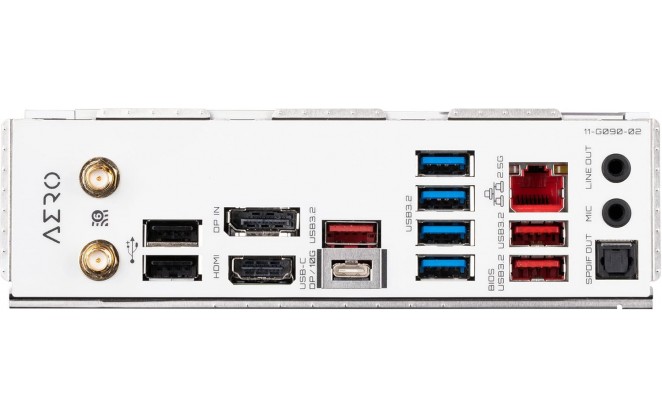

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 3 x USB 3.1 4 x USB 3.0 2 x USB 2.0
DisplayPorts	Yes - via USB-C DP Alt
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Cooling CPU fan header 4 x System fan headers 2 x System fan/Water Cooling pump headers
Thunderbolt Port(s)	1 x THB_U4 add-in card connector
Serial Connectors	1 x COM header
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen5) 2 x M.2 slots, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen4) 2 x 3-pin ARGB LED headers 3 x 4-pin RGB LED headers 1 x Noise Detection header 2 x Temperature Sensor headers

Memory

Memory Bus Speed	Up to 8000 MT/s
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD B650
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

2 x PCI Express 4.0 x16 slots (@ x16/x4)
1 x PCI Express 3.0 x16 slot (@ x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC1220-VB

Network

Integrated Network	Intel
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 6E
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	10 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4-Pin + 8-Pin
Motherboard Chipset	AMD B650
Thunderbolt	No
Motherboard Model	Gigabyte B650 AERO G
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	8000 MT/s
CPU Power Pins (female)	12
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
