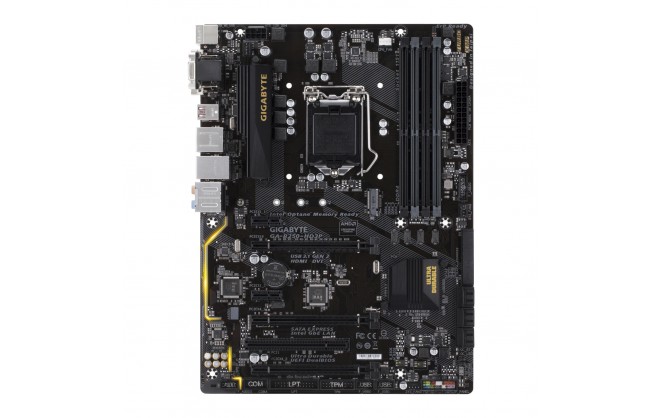

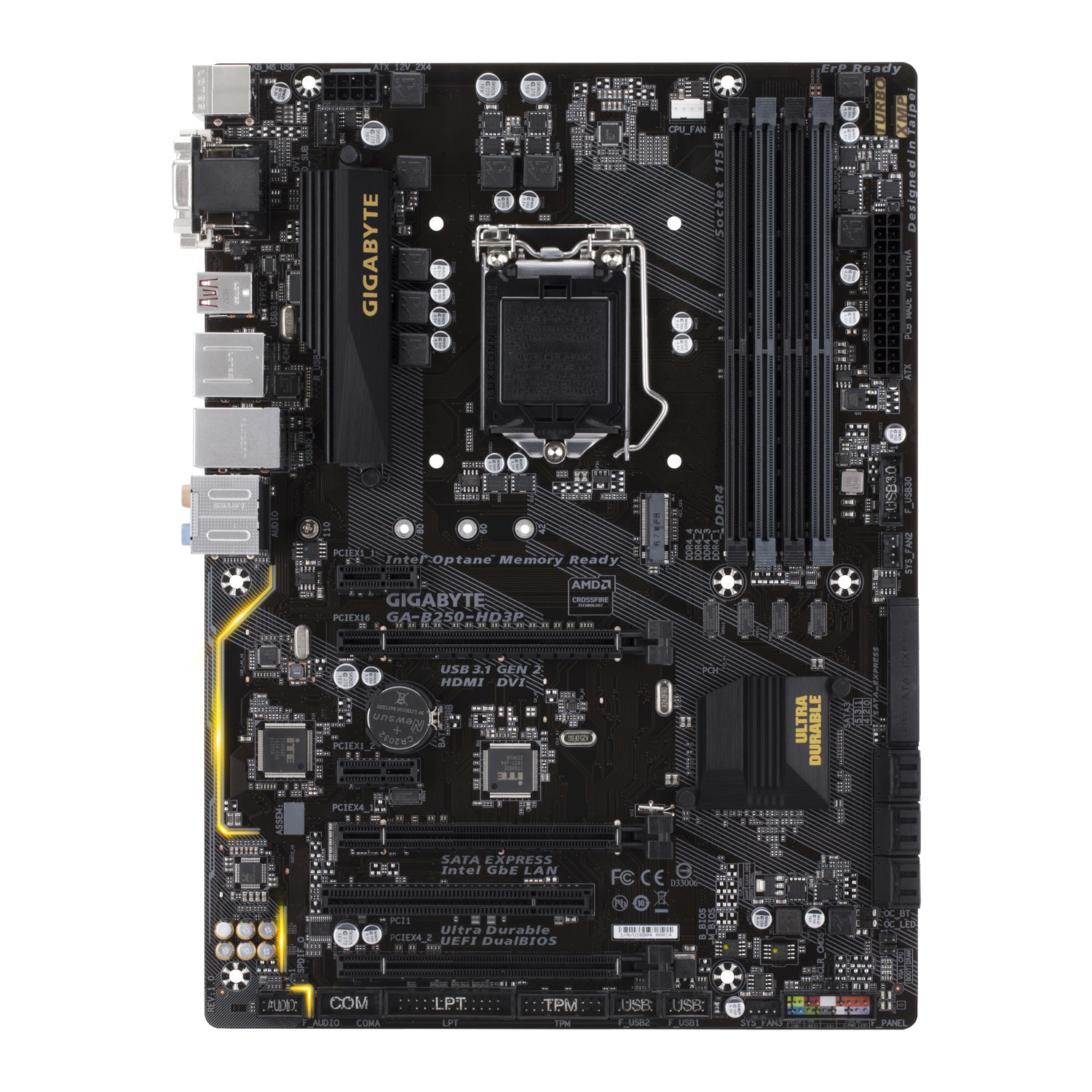

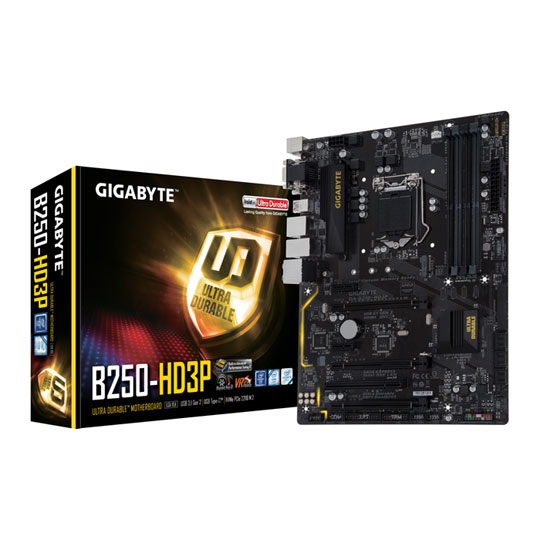

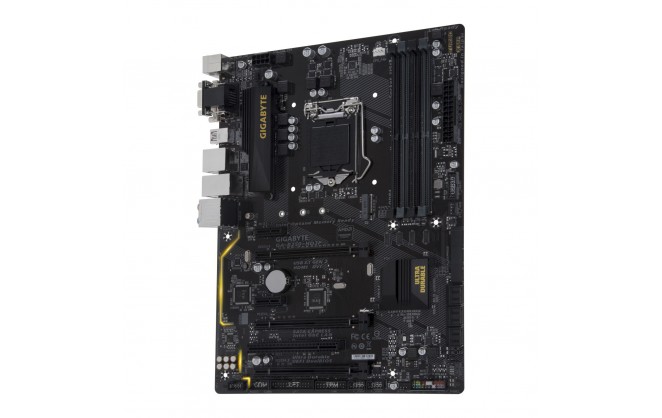

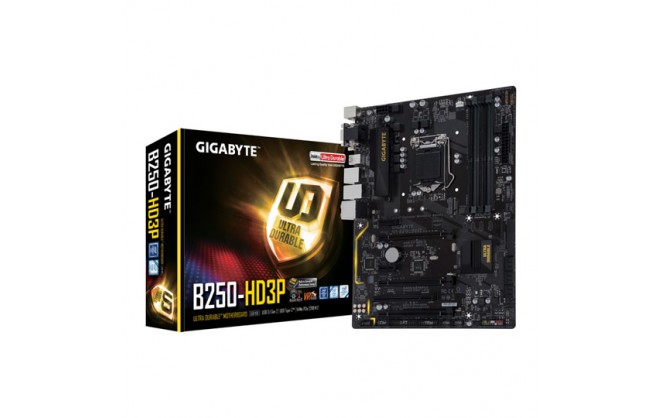

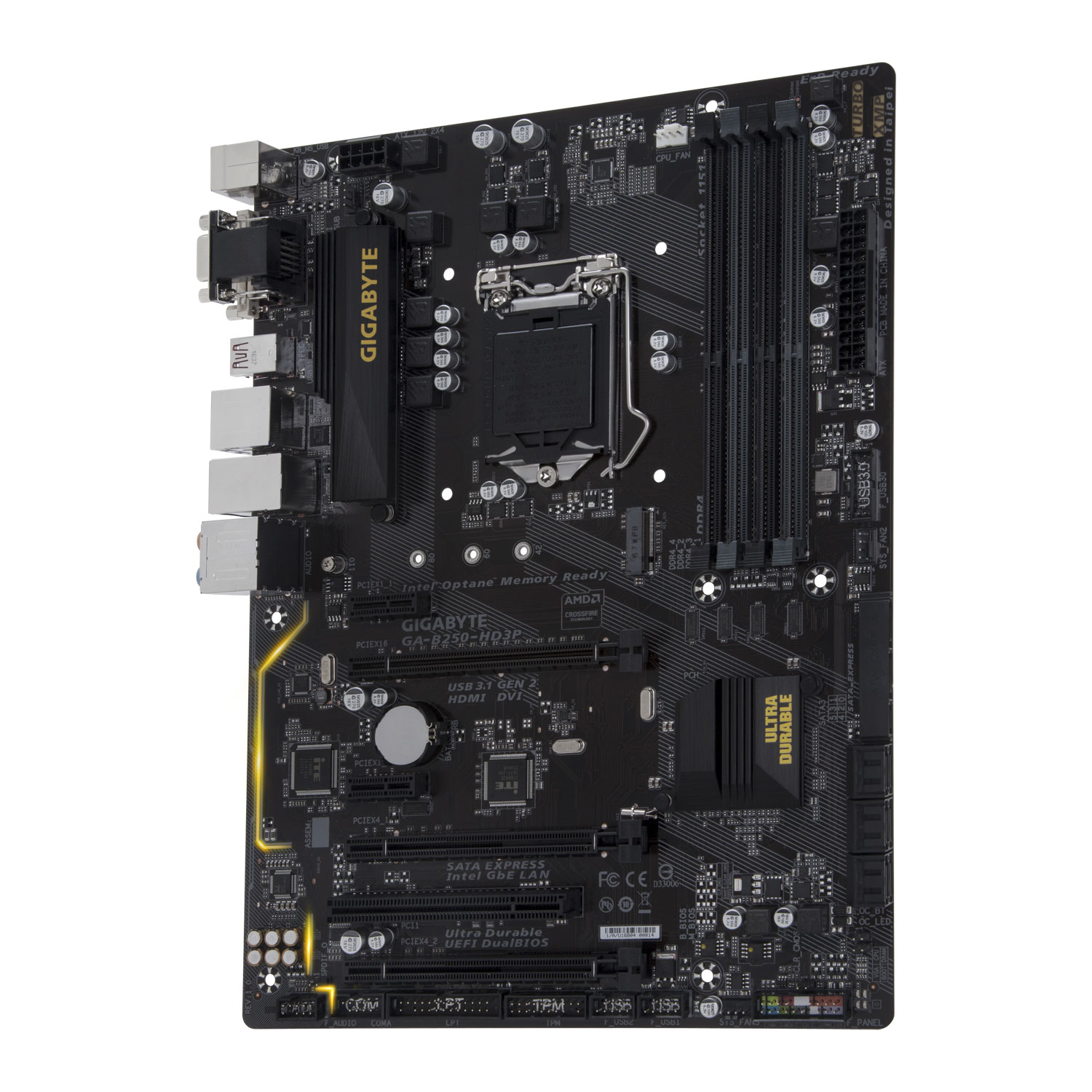

Gigabyte B250 HD3P Kaby Lake CrossFire ATX Motherboard

Part Number: GA-B250-HD3P
Manufacturer: Gigabyte
Quickfind Code: 135879

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Socket Type 1151
Chipset B250
Form Factor ATX
Memory Type DDR4
CPU Type Intel

+ Read More Information

Supports 7^th/ 6^th Generation Intel^® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Fast USB 3.1 Gen 2 with USB Type-C™ and Type-A
2-Way CrossFire™ Multi-Graphics Support
Turbo B-CLOCK, Built-in Advanced Performance Tuning IC
Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
Intel^® Optane™ Memory Ready
Triple display interfaces including High Definition Multimedia Interface
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Intel^® GbE LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
GIGABYTE UEFI DualBIOS™
APP Center Including Cloud Station™ Utility

Technical Specification

Gigabyte B250 HD3P Kaby Lake CrossFire ATX Motherboard

CPU
1. Support for 7^thand 6^th generation Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® B250 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2400* / 2133 MHz memory modules
  * To support 2400 MHz or XMP memory, you must install a 7^th generation processor.
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
  * To support 2400 MHz or XMP memory, you must install a 7^th generation processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor- Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
  * Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Audio
1. Realtek^® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
  * The PCIEX4_1 slot shares bandwidth with the SATA Express connector and the PCIEX1_2 slot. When the SATA Express connector is populated, the PCIEX4_1 slot operates at up to x2 mode. When the PCIEX1_2 slot is populated, the PCIEX4_1 slot operates at up to x1 mode.
  * The PCIEX4_2 slot shares bandwidth with the M.2 connector. When the M.2 connector is populated, the PCIEX4_2 slot becomes unavailable.
3. 2 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 1 x PCI slot
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies (PCIEX16, PCIEX4_1)
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2. 1 x SATA Express connector
  * The SATA Express connector is not compatible with regular SATA devices.
3. 6 x SATA 6Gb/s connectors
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
Chipset+ASMedia^® ASM2142 USB 3.1 Gen 2 Controller:
1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 1 x SATA Express connector
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 3 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x Clear CMOS jumper

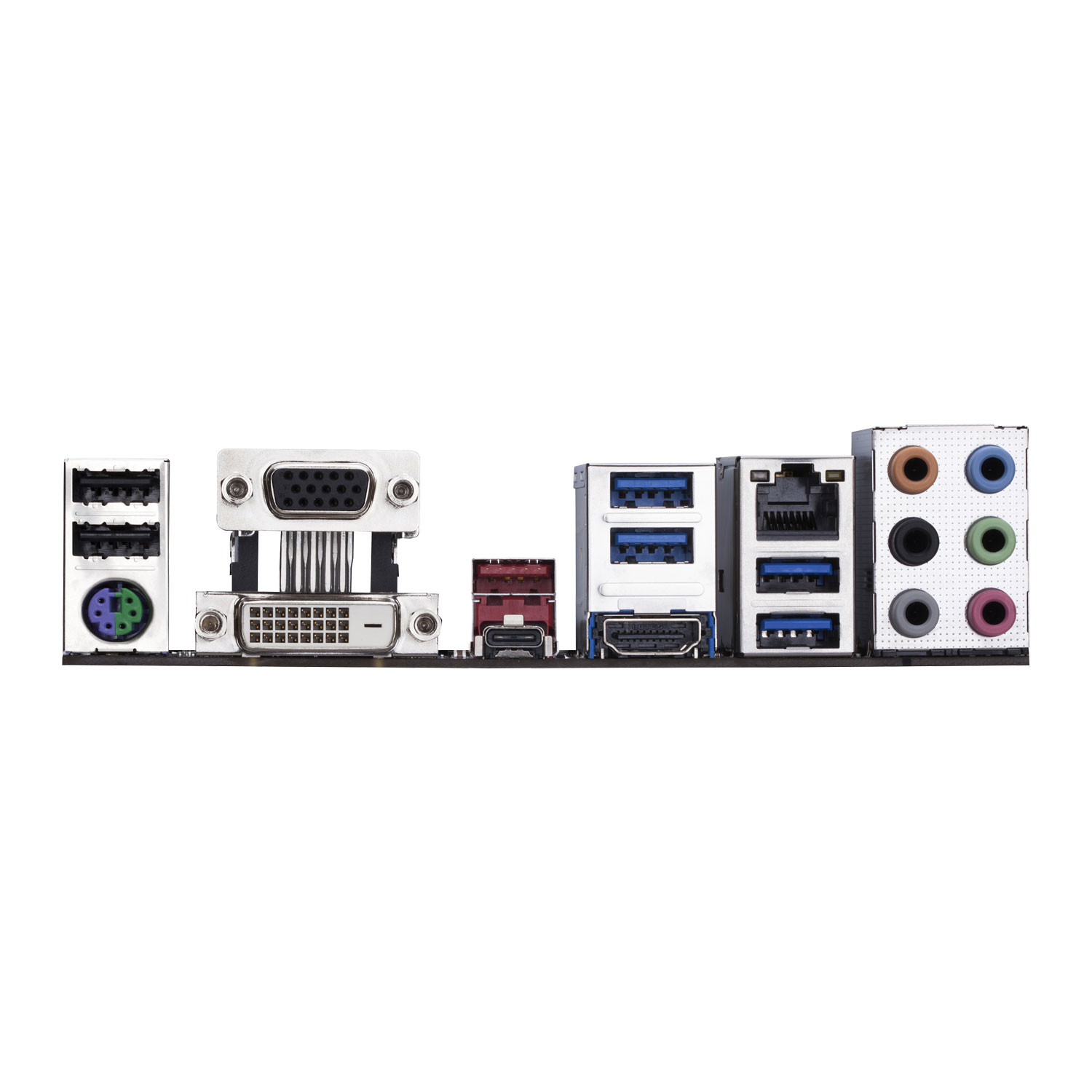

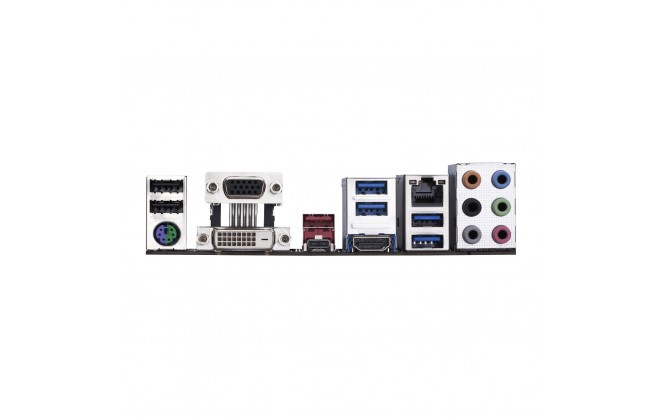

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
6. 1 x USB 3.1 Gen 2 Type-A port (red)
7. 4 x USB 3.1 Gen 1 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
