£139.89 ex. vat
£167.87 inc. vat
Share:
The B850 GAMING WIFI6 delivers fast WiFi 6 connectivity, reliable performance, and gamer-focused features, making it the ideal foundation for building a high-performance gaming rig.
Key Features

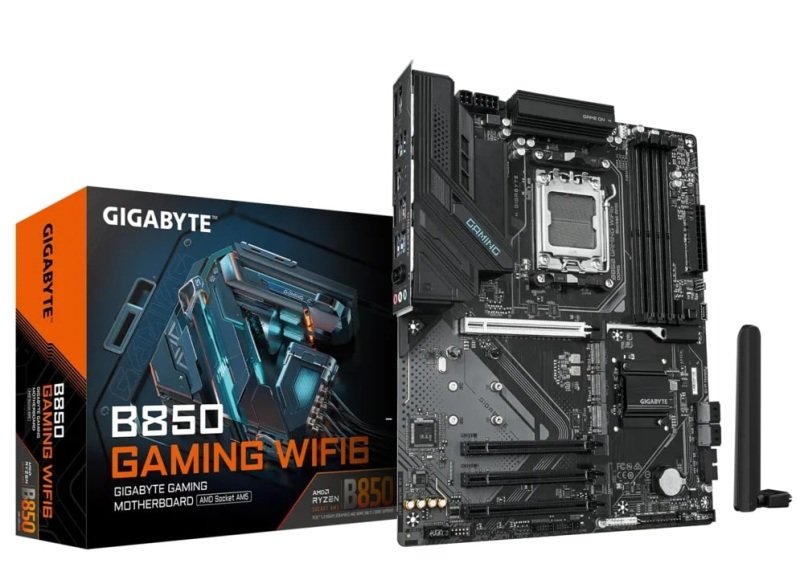

Gigabyte AMD B850 GAMING WIFI6 Socket AM5 ATX Mothebroard
CPU
| CPU Socket | Socket AM5 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | Ryzen 9000 / 8000 / 7000 Series Proessors |
| 64-bit Support | Yes |
| Socket | AM5 |
Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.1 2 x USB 3.0 4 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 4 x SATA |
| USB Connectors | 1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU fan/AIO pump header 3 x System fan headers 1 x System fan/AIO pump header |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
| Other Connectors | 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4 x2) 3 x 3-pin ARGB headers 1 x 4-pin RGB header |
Memory
| Memory Bus Speed | Up to 8200 MT/s |
| Memory Type | DDR5 |
| Maximum RAM | 256 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Northbridge | AMD B850 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 3 x PCI Express 3.0 x16 slots (@ x1/x1/x1) |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Reaktek |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Realtek |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | Yes (Wi-Fi 6E) |
| Bluetooth | Yes |
| Bluetooth Version | 5.3 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 |
System
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |
| Width | 244 mm |
| Length | 305 mm |
Key Features
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 70 W |
| Max Memory Speed Supported (Non-overclocked) | 5200 MT/s |
| Max Memory Speed Supported (overclocked) | 8200 MT/s |
| CPU Power Pins (female) | 12 |
| Total M.2 Slots | 3 |
| Maximum NVMe M.2 ports | 3 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
| Back Connect Support | No |
| RDIMM Memory Supported | No |
| RDIMM Memory Required | No |
| Wireless Network | Yes |
| Motherboard Width | 244 mm |
| Motherboard Height | 305 mm |
| Main Colour | Black |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 9 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard (EPS) Power Connectors | 4-Pin + 8-Pin |
| Motherboard Chipset | AMD B850 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte B850 GAMING WIFI6 |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | B850 GAMING WF6 |
| EAN | 4719331866631 |
