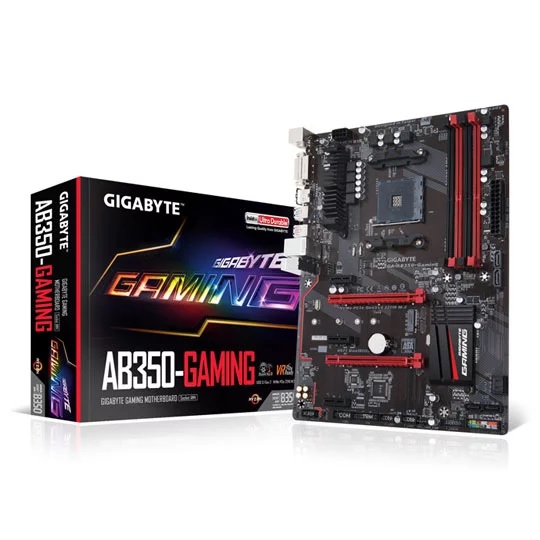

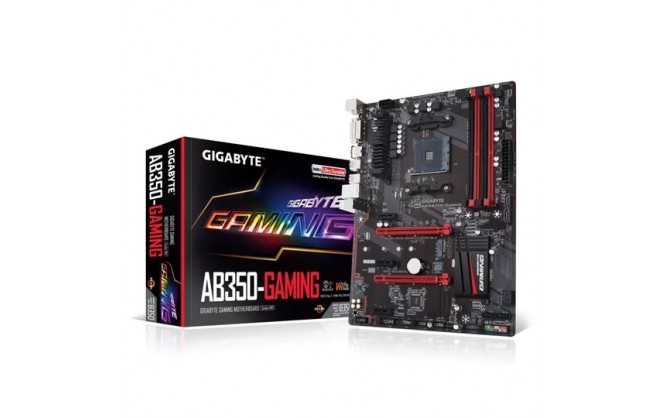

Gigabyte AB350-GAMING AMD B350 AM4 DDR4 SATA3 M.2 (PCIe/SATA) Realtek LAN USB 3.1 A ATX Retail Motherboard

Part Number: AB350-GAMING
Manufacturer: Gigabyte
Quickfind Code: 135190

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Socket Type AM4
Chipset B350
Form Factor ATX
Memory Type DDR4
CPU Type AMD

+ Read More Information

Product Description

Gigabyte AB350-GAMING AMD B350 AM4 DDR4 SATA3 M.2 (PCIe/SATA) Realtek LAN USB 3.1 A ATX Retail Motherboard Core Specifications Form Factor ATX CPU Socket AM4 Chipset AMD B350 RAM Memory Support Memory Type DDR4 Memory Channel Dual (2) Memory Type (ECC) Non-ECC Memory Type (R/U) UDIMM (Unbuffered) Memory Speed (Mhz) DDR4 - 2133 DDR4 - 2400 DDR4 - 2666 DDR4 - 2933(OC) DDR4 - 3200(OC) Max. Memory Capacity 64GB (4x16GB) Audio Audio Realtek ALC887 7.1 HD Audio Graphics Support Primary GPU Interface PCIe 3.0 (x16) SLI Support Not Supported Crossfire Support Not Supported On-Board Graphics Connectors DVI-D HDMI Internal Connectivity Expansion Slots 1 x M.2, 2242/2260/2280/22110, PCIe/SATA 3 x PCIe 2.0 x1 1 x PCIe 2.0 x16 (x4 Bandwidth) 1 x PCIe 3.0 x16 SATA Support SATA3 / M.2 RAID Support via SATA Storage Mode Support AHCI Hot Plug NCQ NVMe Boot (via M.2 PCIe Slot) NVMe Boot (via PCIe 3.0 Slot) RAID 0 RAID 1 RAID 10 Internal I/O 1 x 24
