£189.89 ex. vat
£227.87 inc. vat
Share:
Get game-ready with the TUF Gaming Z790-Plus motherboard, designed to deliver top-notch durability and high performance through its advanced power and cooling solutions. This motherboard is built with military-grade components to ensure reliable and incredible performance, whilst offering a range of connectivity options to keep you connected at all times. Experience immersive gaming like never before with the onboard RGB lighting, DDR5 memory, and built-in Wi-Fi 6 technology.
Enjoy enhanced and intelligent performance with upgraded power delivery and comprehensive cooling features. With the latest DDR5 memory and PCIe 4.0 storage, you can easily power through your gaming sessions with undeniable performance. The motherboard features a robust 16+1 power design with MOSFETS and drivers, all packed into a single package to ensure stable power and efficiency. Additionally, the Z790-Plus is equipped with certified military-grade TUF chokes for system stability, and TUF capacitors that can withstand higher temperatures and have a longer lifespan.
With the built-in Wi-Fi 6 technology, AI Noise Cancellation, surround sound audio, and RGB lighting, you never have to compromise on performance and gaming capability. Enjoy faster connectivity speeds and improved performance in dense wireless environments, while the noise cancellation feature helps to eliminate distractions and provide you with immersive audio. Customize the RGB lighting to match your gaming style and enhance your gaming experience.

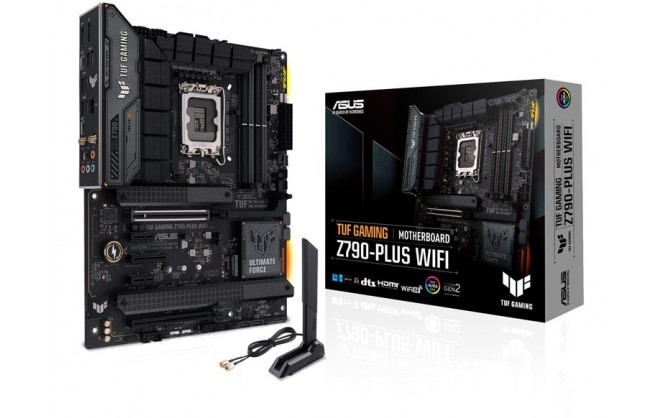

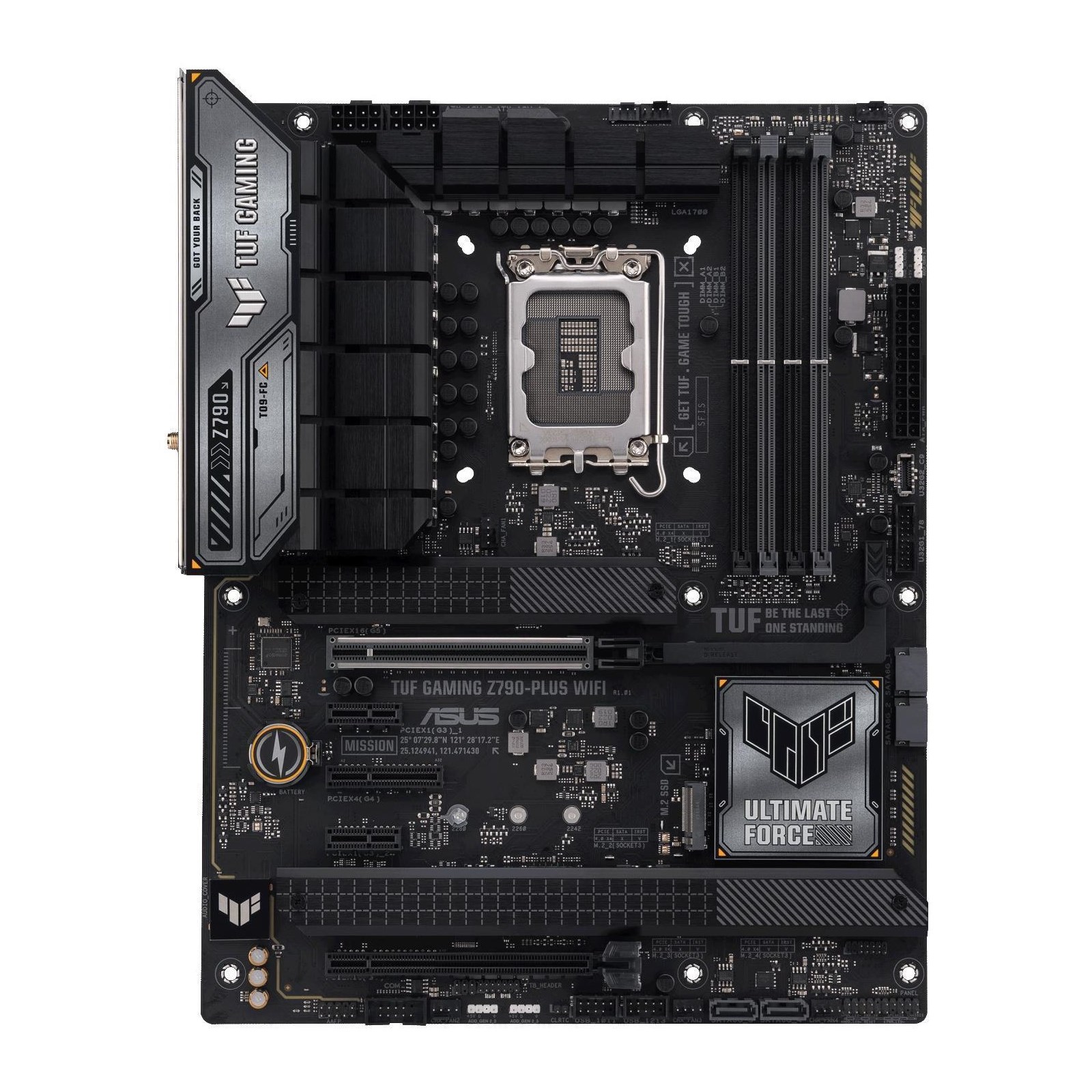

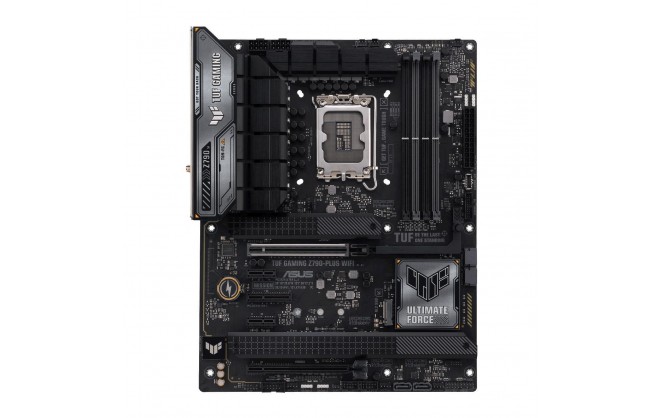

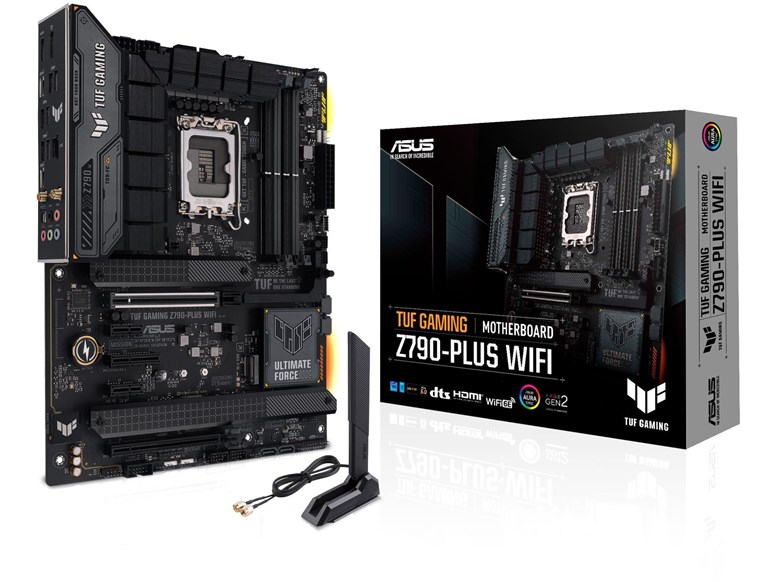

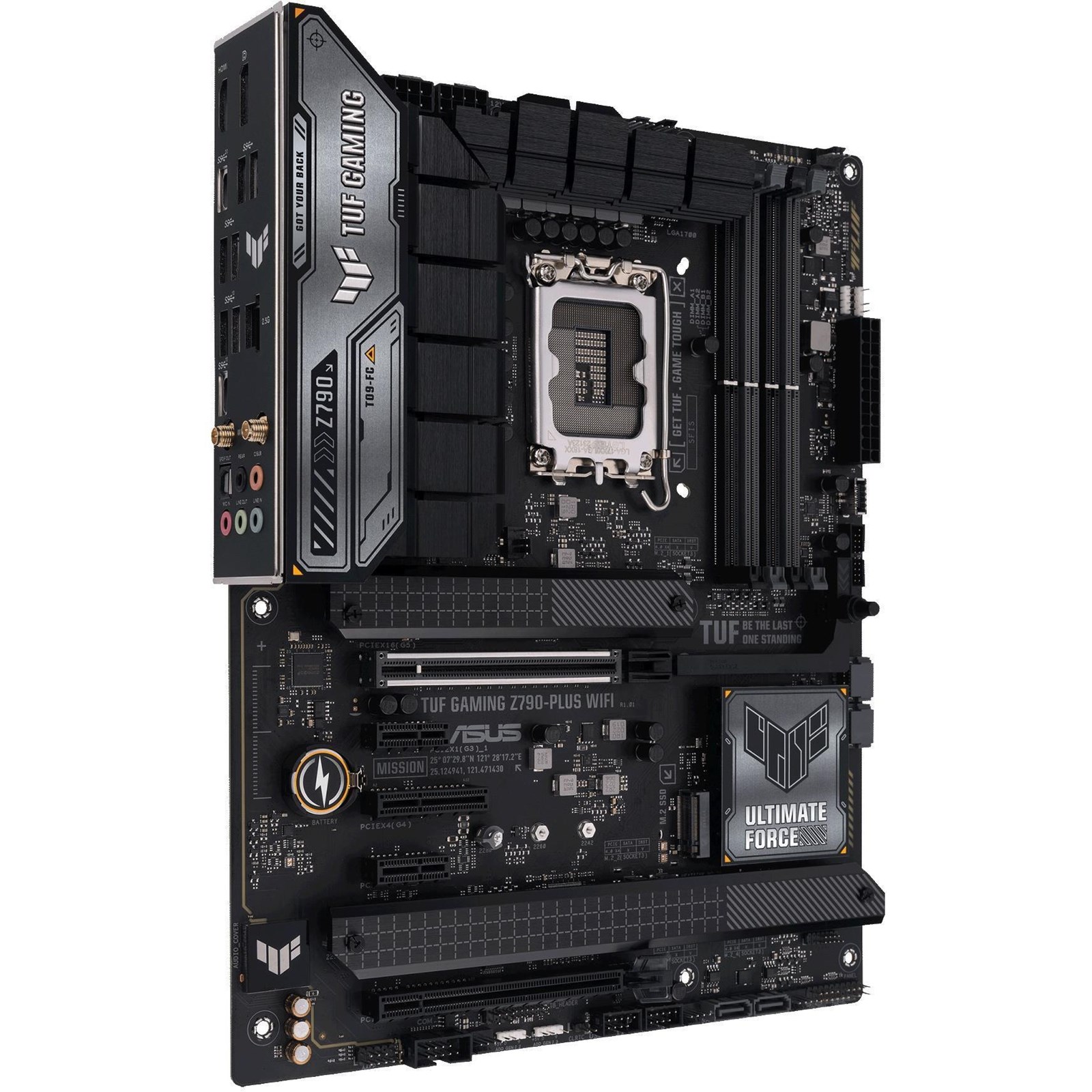

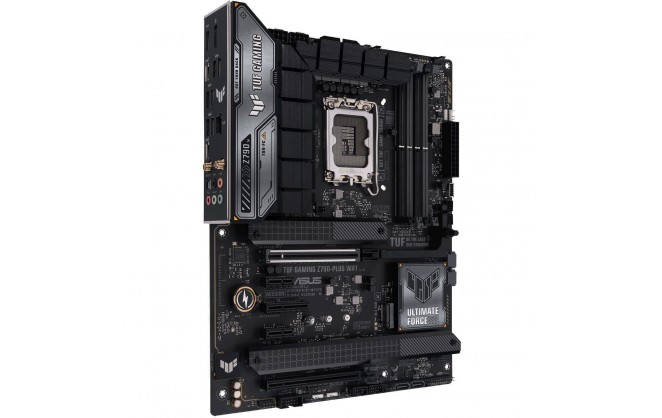

ASUS TUF Gaming Z790-Plus WiFi ATX Socket 1700 Motherboard
Physical
| Form Factor | ATX |

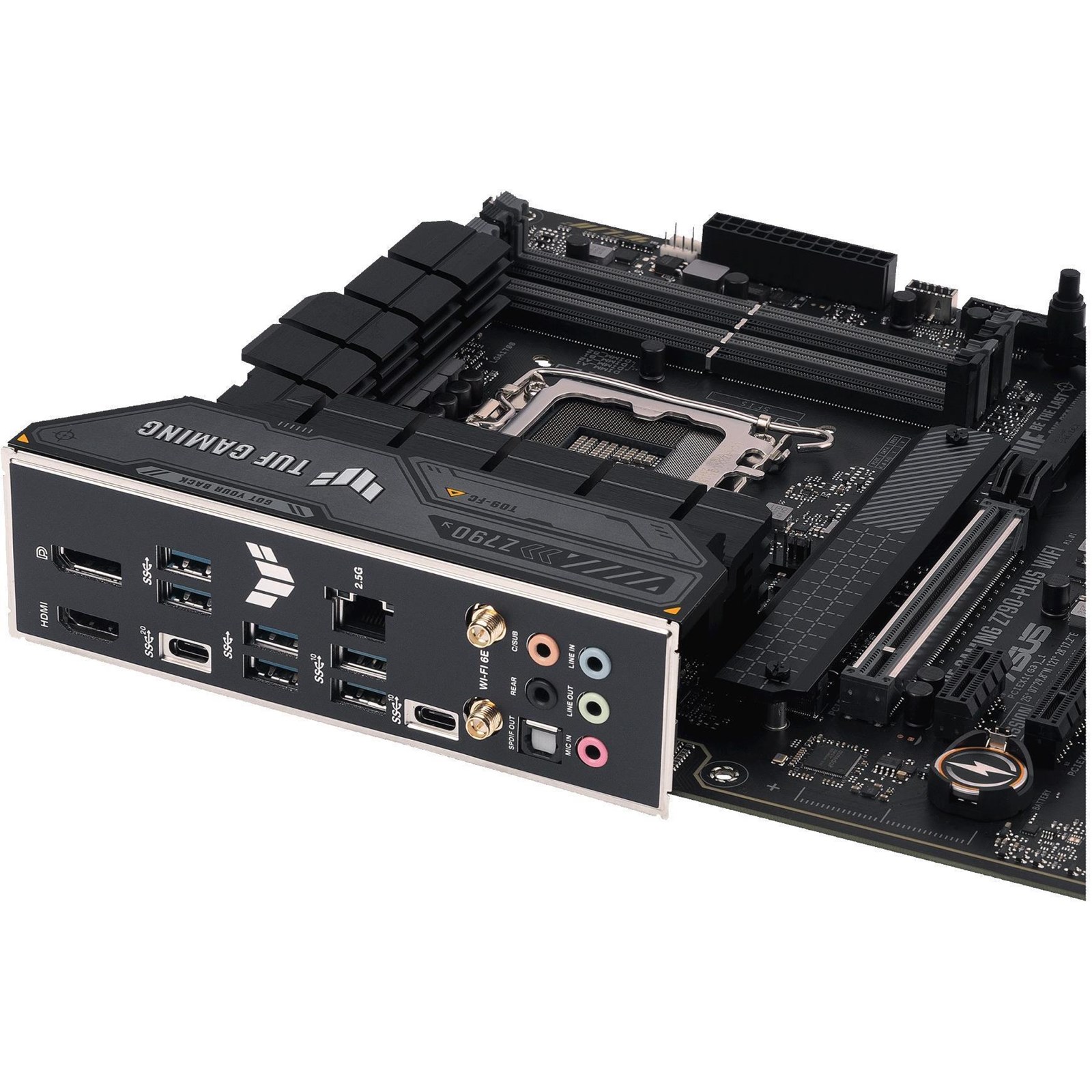

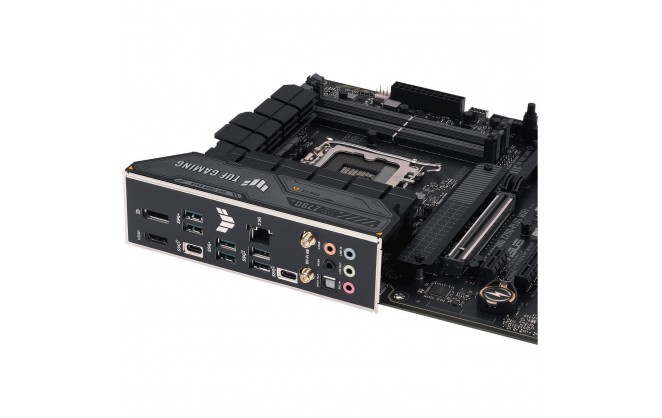

Rear Panel I/O Ports
| DisplayPorts | 1 |
| HDMI Port | 1 |
| RJ-45 Ports | 1 |
Memory
| Memory Type | DDR5 |
| Memory Slot | 128 GB |
Motherboard
| Chipset Manufacturer | Intel |
Network
| Integrated Network | Wi-Fi 6E |
Wireless Communications
| Bluetooth | Yes |
Key Features
| Socket | LGA1700 |
| Installed Processors (Max) | 0 (1) |
| Integrated Graphics Supported | Yes |
| Maximum RAM | 128 GB |
| RAID Supported | Yes |
| SATA Supported | Yes |
| Wireless Network | Yes |
| Motherboard Width | 244 mm |
| Motherboard Height | 305 mm |
| Number of PCI Express Slots | 5 slot(s) |
| Main Colour | Black |
| Memory Channel | Quad |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 8 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 8 + 8-Pin |
| Motherboard Chipset | Intel Z790 |
| Thunderbolt | No |
| Motherboard Model | ASUS TUF Gaming Z790-Plus WiFi |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 70 W |
| Max Memory Speed Supported (Non-overclocked) | 4800 MHz |
| Max Memory Speed Supported (overclocked) | 7200 MHz |
| CPU Power Pins (female) | 16 |
| Total M.2 Slots | 4 |
| Maximum NVMe M.2 ports | 4 |
| Maximum SATA M.2 ports | 1 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
| Config Gaming | Yes |
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | TUF GAMING Z790-PLUS WIFI |
| Alternative Part Number | 90MB1D80-M0EAY0 |
| EAN | 4711387014509 |
| UPC | 197105014503 |
| Condition | New |
