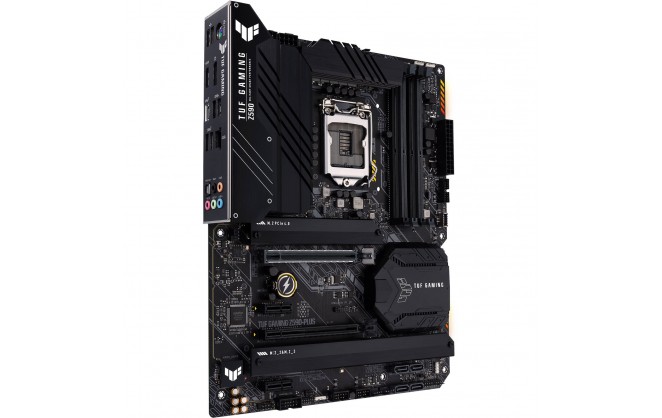

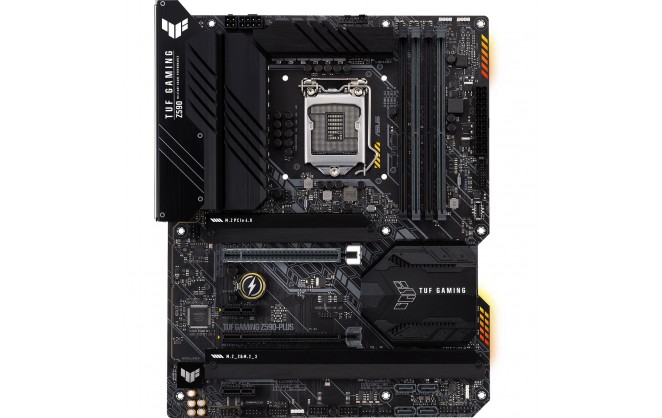

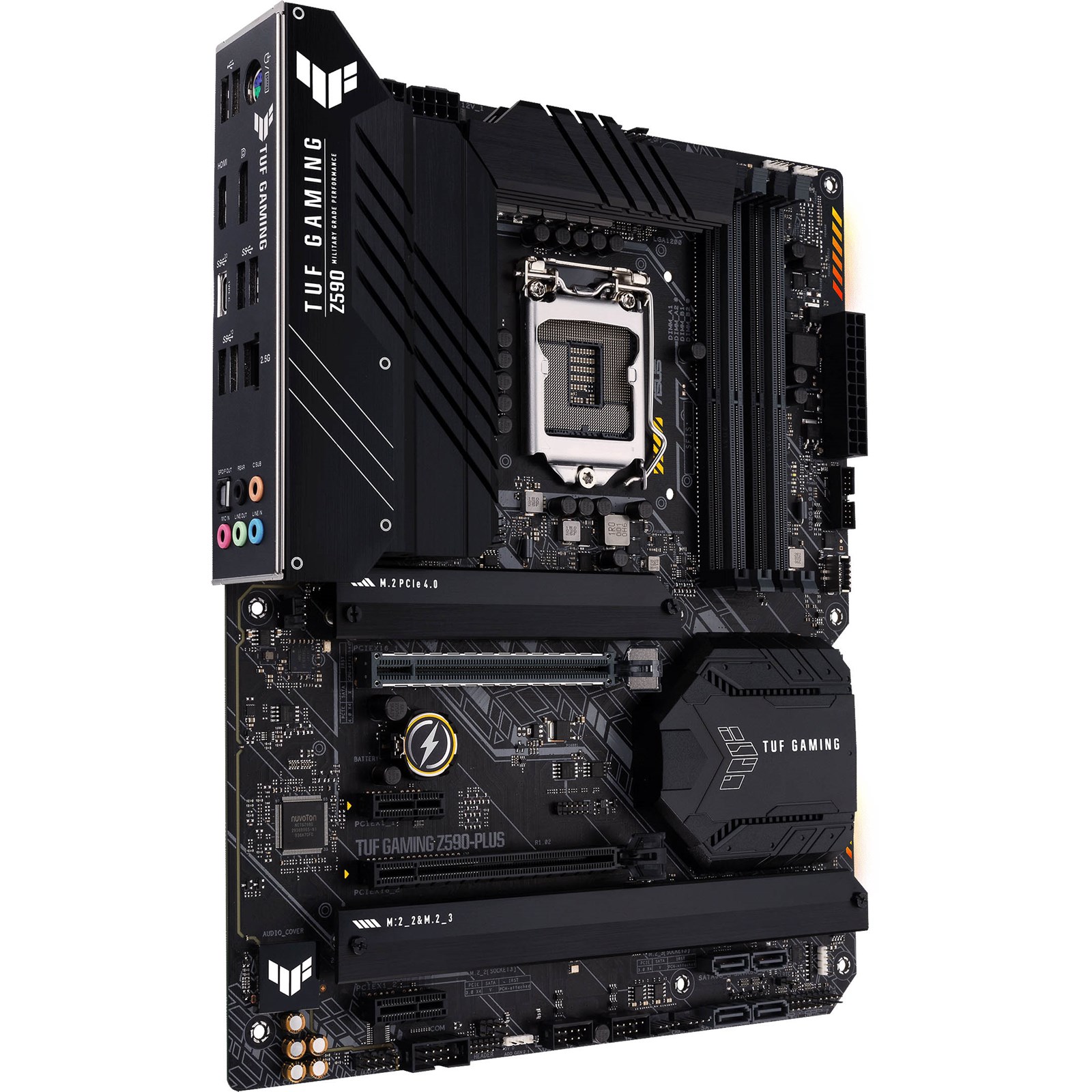

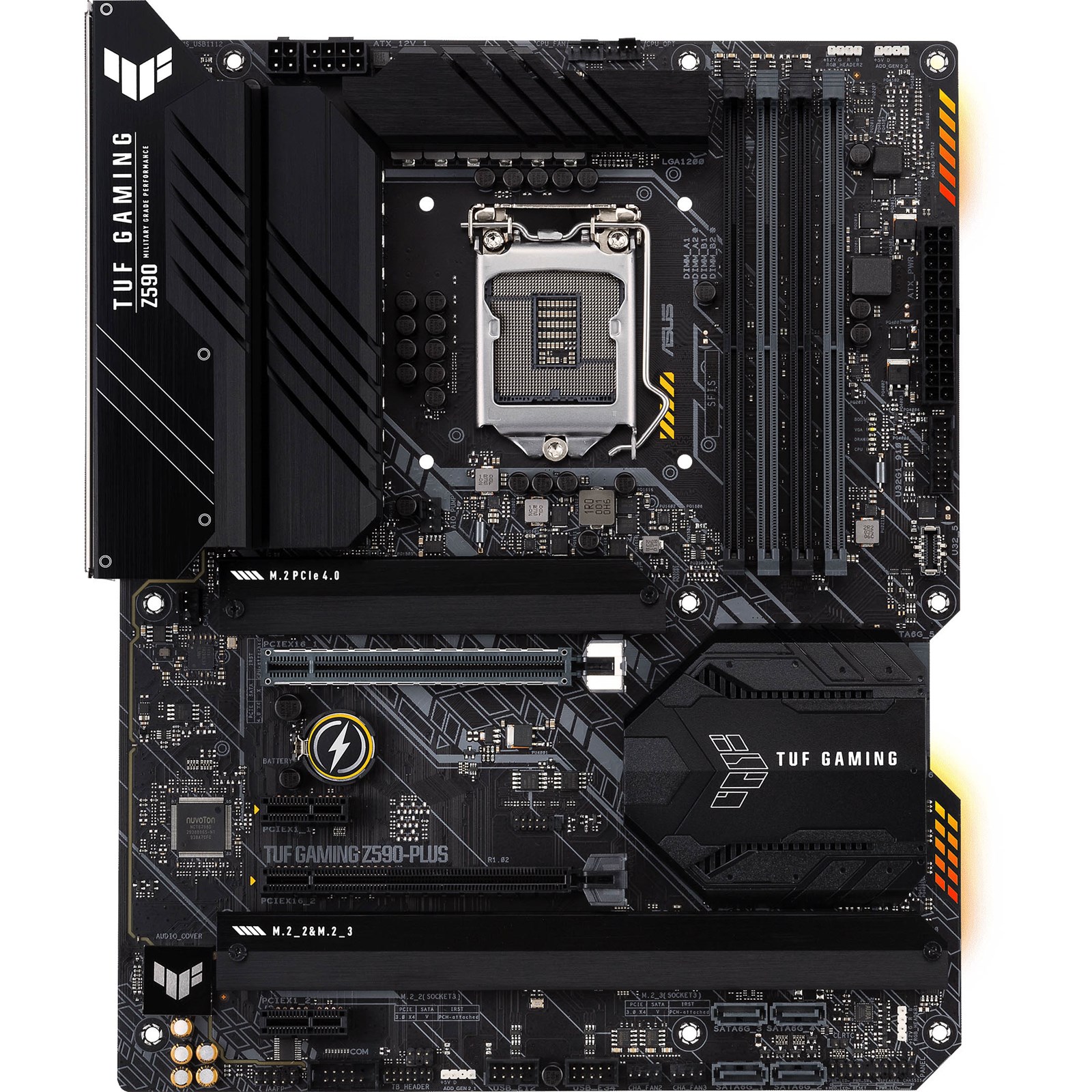

ASUS TUF Gaming Z590-Plus Intel Motherboard

£189.99 ex. vat
£227.99 inc. vat

ASUS TUF Gaming Z590-Plus Intel Socket 1200 Z590 Chipset ATX Motherboard

Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core processors
Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
Next-gen connectivity: PCIe 4.0, USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 support
Made for online gaming: Intel 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line-out and 103 dB SNR for line-in

CPU

CPU Socket	Socket 1200
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1200

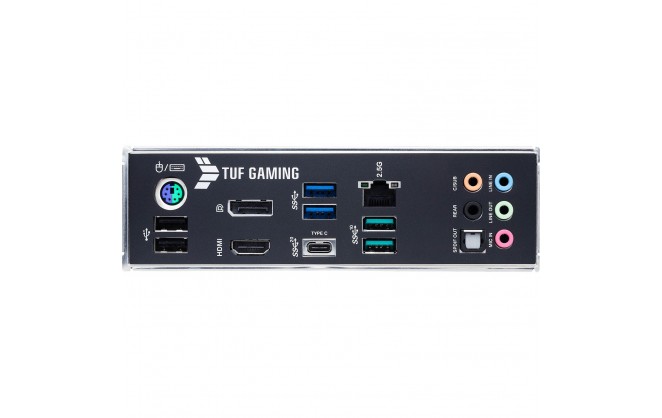

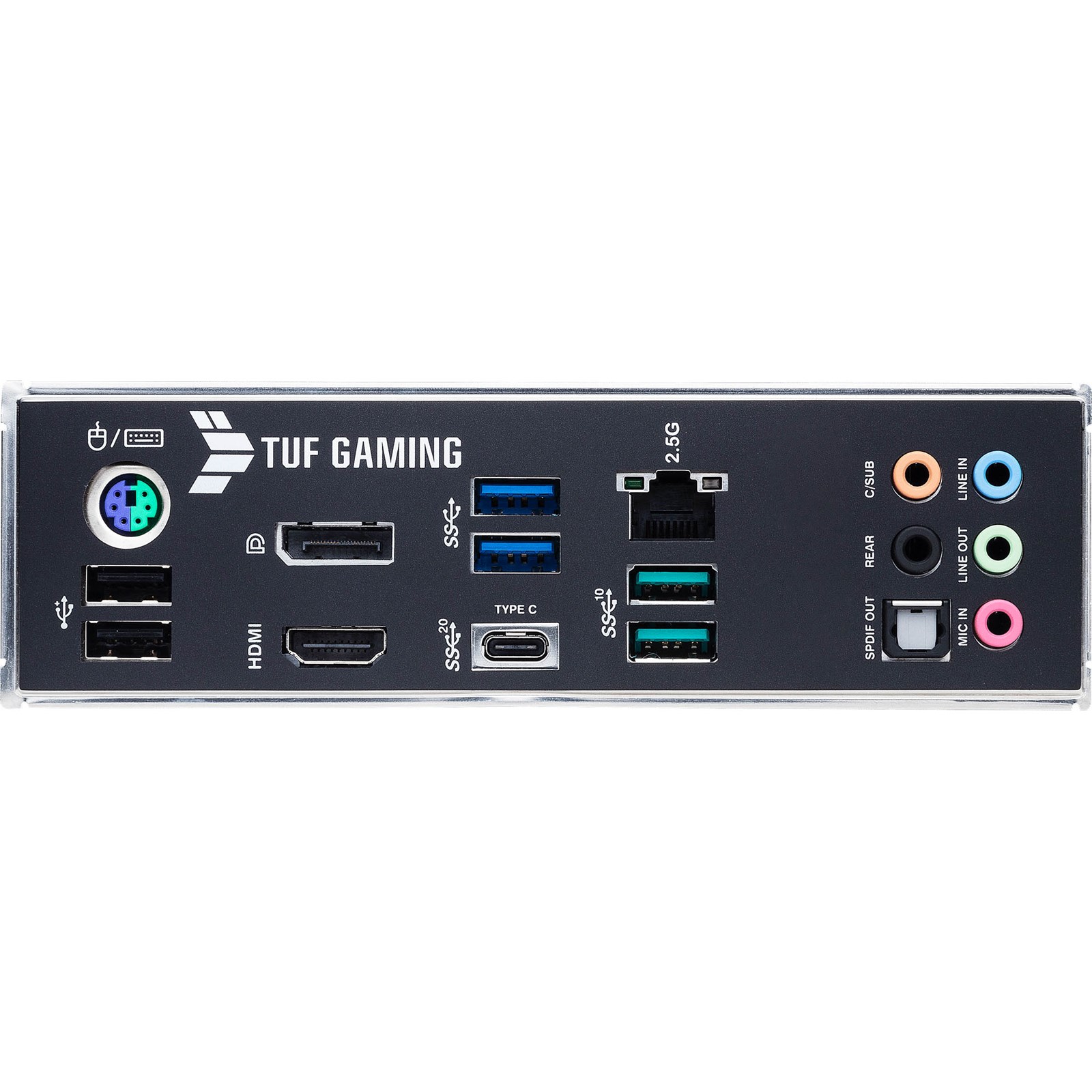

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB 3.0 Type-C header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO Pump header 3 x Chassis fan headers
Thunderbolt Port(s)	1 x Thunderbolt header
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 20+4-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	2 x M.2 slots, Key M, Type 2242/2260/2280/22110) 1 x M.2 slot, Key M, Type 2242/2260/2280 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers

Memory

Memory Bus Speed	5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x16 (@ x4)
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC S1200A

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

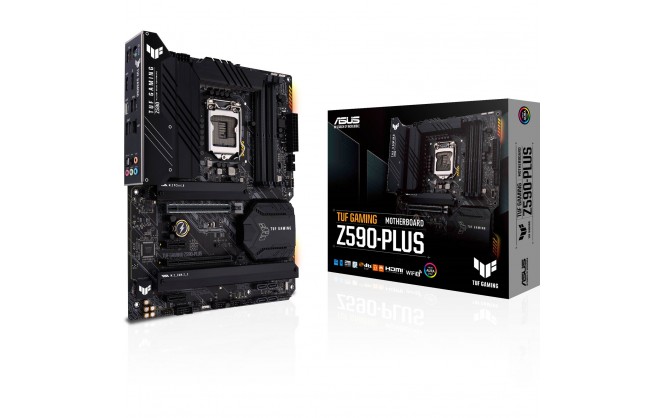

In The Box	TUF Gaming Z590-Plus Motherboard 2 x SATA Cables 2 x M.2 Rubber Package 1 x M.2 Screw Package TUF Gaming Sticker Support DVD TUF Certification Card User Manual
Width	305 mm
Length	244 mm

Key Features

On-board RGB Control	ASUS Aura Sync
Memory Speed	5000 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Firewire	No
Wireless Network	No
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	7 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	Intel Z590
Thunderbolt	No
Motherboard Model	ASUS TUF Gaming Z590-Plus
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
