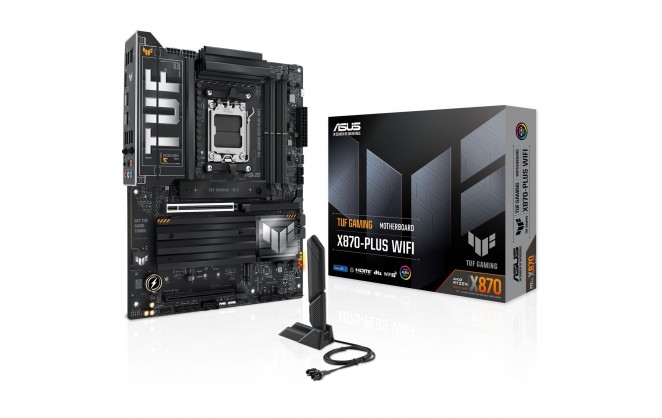

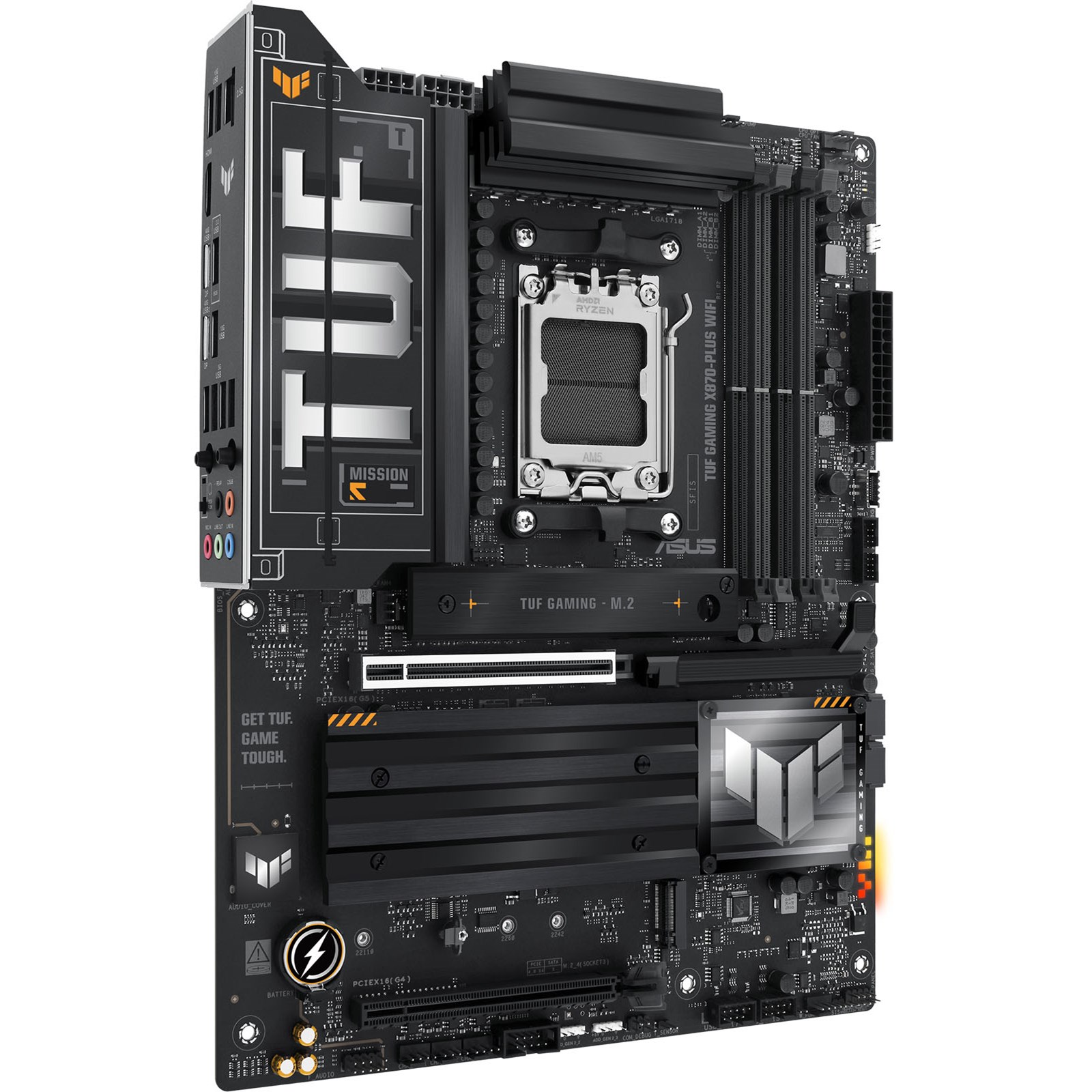

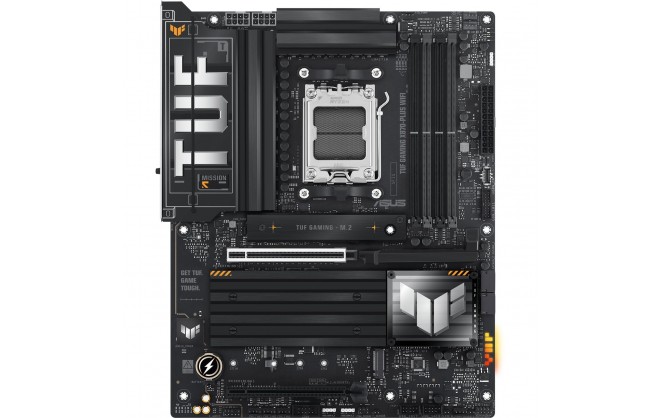

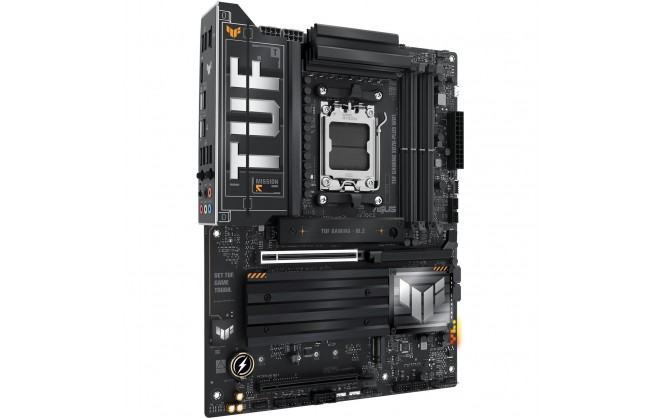

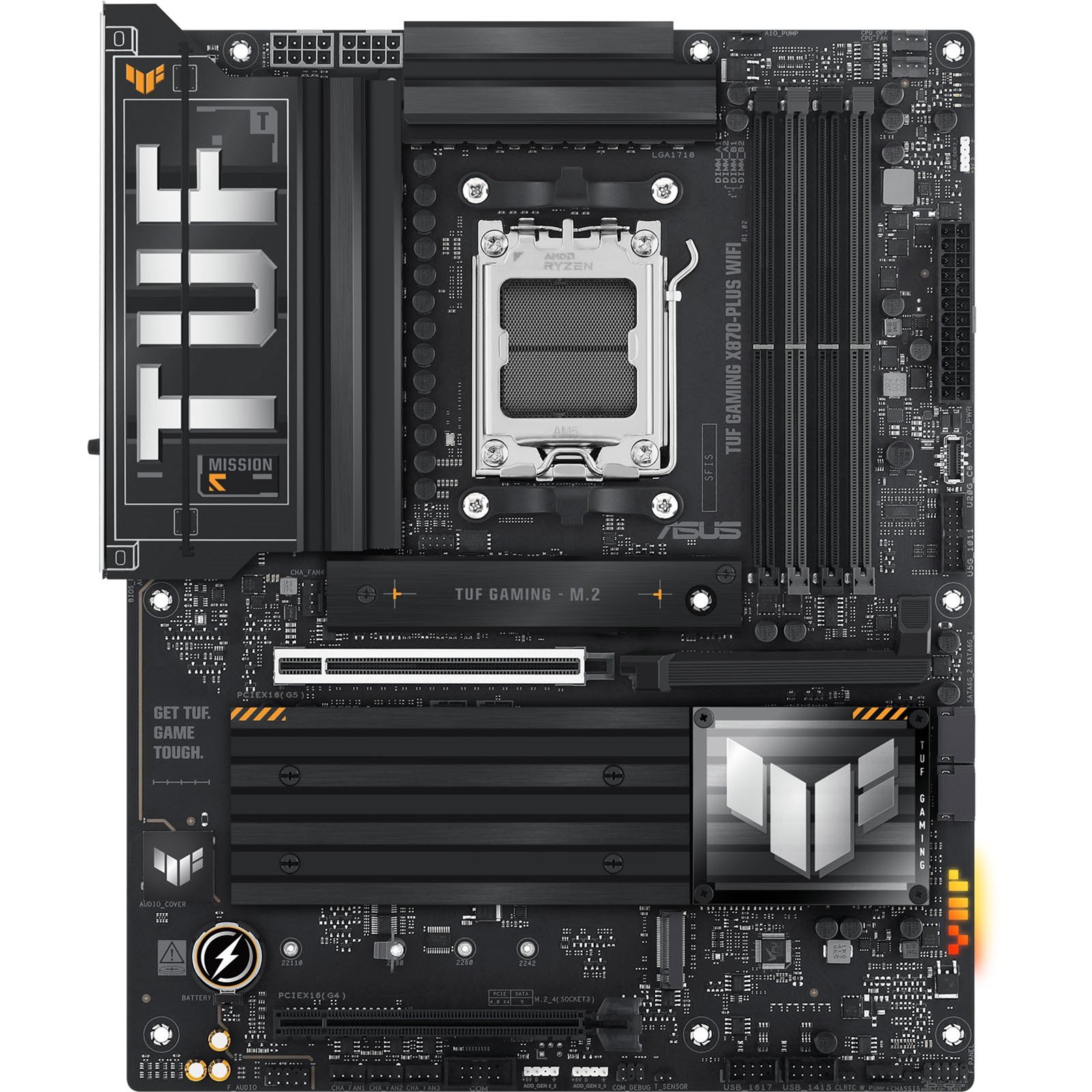

ASUS TUF Gaming X870-Plus WiFi Socket AM5 ATX Motherboard

Part Number: 90MB1IU0-M0EAY0
Manufacturer: ASUS
Quickfind Code: 136281

Stock: In Stock

£189.95 ex. vat
£227.94 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset X870
Form Factor ATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Product Description

TUF GAMING X870-PLUS WIFI

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Technical Specification

ASUS TUF Gaming X870-Plus WiFi Socket AM5 ATX Motherboard

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

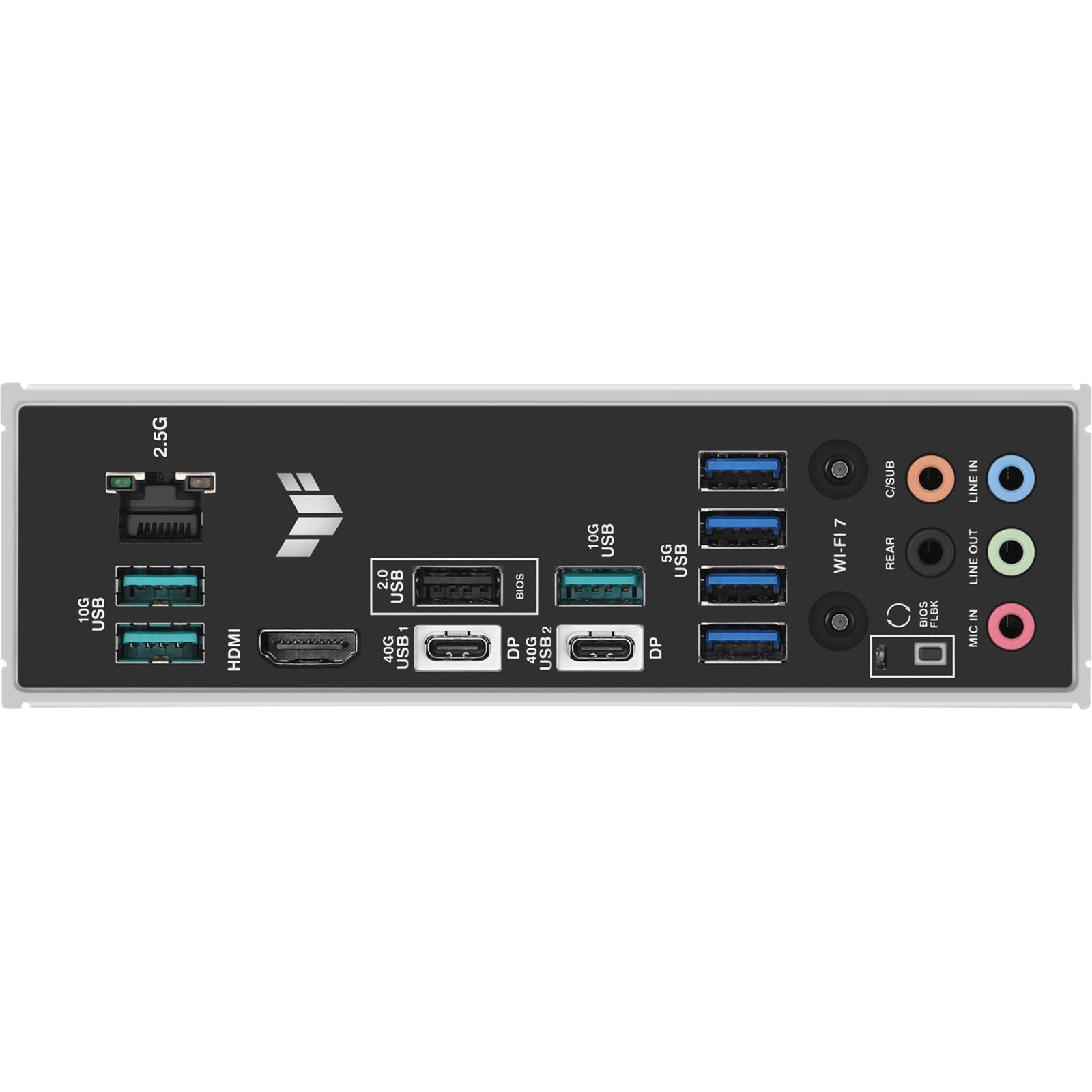

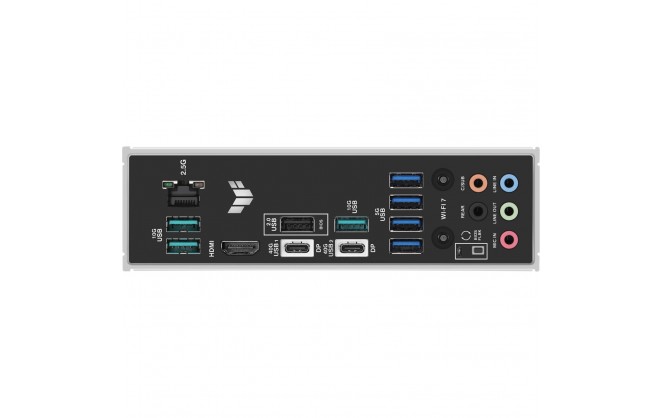

Rear Panel I/O Ports

USB Ports	2 x USB-C 4 3 x USB 3.1 4 x USB 3.0 1 x USB 2.0
DisplayPorts	Yes - via USB-C
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	2 x SATA III
USB Connectors	1 x USB-C 3.2 header (supporting 1 port) 1 x USB 3.0 header (supporting 2 ports) 2 x USB 2.0 headers (supporting 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 4 x Chassis fan headers 1 x W_PUMP+ header
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	2 x M.2 slots, Key M, Type 2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x Thermal Sensor header

Memory

Memory Bus Speed	Up to 8000 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD X870
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC1220P

Warranty

3 Years

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 2.9 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Windows 11, Windows 10 64-bit

System

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

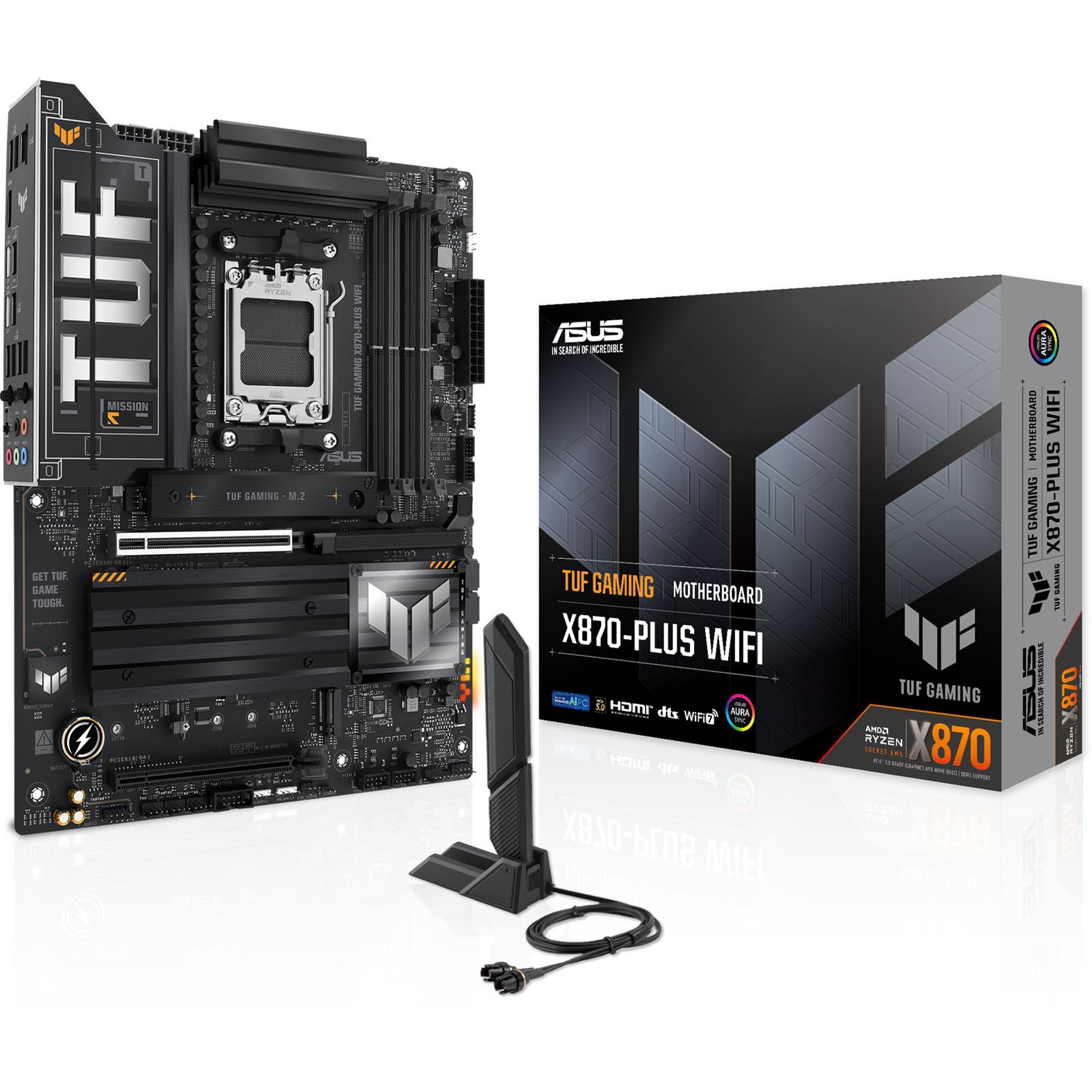

In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker 1 x TUF certification card 1 x Quick start guide
Width	244 mm
Length	305 mm

Key Features

Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (overclocked)	8000 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
SATA ports	2
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	2 port(s)
Number of USB Ports	10 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Drive Interface Type	PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	AMD X870
Thunderbolt	No
Motherboard Model	ASUS TUF Gaming X870-Plus WiFi
WiFi Speed	2900 Mbps
USB 3.1 Support	Yes
