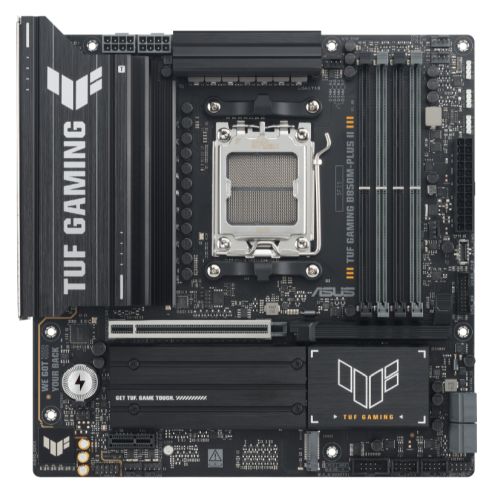

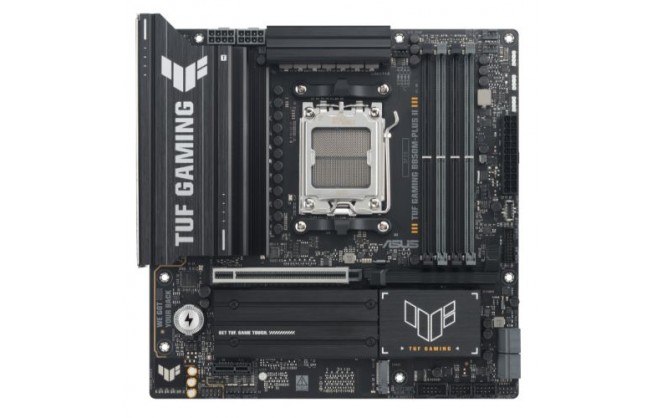

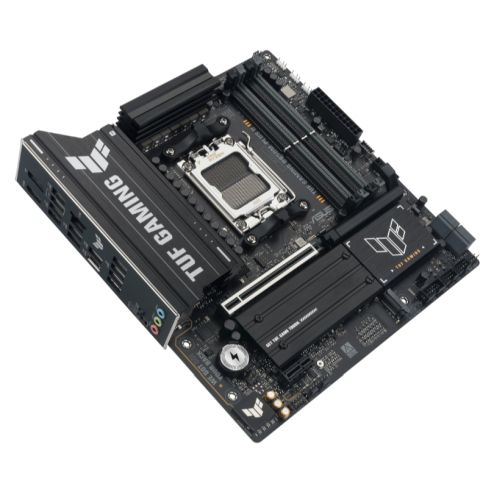

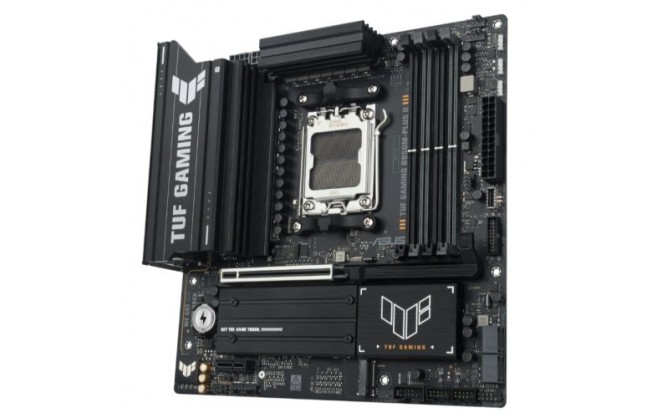

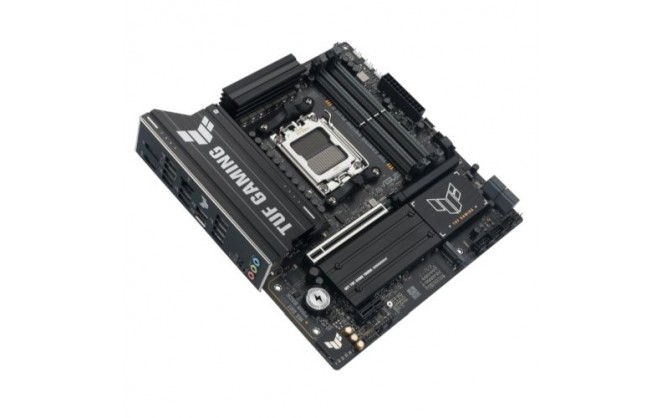

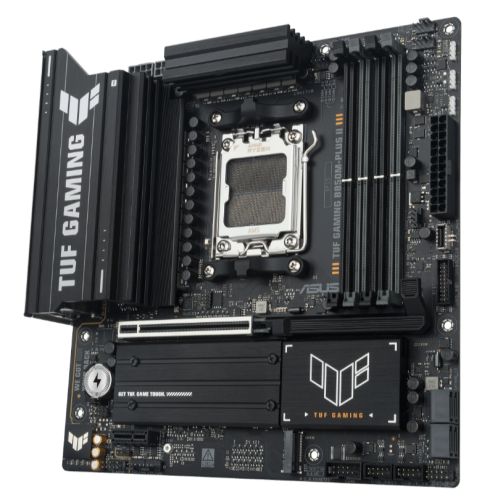

ASUS TUF GAMING B850M-PLUS II Socket AM5 mATX Motherboard

  • Part Number: 90MB1MT0-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 136518
  • Stock: In Stock

£163.48 ex. vat
£196.18 inc. vat

Product Features:
  • Condition: New
  • Socket Type AM5
  • Chipset B850
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type AMD
+ Read More Information

Share:

Product Description

ASUS TUF GAMING B850M-PLUS II takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

  • AMD B850 mATX motherboard
  • 14+2+1 80A DrMOS power stages
  • DDR5
  • PCIe 5.0 Ready
  • Three M.2 slots
  • Realtek 2.5Gb Ethernet
  • DisplayPort
  • HDMI
  • Rear USB 20Gbps Type-C® and front USB 10Gbps Type-C® support
  • BIOS FlashBack
  • Clear CMOS button
  • Aura Sync
Technical Specification

ASUS TUF GAMING B850M-PLUS II Socket AM5 mATX Motherboard

Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD B850
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC Un-buffered DIMM*
Supports AMD EXPO
ASUS AEMP

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
RAM Slots
4 x DIMM
RAM Speeds
Up to 8000+MT/s (OC)
Maximum Memory
256GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x DisplayPort
PCI/PCI Express
Ryzen 9000 & 7000 Series CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)

Ryzen 8000 Series CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)

AMD B850 Chipset:
1 x PCIe 4.0 x1
Storage
4 x SATA III
3 x M.2

Ryzen 9000 & 7000 Series CPUs:
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4

Ryzen 8000 Series CPUs:
M.2_1 (2280) - PCIe 4.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4/x2

AMD B850 Chipset:
M.2_3 (2280) - PCIe 4.0 x4
RAID
Ryzen 9000 Series CPUs: RAID 0/1/5/10
Ryzen 8000 Series CPUs: RAID 0/1
Ryzen 7000 Series CPUs: RAID 0/1/10
Wireless
-
LAN
2.5GB LAN
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear:
1 x USB 20Gbps Type-C
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0

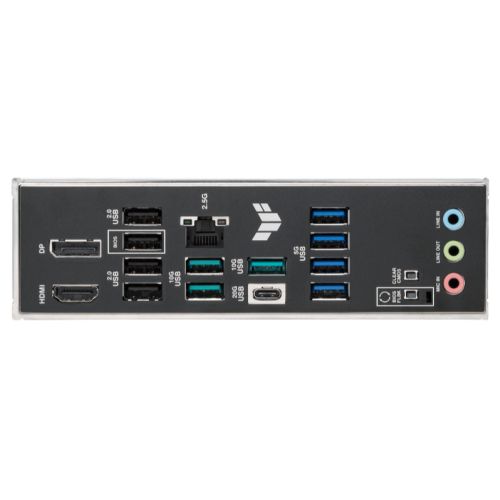

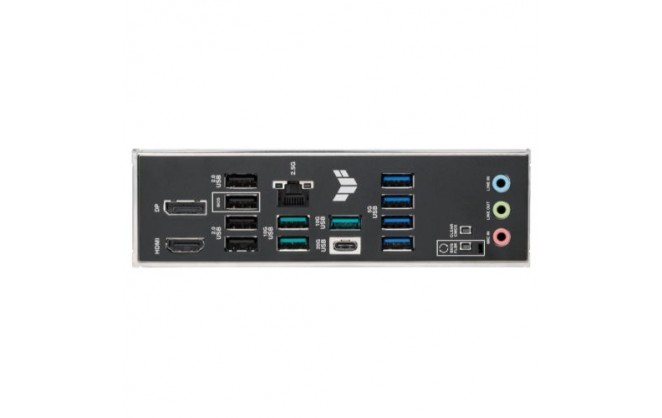

Back Panel I/O Ports
1 x USB 20Gbps Type-C
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 10Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0
3 x Addressable RGB Gen2

1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
1 x 10-1 pin Front Panel System
Accessories
2 x SATA 6Gb/s cables
1 x TUF GAMING sticker
1 x M.2 rubber package
1 x Screw package for M.2 SSD
1 x Quick start guide
