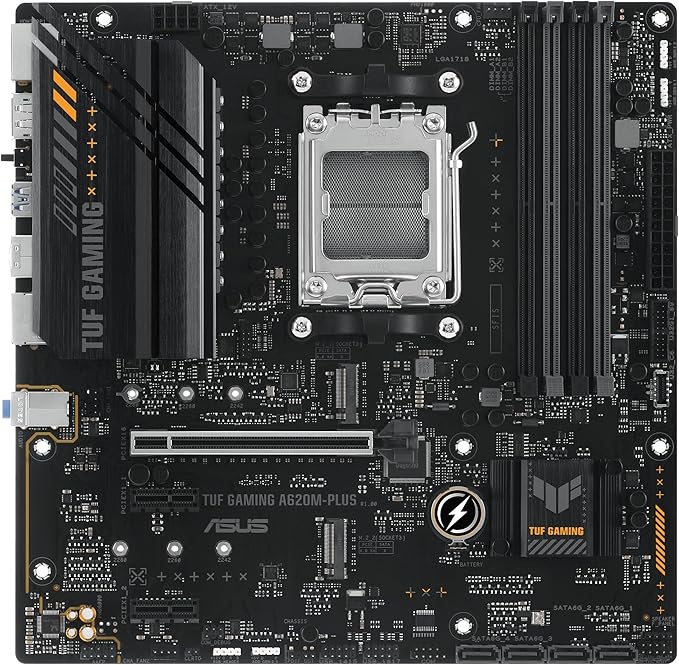

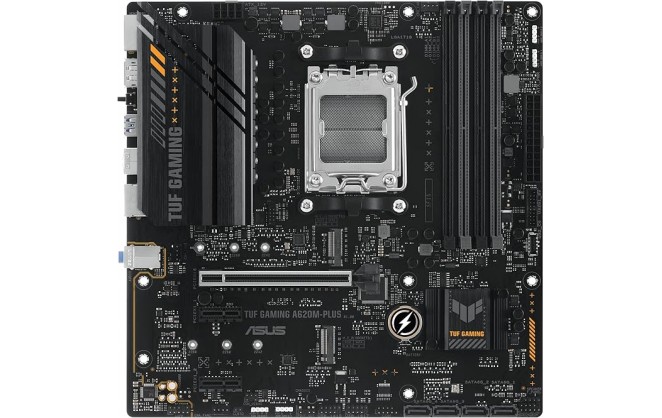

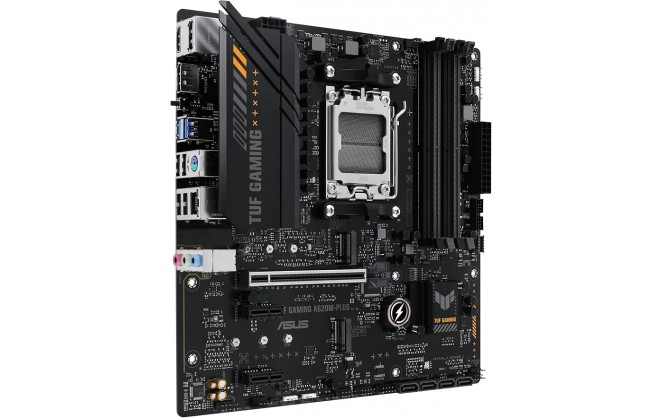

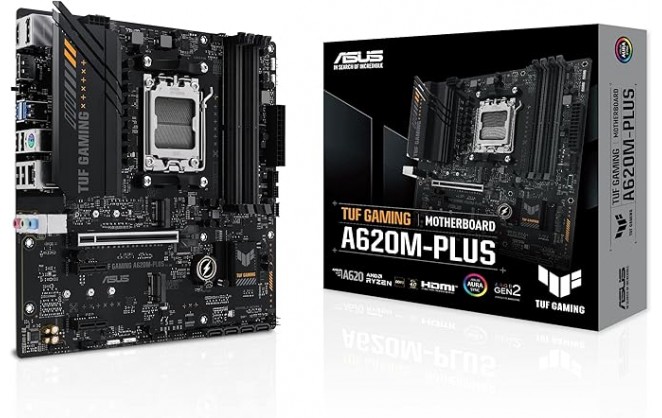

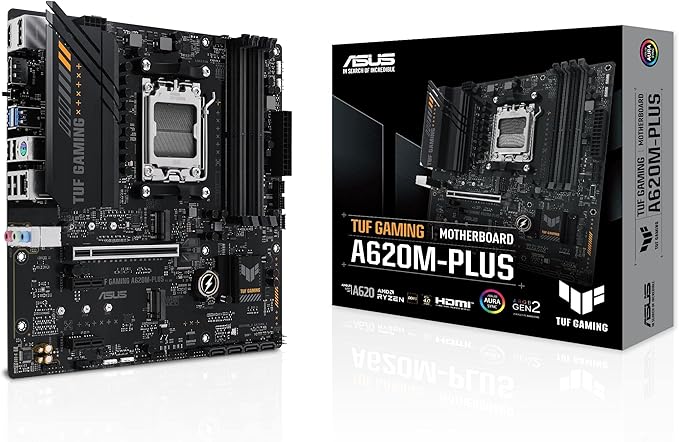

ASUS TUF Gaming A620AM-PLUS mATX Socket AM5 Motherboard

  • Part Number: 90MB1N30-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 136487
  • Stock: In Stock

£99.89 ex. vat
£119.87 inc. vat

Product Features:
  • Condition: New
  • Socket Type AM5
  • Chipset A620
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type AMD
+ Read More Information

Share:

Product Description

ASUS TUF Gaming A620AM-PLUS AMD Socket AM5 mATX Motherboard

Technical Specification

ASUS TUF Gaming A620AM-PLUS mATX Socket AM5 Motherboard

CPU

CPU SocketSocket AM5
CPU BrandAMD
Installed Processors (Max)0 (1)
Supported Processor ManufacturerAMD
Supported ProcessorsAMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
64-bit SupportYes
SocketAM5

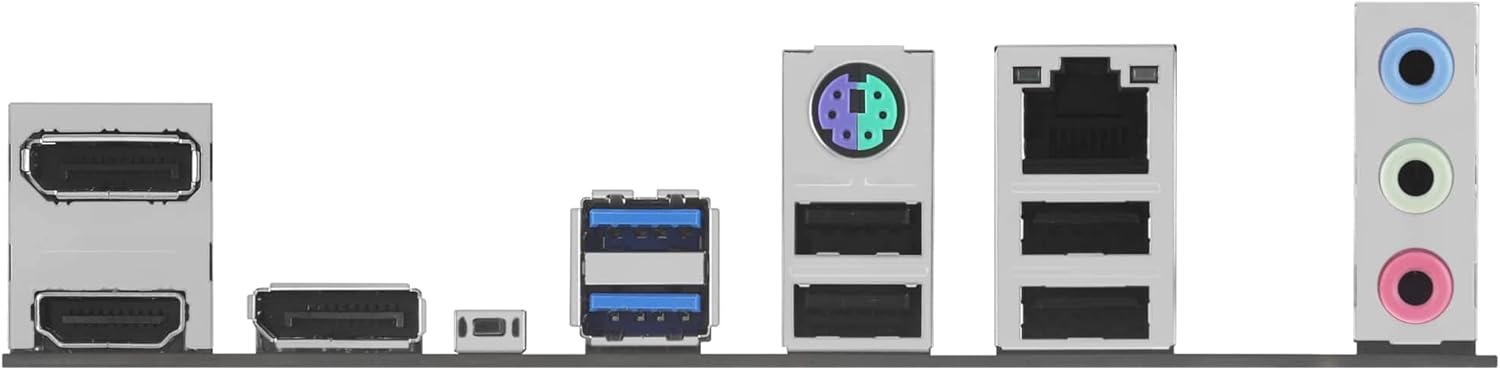

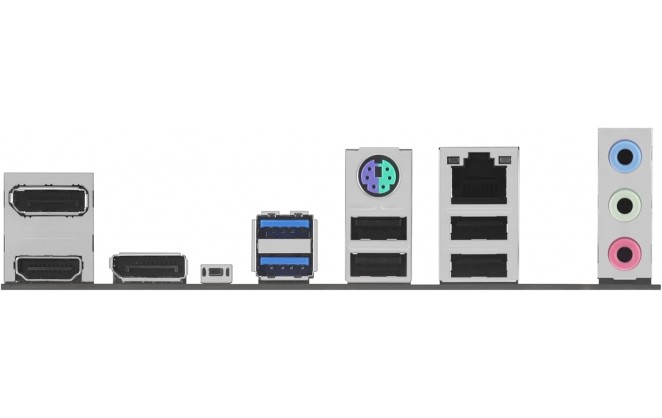

Rear Panel I/O Ports

USB Ports2 x USB 3.1
4 x USB 2.0
DisplayPorts2 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors4 x SATA
USB Connectors1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
2 x Chassis fan headers
S/PDIF Connectors1 x S/PDIF Out header
Serial Connectors1 x COM header
TPM Header1 x SPI TPM header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
3 x 3-pin ARGB headers

Memory

Memory Bus SpeedUp to 7600 MT/s
Memory TypeDDR5
Maximum RAM256 GB
Memory Slot4 slots

Motherboard

NorthbridgeAMD A620A
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 2.5 Gpbs
Wireless LANNo
BluetoothNo

System Requirements

Operating Systems SupportedMicrosoft Windows 11

System

Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactormATX Motherboard
In The BoxMotherboard
2 x SATA 6Gb/s cables
1 x I/O shield
2 x Screw packages for M.2 SSD
1 x TUF GAMING sticker
1 x Quick start guide
Width244 mm
Length244 mm
Weight0.8 kg

Key Features

RDIMM Memory SupportedNo
RDIMM Memory RequiredNo
Wireless NetworkNo
Motherboard Width244 mm
Motherboard Height244 mm
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports6 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard (EPS) Power Connectors4+4-Pin
Motherboard ChipsetAMD A620A
ThunderboltNo
Motherboard ModelASUS TUF Gaming A620AM-PLUS
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)60 W
Max Memory Speed Supported (overclocked)7600 MT/s
CPU Power Pins (female)8
Total M.2 Slots2
Maximum NVMe M.2 ports2
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1
Back Connect SupportNo

Item Details

ManufacturerASUS
Manufacturer Code90MB1N30-M0EAY0
EAN4711636231824
