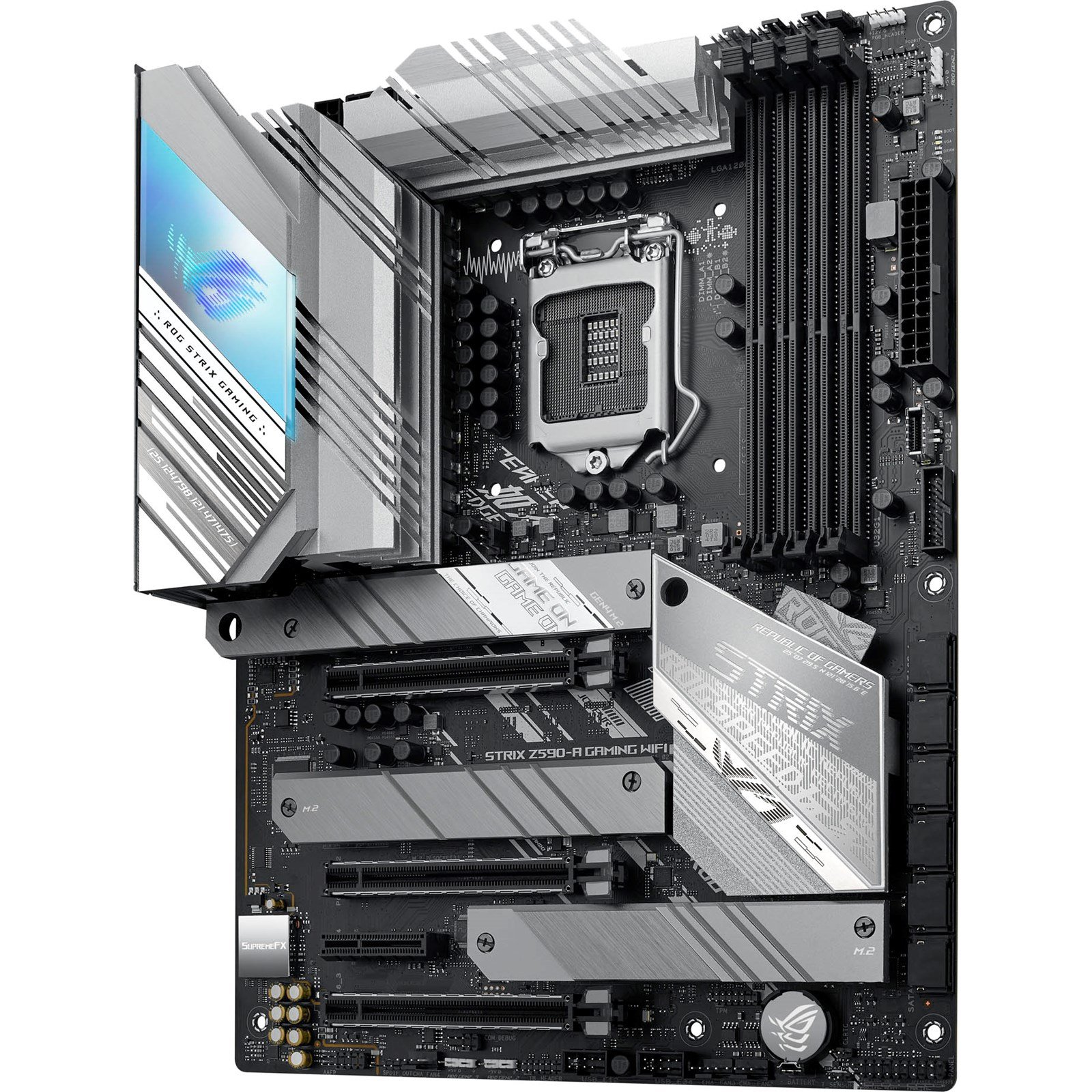

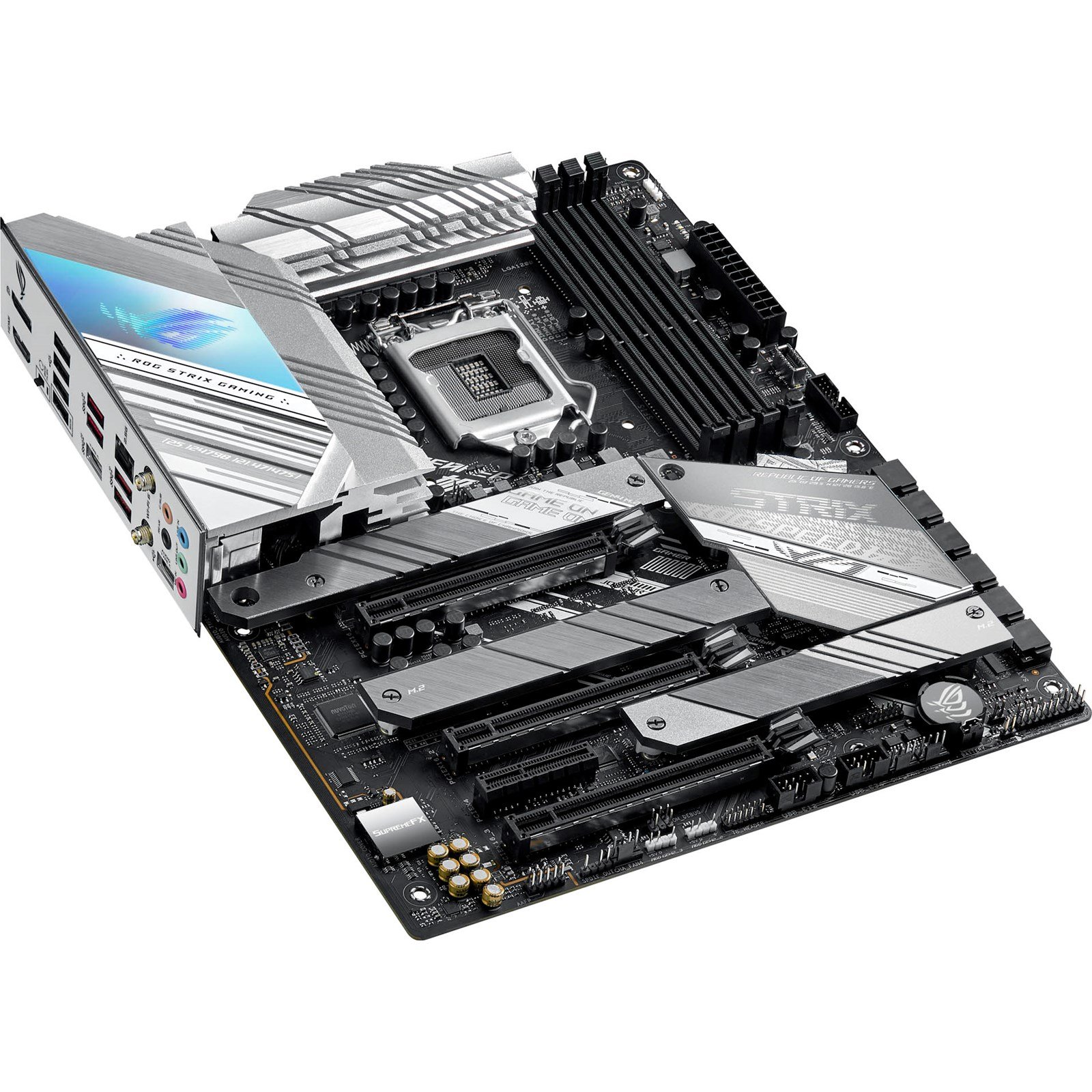

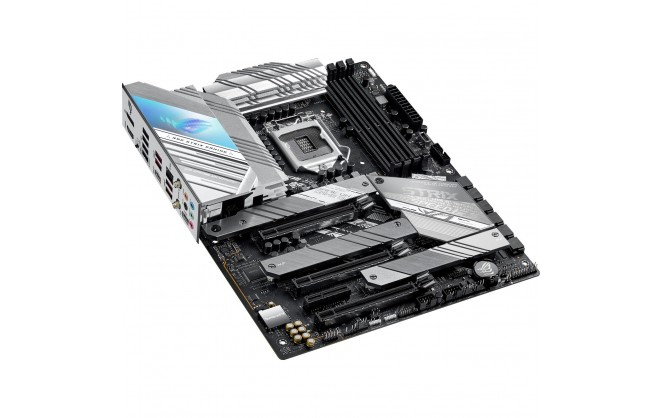

ASUS ROG Strix Z590-A Gaming WiFi Motherboard

£249.99 ex. vat
£299.99 inc. vat

ASUS ROG Strix Z590-A Gaming WiFi Intel Socket 1200 Z590 Chipset ATX Motherboard

CPU

CPU Socket	Socket 1200
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1200

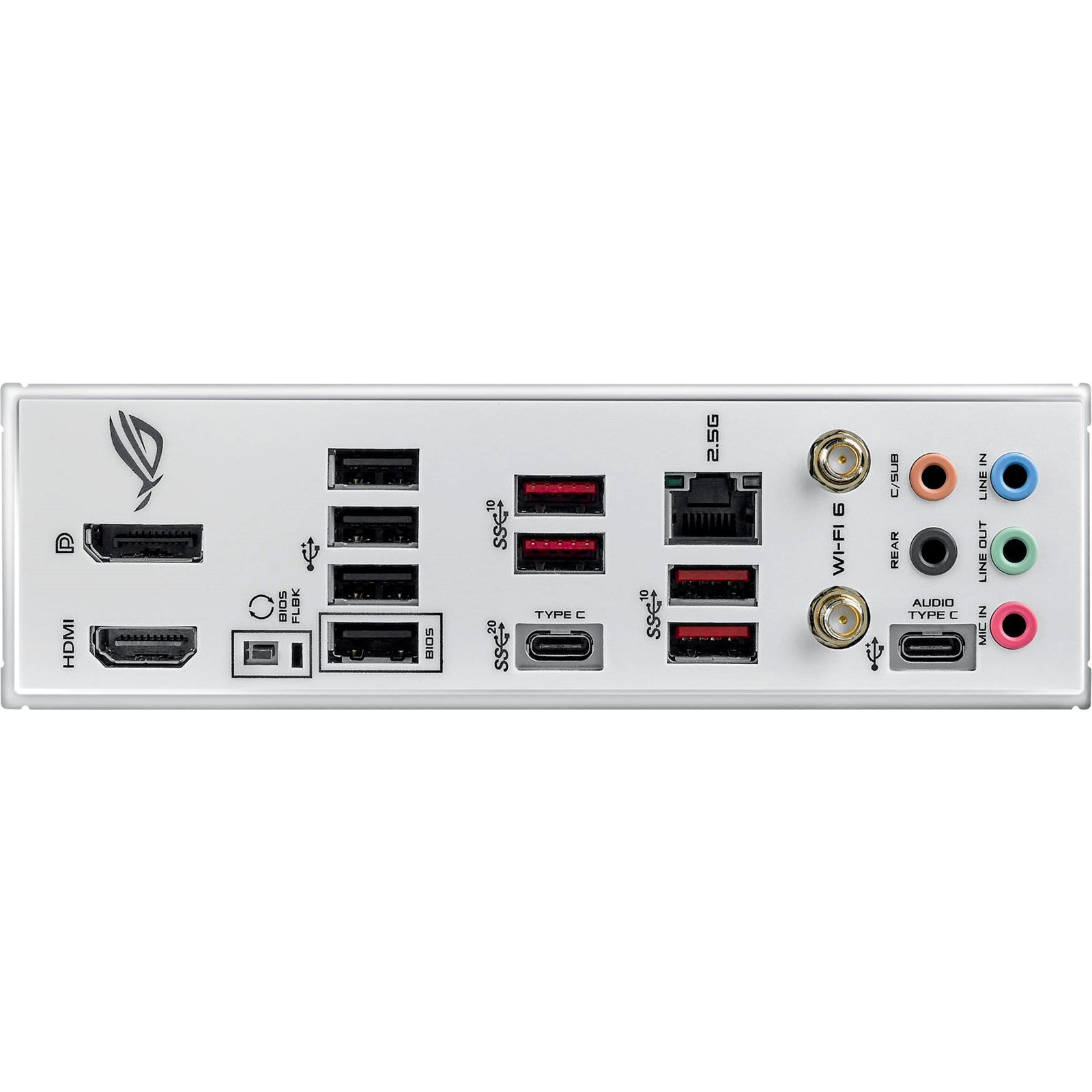

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB 3.0 Type-C header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO Pump fan header 4 x Chassis fan headers 1 x VRM Heatsink fan header
S/PDIF Connectors	1 x S/PDIF Out header
Thunderbolt Port(s)	1 x Thunderbolt header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM-M header (14-1pin)
Power Connector Port	1 x 20+4-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	3 x M.2, Key M, Type 2242/2260/2280/22110 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Thermal Sensor header

Memory

Memory Bus Speed	5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Expansion

Number of PCI Express Slots

3 x PCI Express 4.0 x16 (@ x16 or x8/x4/x4)
1 x PCI Express 3.0 x4

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

ROG SupremeFX ALC4080

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

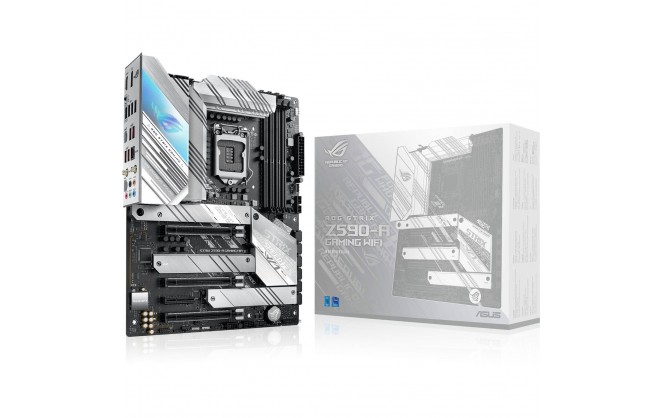

In The Box	ROG Strix Z590-A Gaming WiFi Motherboard 4 x SATA Cables ROG audio USB Type-C cable ASUS 2x2 Dual Band Wi-Fi Moving Antennas Cable Ties Pack M.2 Q-Latch Package 2 x M.2 Rubber Packages 1 x ROG Key Chain 1 x ROG Strix Stickers 1 x ROG Thank You Card Support DVD User Manual
Width	305 mm
Length	244 mm

Key Features

M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	5133 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Firewire	No
Wireless Network	Yes
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	10 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	Intel Z590
Thunderbolt	No
Motherboard Model	ASUS ROG Strix Z590-A Gaming WiFi
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
