£331.49 ex. vat
£397.79 inc. vat
Share:
The ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
AMD X870 ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4® ports, USB 10Gbps Type-C® with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.

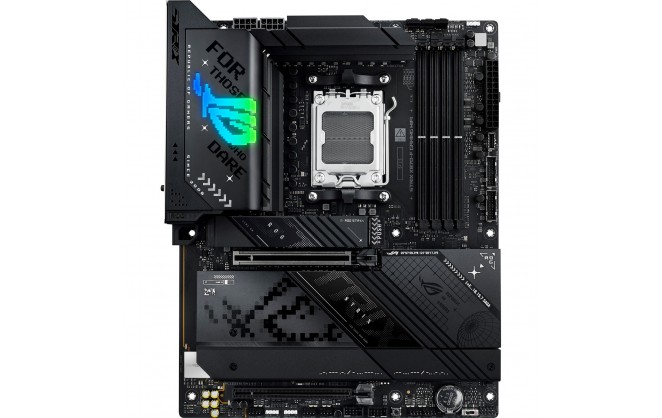

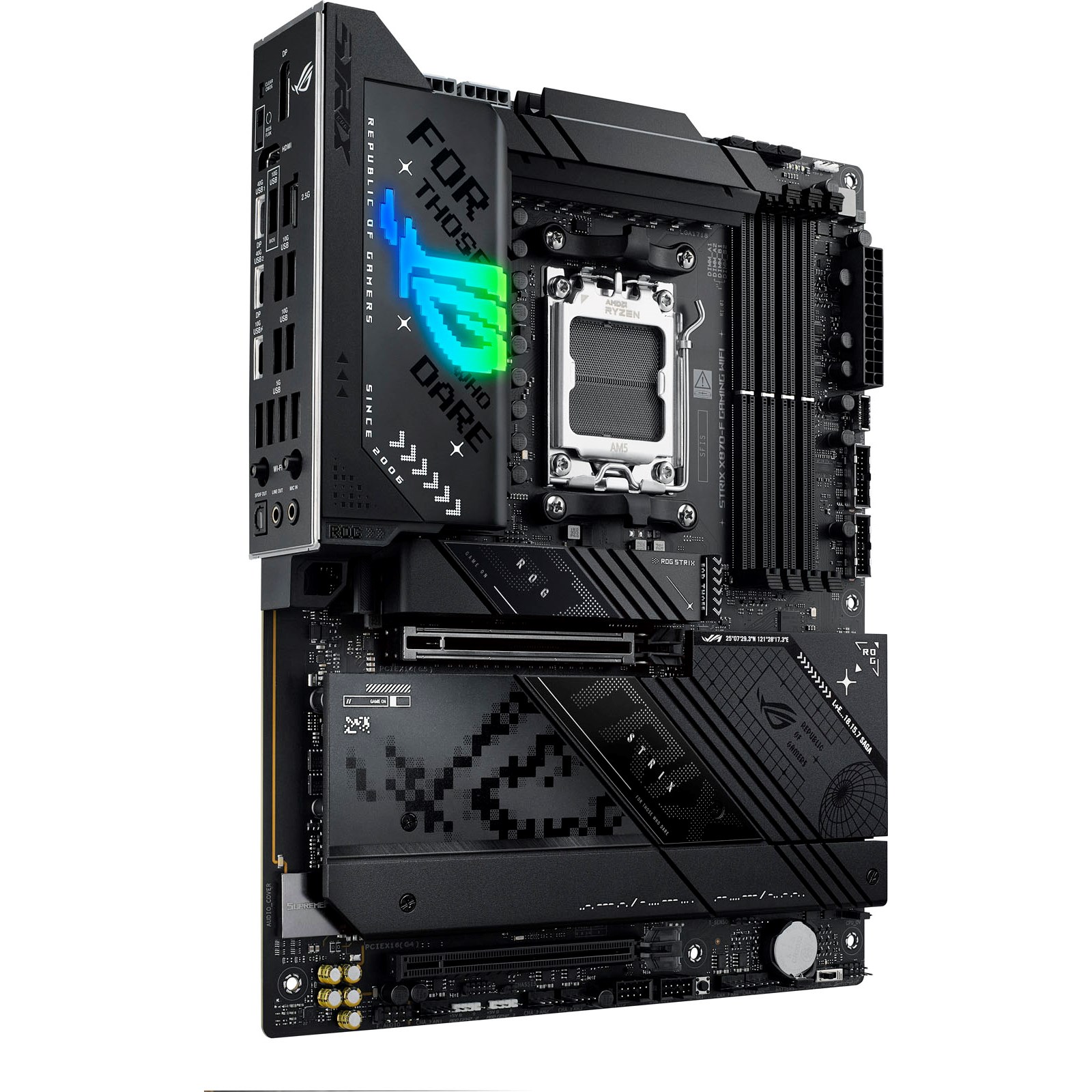

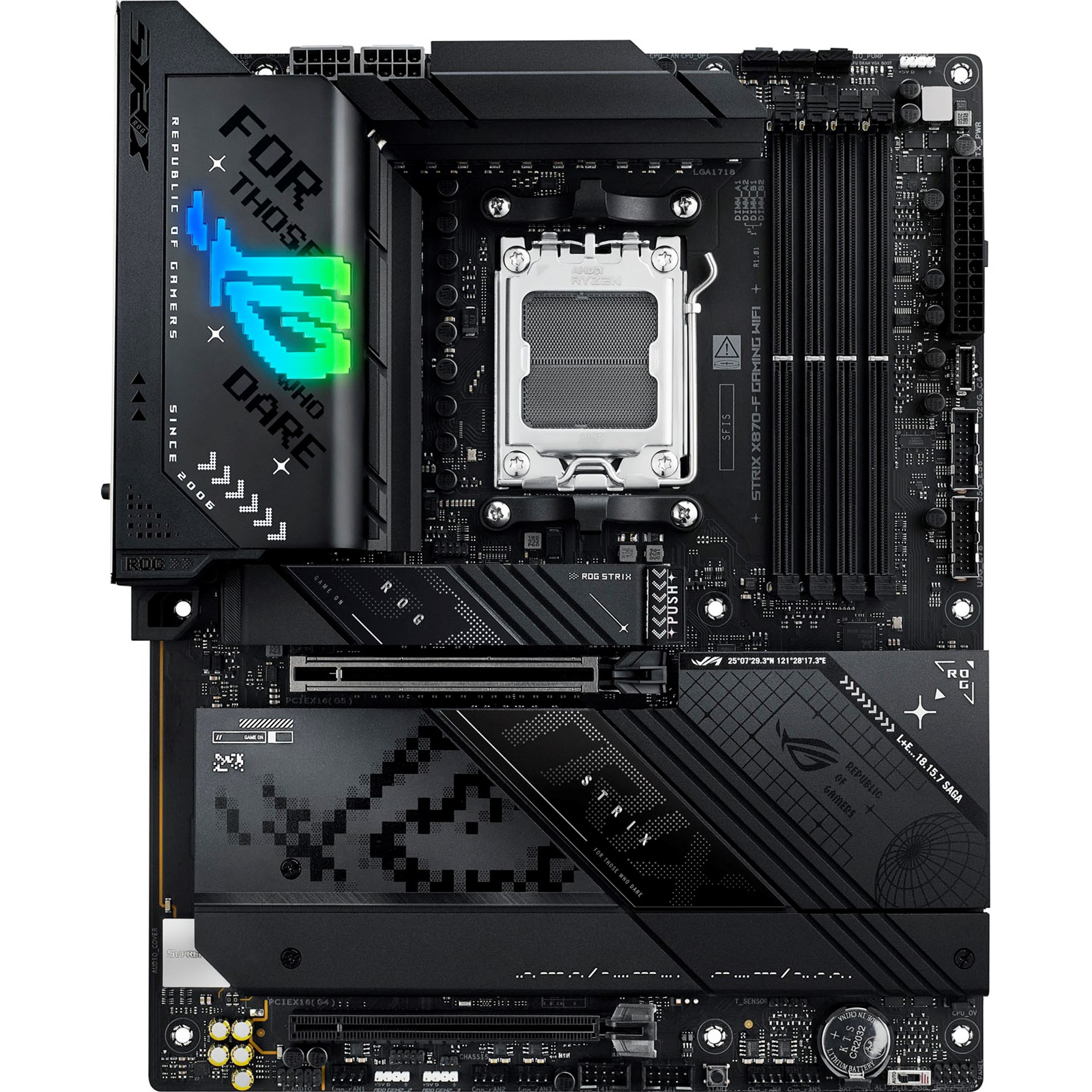

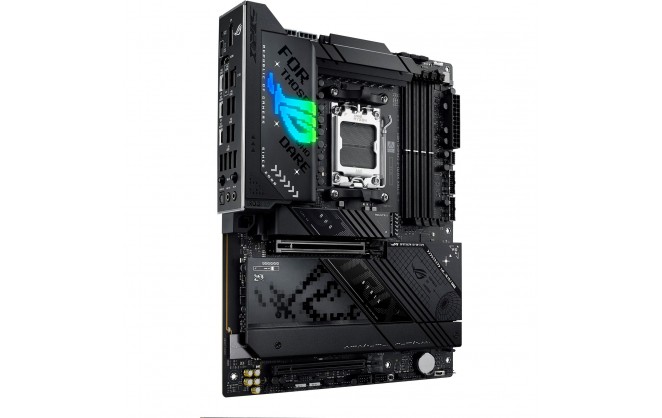

ASUS ROG Strix X870-F Gaming WiFi Socket AM5 ATX Motherboard
CPU
| CPU Socket | Socket AM5 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
| 64-bit Support | Yes |
| Socket | AM5 |

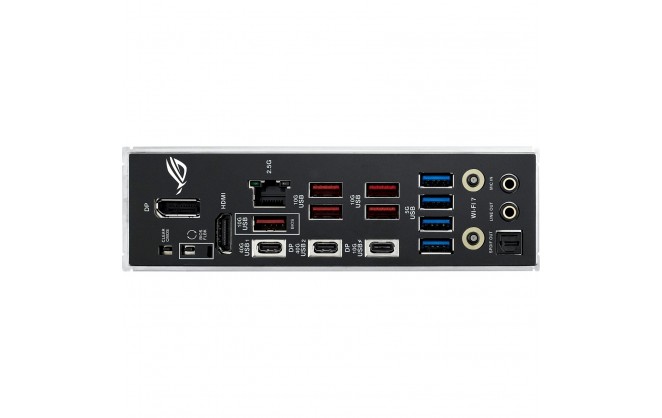

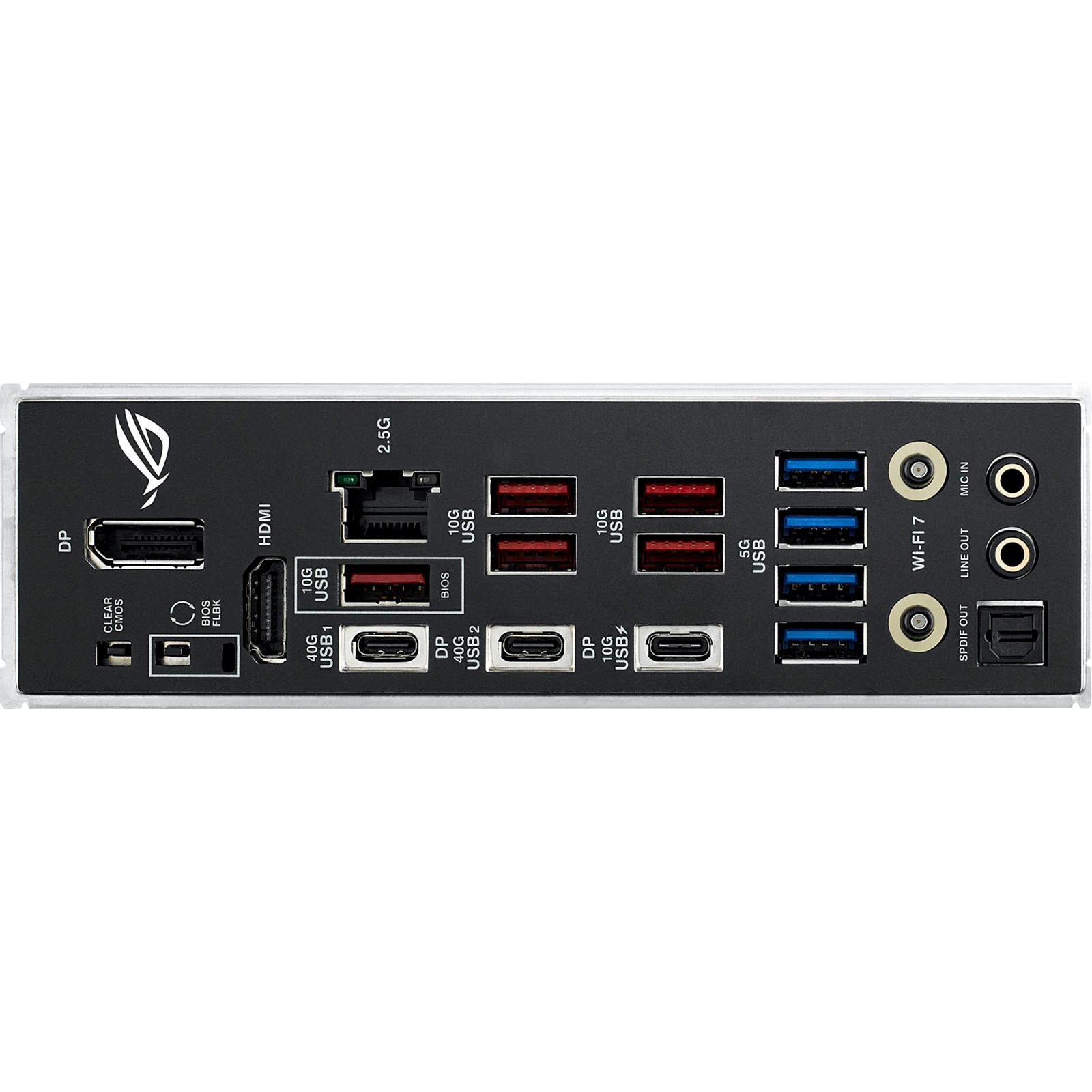

Rear Panel I/O Ports
| USB Ports | 2 x USB-C 4 1 x USB-C 3.1 5 x USB 3.1 4 x USB 3.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 2 x SATA III |
| USB Connectors | 1 x USB-C 3.2 header (supporting 1 port) 2 x USB 3.0 headers (supporting 4 ports) 2 x USB 2.0 headers (supporting 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 5 x Chassis fan headers |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| Power Connector Port | 1 x 24-pin ATX 2 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen5) 2 x M.2 slots, Key M, Type 2280 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x Thermal Sensor header |
Memory
| Memory Bus Speed | Up to 8000 MT/s |
| Memory Type | DDR5 |
| Maximum RAM | 192 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Northbridge | AMD X870 |
| RAID Supported | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 1 x PCI Express 4.0 x16 slot (@ x4) |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | ROG SupremeFX ALC4080 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes - Wi-Fi 7 |
| Wireless Network Speed | Up to 6.5 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.4 |
System Requirements
| Operating Systems Supported | Windows 11 Windows 10 64-bit |
System
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Jumpers | 1 x CPU Over Voltage |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |

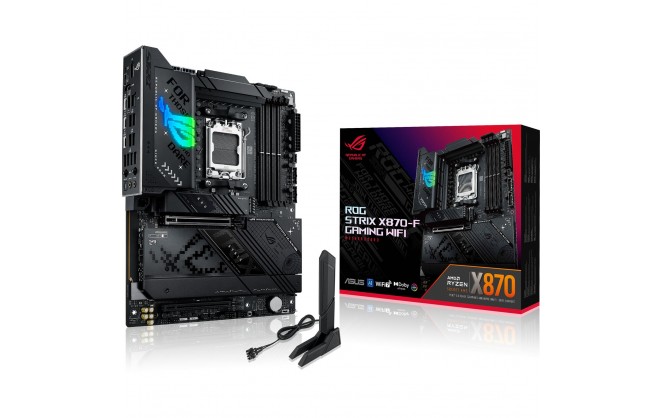

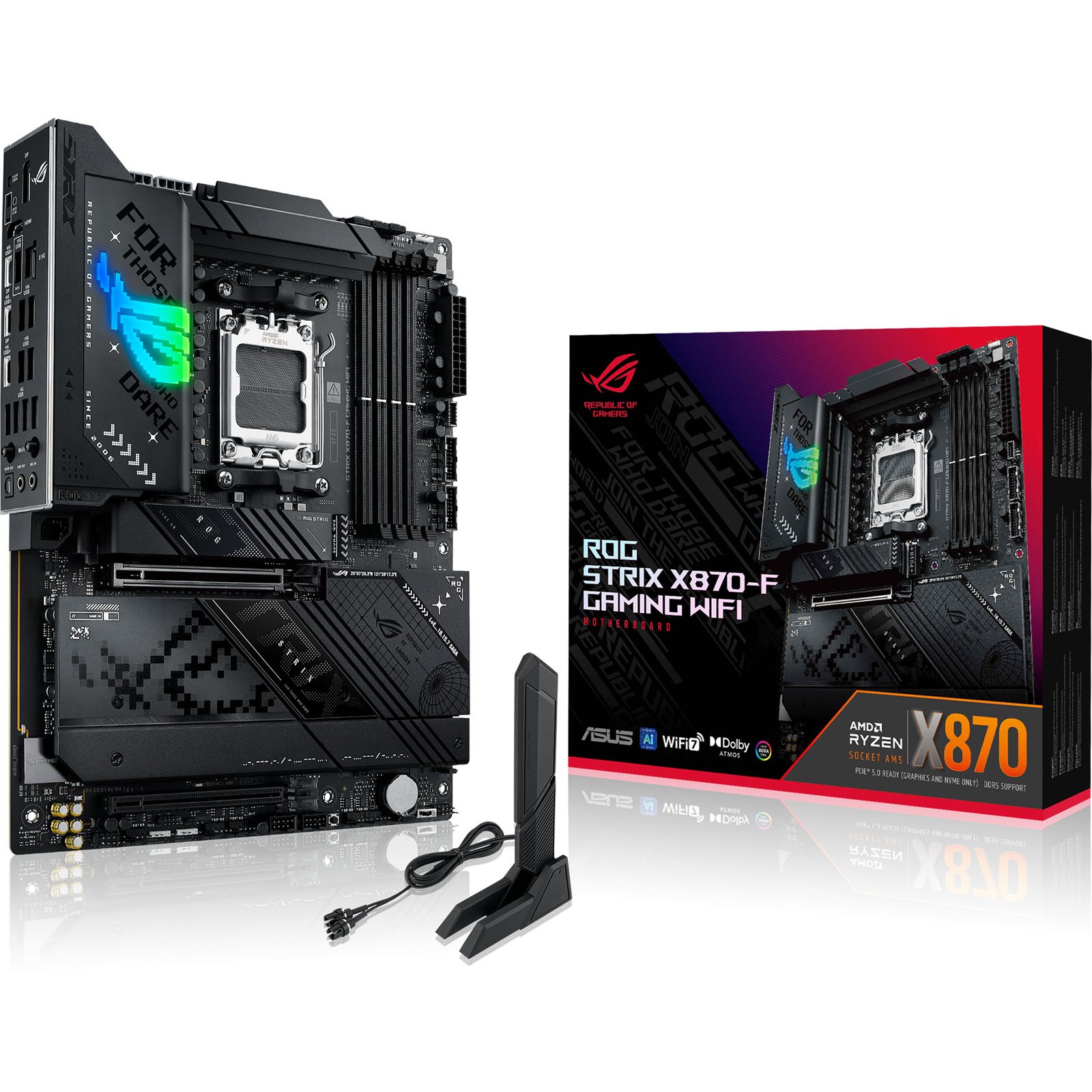

| In The Box | Motherboard 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 22110 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber packages 1 x Quick start guide |
| Width | 244 mm |
| Length | 305 mm |
Key Features
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 70 W |
| Max Memory Speed Supported (Non-overclocked) | 5200 MT/s |
| Max Memory Speed Supported (overclocked) | 8000 MT/s |
| CPU Power Pins (female) | 16 |
| Total M.2 Slots | 4 |
| Maximum NVMe M.2 ports | 4 |
| SATA ports | 2 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 4 |
| No. of front USB-C ports supported | 1 |
| Back Connect Support | No |
| Wireless Network | Yes |
| Motherboard Width | 244 mm |
| Motherboard Height | 305 mm |
| Main Colour | Black |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 2 port(s) |
| Number of USB Ports | 12 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Drive Interface Type | PCIe 5.0 x4 NVMe |
| Motherboard (EPS) Power Connectors | 2 x 8-Pin |
| Motherboard Chipset | AMD X870 |
| Thunderbolt | No |
| Motherboard Model | ASUS ROG Strix X870-F Gaming WiFi |
| WiFi Speed | 6500 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB1IV0-M0EAY0 |
| EAN | 4711387732045 |
| UPC | 197105732049 |
