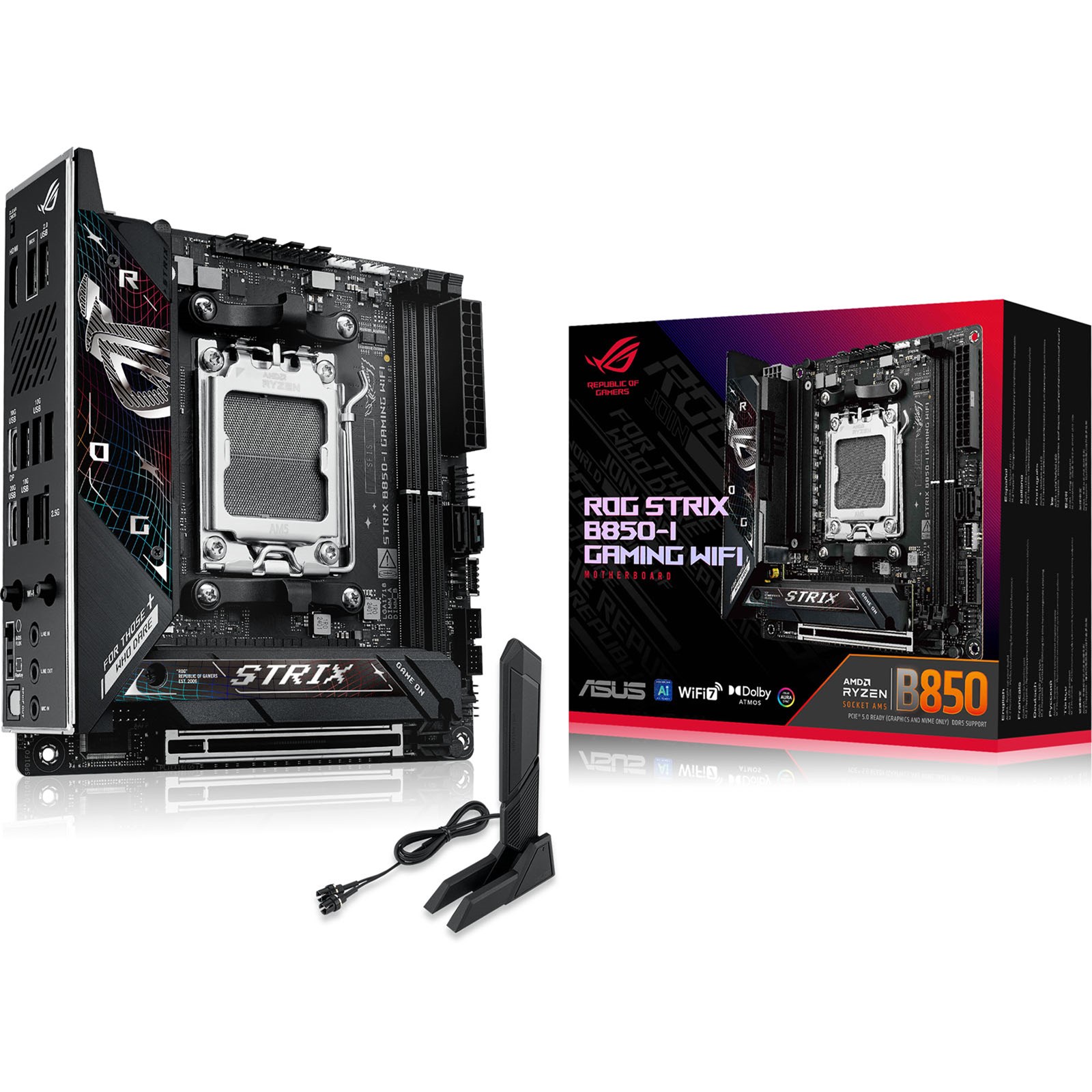

ASUS ROG Strix B850-I Gaming WiFi Socket AM5 ITX Motherboard

Part Number: 90MB1K30-M0EAY0
Manufacturer: ASUS
Quickfind Code: 136285

Stock: In Stock

£263.89 ex. vat
£316.67 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B850
Form Factor mITX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Product Description

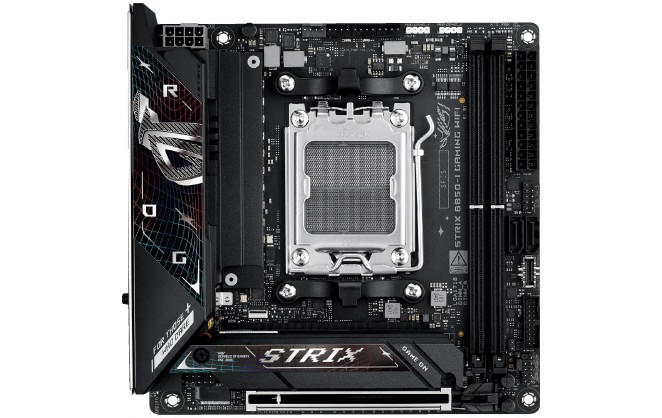

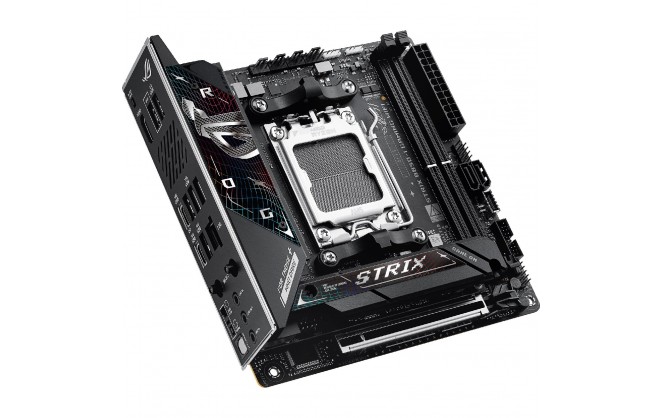

ROG STRIX B850-I GAMING WIFI

The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe^® 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.

AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
Intelligent Control: ASUS AI Advisor, AI Overclocking, AI Networking II and AEMP to simplify setup and improve performance
Robust Power Solution: 10+2+1 power solution rated for up to 70A per stage with ProCool power connectors
Optimized Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads
Latest M.2 Support: Two onboard PCIe^® 5.0 M.2 slots, one cooled by a large heatsink to maximize performance, and the other for additional storage
Abundant Connectivity: USB 20Gbps Type-C ^® port , USB 10Gbps Type-C^® front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI™ port
High-Performance Networking: On-board WiFi 7 (802.11be) with Intel^® 2.5 Gb Ethernet
DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Slide, M.2 Q-Latch , Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button, FlexKey button and pre-mounted I/O shield
Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos^®
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
Renowned Software: ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.

Technical Specification

ASUS ROG Strix B850-I Gaming WiFi Socket AM5 ITX Motherboard

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 1 x USB-C 3.1 4 x USB 3.1 2 x USB 2.0
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	2 x SATA
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x AIO pump header 1 x Chassis fan header 1 x Extra Flow fan header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5) 2 x 3-pin ARGB headers 1 x Thermal Sensor header

Memory

Memory Bus Speed	Up to 8200 MT/s
Memory Type	DDR5
Maximum RAM	96 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	AMD B850
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC4080

Warranty

3 Years

Network

Integrated Network	Intel
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 7)
Wireless Network Speed	Up to 2.9 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	Mini-ITX Motherboard
In The Box	Motherboard 1 x Panel cable 1 x ROG USB2.0 splitter cable 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 backplate Q-Latch package(s) 1 x M.2 Q-Slide package 1 x ROG key chain 1 x M.2 backplate rubber package(s) 1 x Screw package(s) for M.2 SSD 1 x Quick start guide
Width	170 mm
Length	170 mm
Weight	0.81 kg

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	170 mm
Motherboard Height	170 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	2 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ITX
Motherboard (EPS) Power Connectors	8-Pin
Motherboard Chipset	AMD B850
Thunderbolt	No
Motherboard Model	ASUS ROG Strix B850-I Gaming WiFi
WiFi Speed	2900 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	30 W
Max Memory Speed Supported (overclocked)	8200 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
SATA ports	2
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
