On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.

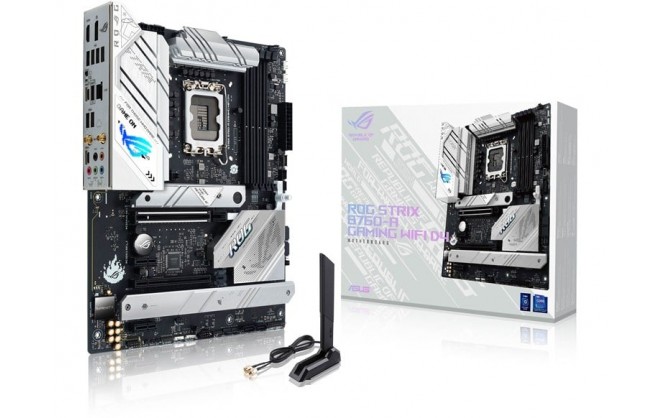

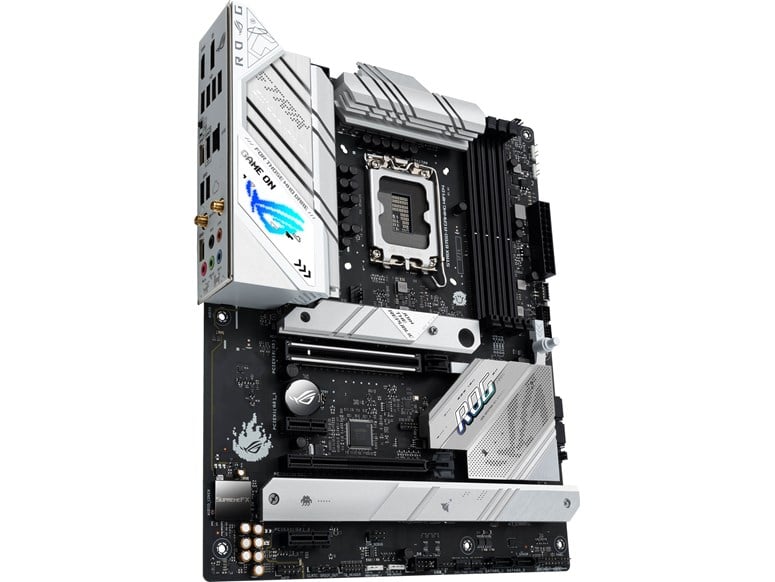

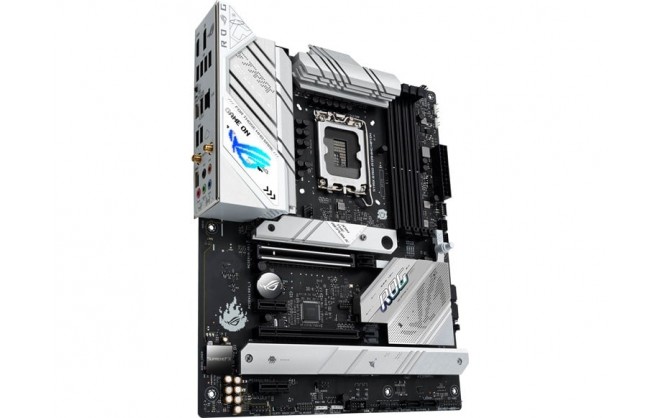

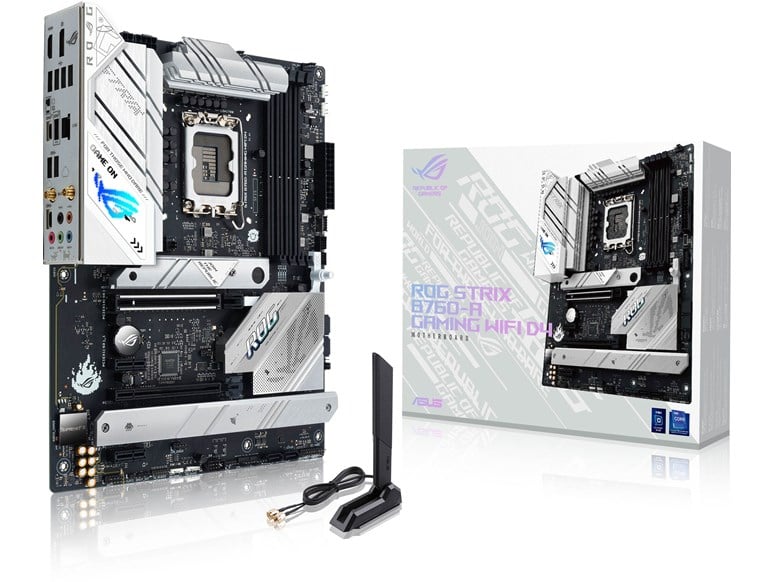

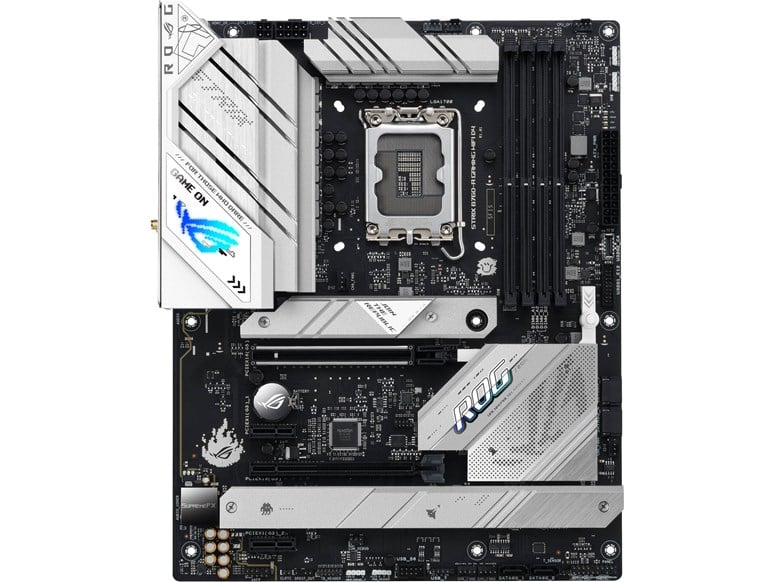

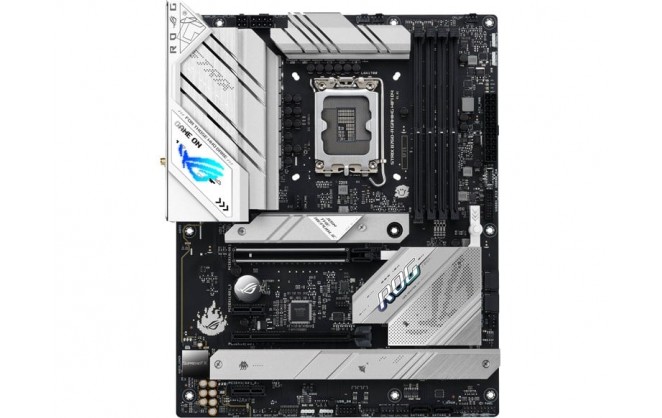

ASUS ROG Strix B760-A Gaming WiFi D4 ATX Motherboard Intel Socket LGA1700
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

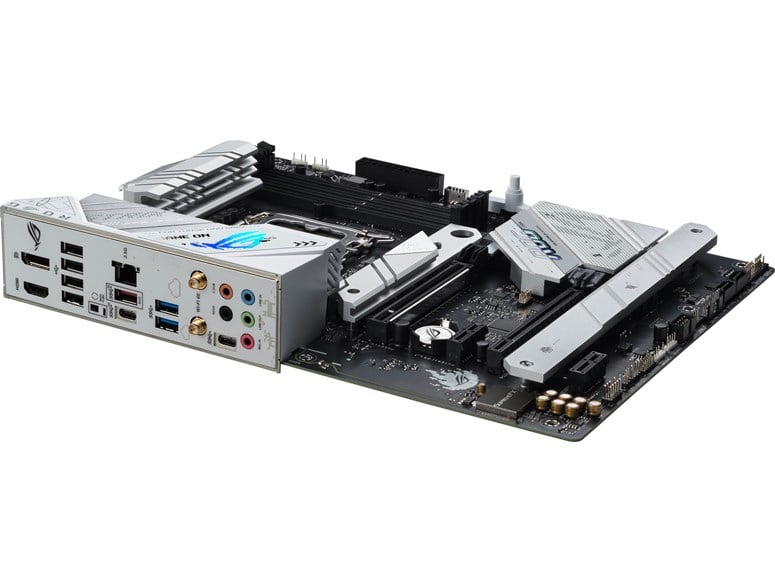

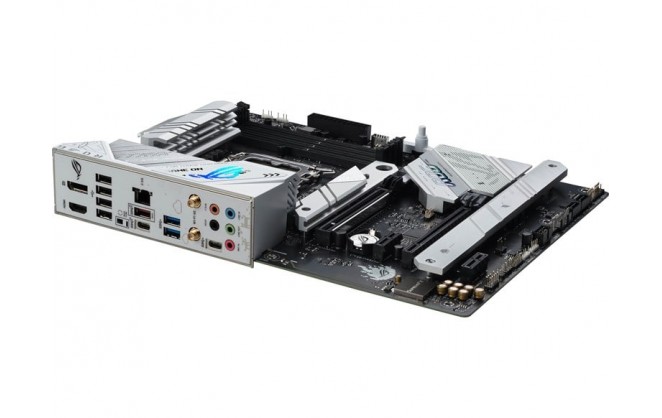

Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.2 1 x USB 3.1 1 x USB-C 3.0 2 x USB 3.0 4 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 3 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU OPT fan header 1 x AiO pump header 4 x Chassis fan headers |
| S/PDIF Connectors | 1 x S/PDIF Out header |
| Thunderbolt Port(s) | 1 x Thunderbolt AiC header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS |
| Other Connectors | 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB LED header 1 x 4-pin RGB LED header |
Memory
| Memory Bus Speed | Up to 5333+ MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Northbridge | B760 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 1 x PCI Express 3.0 x16 slot (@ x4) 2 x PCI Express 3.0 x1 slots |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | ROG SupremeFX ALC4080 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6E) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.3 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 64-bit |
System
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |
| In The Box | Motherboard 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x M.2 Rubber Packages 1 x User guide |
| Width | 244 mm |
| Length | 305 mm |
Key Features
| Firewire | |
| IDE/EIDE Supported | |
| SCSI/SAS Supported | |
| Wireless Network | Yes |
| Chipset Manufacturer | Intel |
| Number of PCI Slots | slot(s) |
| Number of PCI-X Slots | slot(s) |
| Main Colour | |
| Socket(s) | |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 9 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Wake on LAN | |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | Intel B760 |
| Thunderbolt | No |
| Motherboard Model | ASUS ROG Strix B760-A Gaming WiFi D4 |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| Cooler Height | mm |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
| Memory Speed | 5333 MHz |
| Skip Audio Test | |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Radiator Length | mm |
| Microsoft Processor List | |
| Power Requirement (auto) | 70 W |
| Cooler count | |
| Max Memory Speed Supported (Non-overclocked) | 3200 MHz |
| Max Memory Speed Supported (overclocked) | 5333 MHz |
| CPU Power Pins (female) | 12 |
| PCI Express Power Pins (female) | |
| Total M.2 Slots | 3 |
| Maximum NVMe M.2 ports | 3 |
| PCI-e slots | 4 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 3 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
Graphics
| Graphics Chipset |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB1DD0-M0EAY0 |
| Alternative Part Number | ROG STRIX B760-A GAMING WIFI D4 |
| EAN | 4711081995043 |
| UPC | 195553995047 |
| Condition | New |
