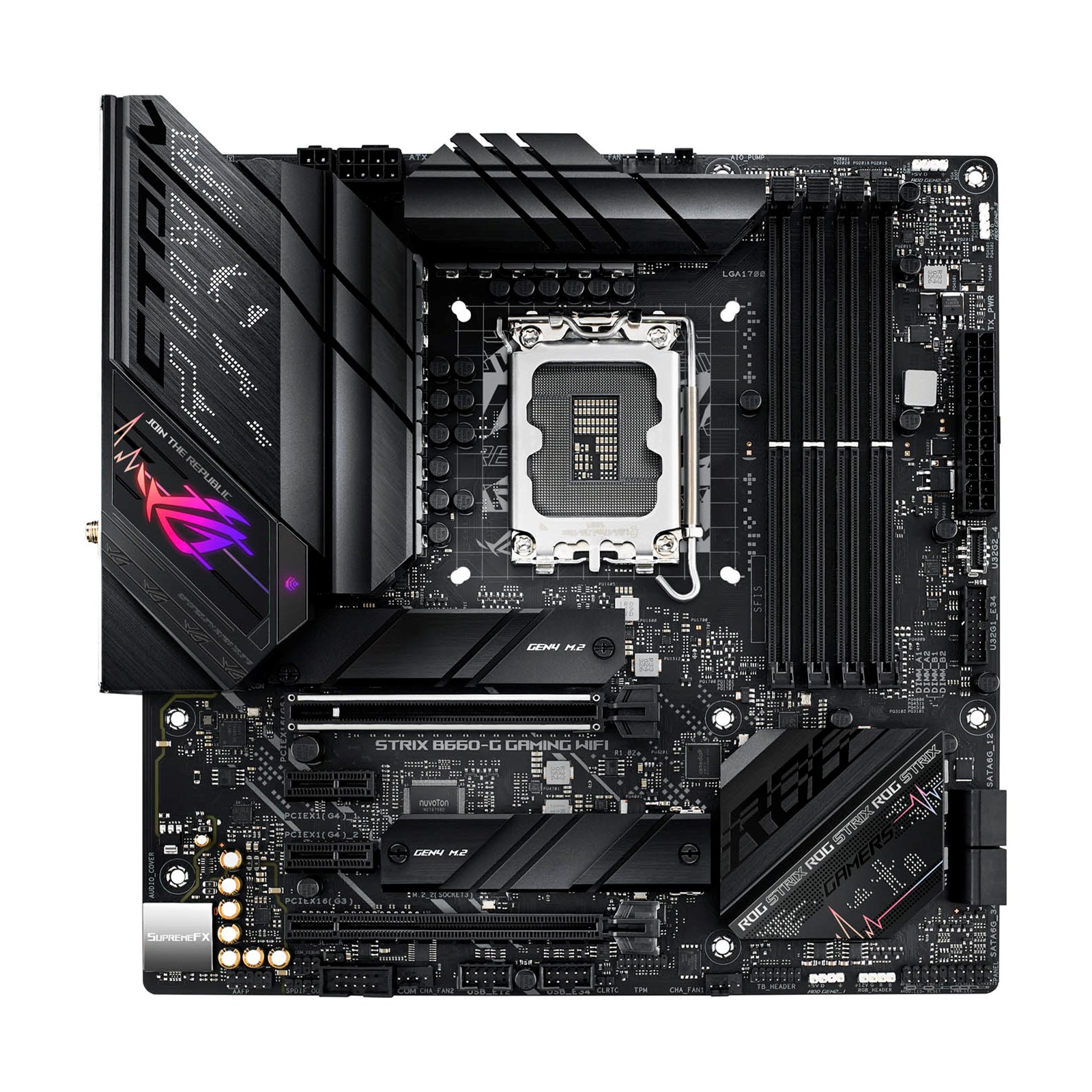

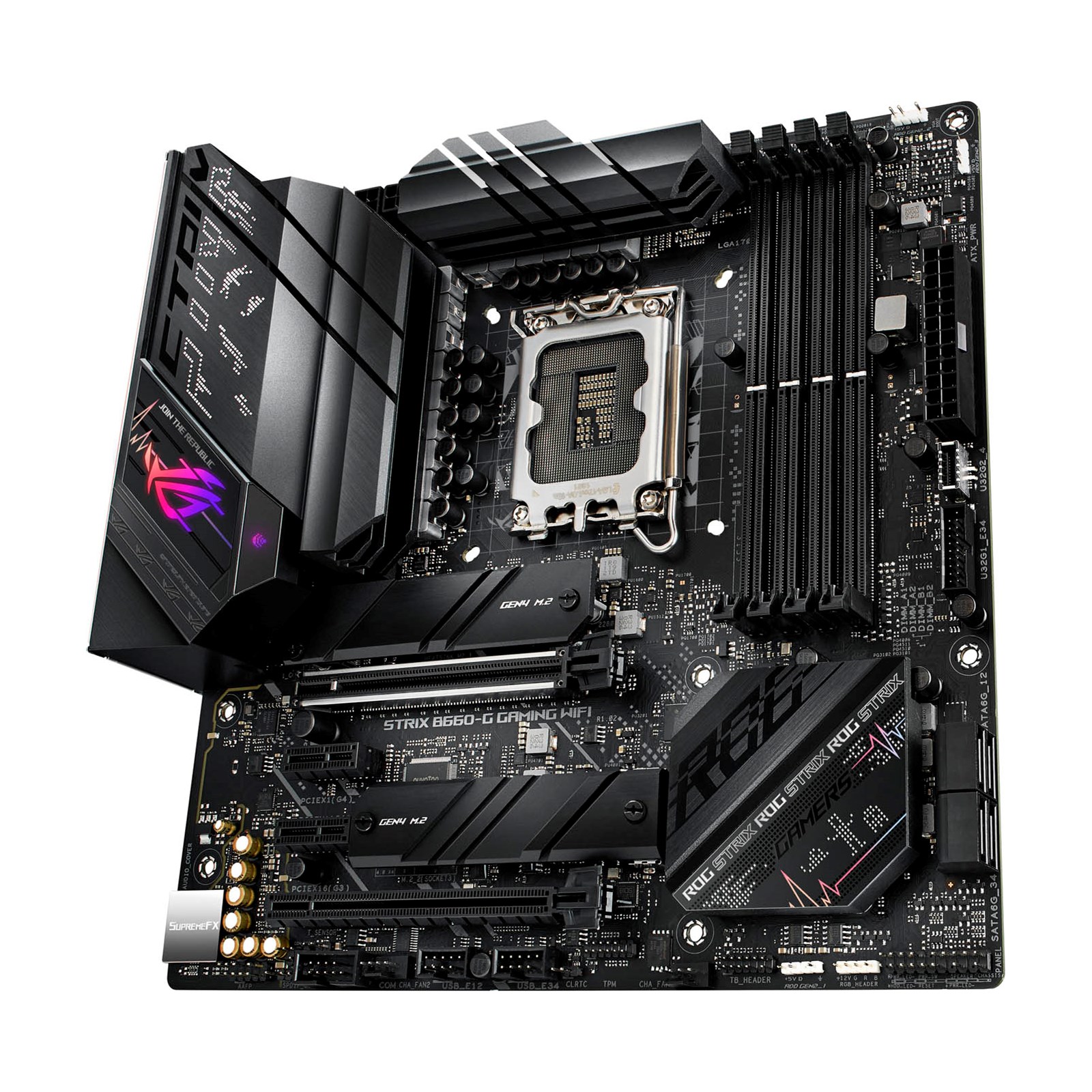

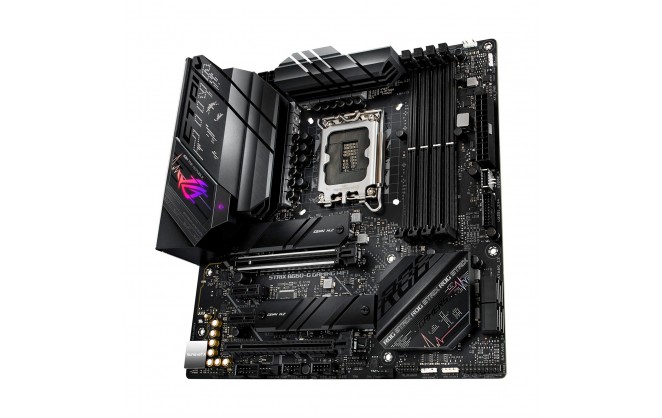

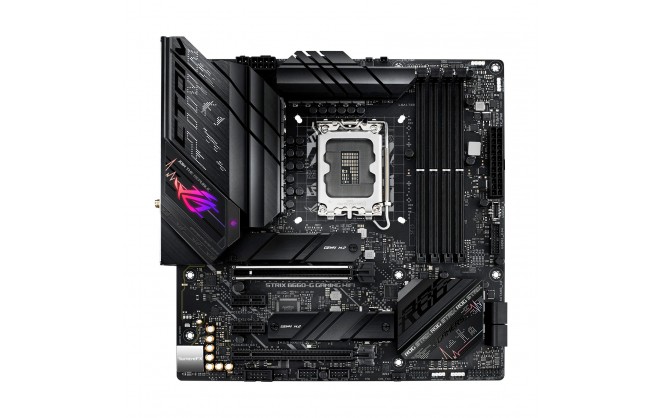

ASUS ROG Strix B660-G Gaming WIFI Motherboard

  • Part Number: 90MB18Y0-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 135854

  • Stock: In Stock

£234.89 ex. vat
£281.87 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset B660
  • Form Factor mATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

ROG Strix B660-G Gaming WiFi is the premiere choice for DIY builders who enjoy working with a well-balanced microATX-based platform. Its hefty heatsinks and premium power delivery unleash the full force of 12th Gen Intel® Core™ processors that feature full support for DDR5 memory and PCIe® 5.0. Meanwhile, onboard passively cooled PCIe 4.0 M.2 slots offer lightning-fast data transfers for an endless variety of scenarios. Finally, a stack of exclusive intelligent controls and ASUS Enhanced Memory Profile tuning can work together to optimize every aspect of system performance.

Main Features

  • Intel LGA 1700 Socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
  • Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, and two onboard M.2 heatsinks
  • High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, two M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
  • Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, Q-LED and BIOS FlashBack button
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers
  • Industry-leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86
Technical Specification

ASUS ROG Strix B660-G Gaming WIFI Motherboard

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1700

Rear Panel I/O Ports

USB Ports1 x USB-C 3.2
1 x USB 3.1
1 x USB-C 3.0
2 x USB 3.0
4 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports3 x 3.5mm Jacks
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x AIO Pump header
2 x Chassis fan headers
S/PDIF Connectors1 x S/PDIF Out header
Thunderbolt Port(s)1 x Thunderbolt header
Serial Connectors1 x COM header
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x SPI TPM header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermal Sensor header

Memory

Memory Bus Speed6000 MHz
Memory TypeDDR5
Maximum RAM128 GB
Memory Slot4 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeB660
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
2 x PCI Express 4.0 x1 slots

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A

Warranty

Warranty3 Years

Network

Integrated NetworkIntel
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.2

System Requirements

Operating Systems SupportedMicrosoft Windows 11 / 10 64-bit

System

BIOS256 Mb Flash ROM, UEFI AMI BIOS
Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorMicroATX Motherboard

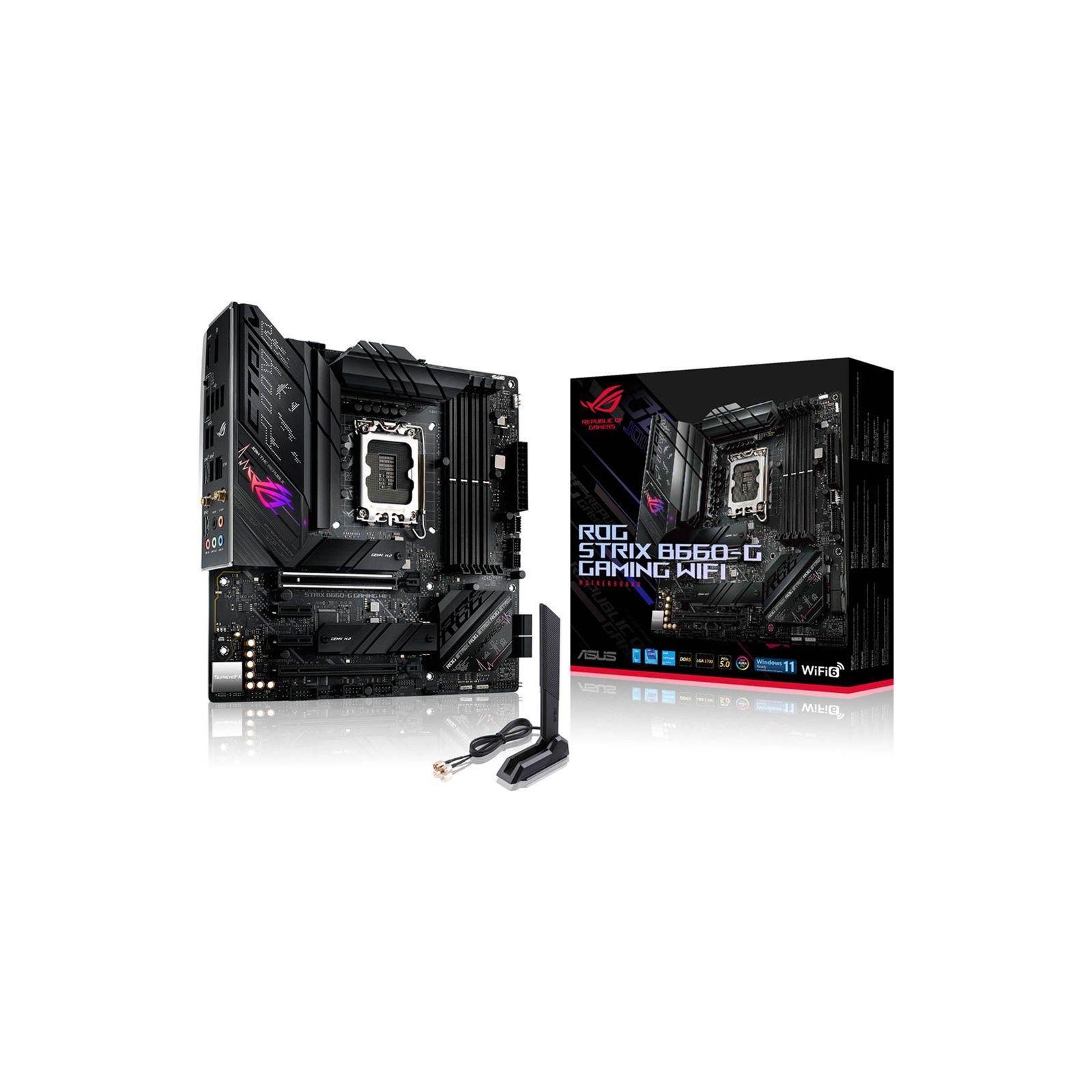

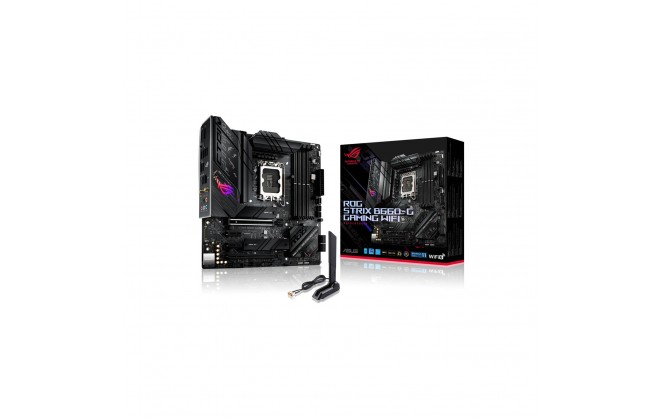

In The BoxASUS ROG Strix B660-G Gaming WIFI Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package(s)
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x Support DVD
1 x User guide
Width244 mm
Length244 mm

Key Features

Motherboard ModelASUS ROG Strix B660-G Gaming WIFI
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
Memory Speed6000 MHz
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
FirewireNo
Wireless NetworkYes
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports9 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard Power Connectors4 + 4-Pin
Motherboard ChipsetIntel B660
ThunderboltNo

Item Details

ManufacturerASUS
Manufacturer Code90MB18Y0-M0EAY0
Alternative Part NumberROG STRIX B660-G GAMING WIFI
EAN4711081549505
UPC195553549509
ConditionNew
