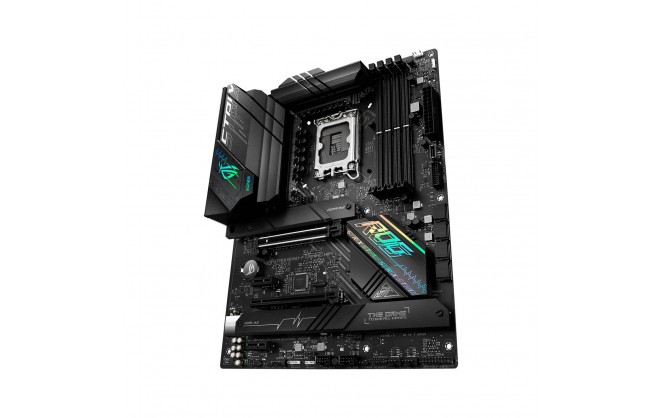

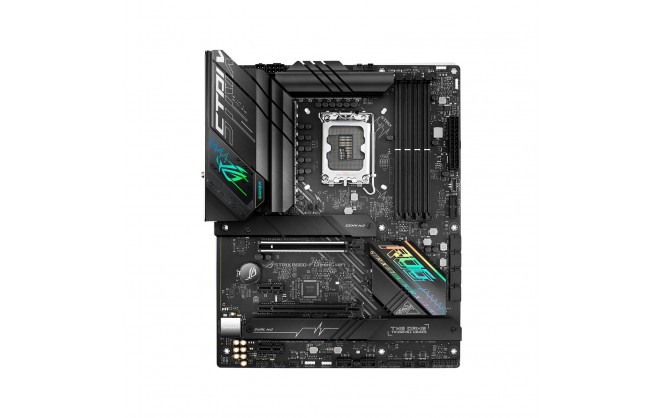

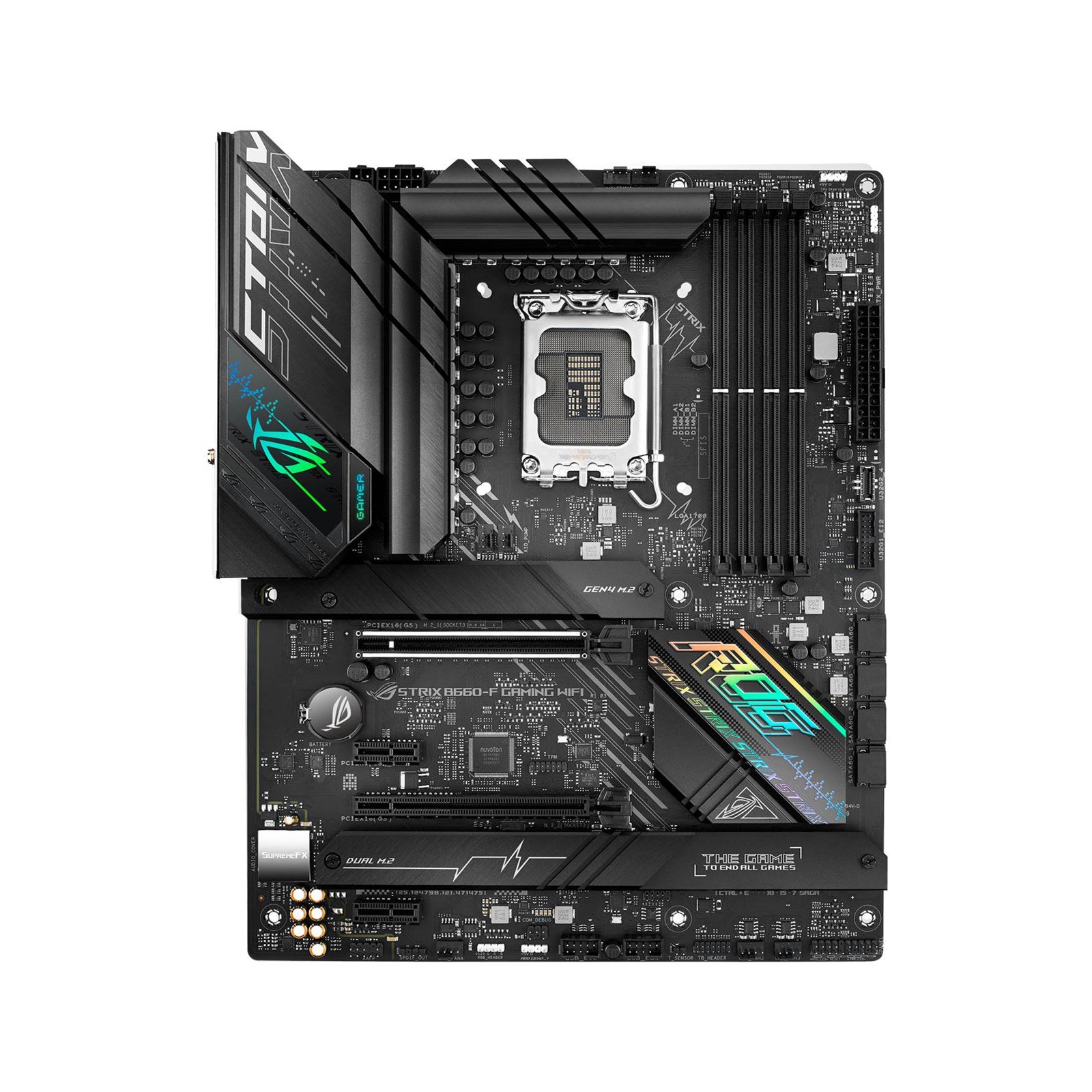

ASUS ROG Strix B660-F Gaming WIFI Motherboard

Part Number: 90MB18R0-M0EAY0
Manufacturer: ASUS
Quickfind Code: 135777

Stock: In Stock

£244.15 ex. vat
£292.98 inc. vat

Product Features:

Condition: New
Socket Type 1700
Chipset B660
Form Factor ATX
Memory Type DDR5
CPU Type Intel

+ Read More Information

Product Description

ROG Strix B660-F Gaming WiFi offers high-grade power delivery and optimized cooling to unleash the latest 12th Gen Intel® Core™ processors. Onboard PCIe® 5.0 and a spread of PCIe 4.0 M.2 slots provide lightning-fast data transfers for an endless variety of scenarios, while DDR5 gets propelled beyond all limits by ASUS AEMP. On top of all that, DIY-friendly innovations and an arsenal of system utilities help simplify the PC building process and get to you up and running smoothly.

Main Features

Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
Optimal Power Solution: 16+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates
High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBackT button and Clr CMOS button
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers
Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86

Technical Specification

ASUS ROG Strix B660-F Gaming WIFI Motherboard

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	12th Gen Intel Core, Intel Pentium and Intel Celeron processors
64-bit Support	Yes
Socket	LGA1700

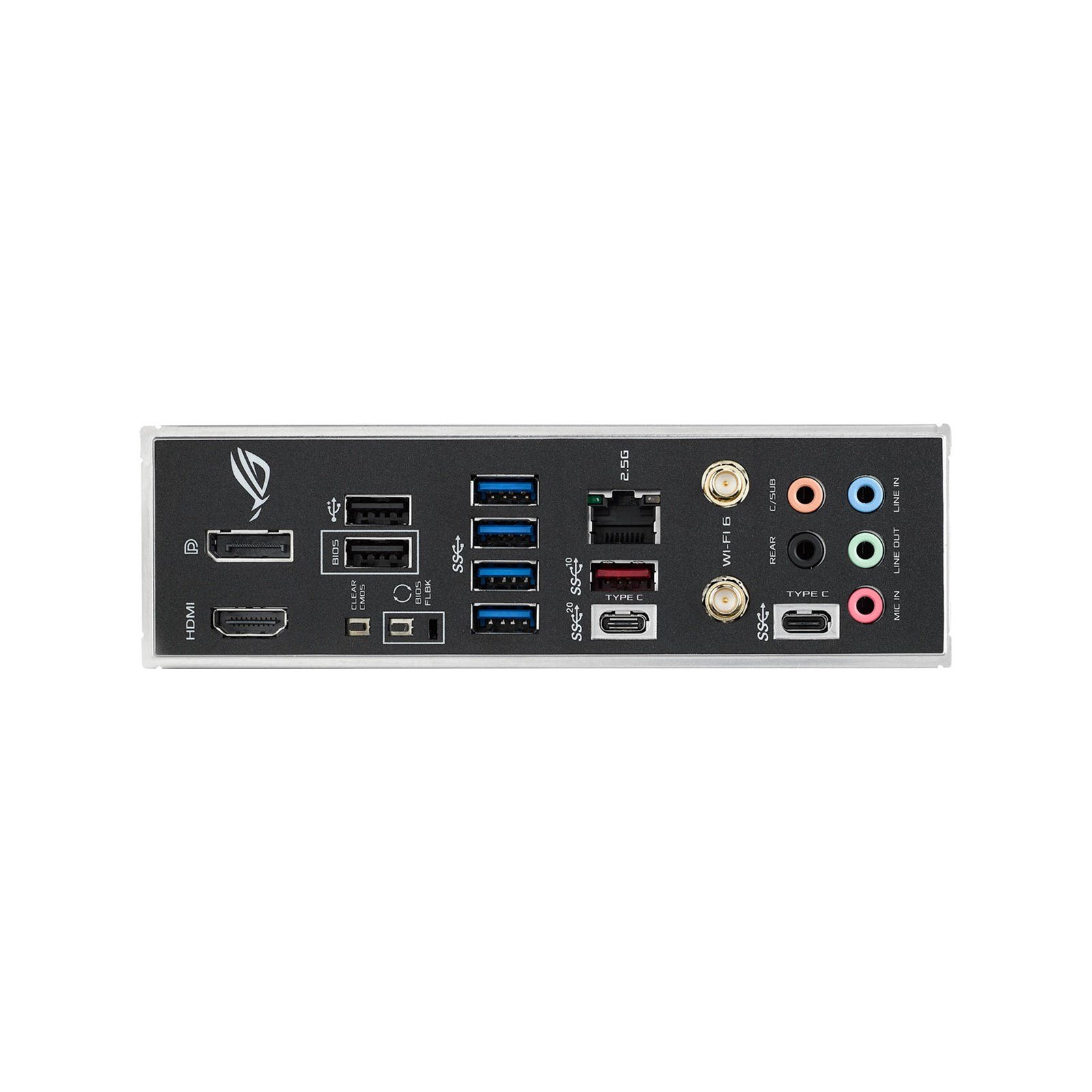

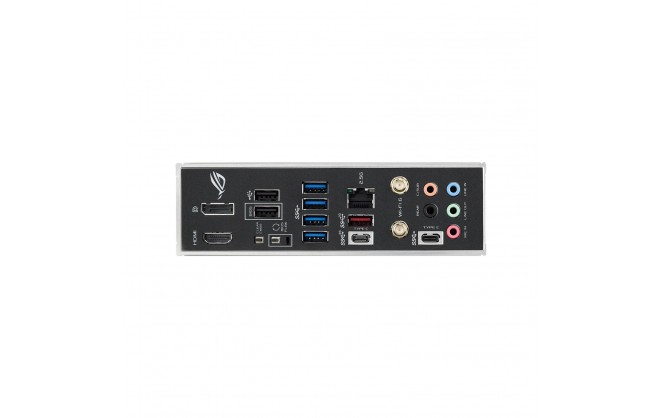

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 1 x USB 3.1 1 x USB-C 3.0 4 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU_OPT fan header 1 x AIO pump header 4 x Chassis fan headers
S/PDIF Connectors	1 x S/PDIF Out header
Thunderbolt Port(s)	1 x Thunderbolt header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 1 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen3) 3 x 3-pin ARGB LED header 1 x 4-pin RGB LED header 1 x Thermal Sensor header

Memory

Memory Bus Speed	Up to 6200 MHz
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Chipset Manufacturer	Intel
Northbridge	B660
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

ROG SupremeFX ALC4080

Warranty

3 Years

Network

Integrated Network	Intel
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11 / 10 64-bit

System

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

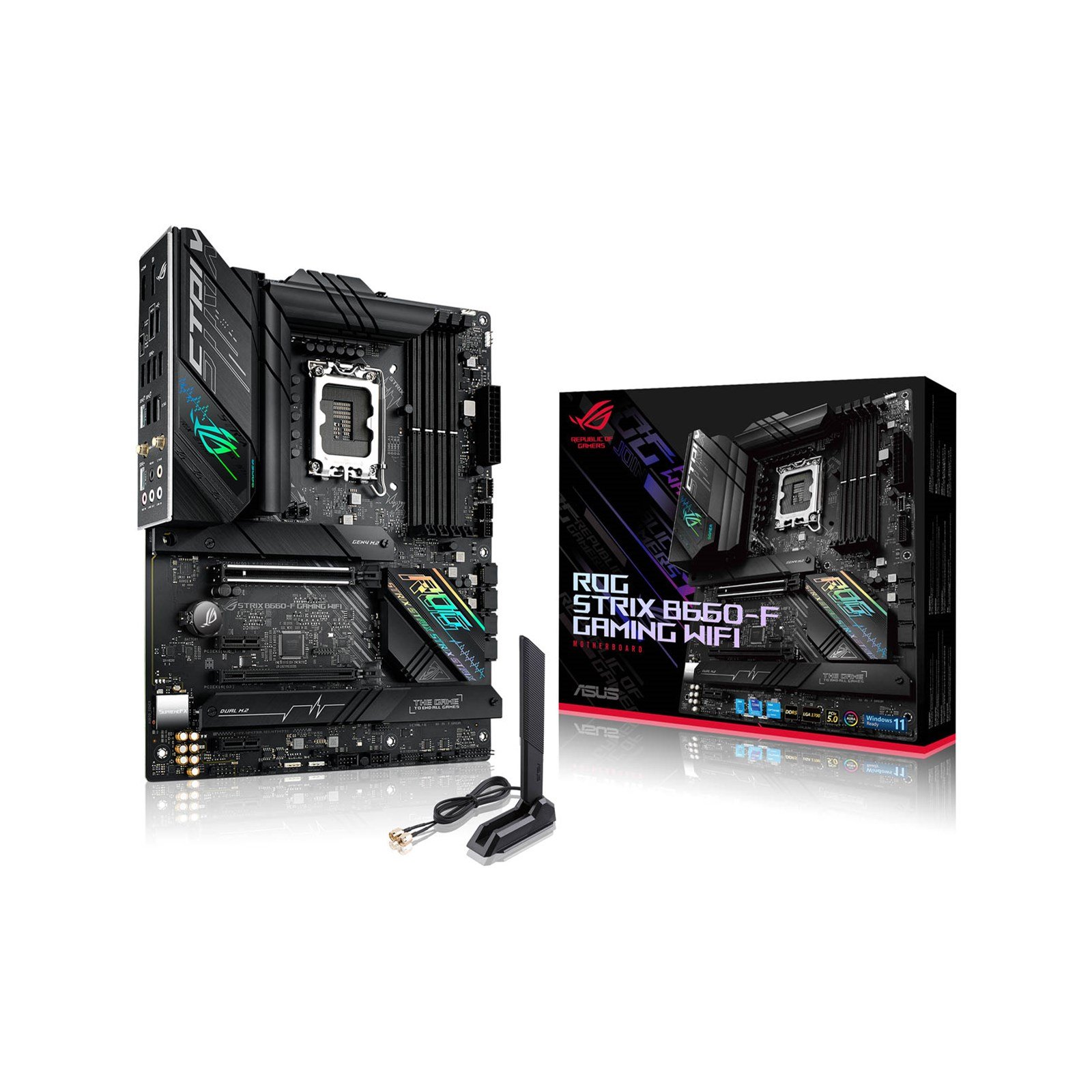

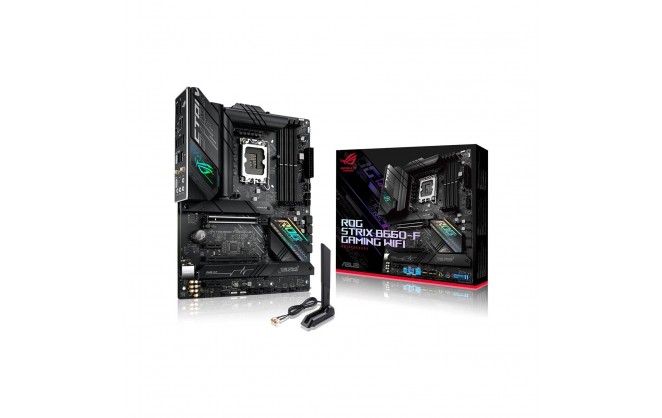

In The Box	ASUS ROG Strix B660-F Gaming WIFI Motherboard 4 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x Support DVD 1 x User manual
Width	305 mm
Length	244 mm

Key Features

Motherboard Model	ASUS ROG Strix B660-F Gaming WIFI
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	6200 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Firewire	No
Wireless Network	Yes
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	9 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	Intel B660
Thunderbolt	No
