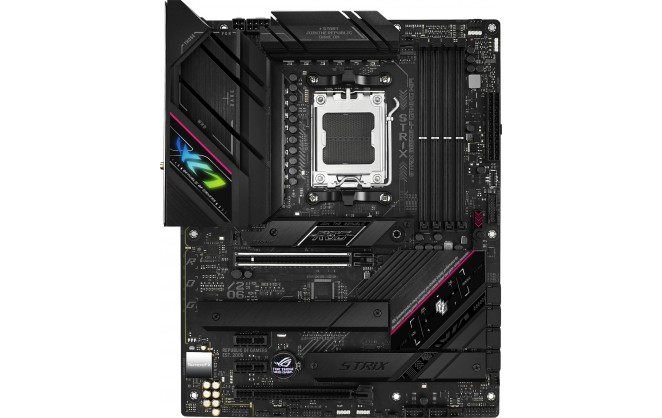

ASUS ROG Strix B650E-F Gaming WiFi ATX Motherboard AMD Socket AM5

Part Number: 90MB1BQ0-M0EAY0
Manufacturer: ASUS
Quickfind Code: 135910

Stock: In Stock

£228.48 ex. vat
£274.18 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B650E
Form Factor ATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Product Description

-AMD Socket AM5: Ready for AMD Ryzen™ 7000 Series desktop processors
-Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
-Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
-Next-Gen M.2 Support: One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance
-Advanced Connectivity: One USB 3.2 Gen 2x2 Type-C® and eleven additional rear USB ports, USB 3.2 Gen 2 Type-C® front-panel connector, HDMI® 2.1, DisplayPort™ 1.4, and one PCIe 5.0 x16 SafeSlot
-High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard
-Intelligent Control: ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking
-Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
-Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
-DIY-Friendly Design: PCIe® Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and BIOS?FlashBack™ button
-Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial

Technical Specification

ASUS ROG Strix B650E-F Gaming WiFi ATX Motherboard AMD Socket AM5

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

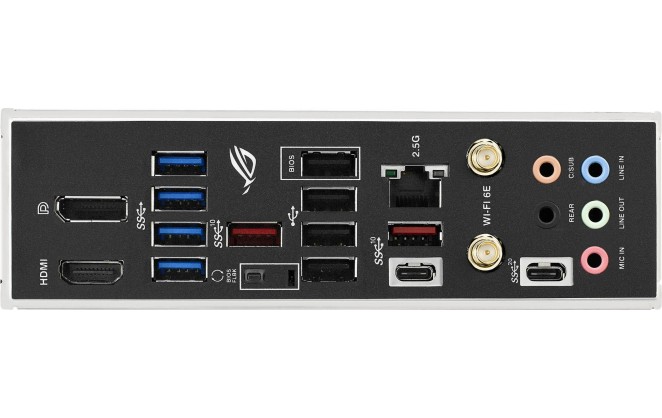

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 1 x USB-C 3.1 2 x USB 3.1 4 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU OPT fan header 1 x AIO pump header 4 x Chassis fan headers
S/PDIF Connectors	1 x S/PDIF Out header
Thunderbolt Port(s)	1 x Thunderbolt header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5) 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Thermal Sensor header 1 x COM_DEBUG header

Memory

Memory Bus Speed	Up to 6400 (OC) MHz
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	B650E
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 4.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

ROG SupremeFX ALC4080

Warranty

3 Years

Network

Integrated Network	Intel
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Jumpers	1 x CPU Over Voltage jumper 1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

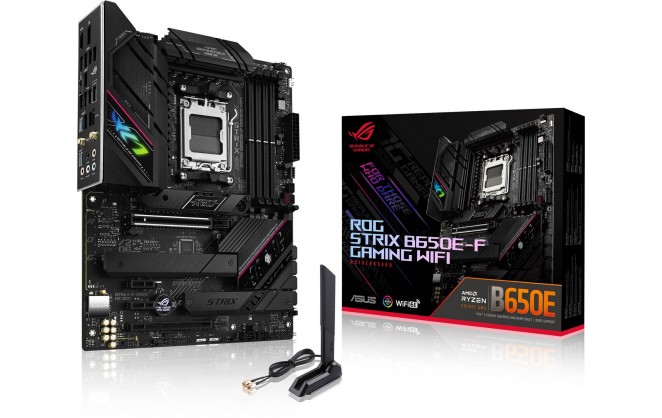

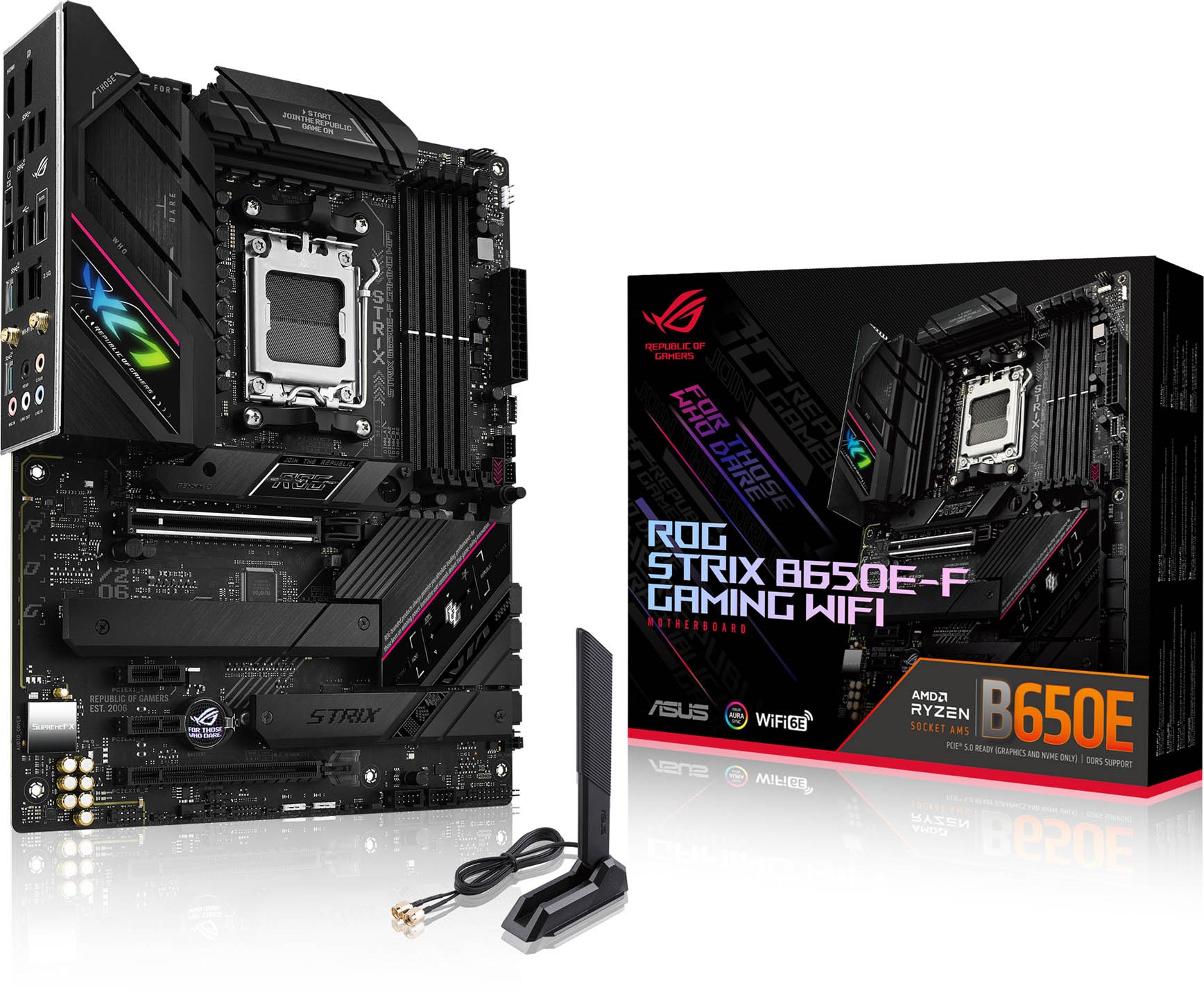

In The Box	Motherboard 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages 1 x User guide
Width	305 mm
Length	244 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	Yes
Chipset Manufacturer	AMD
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	12 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Wake on LAN
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	AMD B650E
Thunderbolt	No
Motherboard Model	ASUS ROG Strix B650E-F Gaming WiFi
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	6400 MHz
Skip Audio Test
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	70 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	5200 MHz
Max Memory Speed Supported (overclocked)	6400 MHz
CPU Power Pins (female)	12
PCI Express Power Pins (female)
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
PCI-e slots
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
