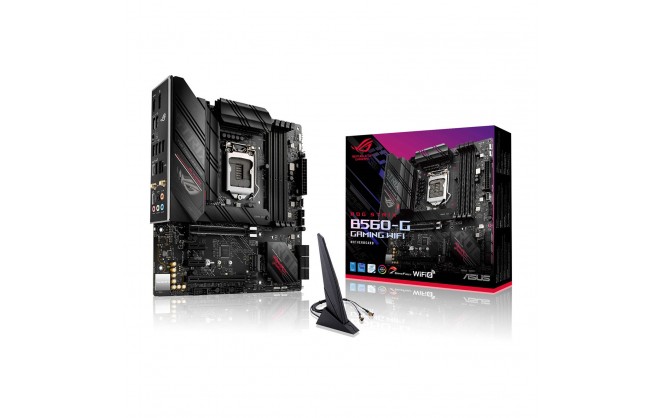

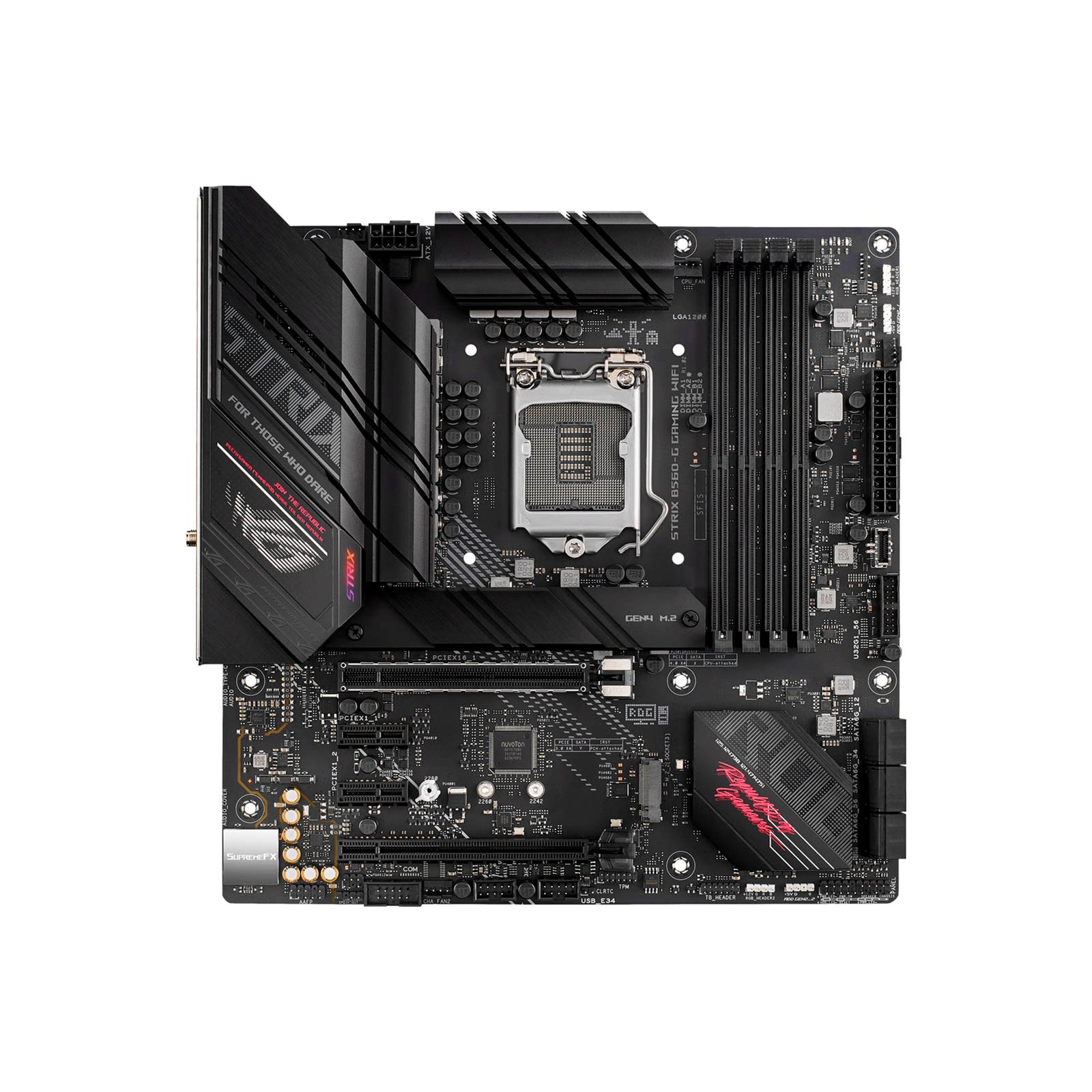

ASUS ROG Strix B560-G Gaming WiFi Motherboard

  • Part Number: 90MB1750-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 135742
  • Stock: In Stock

£153.99 ex. vat
£184.79 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1200
  • Chipset B560
  • Form Factor mATX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Intel® B560 LGA 1200 micro ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel® 2.5 Gb Ethernet, Two M.2 slots with one slot featuring its own heatsink, USB 3.2 Gen 2x2 USB Type-C® , SATA and Aura Sync RGB lighting

Main Features

  • Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold and Celeron processors
  • Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Smooth Networking: On-board Intel WiFi 6 AX200 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMITM 2.0 and DisplayPort 1.4 output, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBackT and Q-LED
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
  • Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard
Technical Specification

ASUS ROG Strix B560-G Gaming WiFi Motherboard

CPU

CPU SocketSocket 1200
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1200

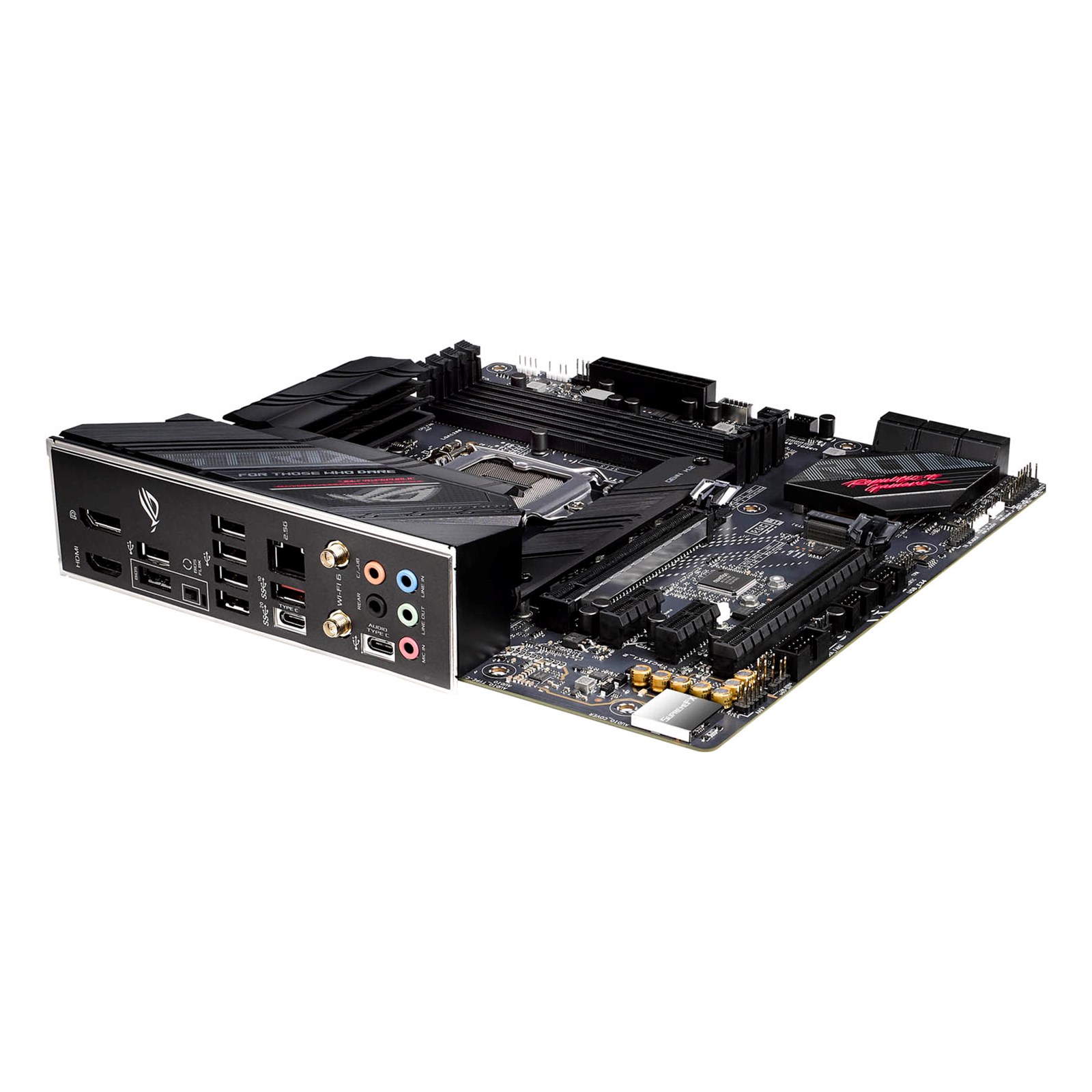

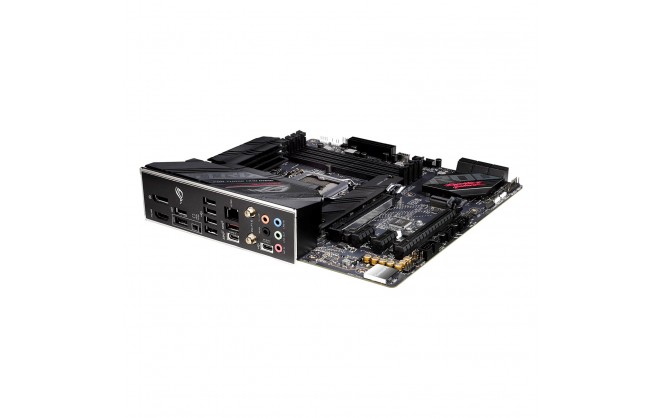

Rear Panel I/O Ports

USB Ports1 x USB 3.2 Type-C
1 x USB 3.1
6 x USB 2.0
1 x Audio USB-C
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.0
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports3 x 3.5mm Jacks
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antennas

Internal I/O Connectors

SATA Connectors6 x SATA III
USB Connectors1 x USB 3.1 Type-C header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x AIO Pump header
2 x Chassis fan headers
S/PDIF Connectors1 x S/PDIF Out header
Thunderbolt Port(s)1 x Thunderbolt header
Serial Connectors1 x COM header
TPM Header1 x SPI TPM header (14-1 pin)
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, Socket 3, M Key, Type 2242/2260/2280/22110 (PCIe Gen4) for 11th Gen processors only
1 x M.2 slot, Socket 3, M Key, Type 2242/2260/2280 (PCIe Gen3 or SATA)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz
Memory TypeDDR4
Maximum RAM128 GB
Memory Slot4 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeB560
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Warranty

Warranty3 Years

Network

Integrated NetworkIntel I225-V
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.0

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

BIOS128 Mb Flash ROM, UEFI AMI BIOS
Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorMicroATX Motherboard
In The BoxROG STRIX B560-G GAMING WIFI Motherboard
2 x SATA cables
ROG audio USB Type-C cable
ASUS Wi-Fi moving antennas
Cable ties pack
M.2 Q-Latch package
M.2 Rubber Package
M.2 SSD screw package
ROG key chain
ROG STRIX stickers
ROG STRIX thank you card
Support DVD
User manual
Width244 mm
Length244 mm

Key Features

Motherboard ModelASUS ROG Strix B560-G Gaming WiFi
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
Memory Speed5000 MHz
RGB Header Type3-Pin ARGB
Addressable RGBYes
FirewireNo
Wireless NetworkYes
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports6 port(s)
Number of USB Ports8 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard Power Connectors4 + 4-Pin
Motherboard ChipsetIntel B560
ThunderboltNo

Item Details

ManufacturerASUS
Manufacturer Code90MB1750-M0EAY0
EAN4711081108689
ConditionNew
