ROG Strix B460-F Gaming motherboard features solid power delivery and effective cooling designed to handle the latest 10th Generation Intel® Core™ processors. With its arresting futuristic aesthetic and intuitive ROG software, ROG Strix B460-F Gaming gives you a head start on your dream gaming build.
All-round Performance
The robust power design and comprehensive cooling features of Strix B460-F Gaming ensure great all-round performance, and an intuitive dashboard gives you full networking control so you can harness the full potential of your build.
LEADING CONNECTIVITIY
ROG Strix B460-F Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly fast file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience.
PLAY YOUR OWN STYLE
The cyberpunk-inspired aesthetics of ROG Strix B460-F Gaming are accentuated with bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
ROG Gives You More
ROG exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.
ASUS ROG Strix B460-F Gaming Intel Socket 1200 Retail Motherboard
CPU
| CPU Socket | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |

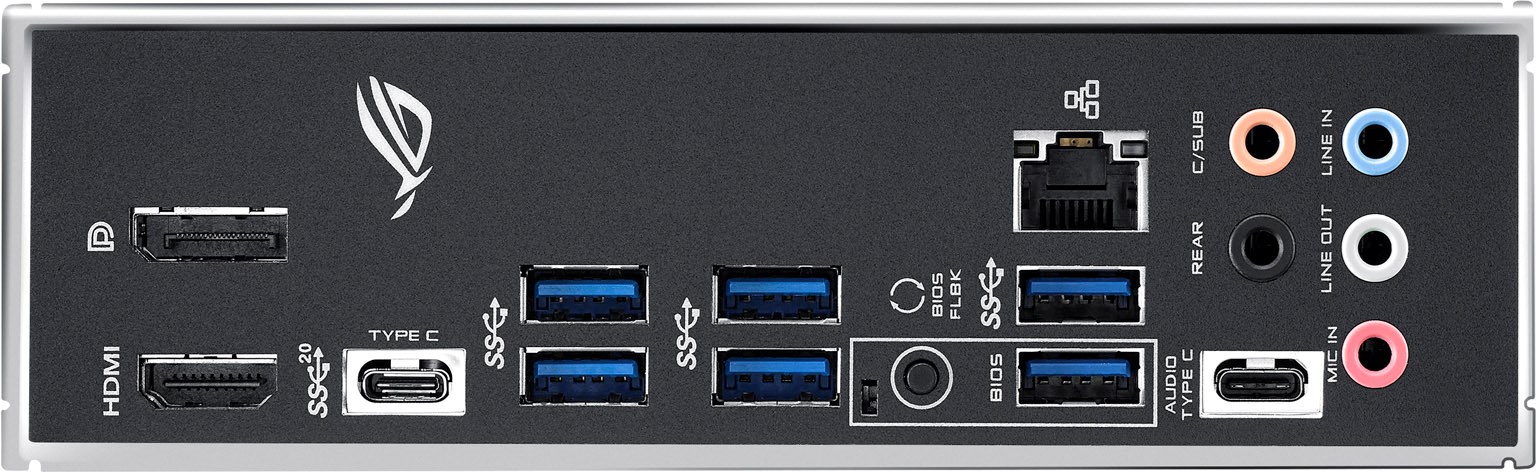

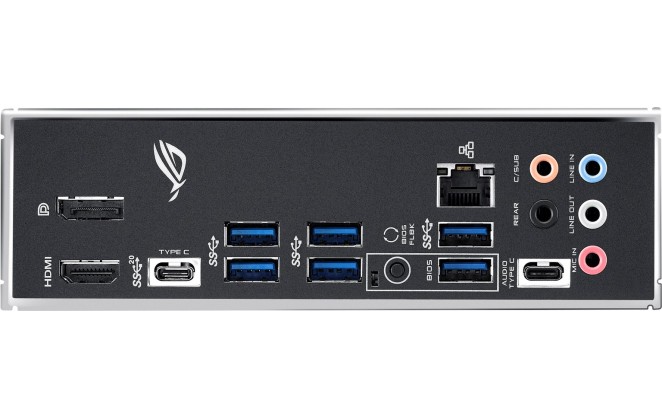

Rear Panel I/O Ports
| USB Ports | 1 x USB 3.2 Type-C 6 x USB 3.0 1 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort |
| HDMI Port | 1 x HDMI |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU_OPT fan header 1 x AIO PUMP header 3 x Chassis fan headers |
| S/PDIF Connectors | 1 x S/PDIF Out header |
| Thunderbolt Port(s) | 1 x Thunderbolt header |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x M.2, Socket 3, M Key (Type 2242/2260/2280) 1 x M.2, E Key (Type 2230) for Wi-Fi module 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers |
Memory
| Memory Bus Speed | 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B460 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 3.0 x16 (@ x16, x4) 3 x PCI Express 3.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel I219-V |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| SLi/Crossfire Features | Supports AMD 2-Way CrossFireX Technology |
Physical
| Form Factor | ATX Motherboard |
| In The Box | ROG STRIX B460-F GAMING Motherboard 1 x Addressable RGB extension cable 1 x ROG audio USB Type-C© cable 4 x SATA 6Gb/s cables 1 x Cable ties pack 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x M.2 Key E screw package 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x Support DVD 1 x User manual |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| On-board RGB Control | ASUS Aura Sync |
| Memory Speed | 2933 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 8 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | Intel B460 |
| Thunderbolt | No |
| Motherboard Model | ASUS ROG Strix B460-F Gaming |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB13R0-M0EAY0 |
| Alternative Part Number | ROG STRIX B460-F GAMING |
| EAN | 4718017715072 |
| Condition | New |
