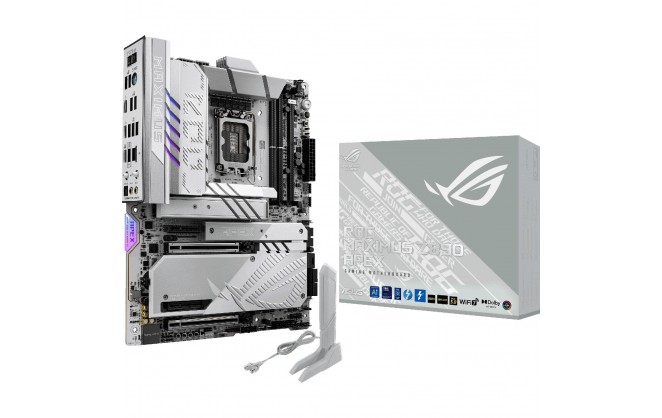

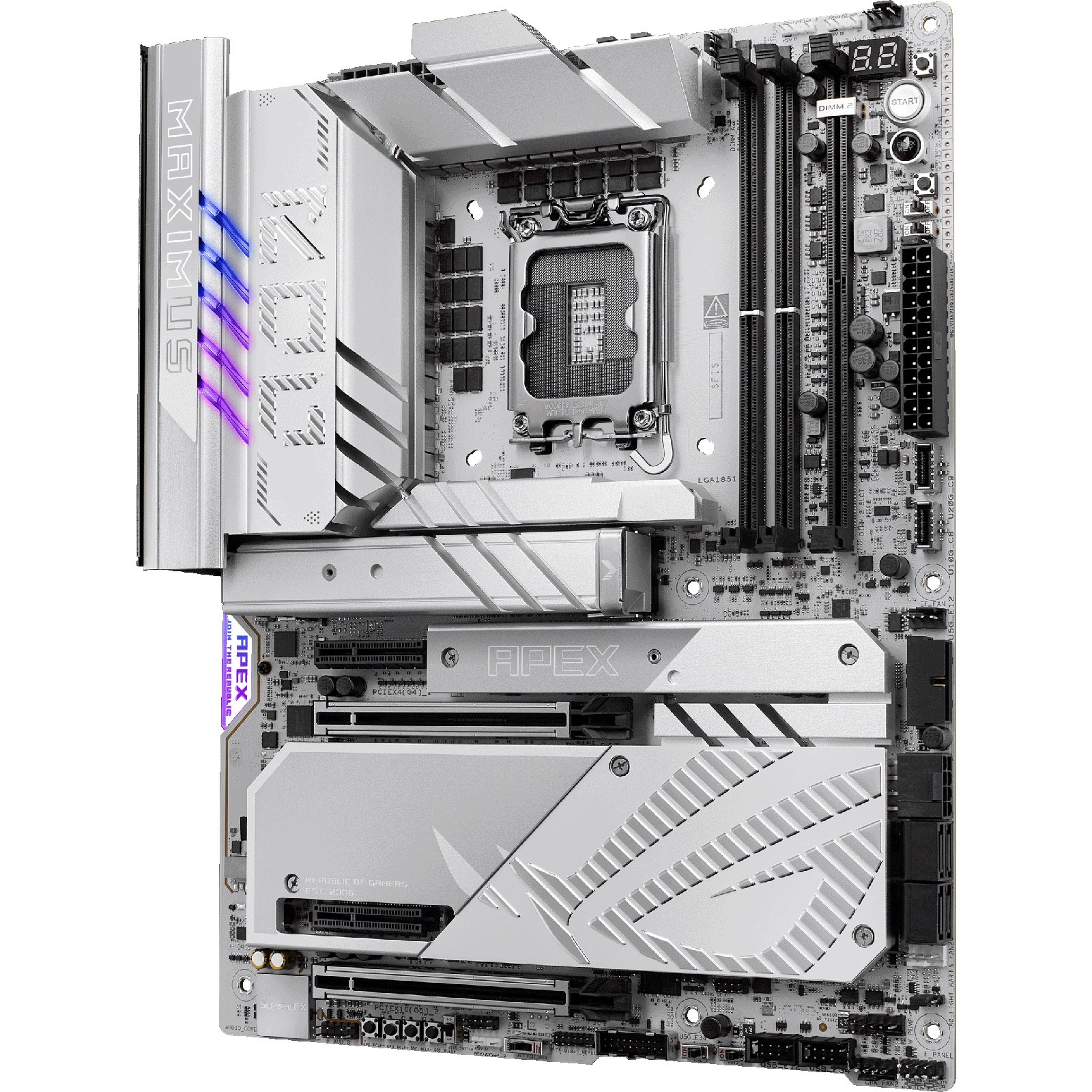

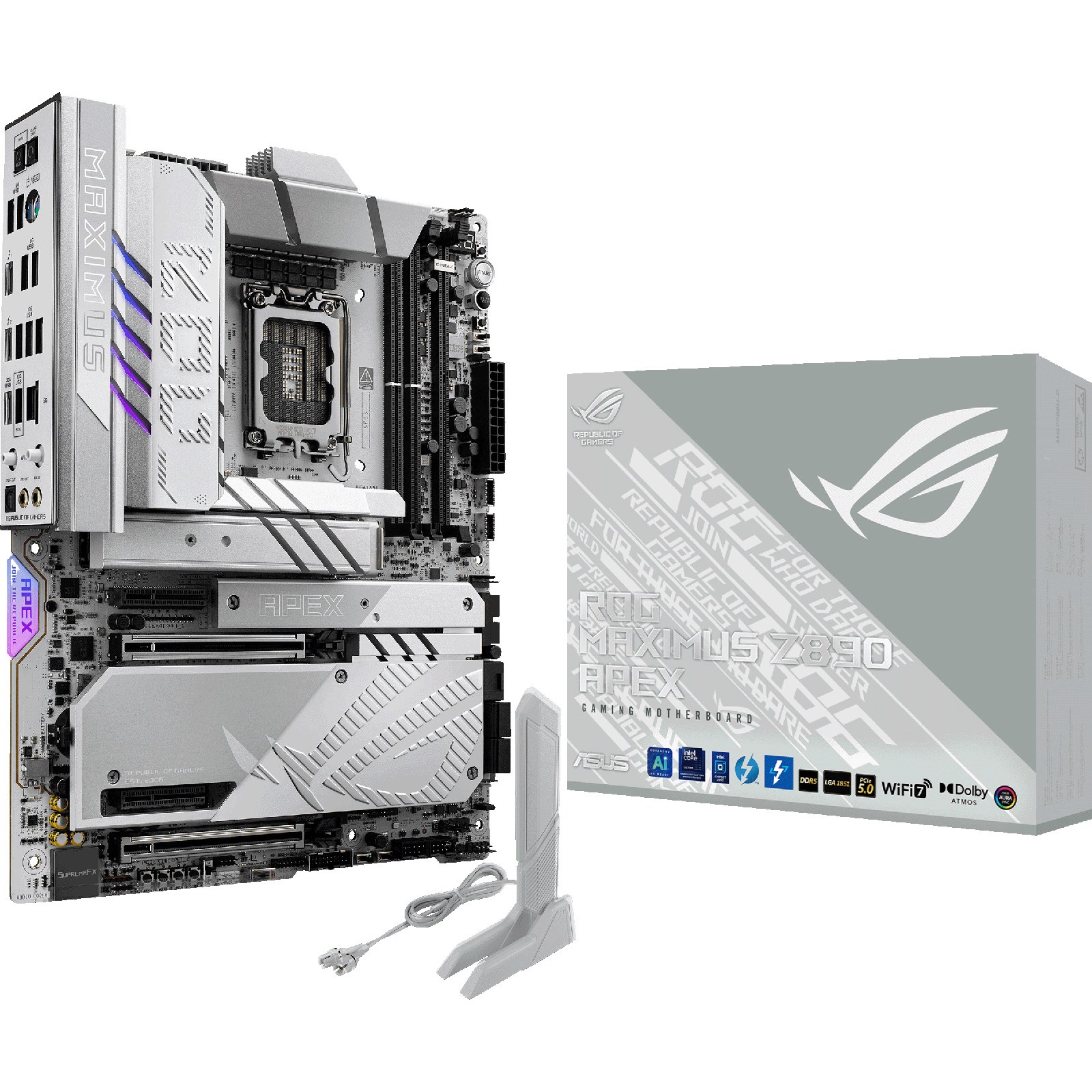

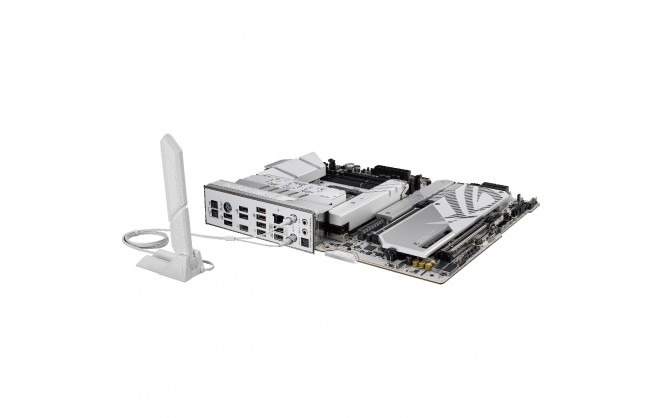

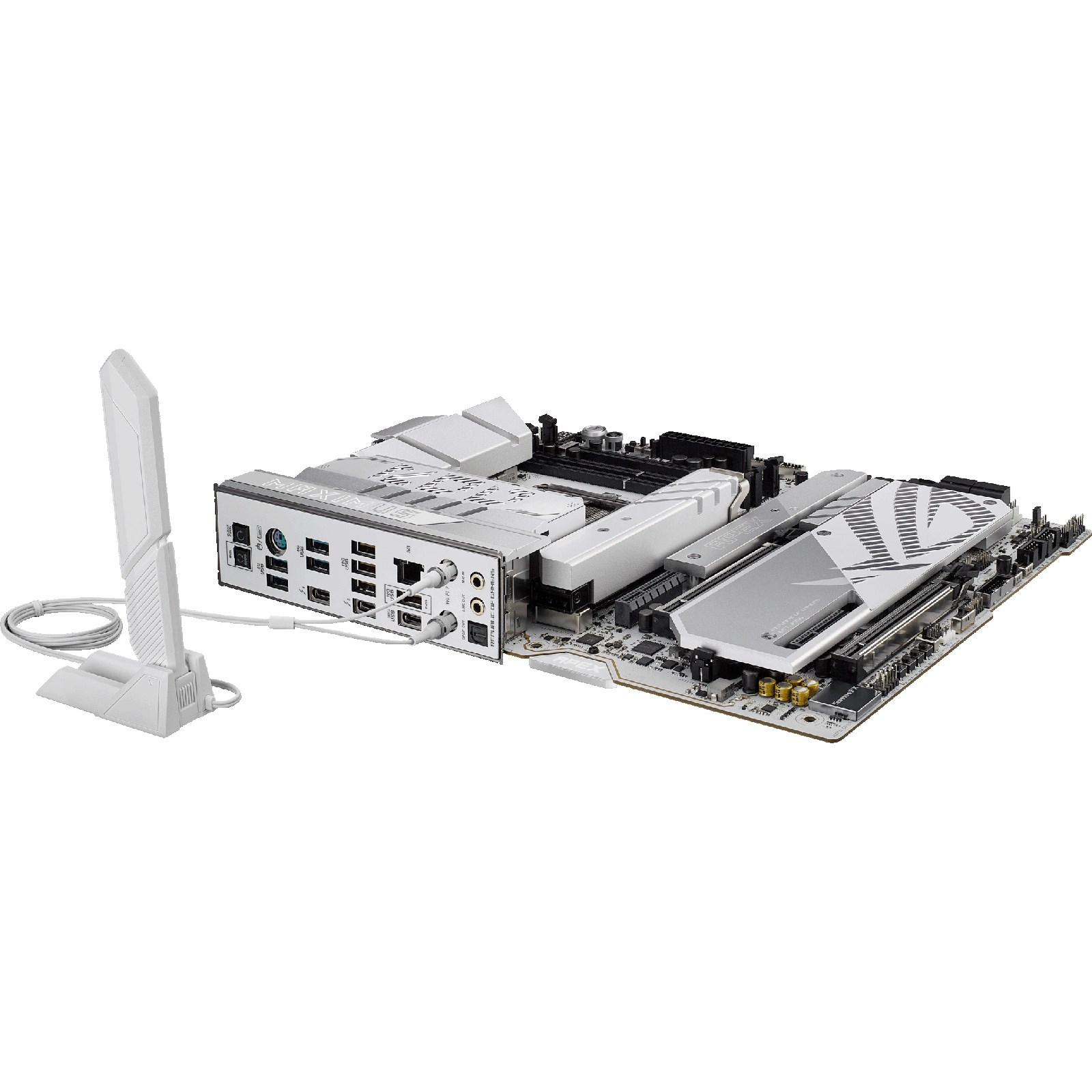

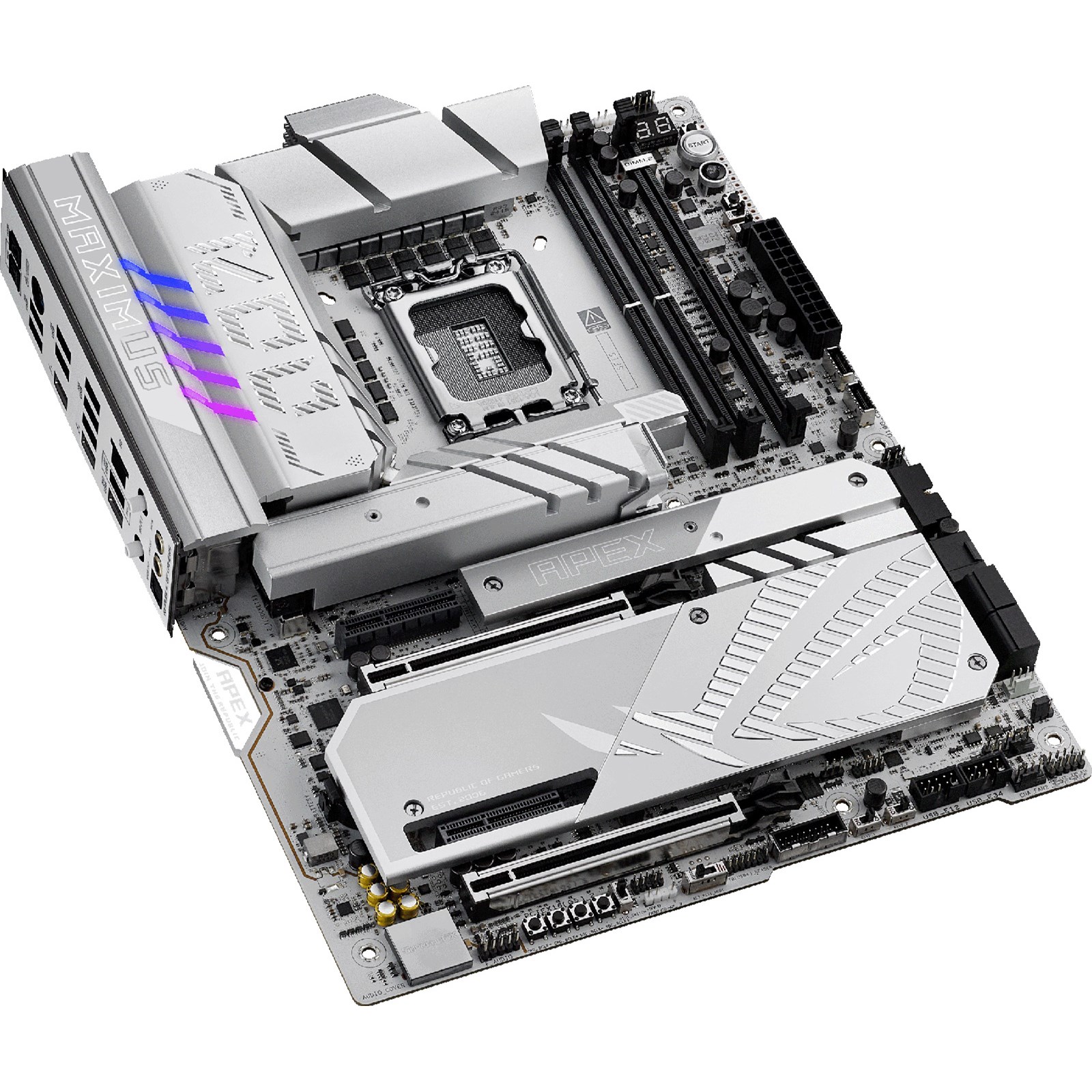

ASUS ROG Maximus Z890 Apex ATX Socket 1851 Motherboard

  • Part Number: 90MB1IP0-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 136405

  • Stock: In Stock

£599.98 ex. vat
£719.98 inc. vat


Product Features:
  • Condition: New
  • Socket Type 1851
  • Chipset Z890
  • Form Factor ATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Key Features:

  • ATX Form Factor
  • Intel Z890 Chipset
  • Socket 1851
  • DDR5 (Max: 96GB / 4 slots)
  • 4 x M.2 & 9 x USB & 4 x SATA
Technical Specification

ASUS ROG Maximus Z890 Apex ATX Socket 1851 Motherboard

CPU

CPU SocketSocket 1851
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported ProcessorsIntel Core Ultra Processors(Series 2)
64-bit SupportYes
SocketLGA1851

Rear Panel I/O Ports

USB Ports2 x Thunderbolt 4
1 x USB-C 3.2
4 x USB 3.1
4 x USB 3.0
DisplayPortsYes via Thunderbolt 4
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.2 header (supports 1 port)
1 x USB-C 3.1 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU OPT fan header
1 x AIO pump header
2 x Chassis fan headers
2 x Full Speed fan headers
1 x W_PUMP+ header
1 x Extra Flow fan header
Thunderbolt Port(s)1 x Thunderbolt 4 header
Power Connector Port1 x 24-pin ATX
2 x 8-pin EPS
1 x 8-pin PCIe
Other Connectors1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2242/2260/2280
1 x DIMM.2 slot, supporting 2 x M.2 slots, Key M, Type 2230/2242/2260/2280/22110 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x Thermal Sensor header

Memory

Memory Bus SpeedUp to 9900 MT/s
Memory TypeDDR5
Maximum RAM96 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeIntel Z890
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)
2 x PCI Express 4.0 x4 slots

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundROG SupremeFX ALC4080

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 5 Gbps
Wireless LANYes - Wi-Fi 7
Wireless Network SpeedUp to 5.8 Gbps
BluetoothYes
Bluetooth Version5.4

System Requirements

Operating Systems SupportedWindows 11

System

BIOS2 x 256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorATX Motherboard
In The BoxMotherboard
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
1 x Thermal pad for M.2 22110
1 x ROG Memory Fan Kit
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG VIP card
3 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG Bottle Opener
1 x USB drive with utilities and drivers
1 x Quick start guide
Width244 mm
Length305 mm

Key Features

Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height305 mm
Main ColourWhite
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports9 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionNo
DisplayPort ConnectionNo
Motherboard Form FactorATX
Drive Interface TypePCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors2 x 8-Pin
Motherboard ChipsetIntel Z890
ThunderboltYes
Motherboard ModelASUS ROG Maximus Z890 Apex
WiFi Speed5800 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlASUS Aura Sync
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)70 W
Max Memory Speed Supported (overclocked)9000 MT/s
CPU Power Pins (female)16
PCI Express Power Pins (female)8
Total M.2 Slots4
Maximum NVMe M.2 ports4
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported4
No. of front USB-C ports supported2
Back Connect SupportNo

Item Details

ManufacturerASUS
Manufacturer Code90MB1IP0-M0EAY0
EAN4711387754290
