This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.
*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
ProArt B650-Creator features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
*ASUS add-on card is sold separately.
The ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.
2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.
ProArt B650-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.
*WiFi/BT modules are sold separately.
The ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

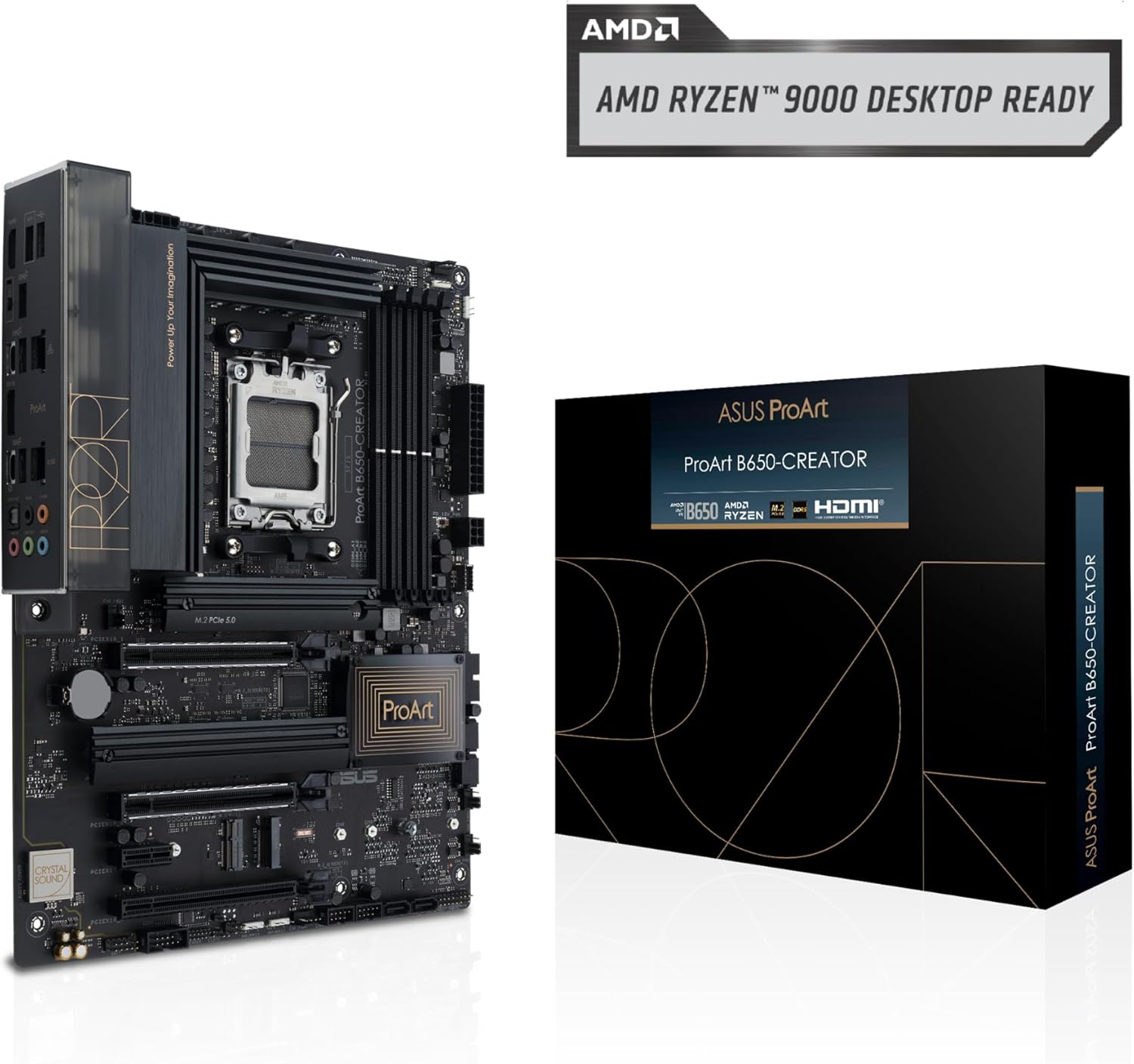

ASUS ProArt B650-CREATOR ATX Socket AM5 Motherboard
CPU
| CPU Socket | Socket AM5 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Ryzen 7000 Series Desktop Processors |
| 64-bit Support | Yes |
| Socket | AM5 |

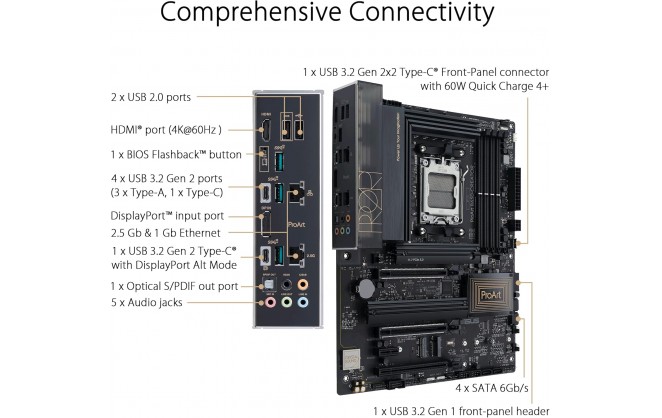

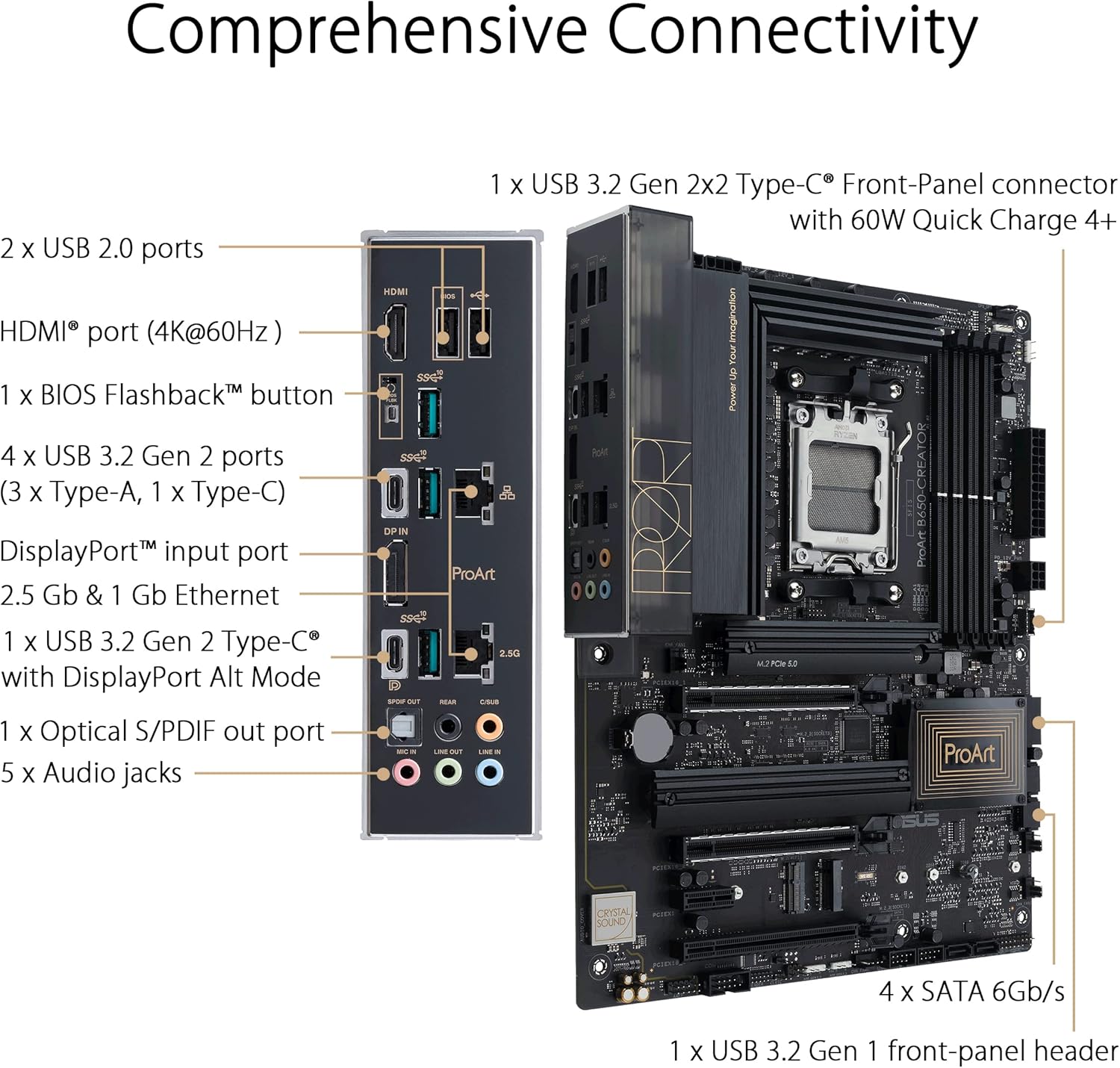

Rear Panel I/O Ports
| USB Ports | 2 x USB-C 3.1 3 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | Yes, via USB-C |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 2 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU_OPT fan header 1 x AIO pump header 4 x Chassis fan headers |
| Thunderbolt Port(s) | 1 x Thunderbolt header |
| Serial Connectors | 1 x COM header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS 1 x 6-pin PCIe |
Memory
| Memory Bus Speed | Up to 7600 MHz |
| Memory Type | DDR5 |
| Maximum RAM | 192 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Northbridge | AMD B650 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Slots | 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5) 2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Thermal Sensor header 1 x M.2 slot, Key E, for Wi-Fi |
| Number of PCI Express Slots | 3 x PCI Express 4.0 x16 slots (@ x16/x0/x4 or x8/x8x/4) 1 x PCI Express 4.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Warranty
| Warranty | 3 Years |
Sound
| Integrated Sound | Realtek |
Network
| Integrated Network | Realtek |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 |
System
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |

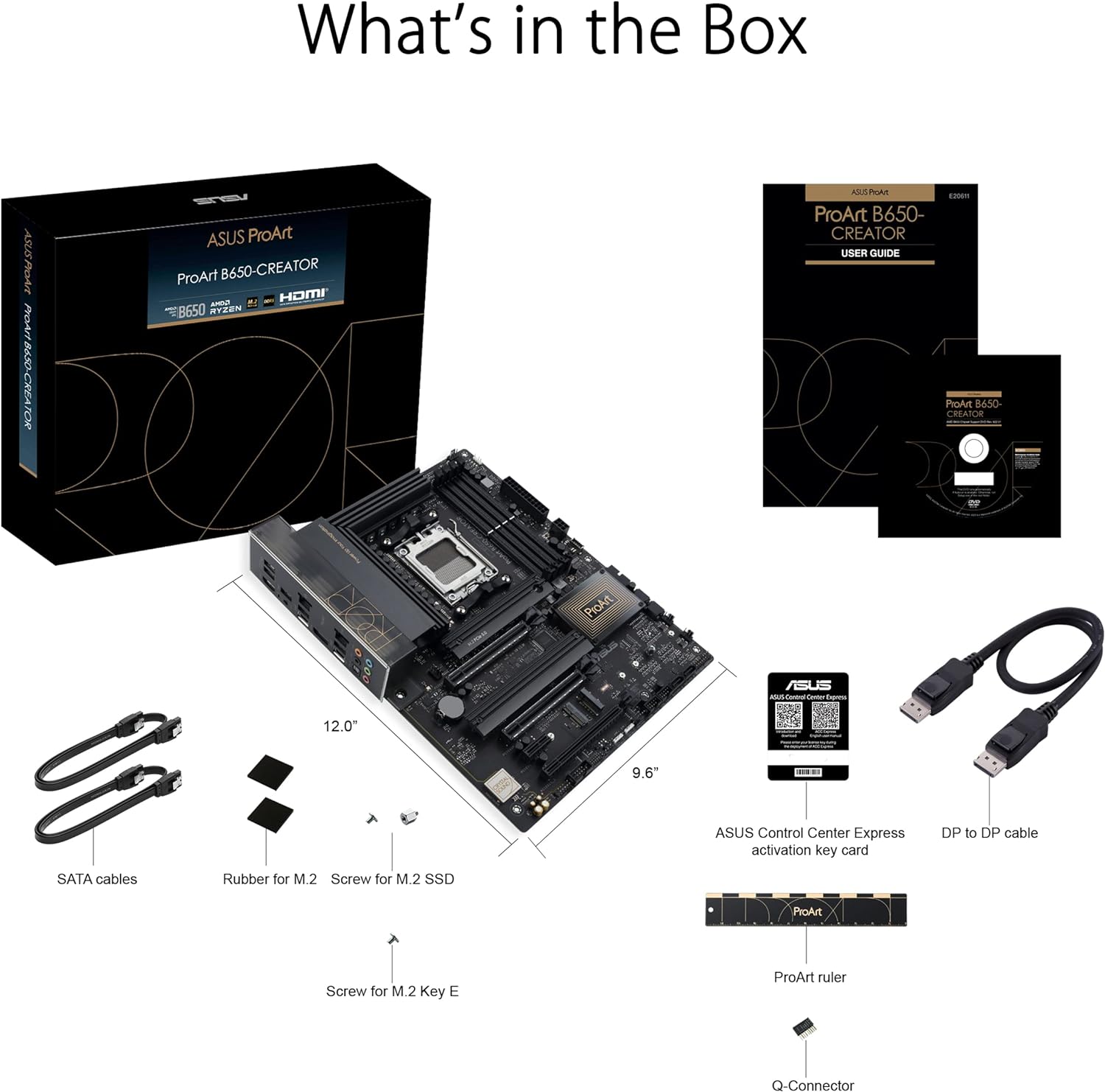

| In The Box | Motherboard DisplayPort Cable 2 x SATA Cables Q-Connector Rubber Packages for M.2 Screw Packages for M.2 ProArt Ruler ACC Express Activation Key Card User Guide |
| Width | 244 mm |
| Length | 305 mm |
Key Features
| Wireless Network | No |
| Motherboard Width | 244 mm |
| Motherboard Height | 305 mm |
| mSATA Supported | No |
| U.2 Supported | No |
| Main Colour | Black |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 7 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard (EPS) Power Connectors | 4-Pin + 8-Pin |
| Motherboard Chipset | AMD B650 |
| Thunderbolt | No |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | ASUS Aura Sync |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 70 W |
| Max Memory Speed Supported (Non-overclocked) | 5200 MT/s |
| Max Memory Speed Supported (overclocked) | 7600 MT/s |
| CPU Power Pins (female) | 12 |
| PCI Express Power Pins (female) | 6 |
| Total M.2 Slots | 3 |
| Maximum NVMe M.2 ports | 3 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB1C40-M0EAY0 |
| EAN | 4711081988090 |
| UPC | 195553988094 |
