ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators.
Multi-GPU support
Fully loaded takes on new meaning when you have up to 24 PCI Express® lanes and those lanes can be split in a 3-way x8/x8/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.
ASUS 2-WAY VGA holder
User-friendly design
The Pro WS X570-ACE is packed with an exclusive two-way VGA holder to provide extra rigid support for up to two high-end graphics cards, to prevent potentially damaging bowing or bending. This VGA holder is easy to install and can be mounted with an additional system fan (up to 120mm), making sure your workstation has ample cooling to complete any task.
*Recommended maximum graphics card size: up to 12.90 x 5.90cm (length x depth)
ASUS Control Center Express
Centralized, cost-effective server-grade management
ASUS Control Center Express is centralized server-grade software that works in conjunction with a GbE LAN controller which also serves as a management controller to reduce IT operational costs and improves efficiency. Its out-of-band management enables hardware-level control such as remote hardware reset, BIOS setting and update, and operating system installation across multiple clients, and remotely troubleshoot crashes or unexpected shutdowns.
*To ensure the full functionality of ASUS Control Center Express, please go to the support site to download ACCE FW Updater and update the system BIOS to the latest version first.
Make your memory faster and reliable
Error-Correcting-Code (ECC) support offers a potent foundation for your build and enables Pro WS X570-ACE to automatically detect and repair single-bit memory errors, ensuring reliable and responsive performance in mission-critical environments.
ASUS OptiMem
Proprietary Memory Design
ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.
ASUS OptiMem benefits:
Tested by using Synopsys HSPICE simulation software
Power delivery enhancements
The 3rd Gen AMD Ryzen™ processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Pro WS X570-ACE is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.
ProCool II power connector
The latest ProCool II is an enhanced EATX 8-pin power connector that offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation, as well as a warning LED display with a BIOS POST message to indicate an improper connection.
Power stages with IR3555 design
The CPU VRM on Pro WS X570-ACE employs a 12+2 power stage design with IR3555, combining high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that high core count processors demand.
Alloy chokes
The Pro WS X570-ACE series uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the processors.
Durable capacitors
Durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
8-layer PCB design
Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.
Trusted Stability
Pro WS X570-ACE features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Active PCH Heatsink
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Pro WS X570-ACE features an actively cooled heatsink to prevent throttling during sustained transfers.
Active Chipset Heatsink Solution includes:
* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.
Ultra-efficient VRM Heatsink
Pro WS X570-ACE ensures optimal cooling and system stability for the latest AMD Ryzen® processors. Higher power requirements are balanced by carefully designed heatsinks that carefully balance mass and surface area to maximize thermal dissipation. In addition to the VRM-heatsink array and the heatpipe that's positioned to provide maximum airflow within the chassis, a dedicated fan and heatsink also help to efficiently dissipate heat from the PCH.
24/7 Dependability
Quality reliability test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.
SafeSlot
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Cooler by design
Flexible cooling controls
Pro WS X570-ACE features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
M.2 Heatsink
Keep your SSD cooler
Pro WS X570-ACE features an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 22°C for optimal storage performance and improved SSD longevity.
M.2 & U.2
Speed up with onboard M.2 & U.2
With x4 PCI Express® 4.0 bandwidth, Pro WS X570-ACE features up to 64Gbps M.2 and U.2 for faster data-transfer speeds — ideal for an operating system or application drive.
USB 3.2 Gen 2 back-panel connectors
Future-proof connectivity
The back panel of the Pro WS X570-ACE features five USB 3.2 Gen 2 connectors, including one reversible Type-C™ and four backward-compatible Type-A to deliver ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
Armoury Crate
The new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates and bug patches.
ASUS Node
A header to keep ahead
The ASUS Node connector features a bi-directional interface that offers all kinds of potential for DIY components and builds. The included ASUS Fan Extension Card II connects via Node, and In Win is developing a compatible OLED panel that fits into a chassis and offers LiveDash functionality and the ability to boot directly to the UEFI. FSP has also created a HydroDPM 1000W PSU that connects to Node to share power stats and temperature information while also enabling CPU fan control.
5-Way Optimization
One-click overclock and cooling
ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of your system to provide overclocking and cooling profiles that are tailored for your rig.
Crystal Sound 3
Flawless, immersive audio for entertainment

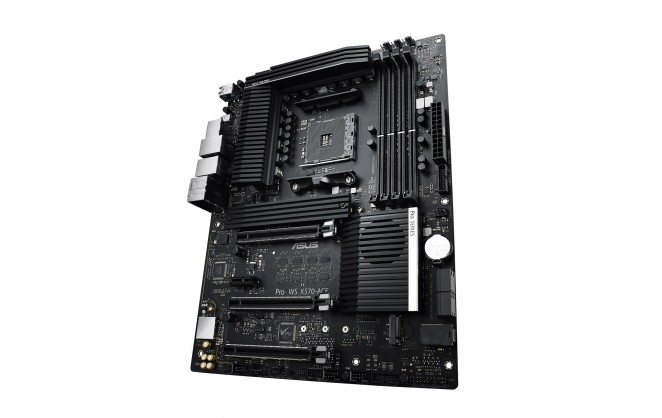

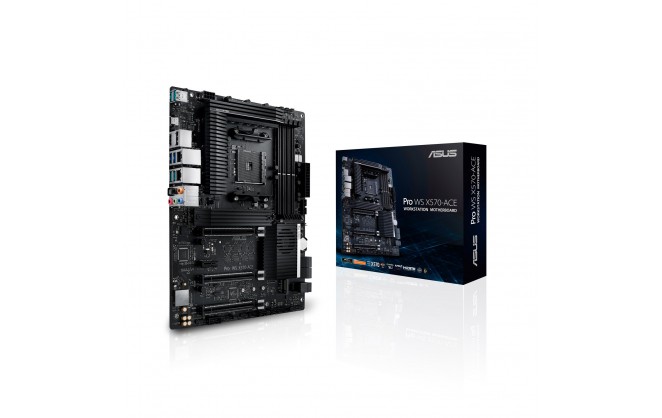

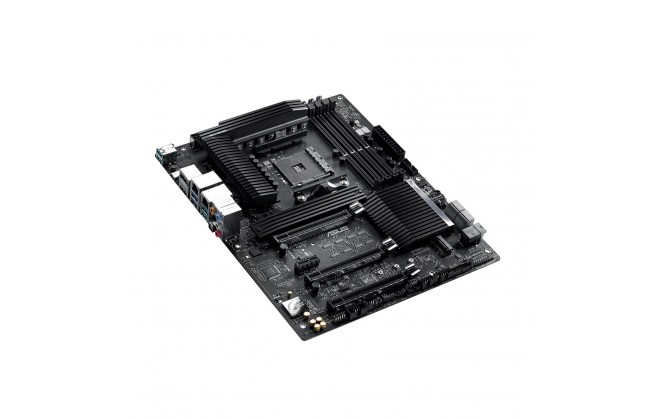

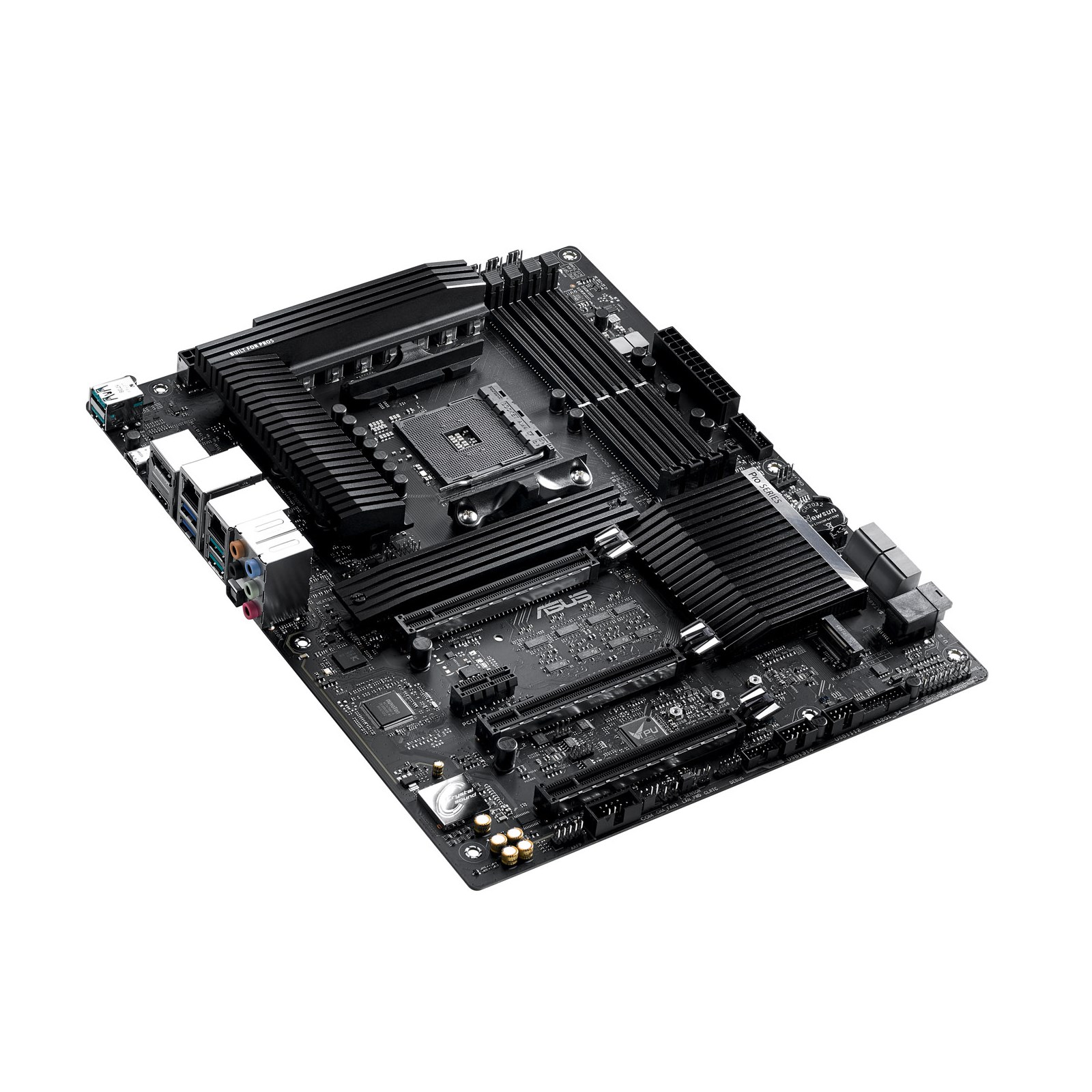

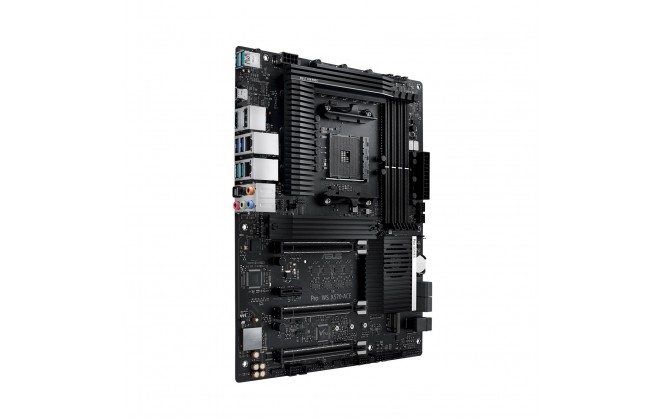

ASUS Pro WS X570-ACE AMD Socket AM4 Motherboard
CPU
| CPU Socket | Socket AM4 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| 64-bit Support | Yes |
| Socket | AM4 |
Rear Panel I/O Ports
| USB Ports | 1 x USB 3.1 Type-C 4 x USB 3.1 Type-A 2 x USB 3.0 |
| DisplayPorts | 1 x DisplayPort |
| HDMI Port | 1 x HDMI |
| RJ-45 Ports | 2 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 2 x USB 3.0 2 x USB 2.0 |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan 1 x CPU OPT fan 3 x Chassis fans 1 x AIO_PUMP 1 x PCH_FAN |
| S/PDIF Connectors | 1 x S/PDIF Out |
| Serial Connectors | 1 x COM |
| Power Connector Port | 1 x 20+4-pin ATX 1 x 4+4-pin EPS 1 x 4-pin EPS |
| Other Connectors | 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x M.2, Socket 3, M Key (Type 2242/2260/2280) 1 x U.2 |
Memory
| Memory Bus Speed | 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | AMD |
| Northbridge | X570 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 4.0 x16 (@ x16, x8/x8) 1 x PCI Express 4.0 x16 (@ x8) 1 x PCI Express 4.0 x1 |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek® S1220A |
Network
| Integrated Network | Realtek® RTL8117 Intel® I211-AT |
| Network Speeds Supported | 10/100/1000 Mbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Jumpers | 1 x Clear CMOS |
| SLi/Crossfire Features | Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology |
Physical
| Form Factor | ATX Motherboard |
| In The Box | ASUS Pro WS X570-ACE Motherboard User Manual I/O Shield 4 x SATA III Cables 1 x M.2 Screw Package 1 x Support DVD 1 x ASUS VGA Holder |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| RGB Header Type | None |
| Addressable RGB | No |
| Firewire | No |
| Wireless Network | No |
| Socket(s) | AM4 |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 7 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | Both |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 4 + 8-Pin |
| Motherboard Chipset | AMD X570 |
| Thunderbolt | No |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | None |
| Skip Audio Test | No |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90MB11M0-M0EAY0 |
| Alternative Part Number | Pro WS X570-ACE |
| EAN | 4718017322713 |
| Condition | New |
