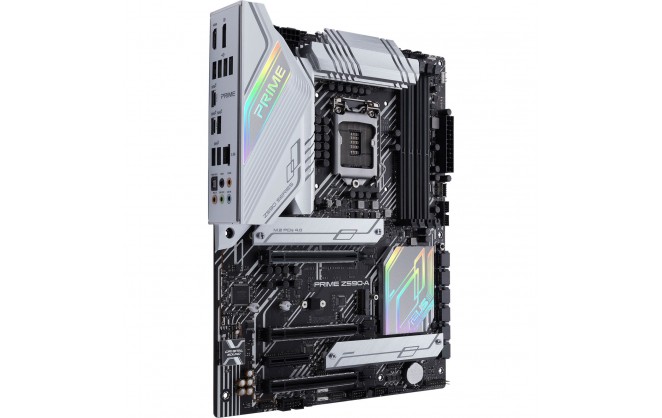

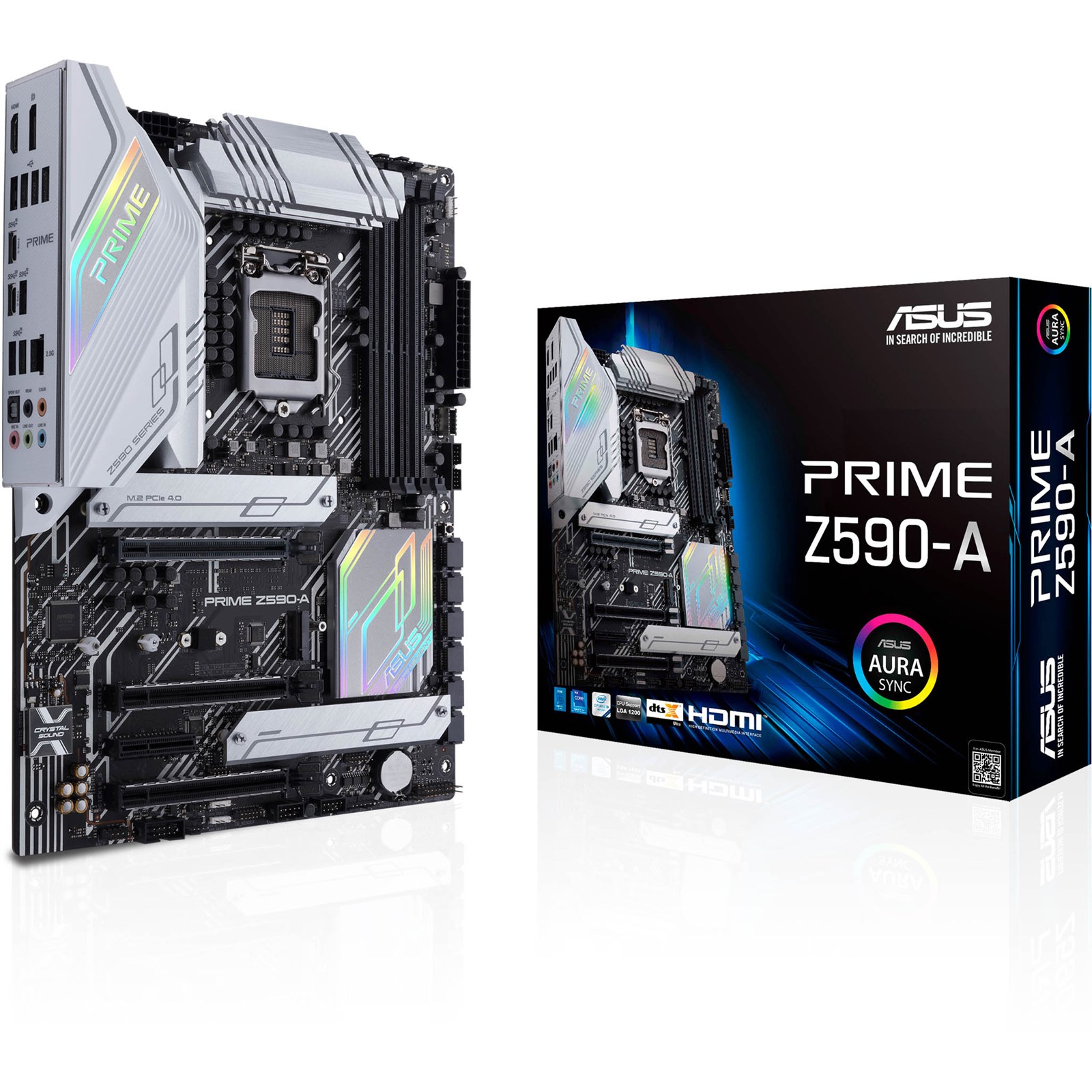

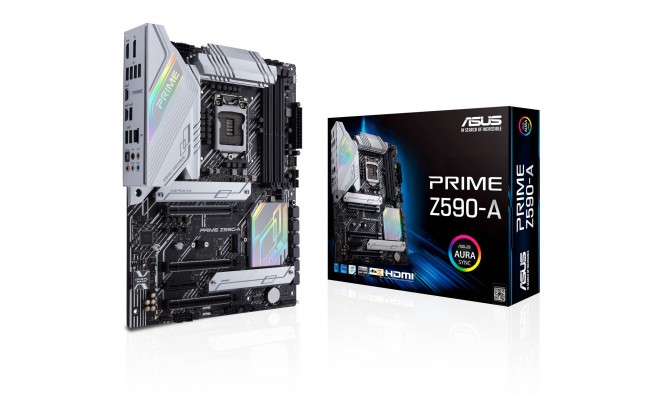

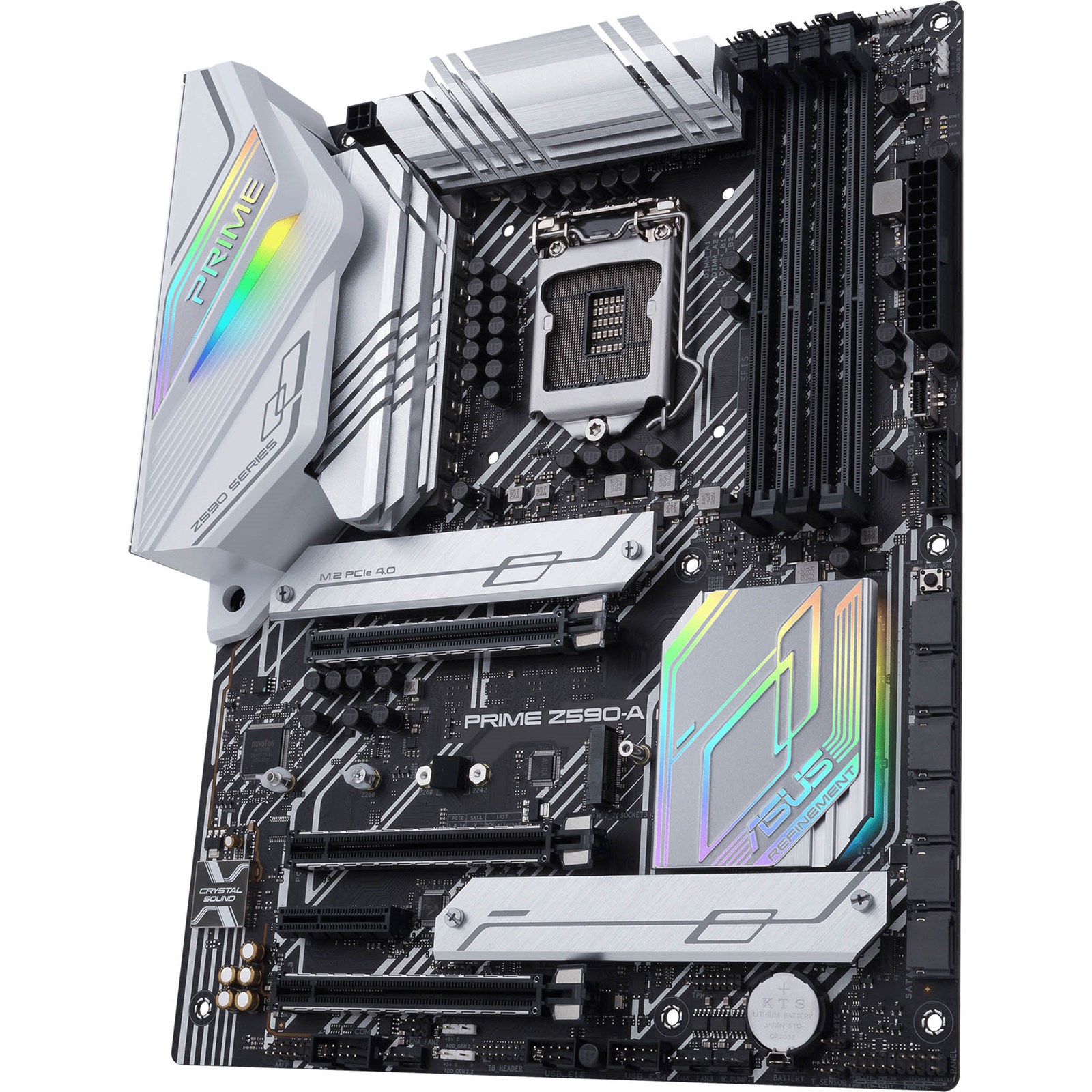

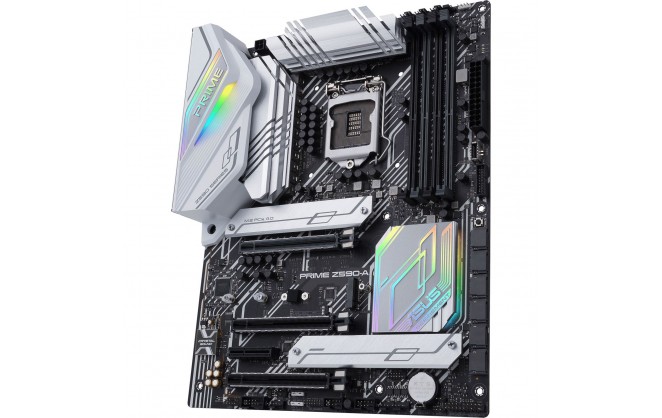

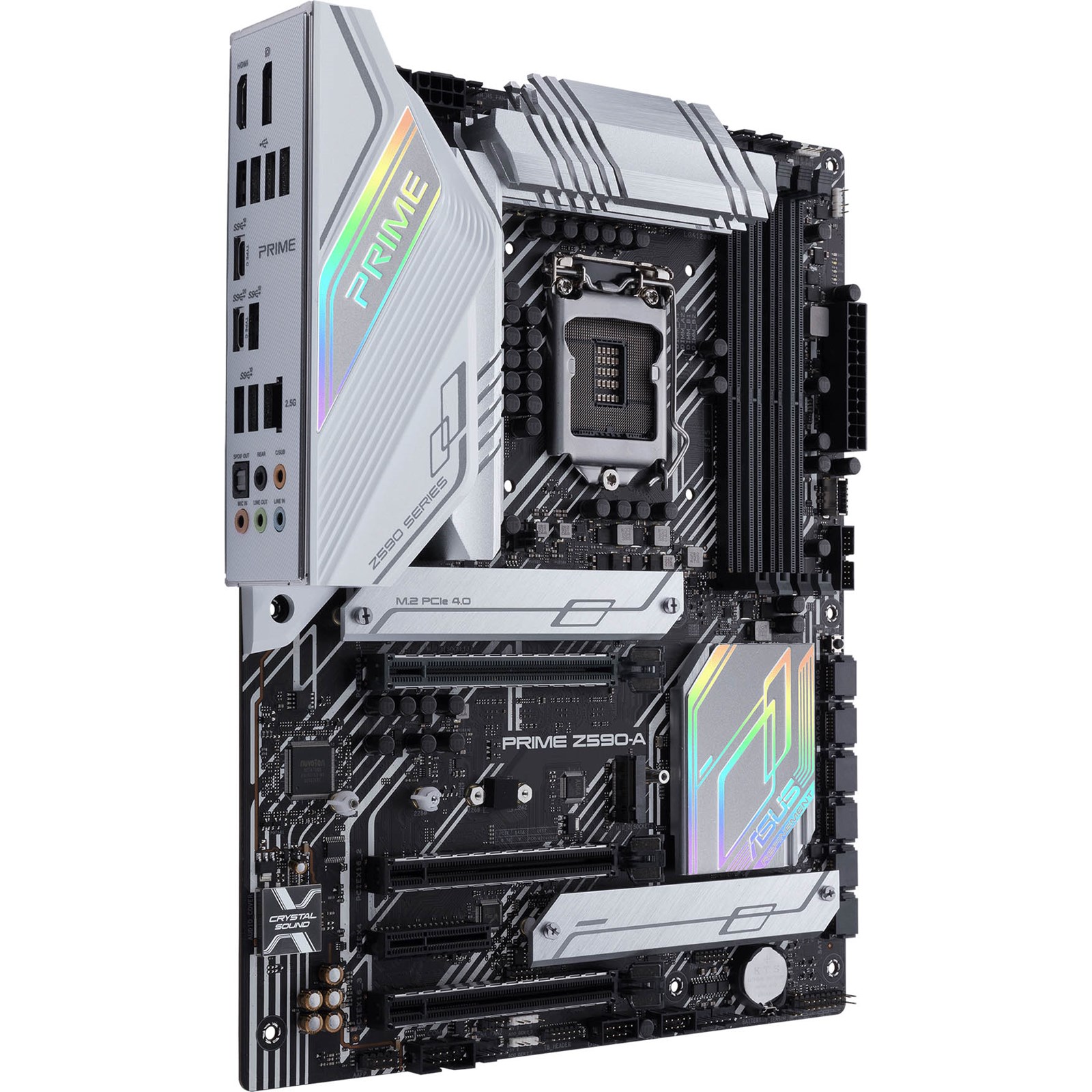

ASUS Prime Z590-A Intel Socket 1200 Motherboard

  • Part Number: 90MB16D0-M0EAY0
  • Manufacturer: ASUS
  • Quickfind Code: 135697
  • Stock: In Stock

£189.48 ex. vat
£227.38 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1200
  • Chipset Z590
  • Form Factor ATX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Main Features

  • Intel© LGA 1200 socket: Ready for 10th and 11th gen Intel© CoreT processors
  • Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • AI Overclocking: Optimizes CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
  • AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
  • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Comprehensive cooling: Large VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
  • Next-gen connectivity: PCIe 4.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support
Technical Specification

ASUS Prime Z590-A Intel Socket 1200 Motherboard

CPU

CPU SocketSocket 1200
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1200

Rear Panel I/O Ports

USB Ports1 x USB 3.2 Type-C
1 x USB 3.1 Type-C
3 x USB 3.1 Type-A
4 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.0
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports3 x 3.5mm Jacks
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors6 x SATA III
USB Connectors1 x USB 3.0 Type-C header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU OPT fan header
1 x AIO Pump header
3 x Chassis fan headers
1 x VRM_HS fan header
1 x W_PUMP+ header
Thunderbolt Port(s)1 x Thunderbolt header
Serial Connectors1 x COM header
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x SPI TPM header (14-1pin)
Power Connector Port1 x 20+4-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors2 x M.2 slots, Key M, Type 2242/2260/2280/22110)
1 x M.2 slot, Key M, Type 2242/2260/22110
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermal Sensor header

Memory

Memory Bus Speed5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Memory TypeDDR4
Maximum RAM128 GB
Memory Slot4 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeZ590
RAID SupportedYes
SATA SupportedYes

Expansion

Number of PCI Express Slots3 x PCI Express 4.0 x16
1 x PCI Express 3.0 x4

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek S1220A

Warranty

Warranty3 Years

Network

Integrated NetworkIntel I225-V
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANNo
BluetoothNo

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

BIOS256 Mb Flash ROM, UEFI AMI BIOS
Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorATX Motherboard
In The BoxPrime Z590-A Motherboard
3 x SATA Cables
2 x M.2 Rubber Packages
Q-Connector
Support DVD
User Manual
Width305 mm
Length244 mm

Key Features

On-board RGB ControlASUS Aura Sync
Memory Speed5133 MHz
RGB Header Type3-Pin ARGB
Addressable RGBYes
FirewireNo
Wireless NetworkNo
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports6 port(s)
Number of USB Ports9 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorATX
Motherboard Power Connectors4 + 8-Pin
Motherboard ChipsetIntel Z590
ThunderboltNo
Motherboard ModelASUS Prime Z590-A
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes

Item Details

ManufacturerASUS
Manufacturer Code90MB16D0-M0EAY0
Alternative Part NumberPRIME Z590-A
EAN4711081103868
ConditionNew
